SKU:

SPK33170

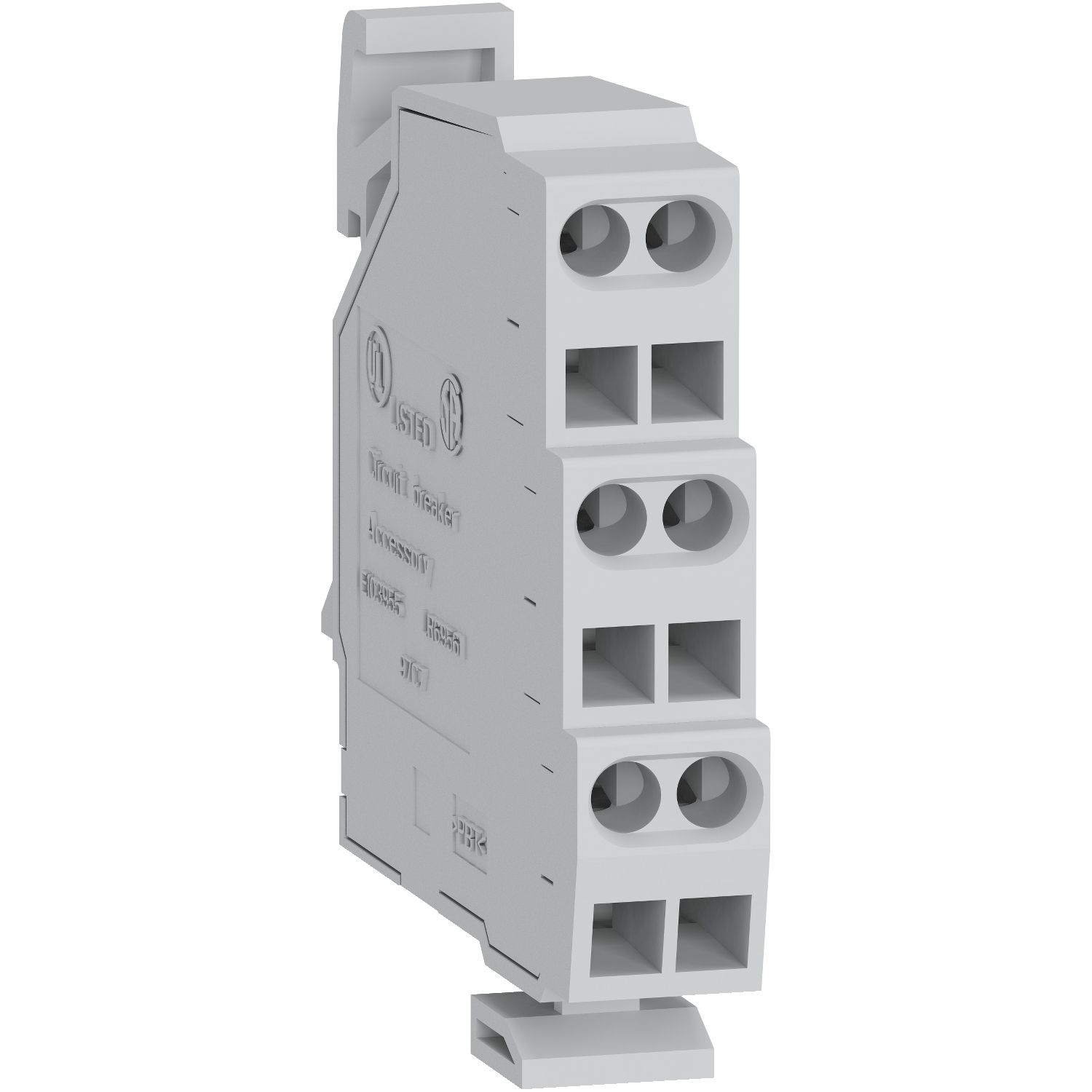

Auxiliary contact, MasterPact NW, MasterPact NT, operating mechanism, spare part, carriage switch, standard, 1 NO/NC

$245.28 INC GST

Qty:

Available for Shipping : 04-Feb-2026

Product Selector

Auxiliary contact, MasterPact NW, MasterPact NT, operating mechanism, spare part, carriage switch, standard, 1 NO/NC

6A - 240 V changeover contacts with connected, disconnected, test position (CE, CD, CT)

Manufacturer: Schneider Electric

Delivery date: 04-Feb-2026

Instruction sheet

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Signal contacts composition	1 NO/NC
Mounting location	operating mechanism
Device short name	carriage switch
Device application	monitoring
Product or component type	auxiliary contact
Range compatibility	MasterPact NT
Range of product	MasterPact NW
Complementary
Minimum load	100 mA at 24 V
Auxiliary contacts operation	disconnected position, test position, connected position
[Ie] rated operational current	DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC, AC-12: 8 A at 480 V AC 50/60 Hz, AC-12: 8 A at 380 V AC 50/60 Hz, AC-12: 8 A at 240 V AC 50/60 Hz, AC-12: 6 A at 690 V AC 50/60 Hz
Auxiliary contacts type	standard
Mounting mode	drawout
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15 cm
Package 1 Width	15 cm
Package 1 Length	19 cm
Package 1 Weight	100 g
