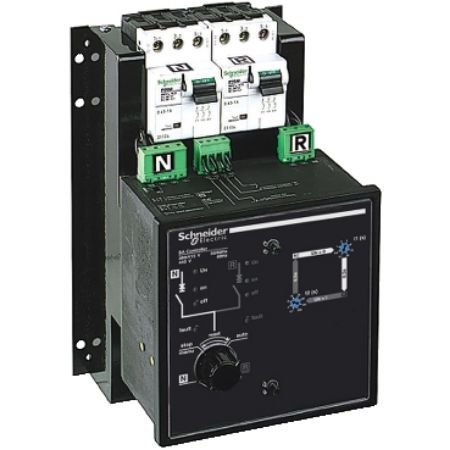

Picture of Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220VAC to 240VAC 50Hz to 60 Hz
SKU:

SPK29472

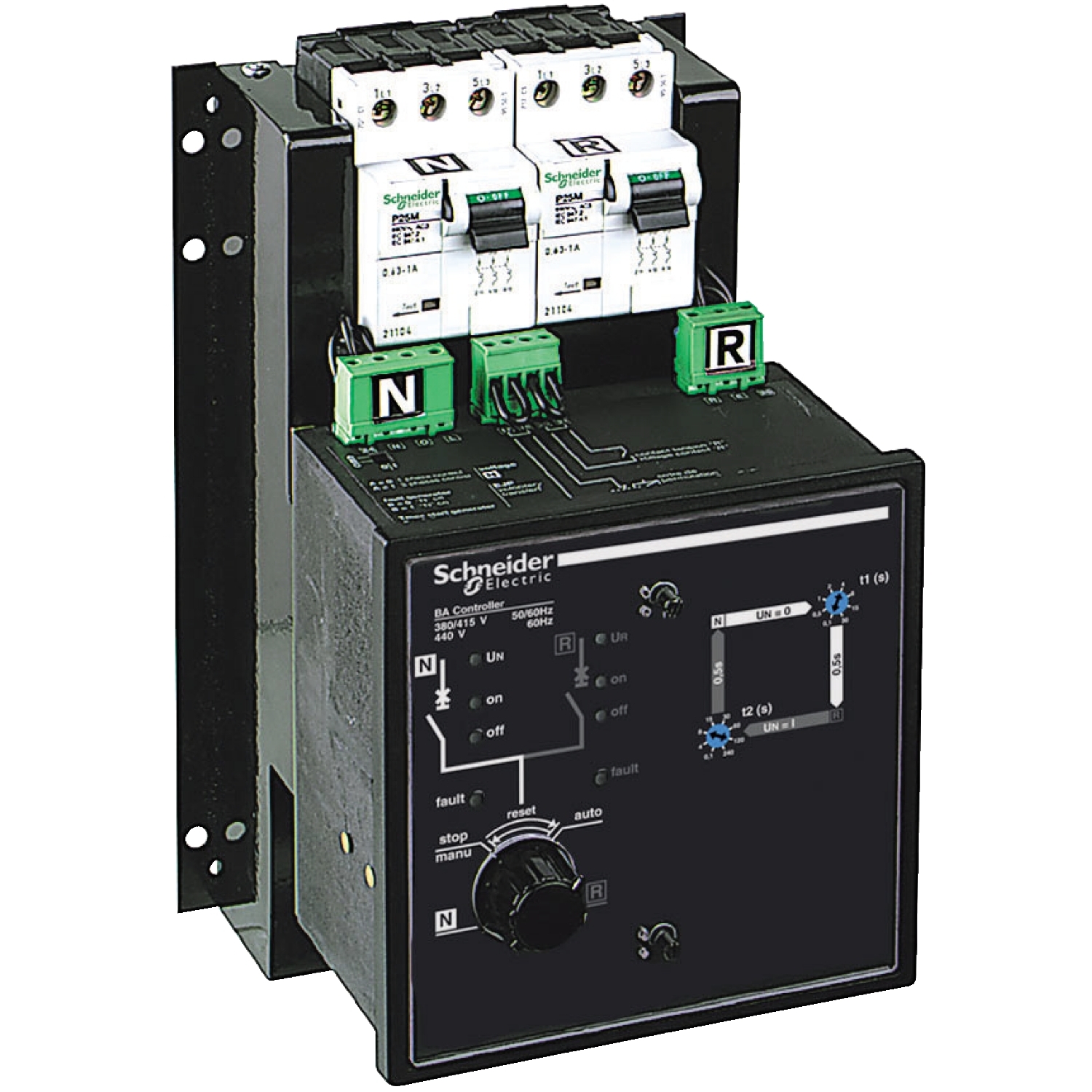

Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220VAC to 240VAC 50Hz to 60 Hz

$5,705.04 INC GST
Available for Shipping : 06-Jan-2026
Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220VAC to 240VAC 50Hz to 60 Hz
  • Automatic controller is OEM approved spare part
  • Designed for MasterPact NW and Masterpact NT
  • Complies with product warranty
  • ACP and controller UA 220VAC to 240VAC 50Hz to 60 Hz
  • After-sales replacement part for 29472
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 220...240 V AC at 50/60 Hz
Device short name ACP + UA
Range compatibility MasterPact NT
Mounting location external
Net weight 4.85 kg
Product or component type automatic controller
Accessory / separate part category interlocking accessory
Range of product MasterPact NW
Complementary
Local signalling fault trip, off, on
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code ACP+UA
[Ie] rated operational current DC-13: 2 A 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-13: 7 A AC 48 V, AC-13: 6 A AC 220/240 V, AC-15: 4 A AC 110 V, AC-14: 4 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Complementary function additional contact: transfer to replacement source only if contact is closed, setting of maximum startup time for the replacement source, selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, voluntary transfer to replacement source (e.g. energy management commands)
[Ith] conventional free air thermal current 8 A
Interlocked device MasterPact NT, MasterPact NW
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.1 cm
Package 1 Width 30.3 cm
Package 1 Length 38.5 cm
Package 1 Weight 4.85 kg
