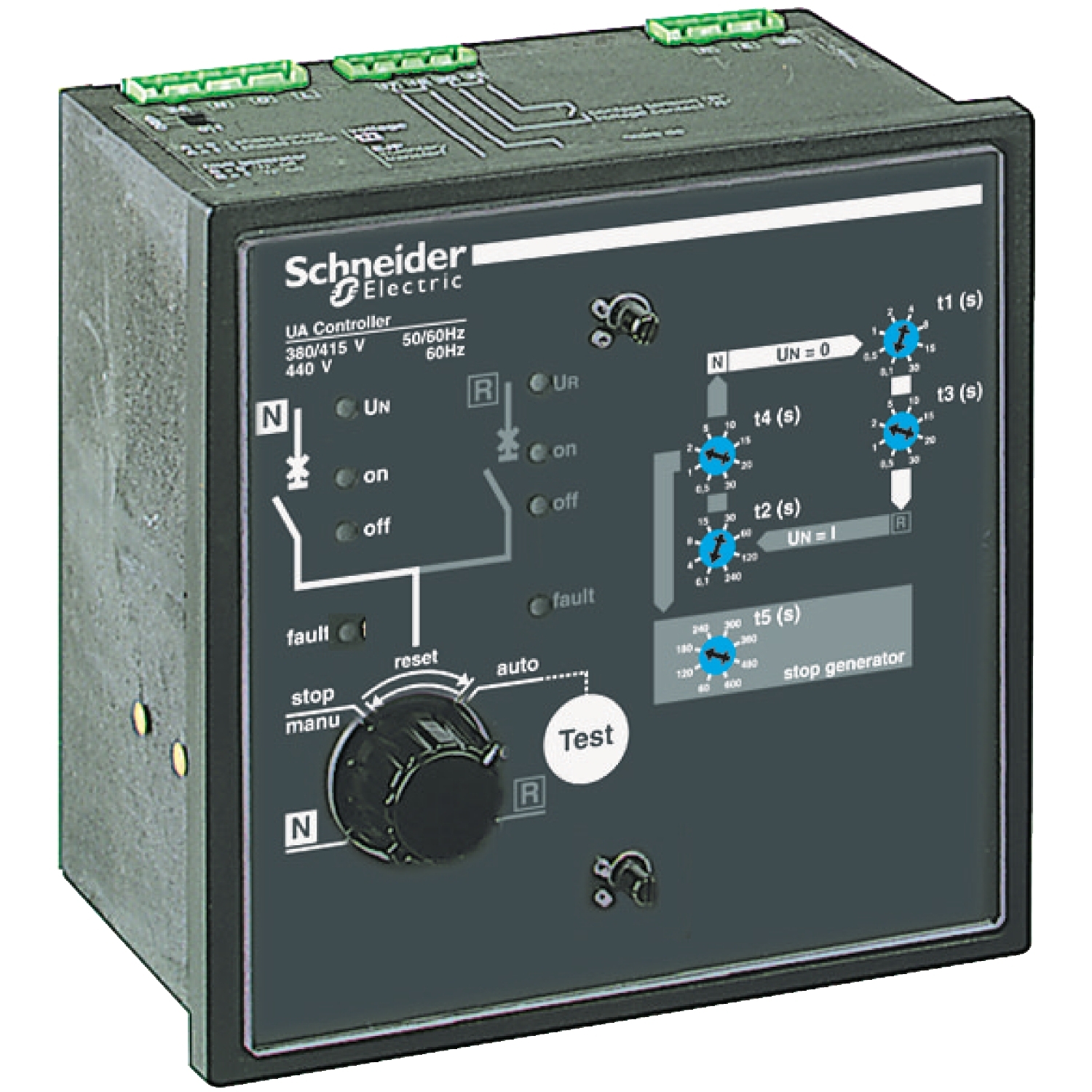

Picture of Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 380VAC to 415VAC 50Hz to 60Hz
SKU:

SPK29380

Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 380VAC to 415VAC 50Hz to 60Hz

$3,812.16 INC GST
Available for Shipping : 04-Feb-2026
Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 380VAC to 415VAC 50Hz to 60Hz
  • Automatic controller is OEM approved spare part
  • Designed for MasterPact NW and Masterpact NT
  • Complies with product warranty
  • Controller UA 380VAC to 415VAC 50Hz to 60Hz, 440VAC 60 Hz
  • After-sales replacement part for 29380
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Feb-2026
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Mounting location external
Device short name UA
Product name UA
Product or component type automatic controller
Range compatibility MasterPact NT
Range of product MasterPact NW
Complementary
[Us] rated supply voltage 380...415 V AC at 50/60 Hz
Genset exerciser adjustable delayed shutdown, startup control
Local signalling on, fault trip, off
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code UA
[Ie] rated operational current DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Complementary function selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, voluntary transfer to replacement source (e.g. energy management commands), setting of maximum startup time for the replacement source, additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Selection modes circuit breaker on R, circuit breaker on N
Output type contacts customer: indication of operation in automatic or stop mode
Interlocked device MasterPact NT, MasterPact NW
Environment
Net weight 1.65 kg
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16 cm
Package 1 Width 16 cm
Package 1 Length 18 cm
Package 1 Weight 1.65 kg
