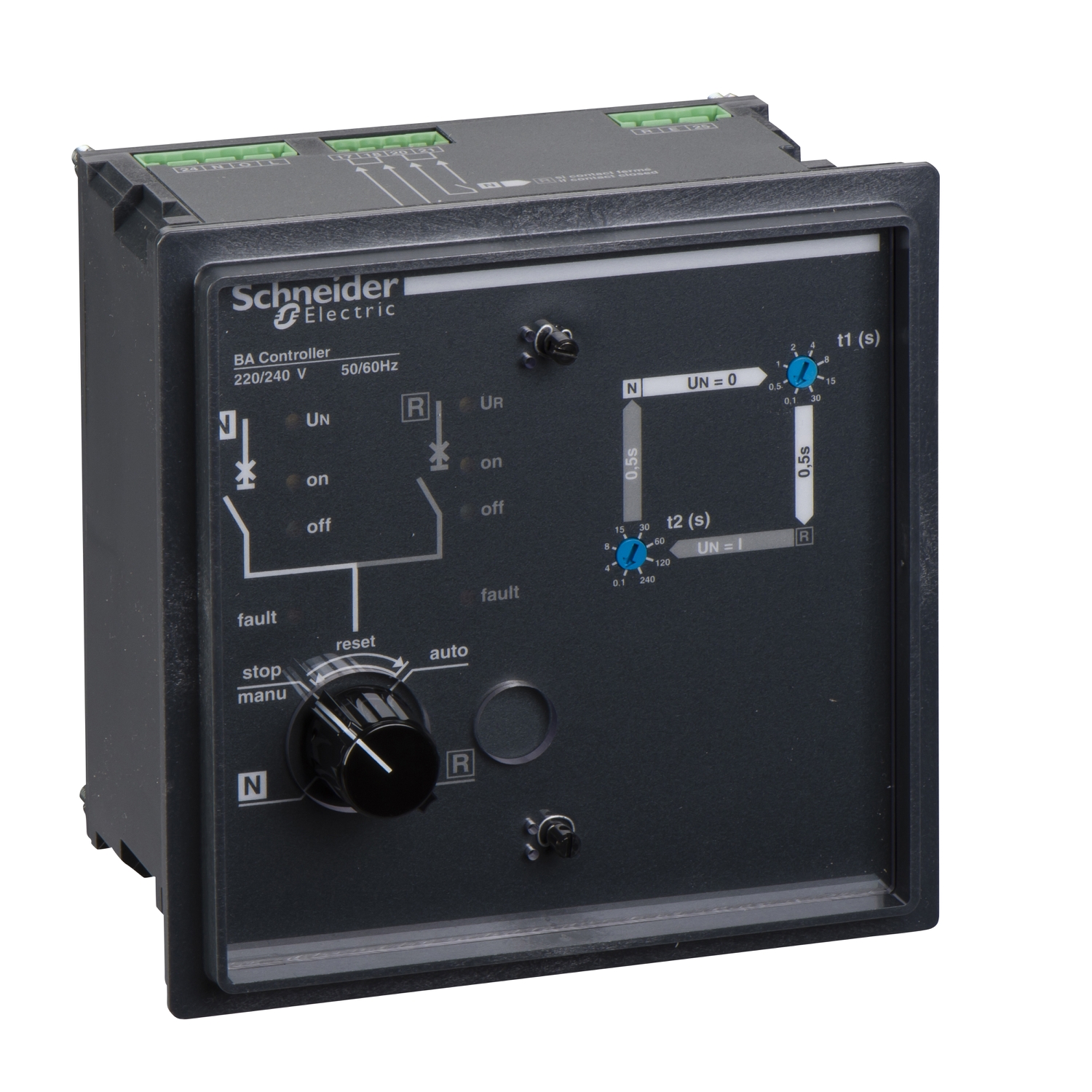

Picture of Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220V to 240V 50Hz to 60Hz
SKU:

SPK29376

Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220V to 240V 50Hz to 60Hz

$3,630.00 INC GST
Available for Shipping : 04-Feb-2026
Automatic controller, MasterPact NW, MasterPact NT, external, spare part, 220V to 240V 50Hz to 60Hz
  • Automatic controller is OEM approved spare part
  • Designed for MasterPact NW and Masterpact NT
  • Complies with product warranty
  • Controller BA 220V to 240V 50Hz to 60Hz
  • After-sales replacement part for 29376
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Feb-2026
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Mounting location external
Device short name BA
Product name BA
Product or component type automatic controller
Range compatibility MasterPact NT
Range of product MasterPact NW
Complementary
[Us] rated supply voltage 220...240 V AC at 50/60 Hz
Operating mode automatic operation, forced operation on replacement source, forced operation on normal source, stop (both normal and replacement source off)
Local signalling on, off, fault trip
Test function by opening the P25M circuit breaker supplying the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code BA
[Ie] rated operational current DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Complementary function voluntary transfer to replacement source (e.g. energy management commands), additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Interlocked device MasterPact NT, MasterPact NW
Environment
Net weight 1.3 kg
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 15.5 cm
Package 1 Length 18 cm
Package 1 Weight 1.27 kg
