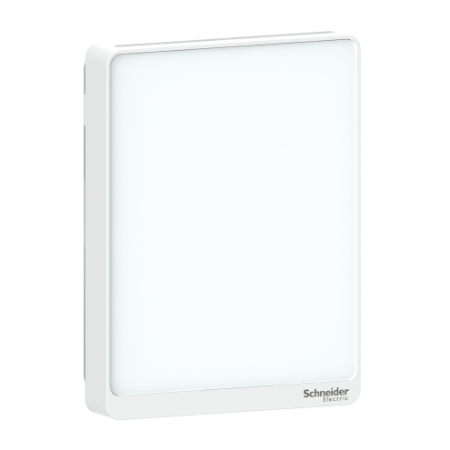

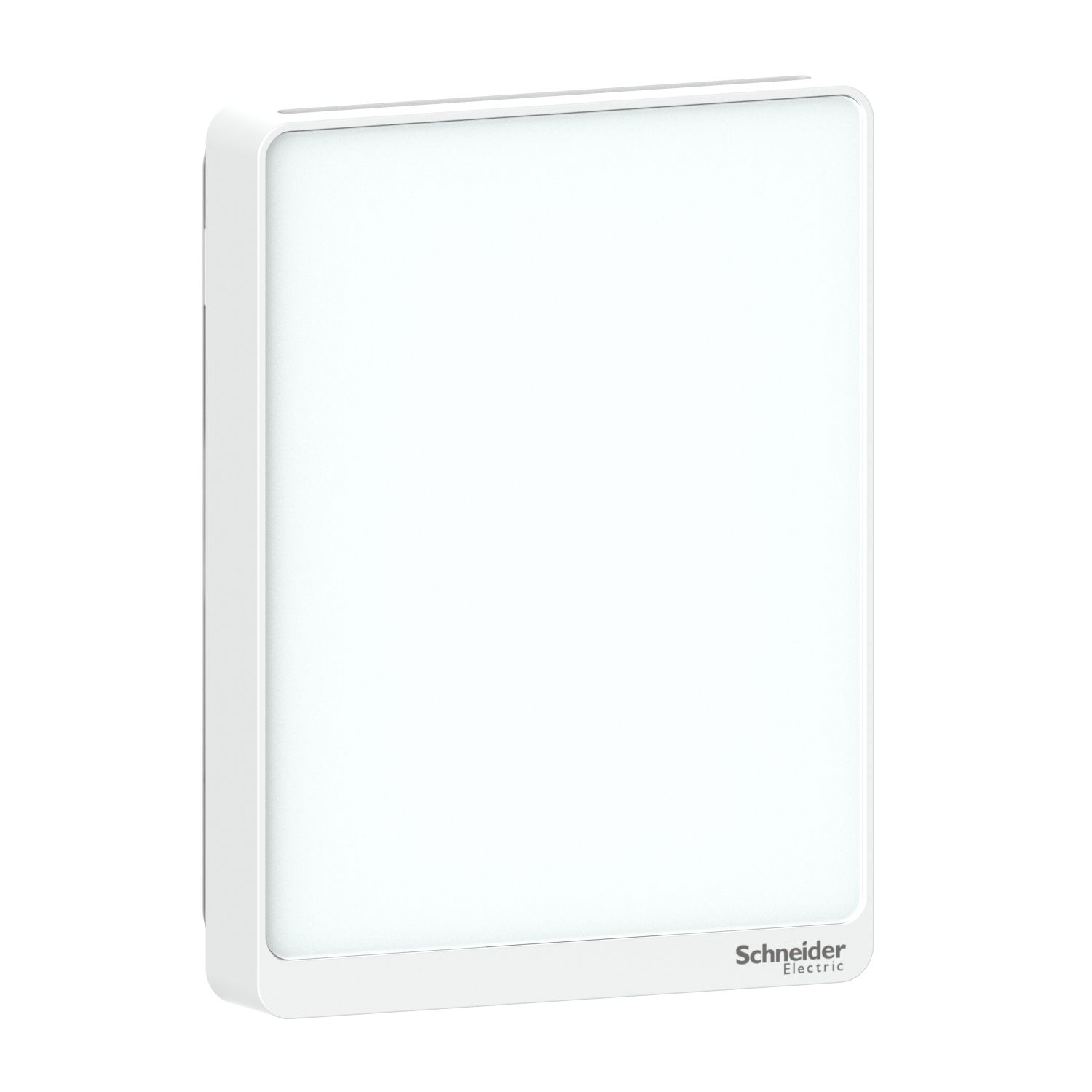

Picture of SpaceLogic SLA Series Temperature Sensor, Blank Cover, BACnet MSTP/Modbus Outputs, Optimum White Housing
SKU:

SLPWXXX

SpaceLogic SLA Series Temperature Sensor, Blank Cover, BACnet MSTP/Modbus Outputs, Optimum White Housing

$275.65
Available for Shipping : 08-Jan-2025
SpaceLogic SLA Series Temperature Sensor, Blank Cover, BACnet MSTP/Modbus Outputs, Optimum White Housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface
  • Easy to install large wiring terminals
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic SLP Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device application fan speed controller, temperature control, HVAC
Depth 23.7 mm
Colour white
Width 115 mm
Sensor type transmitter
Relative humidity 0-95 %
Function available with temperature sensor
Range SpaceLogic
Location living space
Product name SpaceLogic Room Unit
Ambient air temperature for operation 0-50 °C
Product or component type sensor
Type of measurement temperature
Surface finish glossy
Standards FCC part 15 class B, UL 916
Mounting support wall-mount
Height 85 mm
Network frequency 60 Hz, 50 Hz
Complementary
Measurement accuracy typical +/- 0.2 %
Material ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage 20...30 V DC, 24 V AC 50...60 Hz
Device presentation complete product
Connections - terminals screw terminal - 2 cable(s) (AWG 24...AWG 18)
Display type without display
Communication port protocol Modbus, BACnet
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Communication port support RS485
Environment
Temperature setting range 0-50 °C, 10-35 °C
Product certifications cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
Measurement range 0...50 °C temperature
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.67 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
