SKU:

SLPWTCX

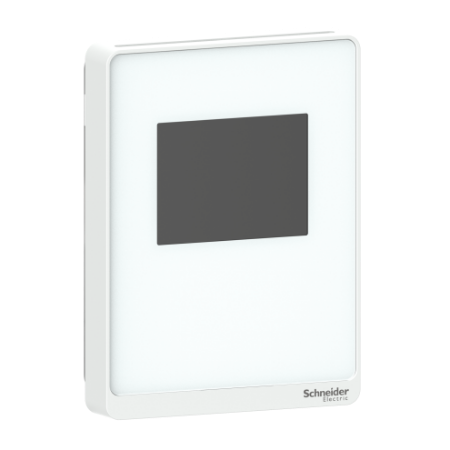

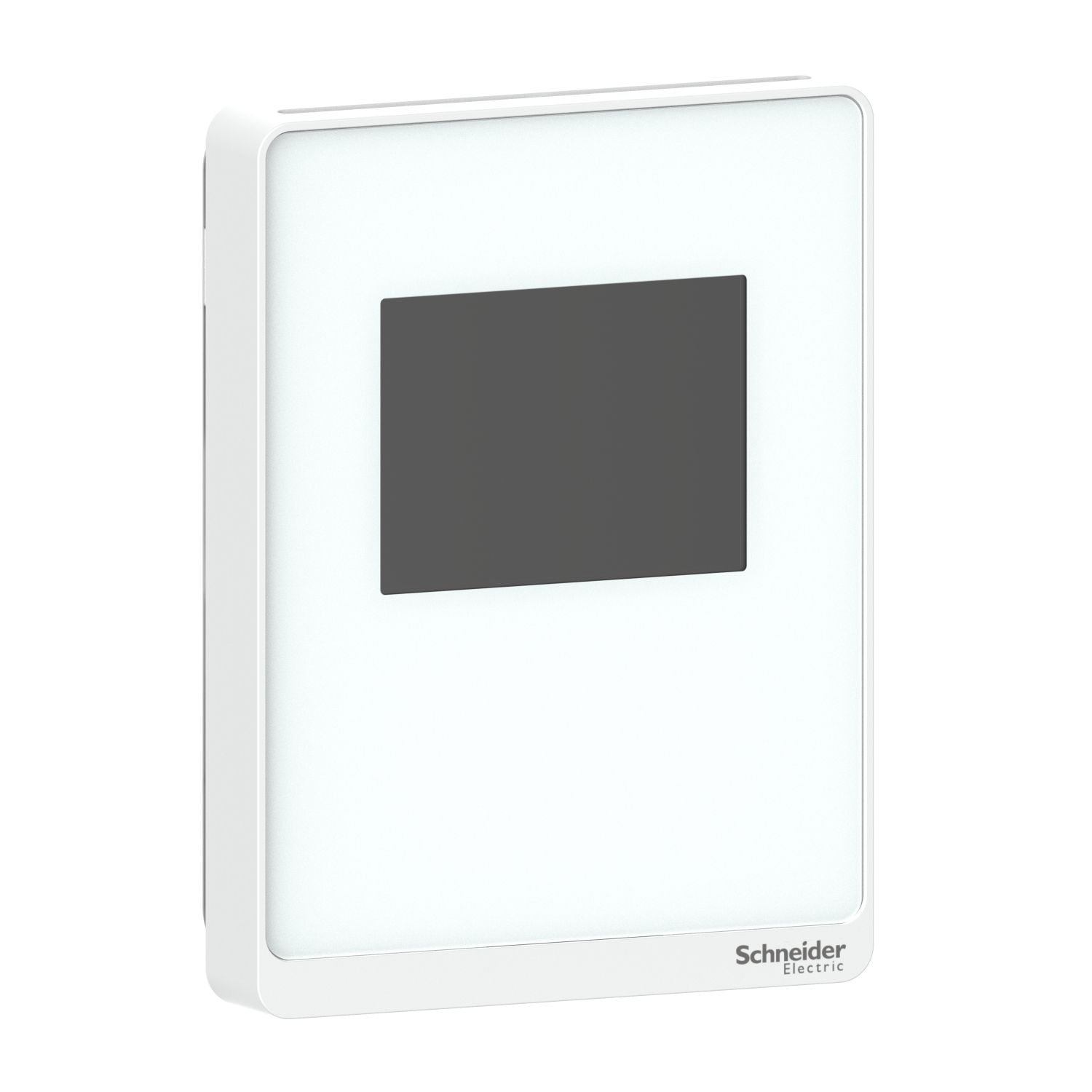

Sensor, SpaceLogic SLP Series, air quality, CO2, temperature, room, color touchscreen, BACnet MSTP/Modbus, optimum white housing

$1,039.00
Available for Shipping : 03-Dec-2024
Sensor, SpaceLogic SLP Series, air quality, CO2, temperature, room, color touchscreen, BACnet MSTP/Modbus, optimum white housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface with visual CO2 indication
  • Easy to replace RH module
  • Easy to install large wiring terminals
Manufacturer: Schneider Electric
The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device application fan speed controller, temperature control, HVAC
Depth 23.7 mm
Colour white
Display type colour touchscreen
Width 115 mm
Sensor type NDIR (non-dispersive infrared), transmitter
Display size 2.4 inch
Communication port protocol Modbus, BACnet
Device presentation complete product
Range SpaceLogic
Location living space
Product name SpaceLogic Room Unit
Product or component type sensor
Display resolution 240 x 300 pixels
Type of measurement temperature, carbon dioxide (CO2)
Surface finish glossy
Product certifications cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
Standards FCC part 15 class B, UL 916
Mounting support wall-mount
Ambient air temperature for operation 0-50 °C
Height 85 mm
[Us] rated supply voltage 20...30 V DC, 24 V AC
Information displayed CO2, menu-driven user interface, temperature set point, temperature
Network frequency 60 Hz, 50 Hz
Complementary
Material ABS (acrylonitrile butadiene-styrene)
Control type tactile
Function available with CO2 sensor, with temperature sensor
Connections - terminals screw terminal - 2 cable(s) (AWG 24...AWG 18)
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Repeat accuracy +/- 20 ppm
Environment
Temperature setting range 0-50 °C, 10-35 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.67 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
