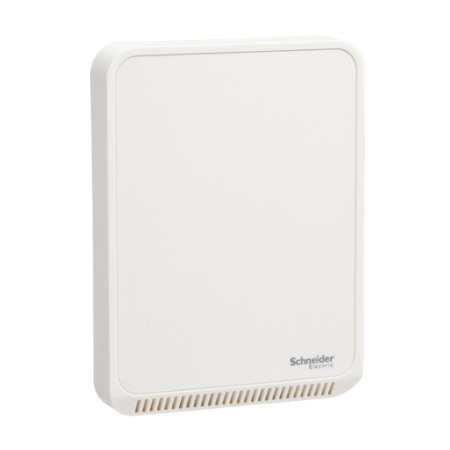

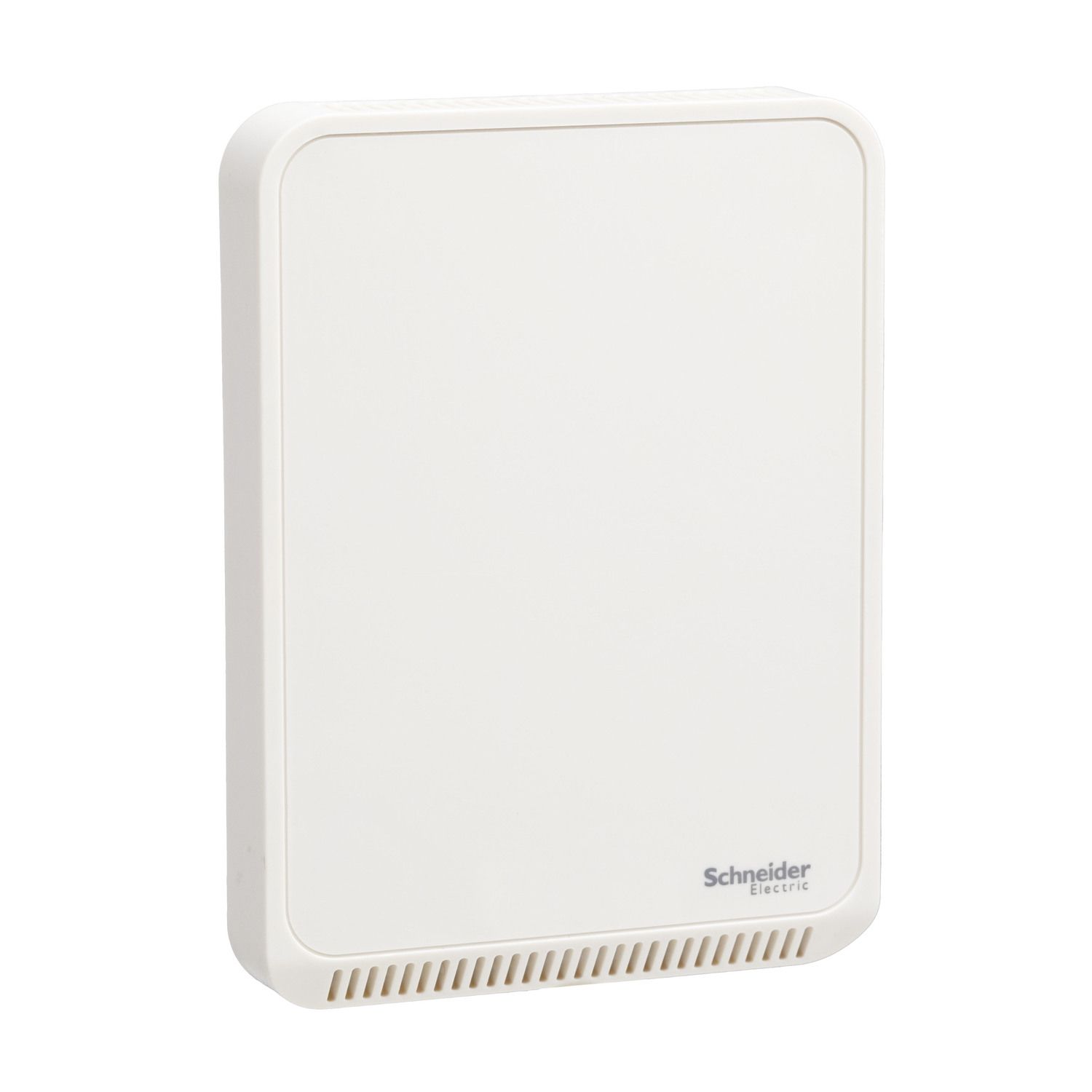

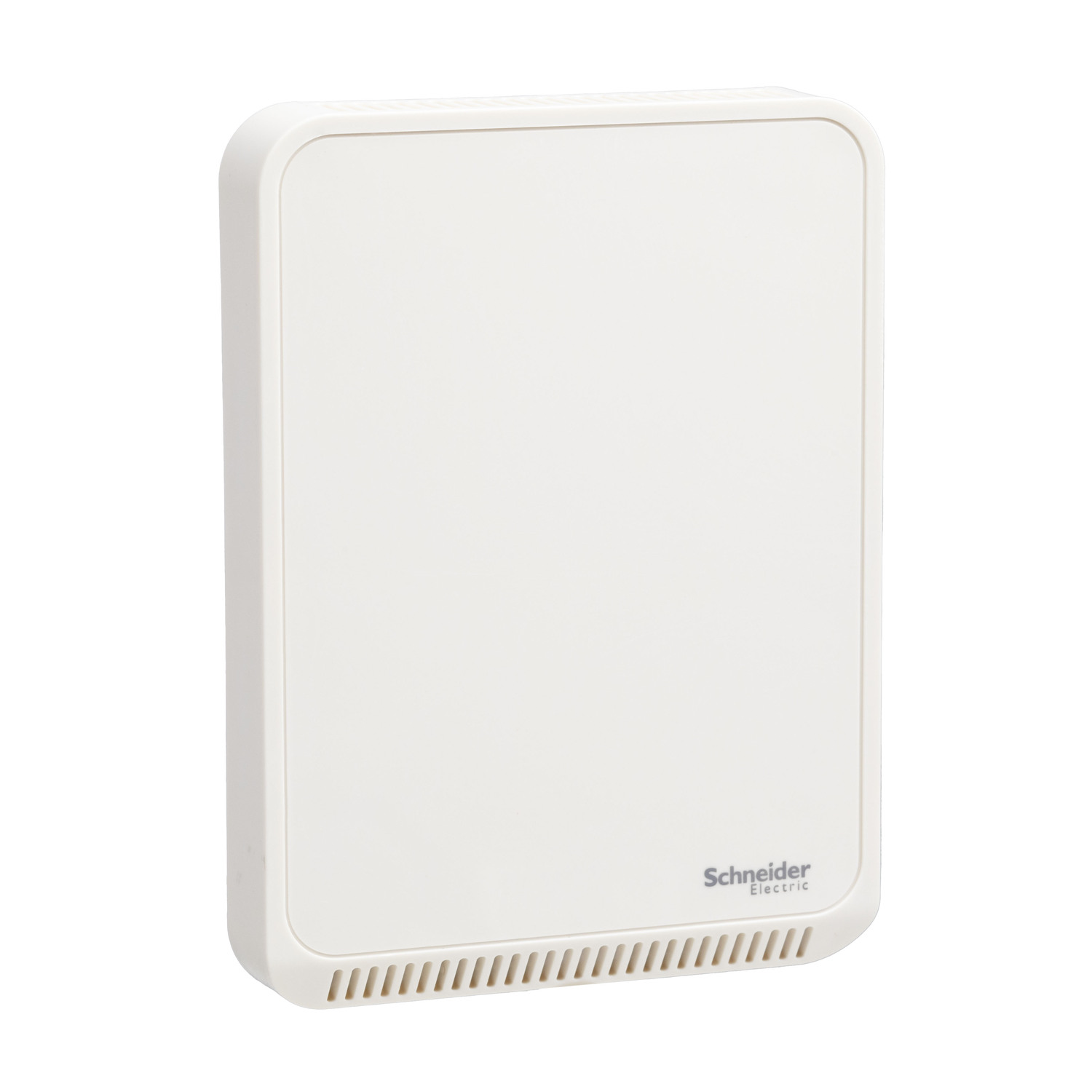

Picture of Sensor, SpaceLogic SLP Series, air quality, CO2, humidity, temperature, room, BACnet MSTP/Modbus, matte white housing
SKU:

SLPSXC2

Sensor, SpaceLogic SLP Series, air quality, CO2, humidity, temperature, room, BACnet MSTP/Modbus, matte white housing

$826.96 INC GST
Available for Shipping : 21-Jan-2025
Sensor, SpaceLogic SLP Series, air quality, CO2, humidity, temperature, room, BACnet MSTP/Modbus, matte white housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface with visual CO2 indication
  • Easy to replace RH module
  • Easy to install large wiring terminals
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Product environmental
Instruction sheet
Catalogue
End of life manual
Product Page Link
Product Data Sheet
The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature, humidity and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device application fan speed controller, temperature control, HVAC
Depth 24 mm
Colour white
Display type without display
Width 115 mm
Sensor type thin-film capacitive, NDIR (non-dispersive infrared), transmitter
Product specific application humidity control
Communication port protocol Modbus, BACnet
Device presentation complete product
Range SpaceLogic
Location living space
Product name SpaceLogic Room Unit
Product or component type sensor
Type of measurement temperature, humidity, carbon dioxide (CO2)
Surface finish matt
Product certifications cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
Standards FCC part 15 class B, UL 916
Mounting support wall-mount
Calibration certificate humidity: replaceable RH element available in 1% & 2% with NIST
Ambient air temperature for operation 0-50 °C
Height 85 mm
[Us] rated supply voltage 20...30 V DC, 24 V AC
Network frequency 60 Hz, 50 Hz
Complementary
Material ABS (acrylonitrile butadiene-styrene)
Function available with humidity sensor, with CO2 sensor, with temperature sensor
Connections - terminals screw terminal - 2 cable(s) (AWG 24...AWG 18)
Hysteresis 1.5 %
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Repeat accuracy +/- 20 ppm
Environment
Temperature setting range 0-50 °C, 10-35 °C
Humidity setting range 0-100 %
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.67 cm
Package 1 Length 14.0 cm
Package 1 Weight 181.82 g
