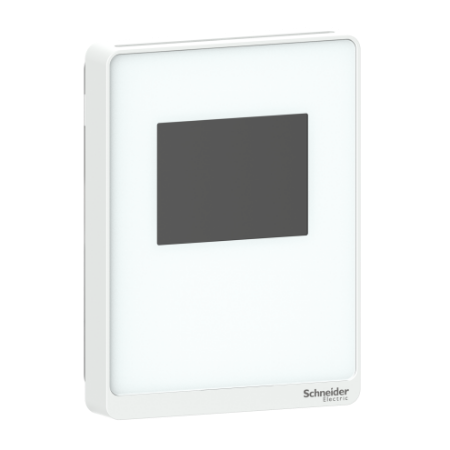

Picture of SpaceLogic SLA Series Temperature Sensor, Room, Resistive, 10K T3, Optimum White Housing
SKU:

SLAWTXX

SpaceLogic SLA Series Temperature Sensor, Room, Resistive, 10K T3, Optimum White Housing

$448.63 INC GST
Available for Shipping : 28-Jan-2025
SpaceLogic SLA Series Temperature Sensor, Room, Resistive, 10K T3, Optimum White Housing
  • State-of-the-art technology to ensure reliability and accuracy
  • Flexible Multi-sensing platform
  • Contemporary aesthetic to easily blend with a variety of spaces.
  • User Interface
  • Easy to install large wiring terminals
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Product environmental
Catalogue
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a 10K Type 3 Thermistor element. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device application fan speed controller, temperature control, HVAC
Depth 23.7 mm
Colour white
Output type analog
Width 115 mm
Sensor type transmitter
Relative humidity 0-95 %
Display size 2.4 inch
Function available with temperature sensor
Range SpaceLogic
Location living space
Product name SpaceLogic Room Unit
Ambient air temperature for operation 0-50 °C
Product or component type sensor
Type of measurement temperature
Surface finish glossy
Standards FCC part 15 class B, UL 916
Mounting support wall-mount
Height 85 mm
Network frequency 60 Hz, 50 Hz
Complementary
Measurement accuracy typical +/- 0.2 %
Material ABS (acrylonitrile butadiene-styrene)
Control type tactile
[Us] rated supply voltage 20...30 V DC, 24 V AC 50...60 Hz
Device presentation complete product
Connections - terminals screw terminal - 2 cable(s) (AWG 24...AWG 18)
Display type colour touchscreen - 240 x 300 pixels
Communication port protocol -
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Information displayed menu-driven user interface, temperature set point, temperature
Communication network type wired
Environment
Temperature setting range 0-50 °C, 10-35 °C
Product certifications cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2
Measurement range 0...50 °C temperature
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 9.1 cm
Package 1 Length 12.5 cm
Package 1 Weight 181.82 g
