SKU:

SE8650U0B00

Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, Silver Case/Fascia

$1,439.57 INC GST

Qty:

Available for Shipping : 03-Feb-2026

Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, Silver Case/Fascia

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 03-Feb-2026

User guide

Instruction sheet

Declaration of conformity

Brochure

Environmental Disclosure

Circularity Profile

Catalog

Product Page Link

Product Data Sheet

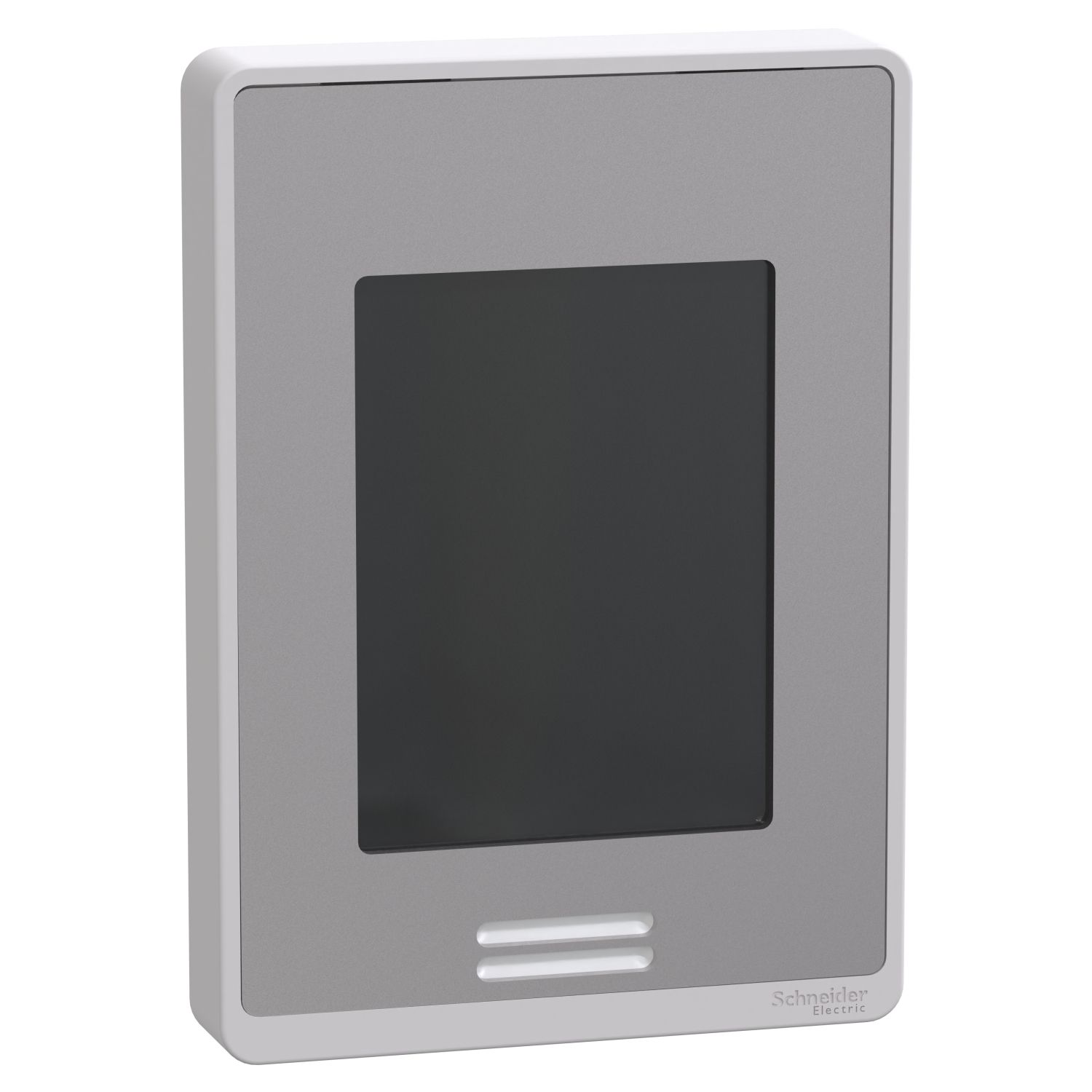

This SE8650 Roof Top Unit, heat pump and Inddor Air Quality room controller. With touch color screen. Silver Fascia & Casing. BACnet communication to connect with BMS.

Products specifications

Attribute name	Attribute value
Main
Device short name	SE8600
Device application	staging equipment (RTU/HP)
Depth	25 mm
Temperature resolution	0.1 °C
Humidity setting range	30-95 %
Market segment	school, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel
Width	86 mm
Temperature setting range	4.5-32 °C heating, 12-37.5 °C cooling
Sensor type	bulk polymer humidity, space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity	0-75 %
Input voltage	0...10 V
Output current	1.5 A universal output (inrush), 0.3 A universal output, 3 A relay output (inrush), 1 A relay output
Ambient air temperature for storage	-30-50 °C
AWG gauge	AWG 22...AWG 18
Directives	2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocol	Modbus RTU, BACnet MS/TP
Input type	5 x analog, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	340 g
Product name	SE8000 Series
Humidity measurement drift	less than 1 % yearly
Output type	4 xuniversal, 5 xrelay output
Product or component type	roof top unit
Targeted region	North America.
Output voltage	0...10 V AC/DC for voltage output, 24 V AC/DC for relay output
Standards	ETSI EN 301 489-17:v2.2.1, 2012, UL 60730-2-9, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328, ICES-003, FCC part 15 Subpart B, EN/IEC 60730-1
Calibration certificate	1 pt
Ambient air temperature for operation	0-50 °C
Height	120 mm
Housing colour	silver
Complementary
Surface treatment	untreated
Surface finish	matt

Economizer	No
PIR cover	No
Humidity control	Yes
Scheduling	Yes
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.6 cm
Package 1 Width	10.8 cm
Package 1 Length	5 cm
Package 1 Weight	240 g
