SKU:

SE8350U5B00P

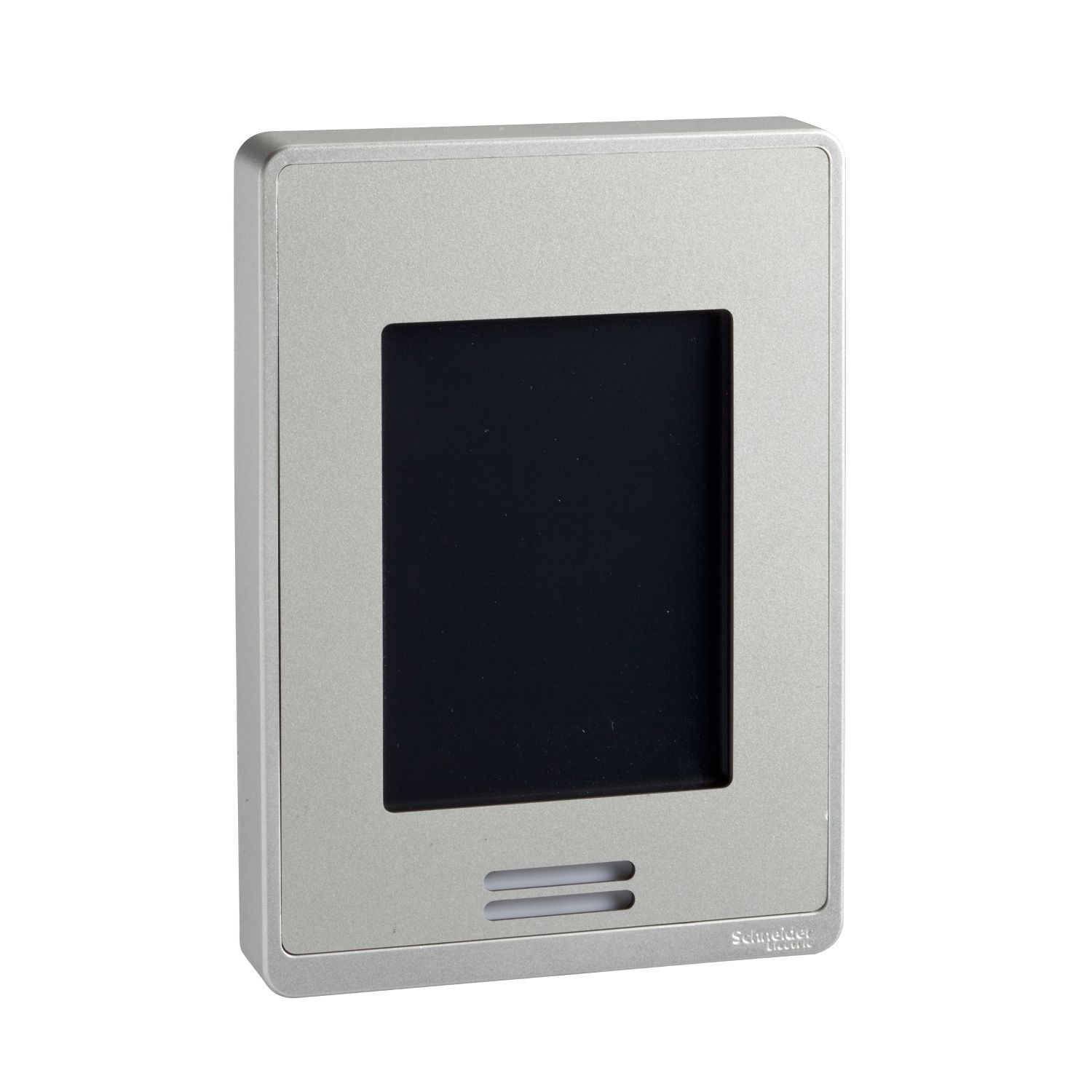

Low-Voltage Fan Coil Room Controller &amp, Zone Controller: BACnet MS/TP, ZigBee Embedded, RH sensor, IP ready, PIR motion sensor, Silver Case/Fascia

$1,740.00 INC GST

Qty:

Available for Shipping : 13-Feb-2025

Low-Voltage Fan Coil Room Controller &, Zone Controller: BACnet MS/TP, ZigBee Embedded, RH sensor, IP ready, PIR motion sensor, Silver Case/Fascia

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Instruction sheet

Brochure

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

Low-Voltage Fan Coil Room Controller &, Zone Controller: BACnet MS/TP, ZigBee Embedded, RH sensor, IP ready, PIR motion sensor, Silver Case/Fascia

Products specifications

Attribute name	Attribute value
Main
Device short name	SE8300
Device application	low voltage fan coil
Depth	25 mm
Temperature resolution	0.1 °C
Humidity setting range	30-95 %
Market segment	school, residential, office, non-critical buildings, healthcare, buildings, small commercial, lodging/hotel
Width	86 mm
[In] rated current	4 A
Temperature setting range	4.5-32 °C heating, 12-37.5 °C cooling
Sensor type	bulk polymer humidity, space RH sensor humidity, 10 kOhm T2 NTC thermistor temperature
Relative humidity	0-95 %
Input voltage	0...10 V DC
Output current	1.5 A universal output (inrush), 0.3 A universal output, 3 A relay output (inrush), 1 A relay output
Ambient air temperature for storage	-30-50 °C
AWG gauge	AWG 24...AWG 18
Directives	2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Communication port protocol	Zigbee Pro, Modbus RTU, BACnet MS/TP
Input type	5 x analog, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	340 g
Product name	SE8000 Series
Humidity measurement drift	less than 1 % yearly
Output type	4 xuniversal, 5 xrelay output
Product or component type	room controller
Output voltage	0...10 V DC for analog output, 24 V AC for relay output
Standards	RSS 247, ETSI EN 301 489-17:v2.2.1, 2012, FCC part 15 Subpart C, ETSI EN 301 489-1:v1.9.2, ETSI EN 300 328:v2.1.1, FCC part 15 Subpart B, ICES-003, UL 60730-2-13, UL 60730-2-9, CSA E60730-2-9, EN/IEC 60730-2-13, EN/IEC 60730-2-9, EN/IEC 60730-1
Calibration certificate	1 pt
Ambient air temperature for operation	0-50 °C
Height	120 mm
Housing colour	silver
Complementary
Surface treatment	untreated
Surface finish	matt

Economizer	No
PIR cover	Yes
Humidity control	Yes
Scheduling	No
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.6 cm
Package 1 Width	12.0 cm
Package 1 Length	2.5 cm
Package 1 Weight	245.0 g
