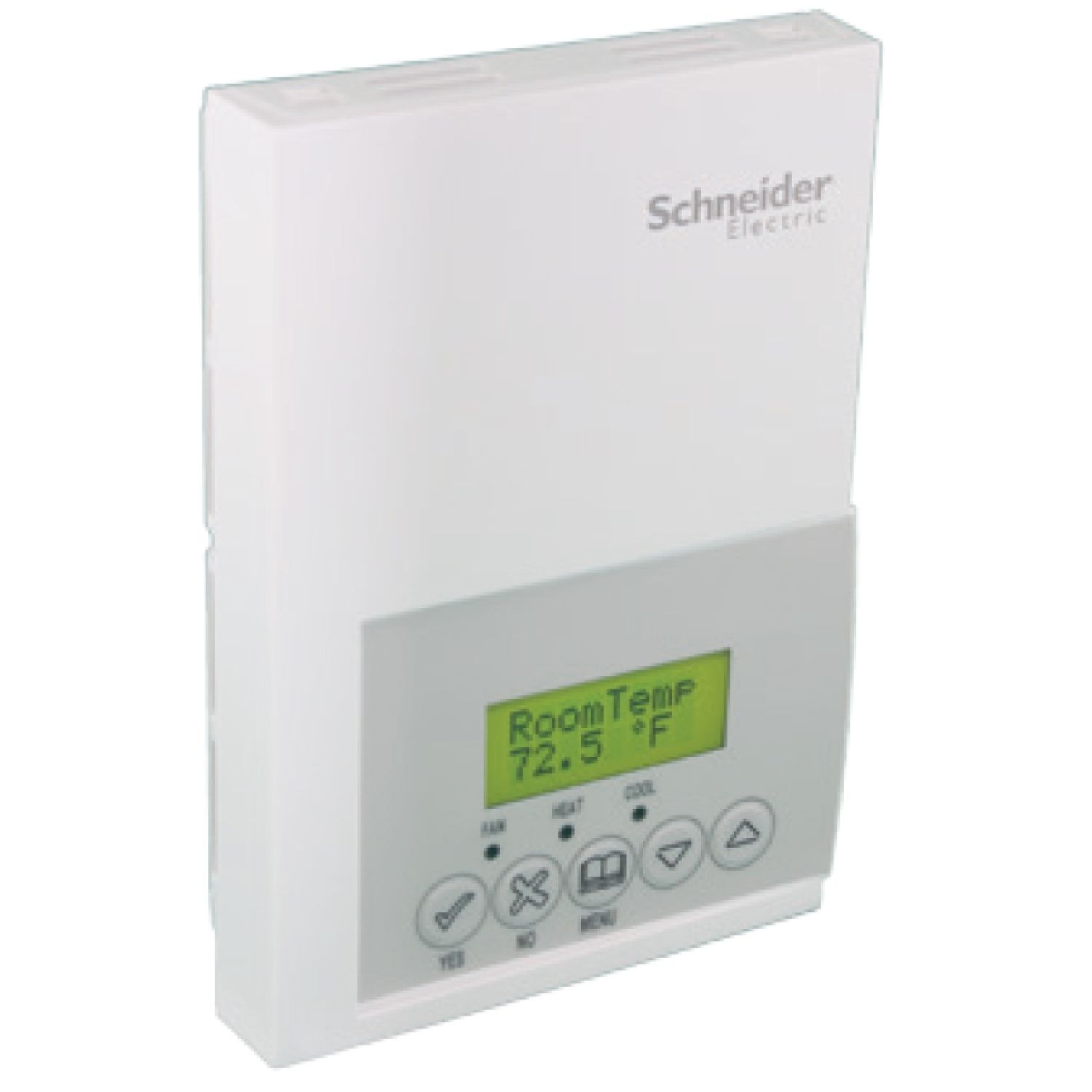

Picture of Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling
SKU:

SE7652H5045B

Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling

$1,242.23 INC GST
Available for Shipping : 31-Aug-2026
Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 31-Aug-2026
Brochure
Environmental Disclosure
User guide
Circularity Profile
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
Heat Pump Controller: BACnet MS/TP, 3H/2C, Local scheduling

Products specifications

Attribute name Attribute value
Main
Device short name SE7600H
Device application staging equipment (RTU/HP), low voltage heat pump
Depth 1.18 in
Humidity setting range dehumidification: 30-95 %
Market segment residential
Width 3.42 in
Temperature setting range 54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating
Relative humidity 0-95 % RH, non-condensing
Sensor type bulk polymer, 10 kOhm T2 NTC thermistor
Product specific application 2-stage cooling, 3-stage heating
Output current <= 5 mA at 0...10 V analog output, <= 5 mA analog output, 3 A at 30 V digital output (inrush), 1 A at 30 V digital output (maximum)
Ambient air temperature for storage -22-122 °F
AWG gauge AWG 22...AWG 18
Directives 89/336/EEC - electromagnetic compatibility
Communication port protocol BACnet MS/TP
Input type 2 x dry contact
Range EcoStruxure Building Expert
Net weight 0.75 lb(US)
Product name SE7000 Series
Output type 2 xuniversal
Product or component type room controller
Output voltage 0...10 V DC for analog output, 30 V AC for digital output
Standards ICES-003, CSA C22.2 No 24, UL 873, FCC part 15 Subpart B
Calibration certificate 1 pt
Ambient air temperature for operation 32-122 °F
Height 4.92 in
Storage Relative Humidity 0-95 % RH, non-condensing
Complementary
Device presentation without cover
Rated operational power in VA 2 VA
Environment
Electrical insulation class class II
Economizer No
PIR cover No
Humidity control No
Scheduling Yes
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 15.0 cm
Package 1 Length 5.0 cm
Package 1 Weight 200.0 g
