Picture of Relay Pack for Mixed-voltage FCU, 220 to 240 VAC 50/60 Hz, 3 on/off, SE7300 and SE8300 models
SKU:

SC2300E5045

Relay Pack for Mixed-voltage FCU, 220 to 240 VAC 50/60 Hz, 3 on/off, SE7300 and SE8300 models

$250.22 INC GST
Availability: Please contact our sales team on 1300 724 622.
Relay Pack for Mixed-voltage FCU, 220 to 240 VAC 50/60 Hz, 3 on/off, SE7300 and SE8300 models
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

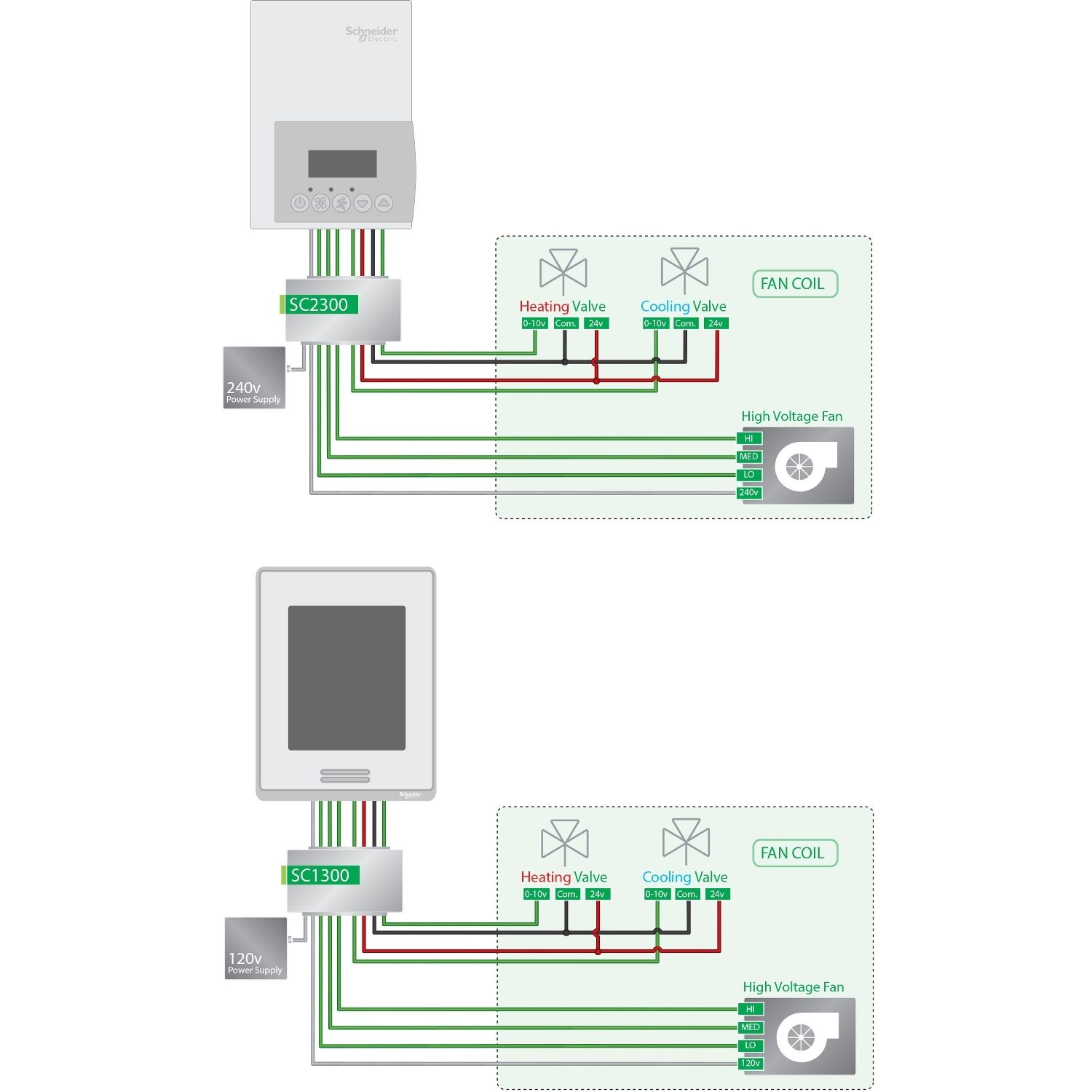

Relay packs SC2300E5045 are used in conjunction with the 8000 and 7000 series SER8300 and SER7300 Room Controllers for Low Voltage Fan Coil Unit applications. The relay packs are specifically used for other applications such as Motor, Compressor or mixed voltage fan coil control. The relays rated supply voltage is between 220 and 240V AC 1 Phase at 50 or 60Hz. The rated power is 12VA at 0.5A, 0.25hp at 2.5A The pack has 3 digital inputs for fan speed. It has 3 outputs for fan relays and 2 outputs for power supply output. The output voltage is 24V AC for control circuit. The relay pack has a NEMA 2 degree of protection. The ambient air temperature for operation is between 32 and 122 oF. The ambient air temperature for storage is between -22 and 122 oF. The relative humidity for operating or storage is between 5 and 95% non condensing.

Products specifications

Attribute name Attribute value
Main
Device short name SC2300
Device application motor, compressor control relay, mixed voltage fan coil, low voltage fan coil
Depth 2.03 in
Width 7.2 in
Local signalling LED status
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -22-122 °F
Range EcoStruxure Building Expert
Net weight 0.9 lb(US)
Product or component type relay pack
Communication port protocol standalone (network ready)
Number of outputs 2 power supply output, 3 fan relay
Ambient air temperature for operation 32-122 °F
Height 5.6 in
[Us] rated supply voltage 220...240 V AC
Network frequency 60 Hz, 50 Hz
Complementary
Product specific application 3-stage speed, control of fan coil
NEMA degree of protection NEMA 2
Cover type hinged cover
Network number of phases 1 phase
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.288 cm
Package 1 Width 14.224 cm
Package 1 Length 5.156 cm
Package 1 Weight 400.0 g
