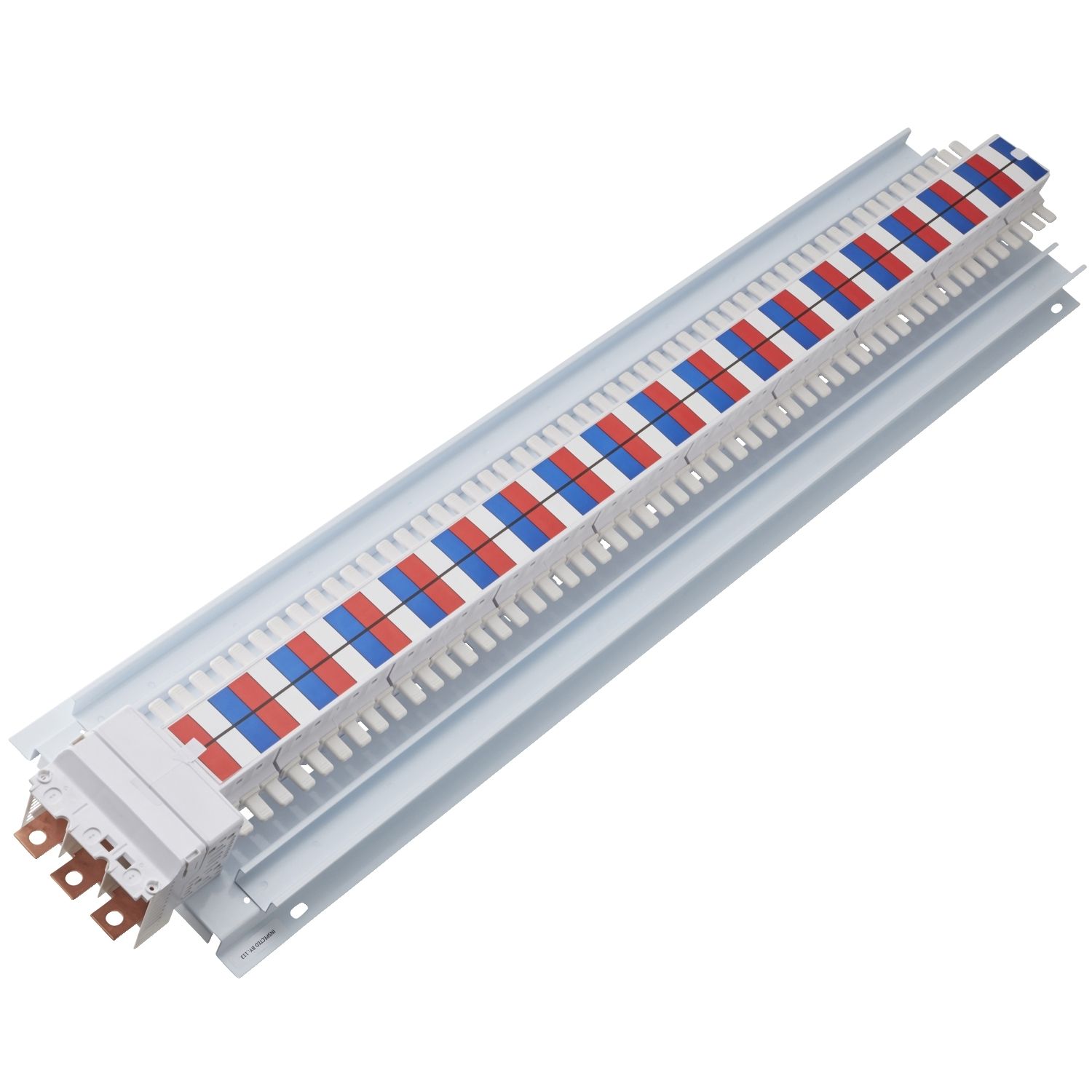

Picture of Acti9, SAU Chassis, Acti9, 250A, 3Ph, 108 poles, 18mm for iC60 MCB and RCBO, top or bottom
SKU:

SAU250108183

Acti9, SAU Chassis, Acti9, 250A, 3Ph, 108 poles, 18mm for iC60 MCB and RCBO, top or bottom

$816.47 INC GST
Available for Shipping : 28-Jan-2025
Product Selector
Acti9, SAU Chassis, Acti9, 250A, 3Ph, 108 poles, 18mm for iC60 MCB and RCBO, top or bottom
  • A three phase chassis assembly compliant to AS/NZS 61439 local standard and wiring regulations
  • Chassis fully compliant with Acti9 Circuit protection devices such as MCB, RCBOs
  • Type tested chassis system with best in class quality and performance
  • Chassis with encapsulation providing high level of protection and compatible for NSX MCCB
  • The chassis can be easily adapted into panel builder distribution boards (top or bottom feed)
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 108 with pitch of 18mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 974mm x (W) 215mm.
