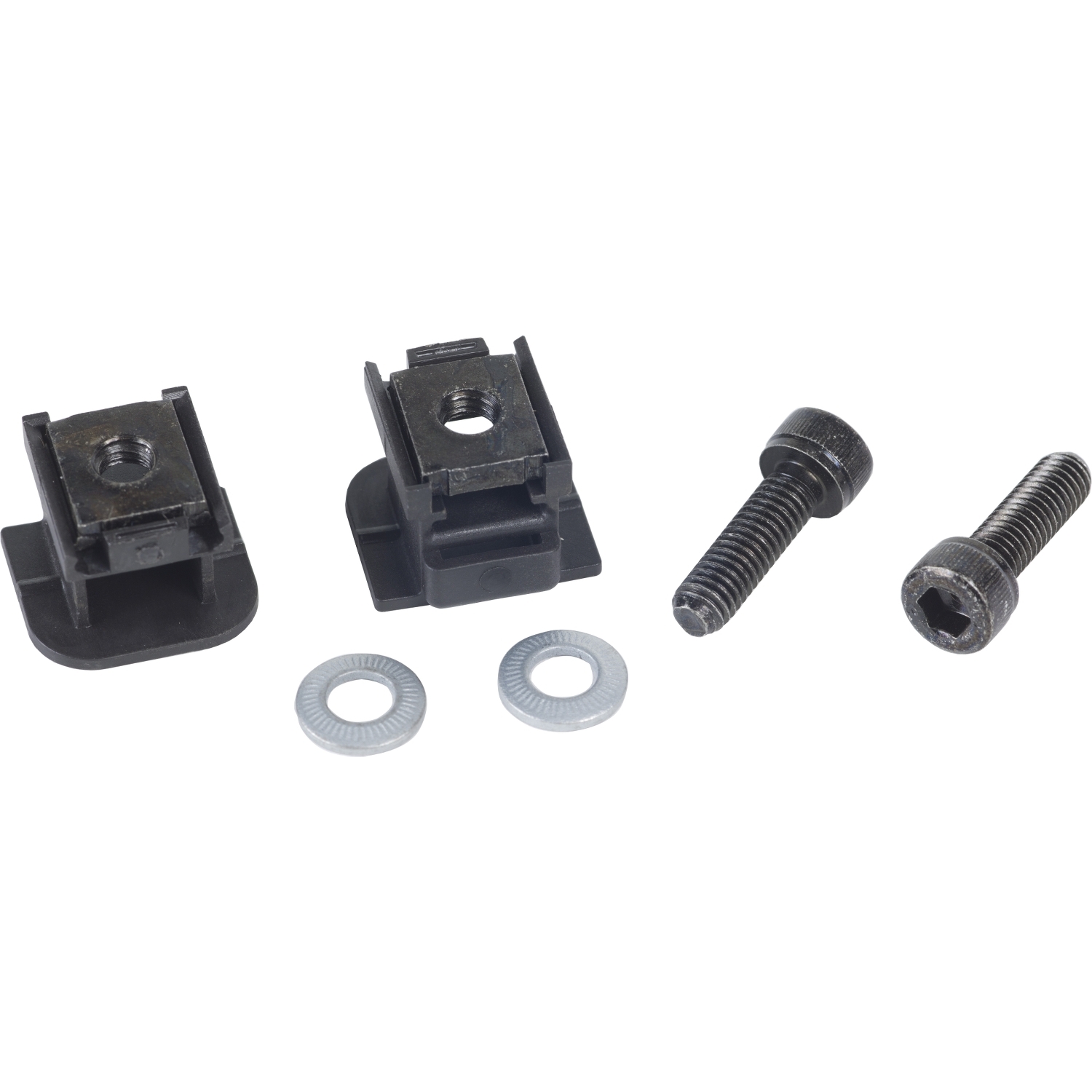

Picture of Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap M6, CE standard, qty 2
SKU:

S37426

Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap M6, CE standard, qty 2

$120.66 INC GST
Available for Shipping : 11-Mar-2025
Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap M6, CE standard, qty 2
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
Thermal-magnetic molded case circuit breakers are the most common overcurrent protection devices. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection. Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads. For higher level (short circuit) overcurrents, instantaneous trip characteristics allow molded case circuit breakers to interrupt with no intentional delay. This compression lug kit is for LAL/LHL/Q4L breakers have a wire range of 2/0 AWG- 500 kcmil and come with 1 lug per kit.

Products specifications

Attribute name Attribute value
Main
Product or component type nut
Accessory / separate part category connection accessory
Range of product PowerPact H
Complementary
Tightening torque 9-10.2 N.m
Quantity per set set of 2
Thread type M6
Mounting support busbar
Standards CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.0 cm
Package 1 Width 2.0 cm
Package 1 Length 4.0 cm
Package 1 Weight 39.009 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 845.0 g
