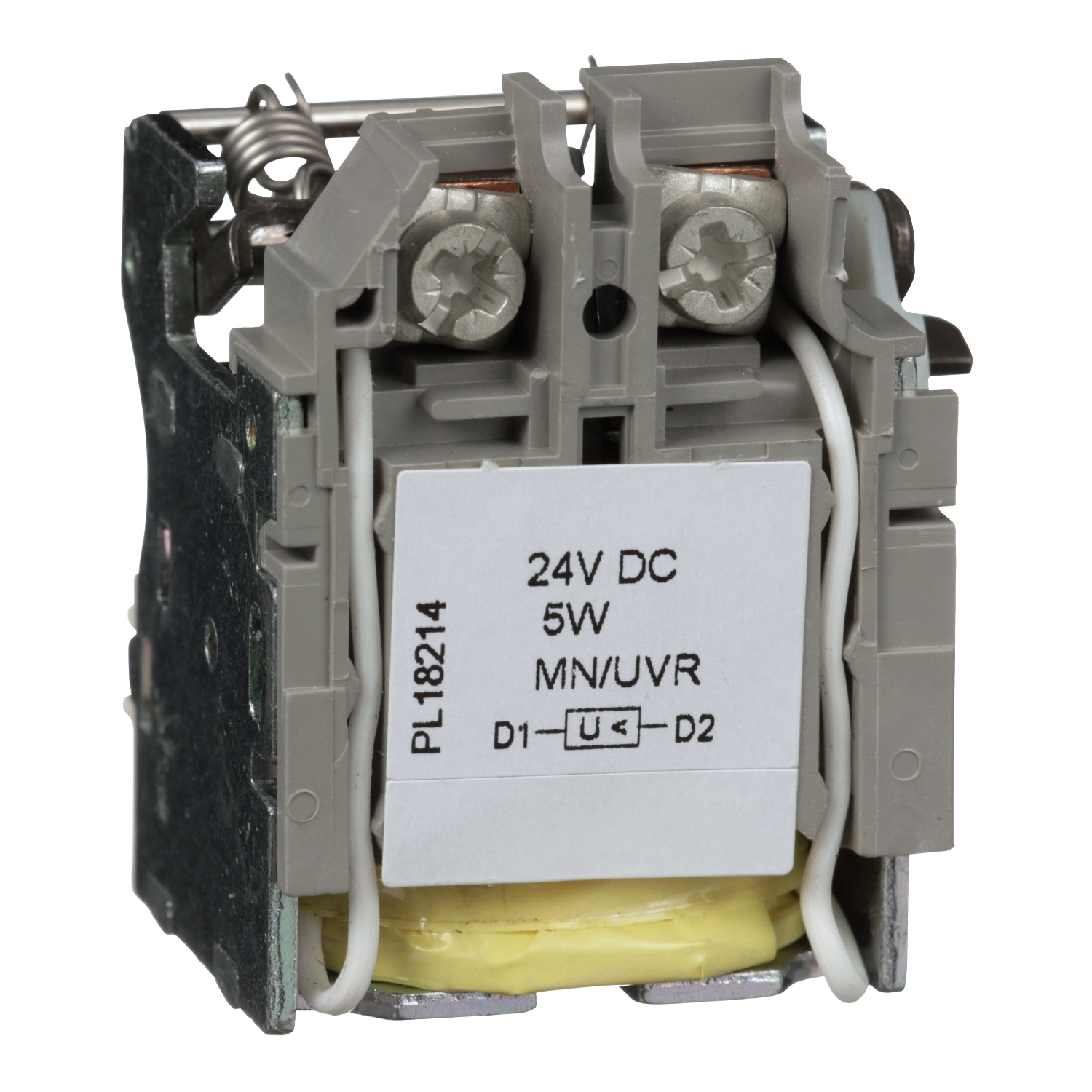

Picture of Circuit breaker accessory, PowerPacT, undervoltage trip, 24VDC
SKU:

S29410

Circuit breaker accessory, PowerPacT, undervoltage trip, 24VDC

$646.68 INC GST
Available for Shipping : 23-Feb-2025
Circuit breaker accessory, PowerPacT, undervoltage trip, 24VDC
  • Undervoltage trip for circuit breakers with screw connection
  • Protects electrical systems from damage caused by overloads and short circuits
  • Compatible with PowerPacT H/J/L circuit breakers
  • Complies with UL 489 listed, CSA, and IEC standards
  • Complies with UL and CSA standards
Be the first to review this product
Manufacturer: Square D
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. The PowerPact Advantage Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.

Products specifications

Attribute name Attribute value
Main
Circuit breaker type standard
Range of product PowerPact
Complementary
Tightening torque 1.4-1.4 N.m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.16 cm
Package 1 Width 13.97 cm
Package 1 Length 4.57 cm
Package 1 Weight 136 g
