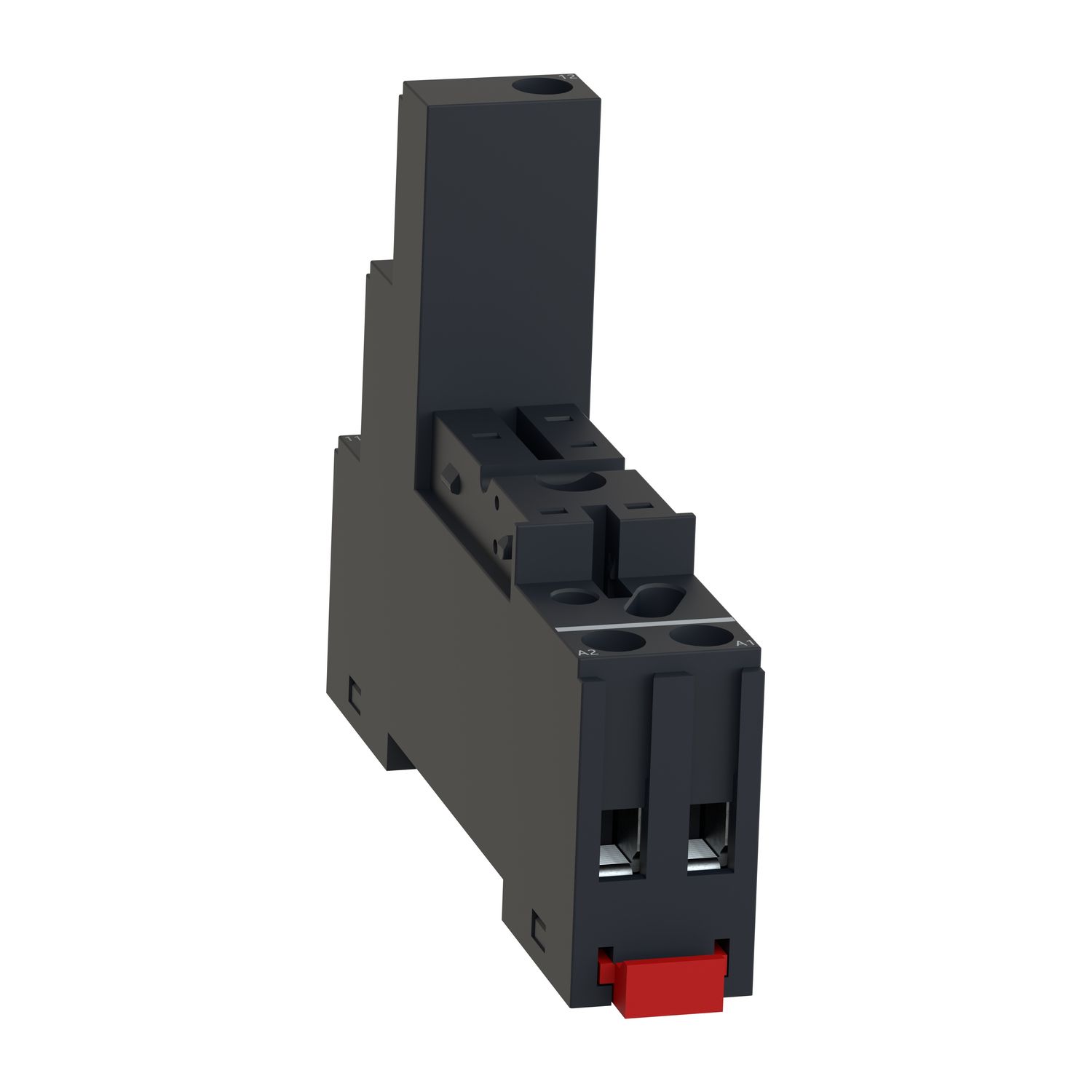

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

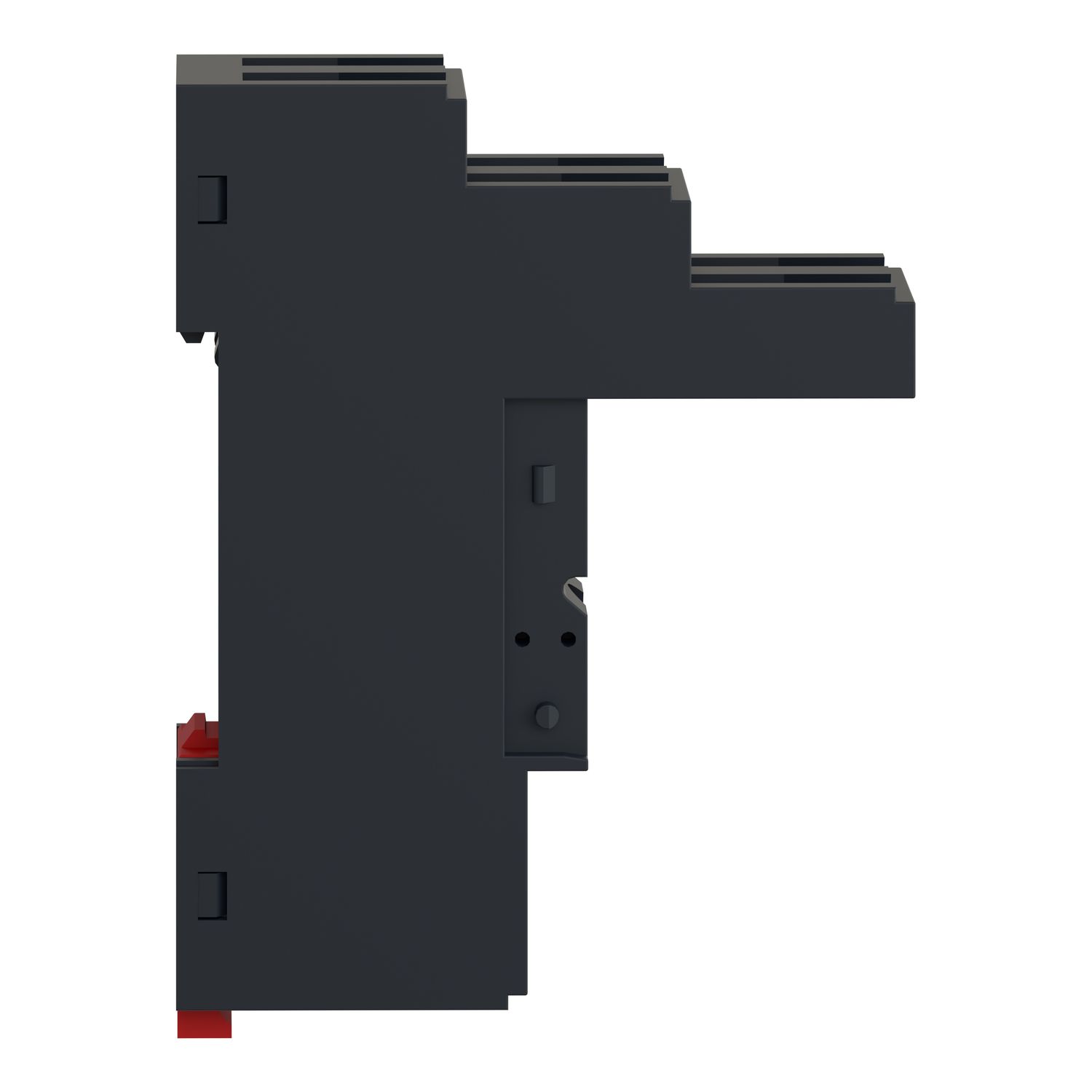

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

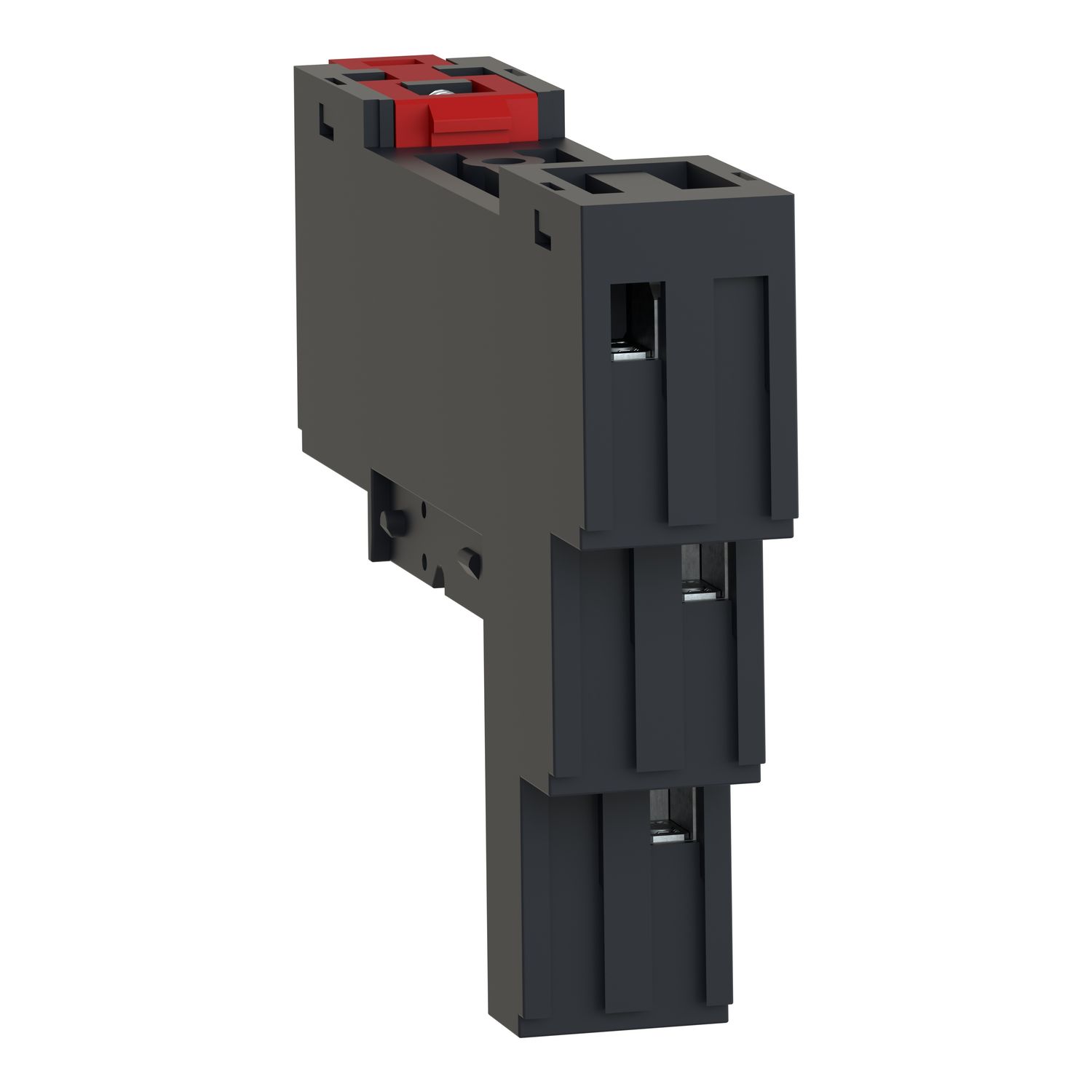

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

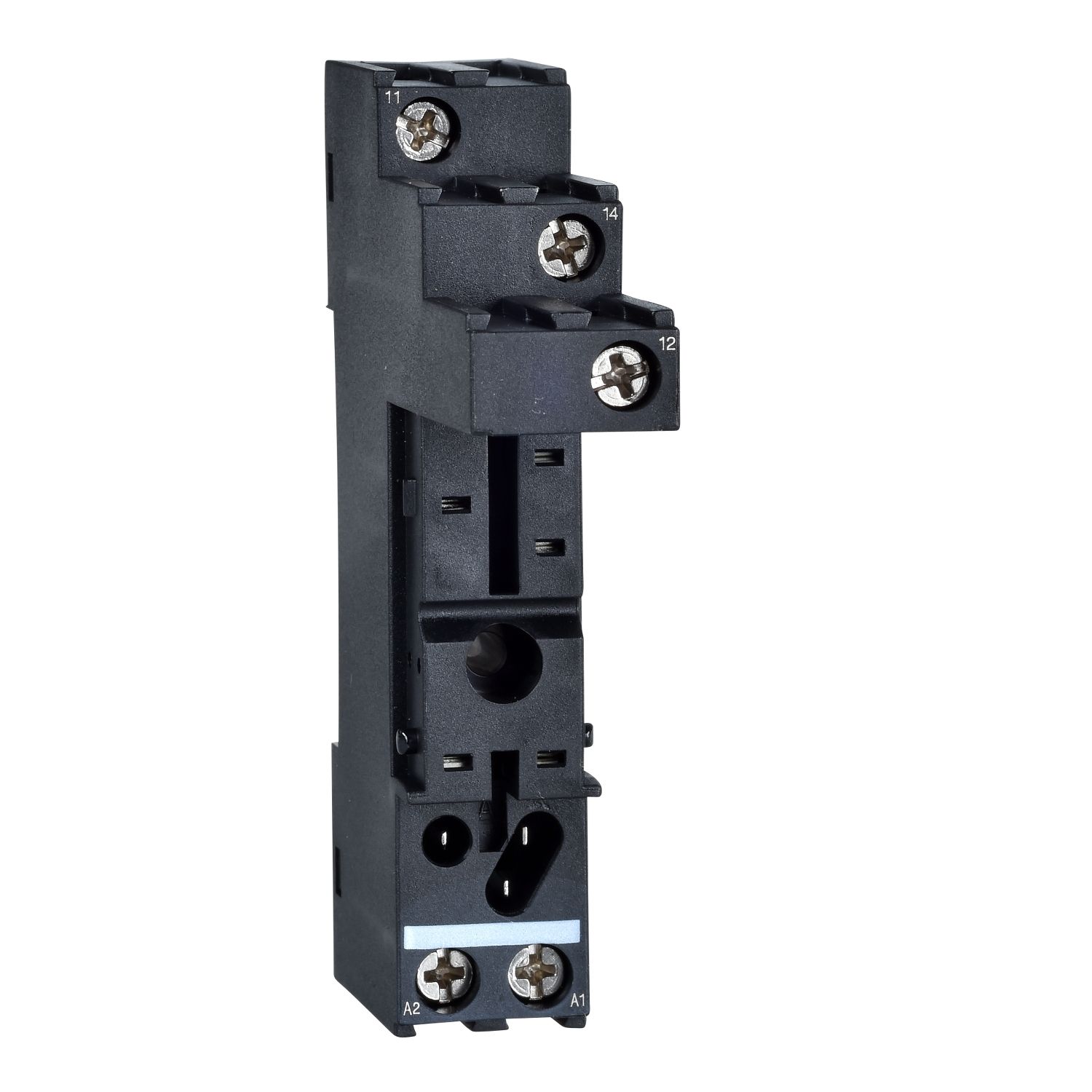

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

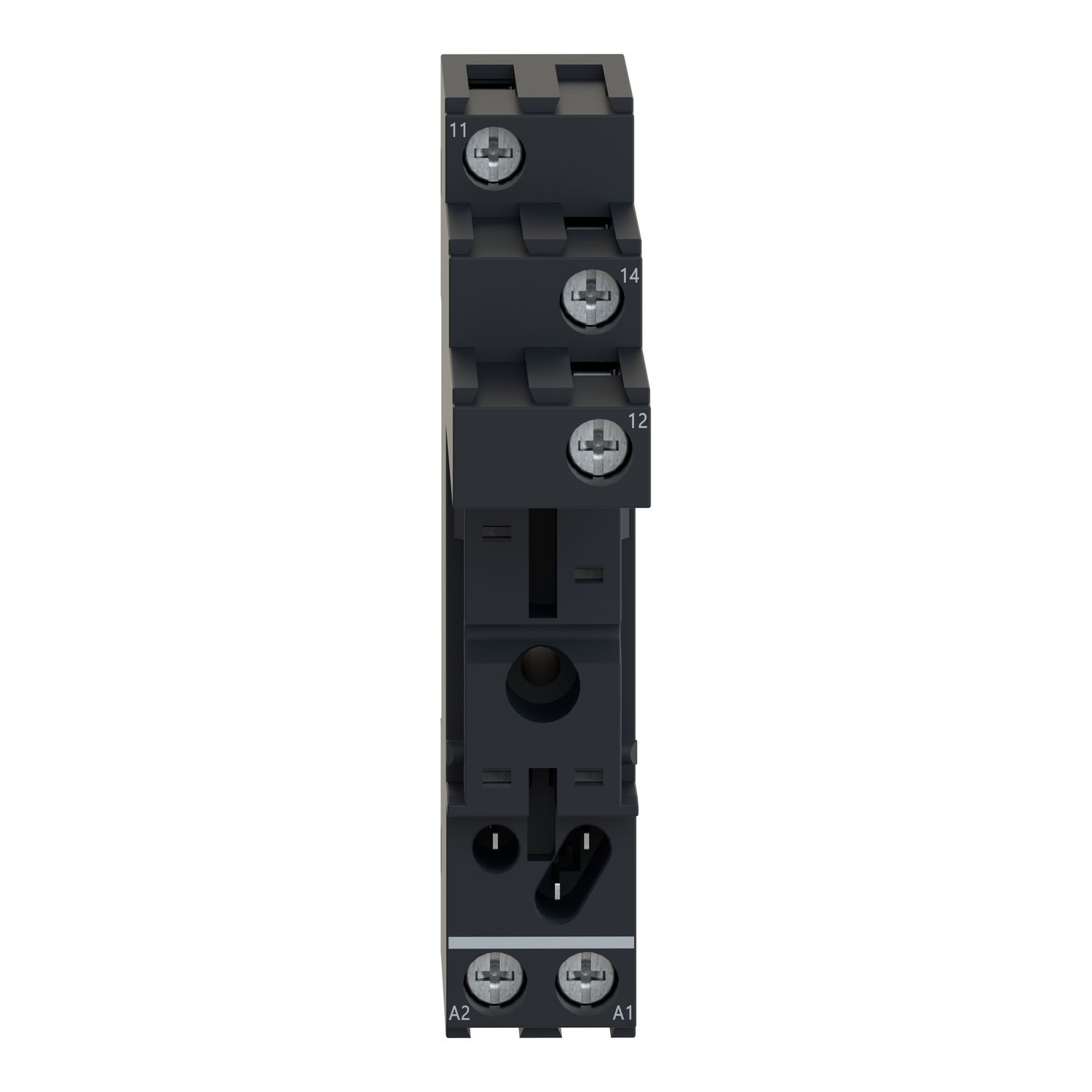

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

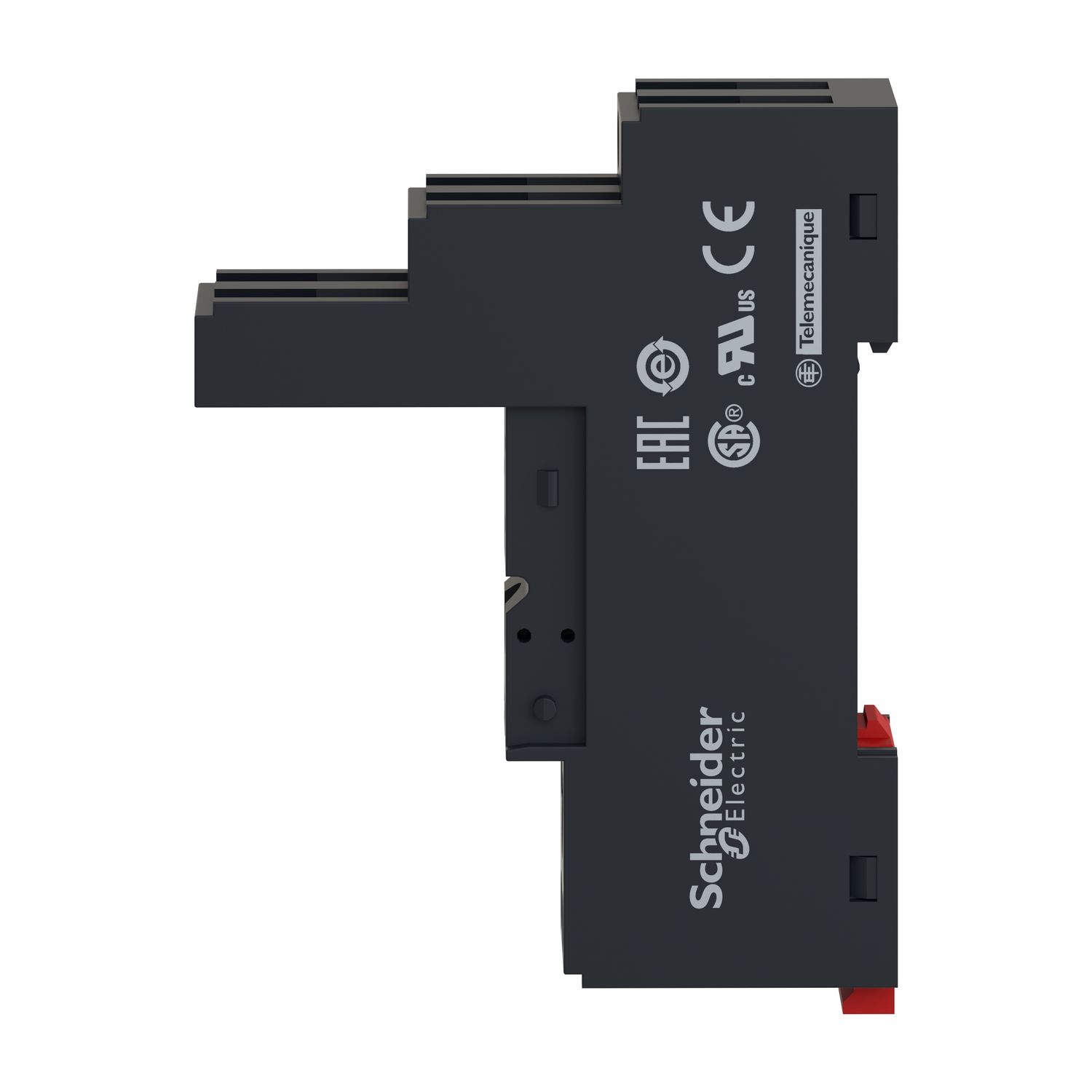

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

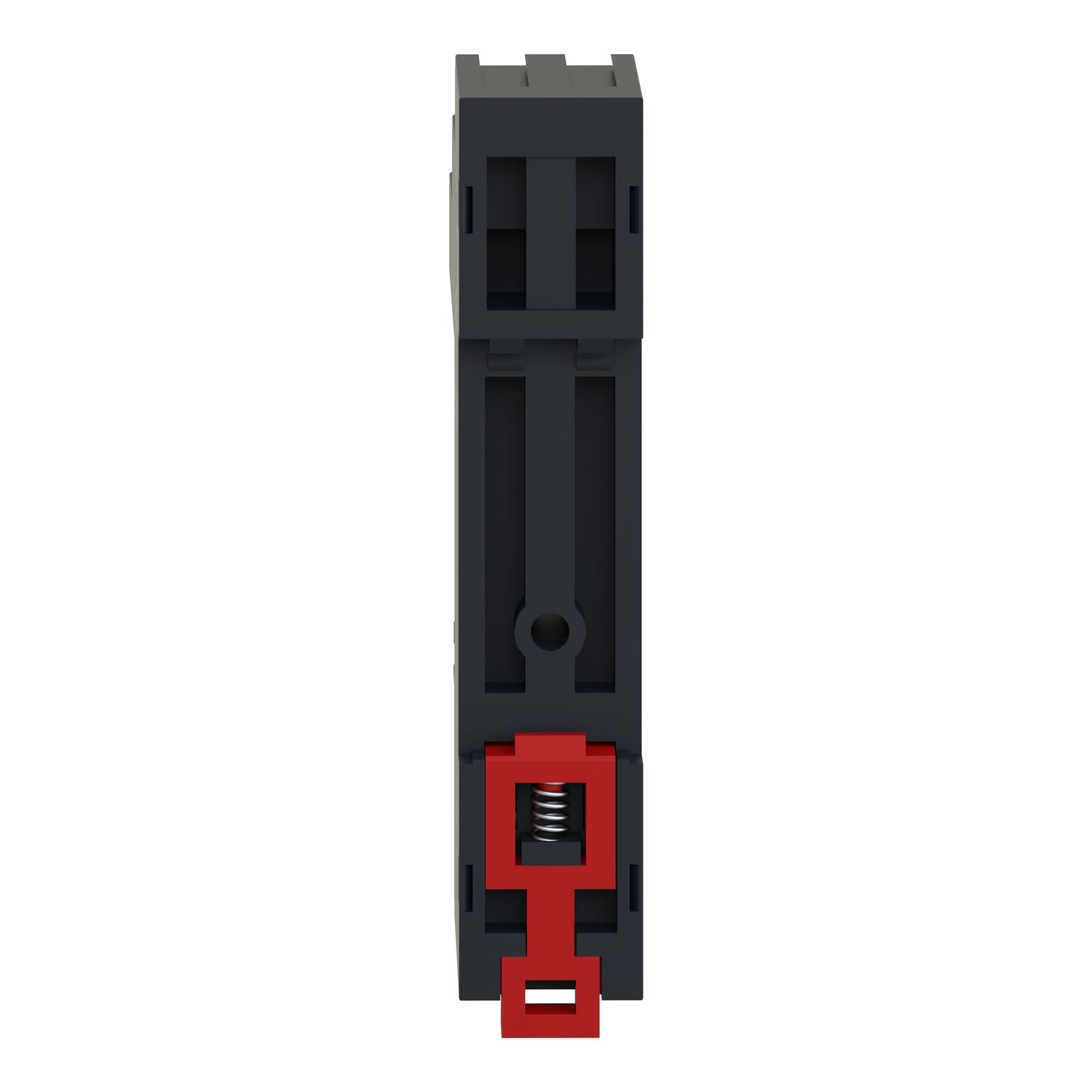

Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact
Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact
Picture of socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact
SKU:

RSZE1S35M

socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact

Old price: $16.94 INC GST
$16.09 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
socket, for RSB1A120 relays, Harmony Electromechanical Relays, 12A, screw connec to rs, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Instruction sheet
Catalog
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
"This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSZ
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 12 A
[In] rated current 12 A
Contacts type and composition 1 C/O
Product or component type socket
Product compatibility plug-in relay RSB with 1 C/O contact at 12 A
Complementary
Group of product RSB_1_C/O_SC_CONS_SEP_FLAT_12
Compatibility code RSZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 3.6 kV
Overvoltage category III
Width 15.5 mm
Connections - terminals screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
[Ue] rated operational voltage < 250 V AC
Tightening torque < 0.8 N.m for M3 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -25-85 °C
Standards IEC 61984
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 9.000 cm
Package 1 Length 8.500 cm
Package 1 Weight 31.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 9.000 cm
Package 2 Length 17.000 cm
Package 2 Weight 353.000 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.148 kg
Unit Type of Package 4 4
Number of Units in Package 4 1920
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 82.940 kg
