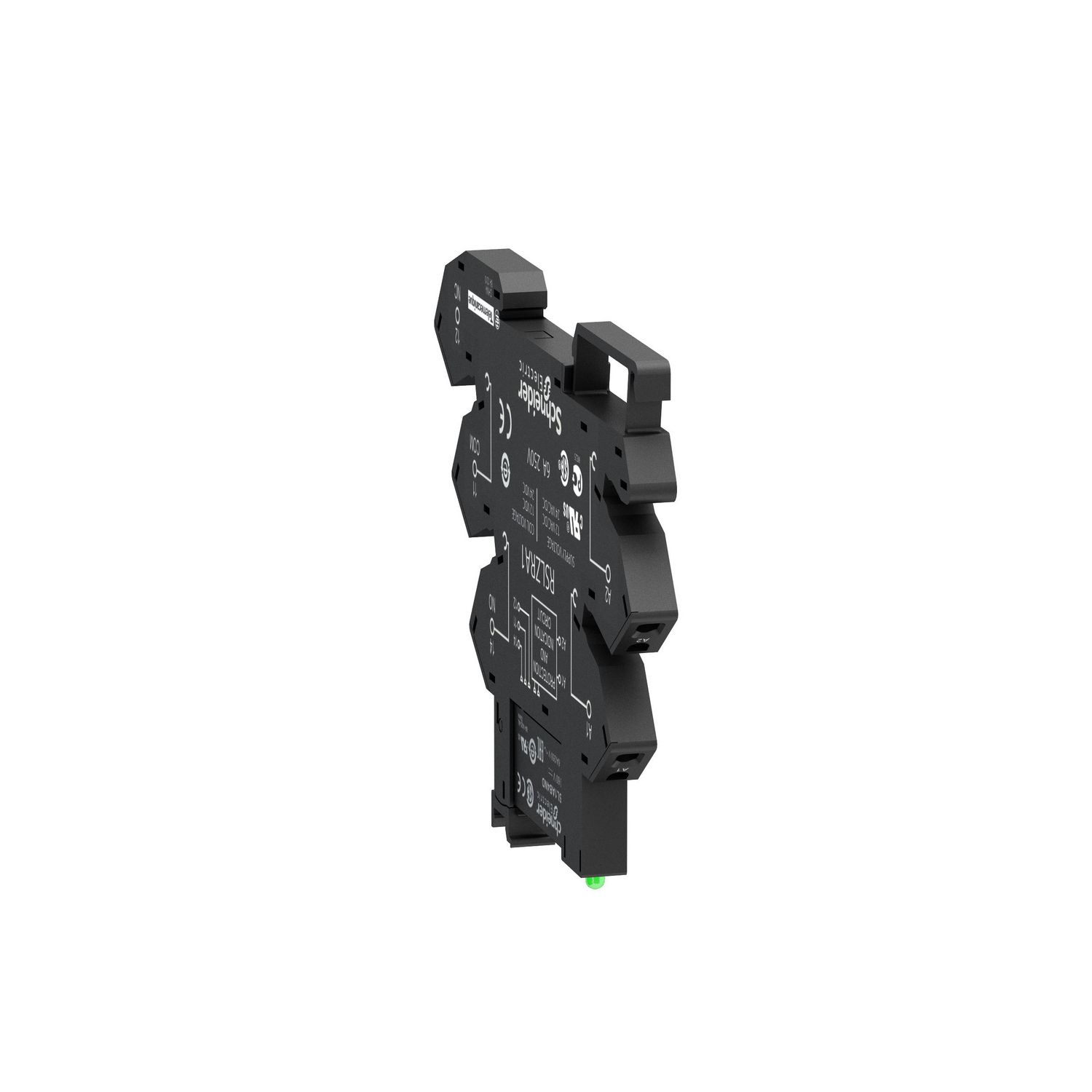

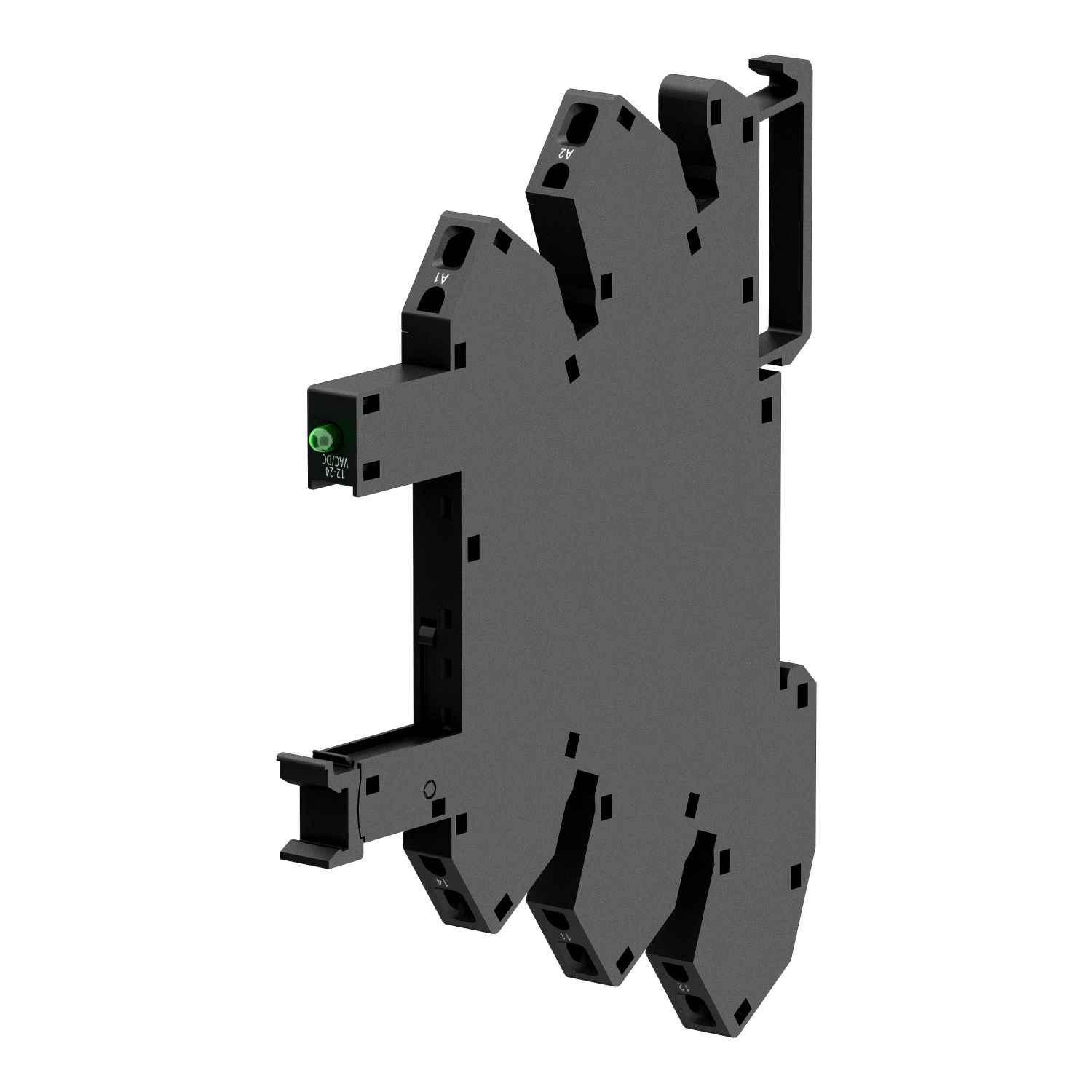

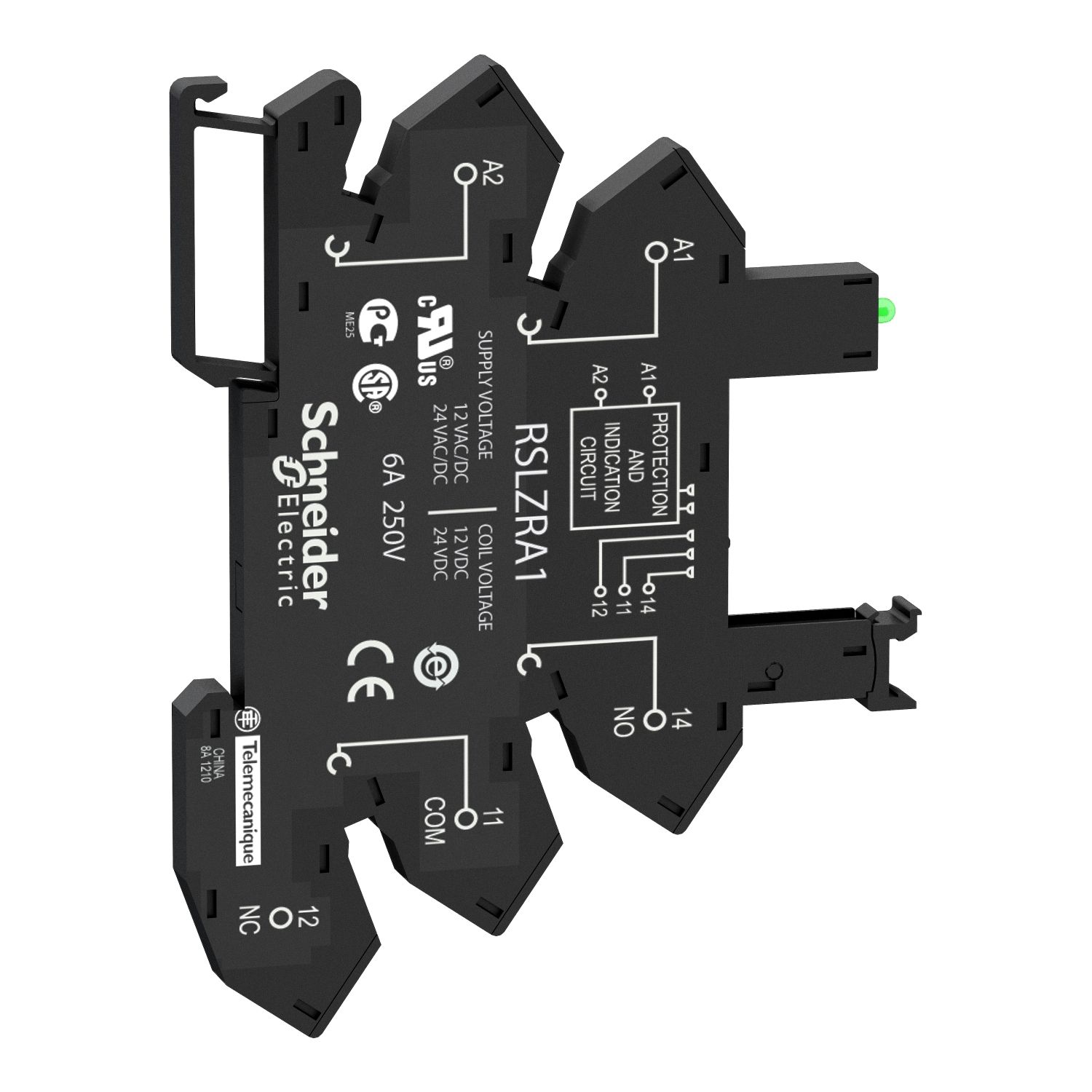

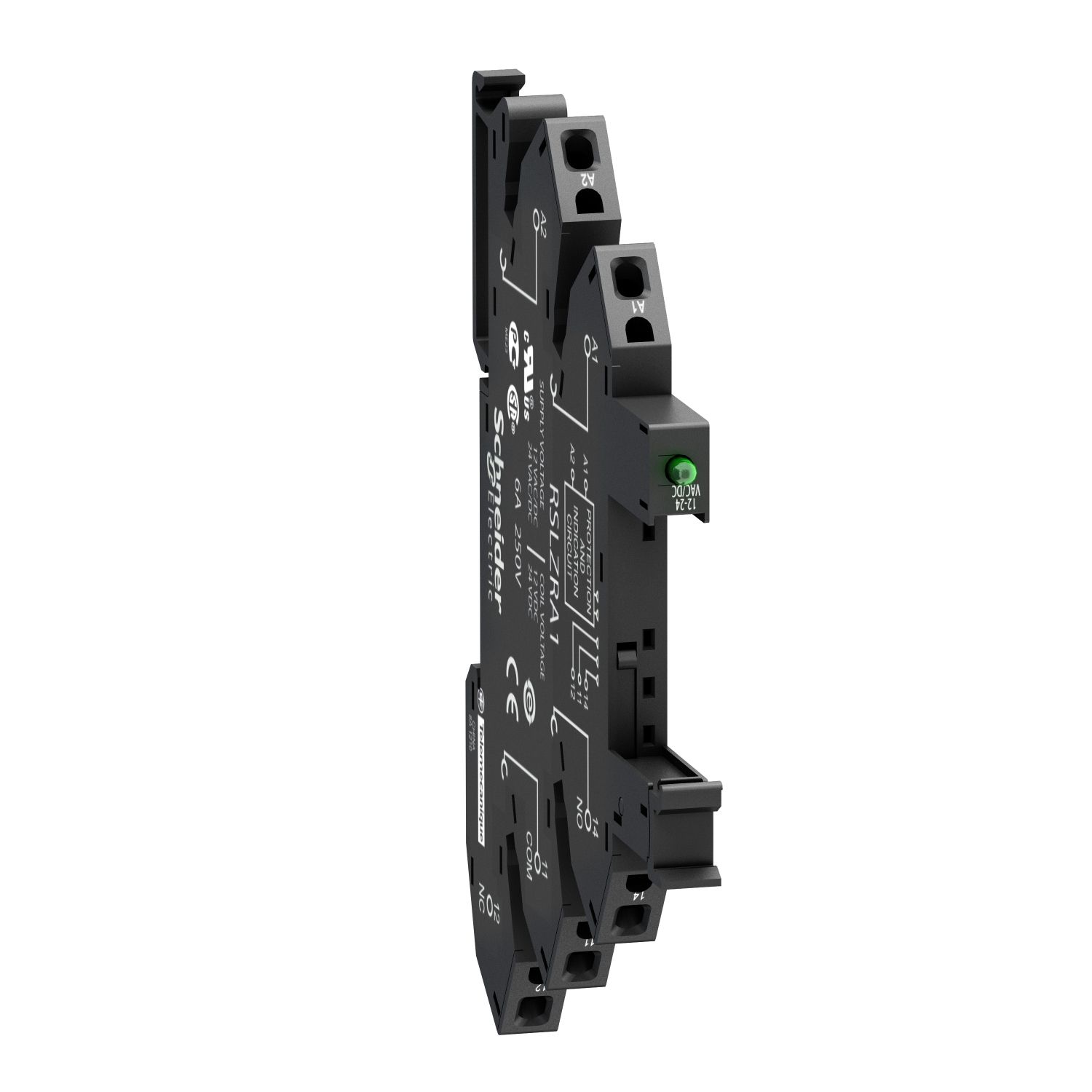

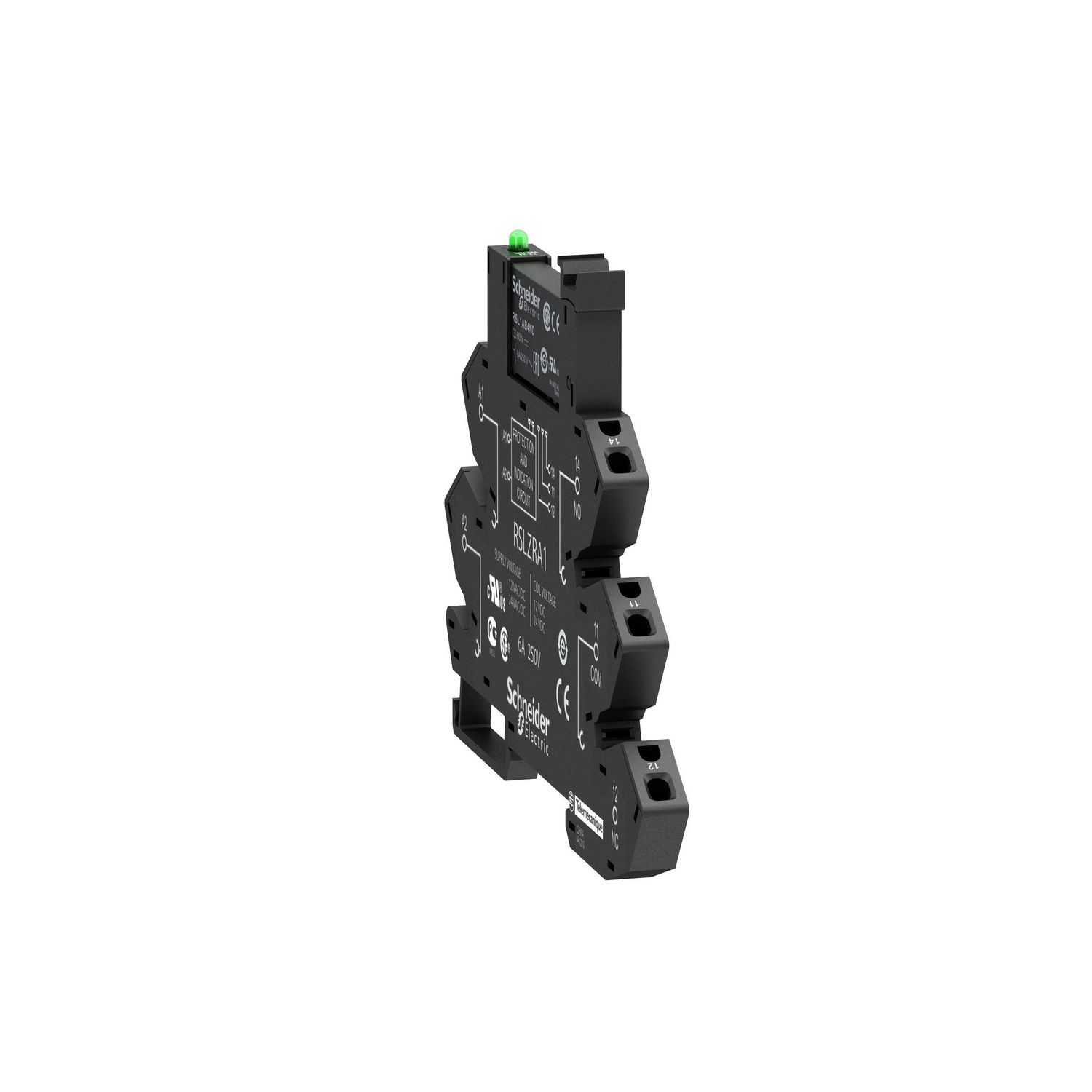

Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
SKU:

RSLZRA1

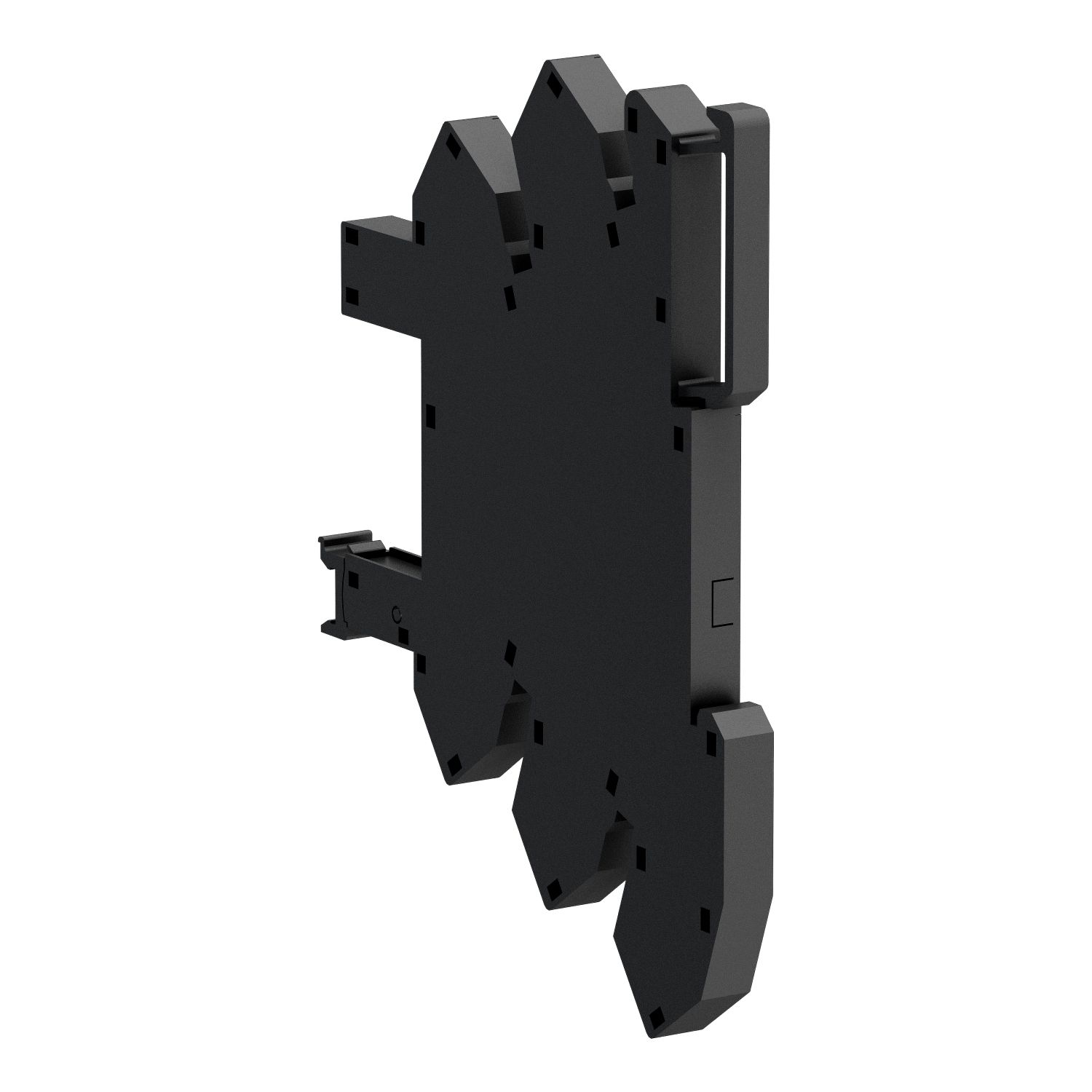

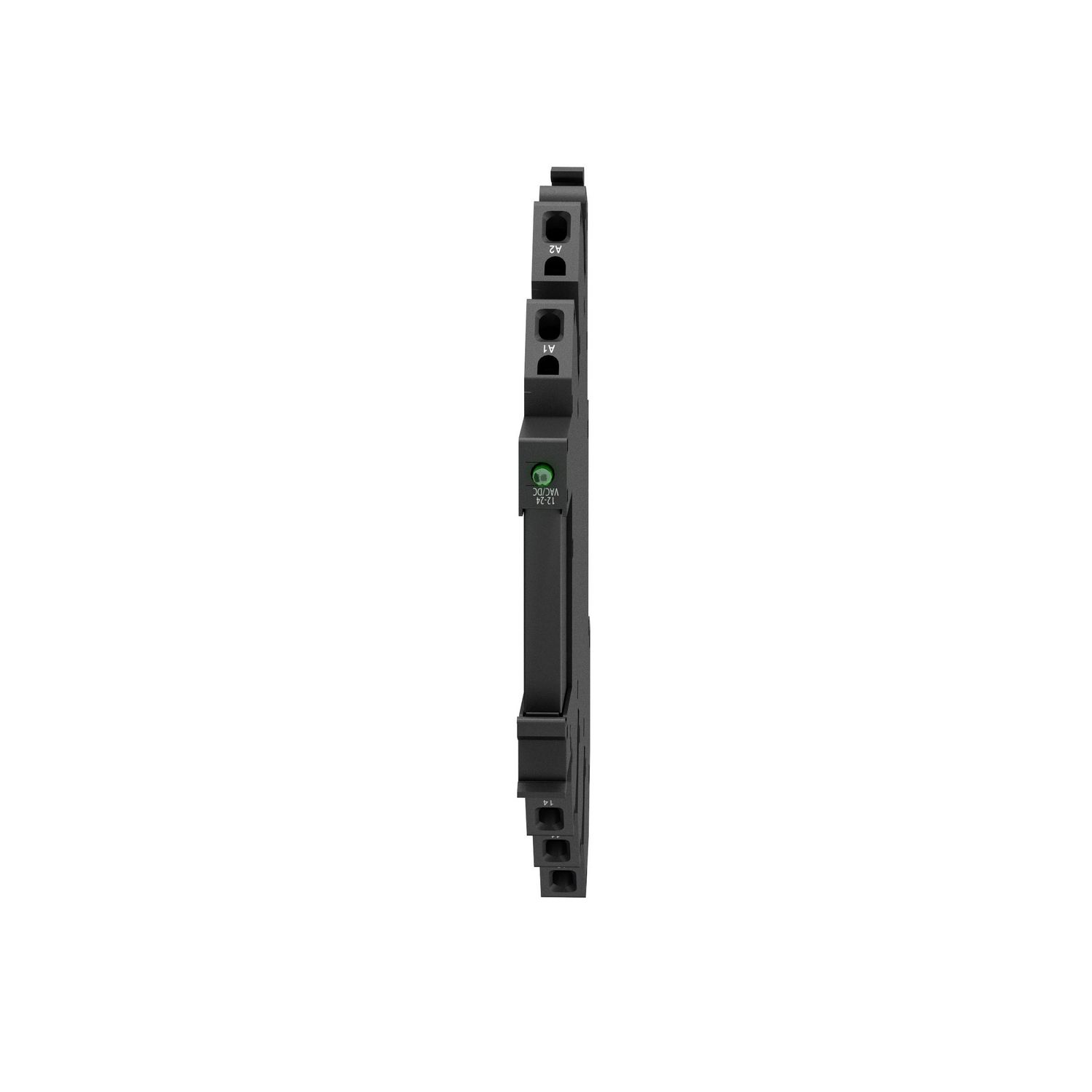

Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC

Old price: $24.09 INC GST
$22.89 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, spring terminals, 12...24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

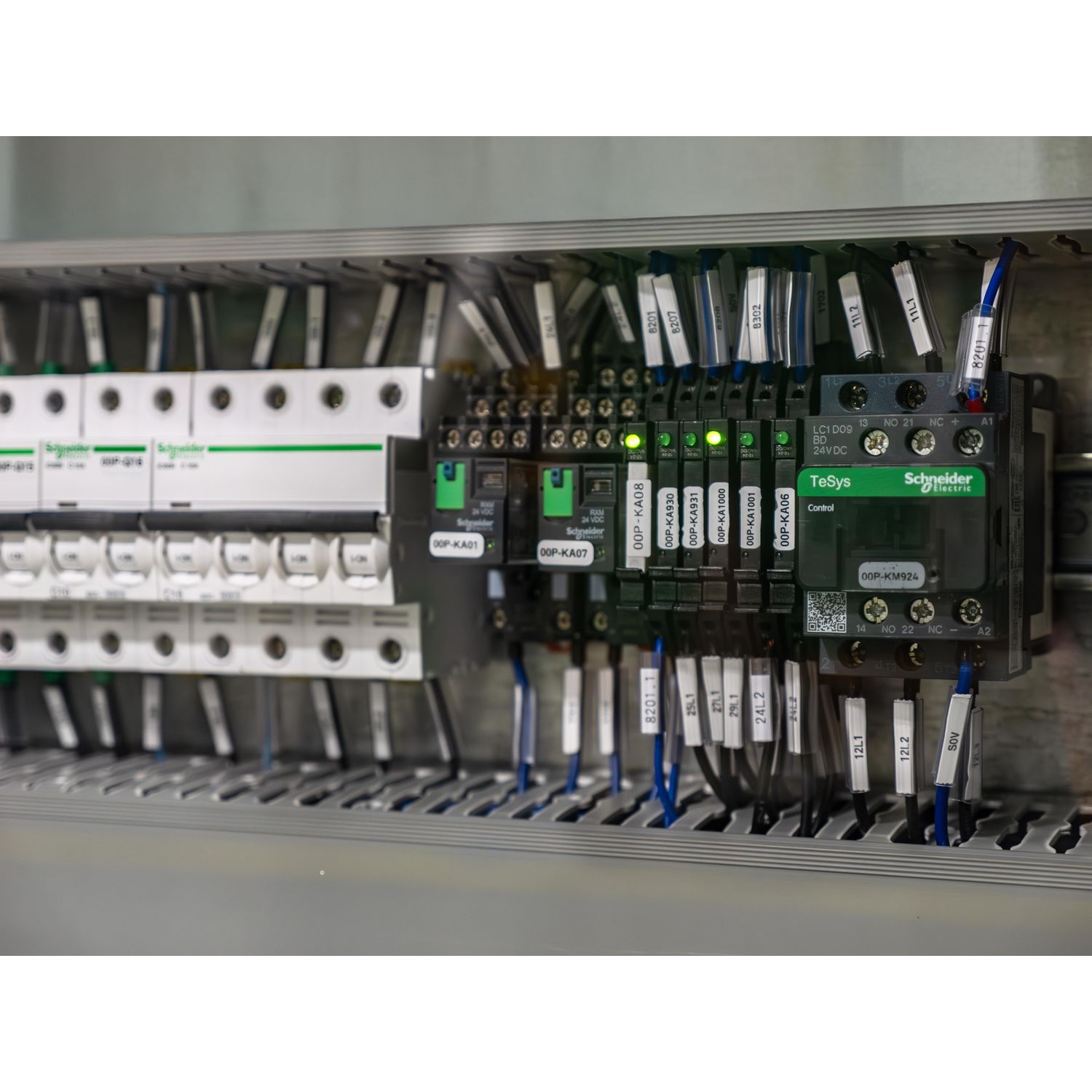

Image of product in real life situation
Circularity Profile

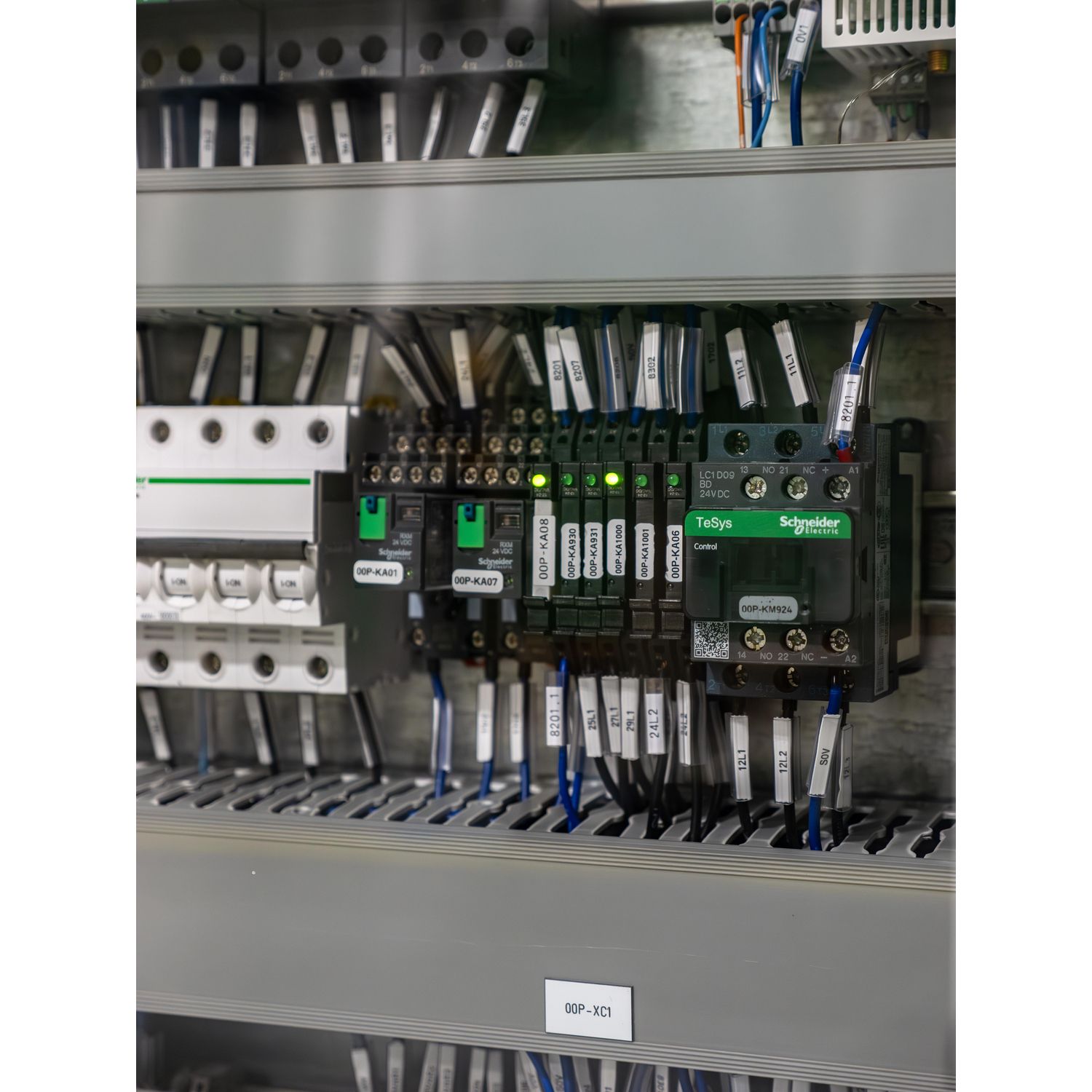

Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Product Page Link
Product Data Sheet
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSLZ
[Uc] control circuit voltage 24 V, 12 V
Product compatibility plug-in relay RSL with 1 C/O contact at 24 V DC, plug-in relay RSL with 1 C/O contact at 12 V DC
Device presentation basic element
Rated operational voltage limits 11.4...14.4 V, 21.6...28.8 V
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 6 A
[Ue] rated operational voltage < 300 V AC
Switching voltage 24 V AC/DC, 12 V AC/DC
[In] rated current 6 A
Contacts type and composition 1 C/O
Product or component type socket
Complementary
Group of product RSL_SPRING_TERS_12-24
Compatibility code RSLZ
Sale per indivisible quantity 10
CAD overall height 78.6 mm
Fixing mode plastic compression spring (35 mm symmetrical DIN rail)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
Clamping force 10-40 N
[Uimp] rated impulse withstand voltage 3.6 kV
CAD overall depth 101 mm
CAD overall width 6.2 mm
Overvoltage category III
Connections - terminals spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, spring terminals
Net weight 0.023 kg
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -40-70 °C
Standards IEC 61984, UL 508
Product certifications CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.500 cm
Package 1 Length 5.350 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 8.500 cm
Package 2 Length 10.700 cm
Package 2 Weight 249.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.227 kg

Related products

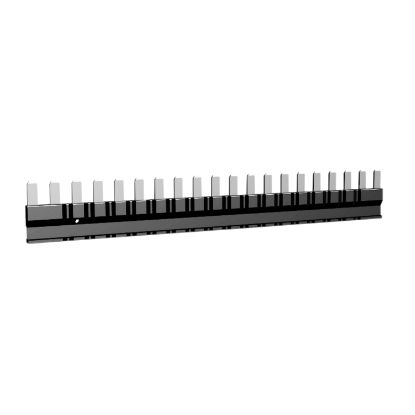

Harmony Electromechanical Relays, Bus jumper, Connection Accessory, 20 poles, for RSLZ, SSLZ push-in sockets

RSLZ2
$5.43 INC GST $5.72 INC GST
View Detail
