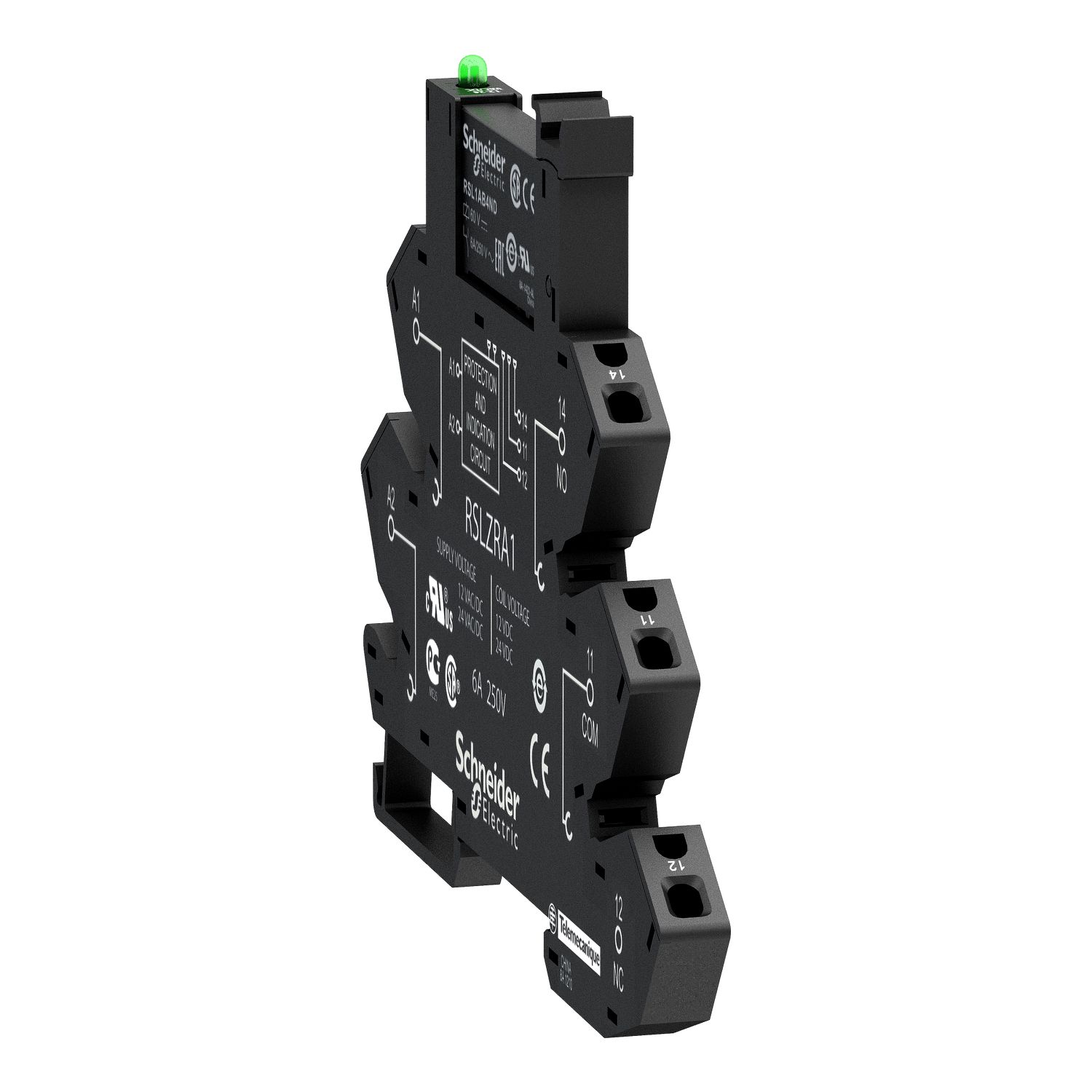

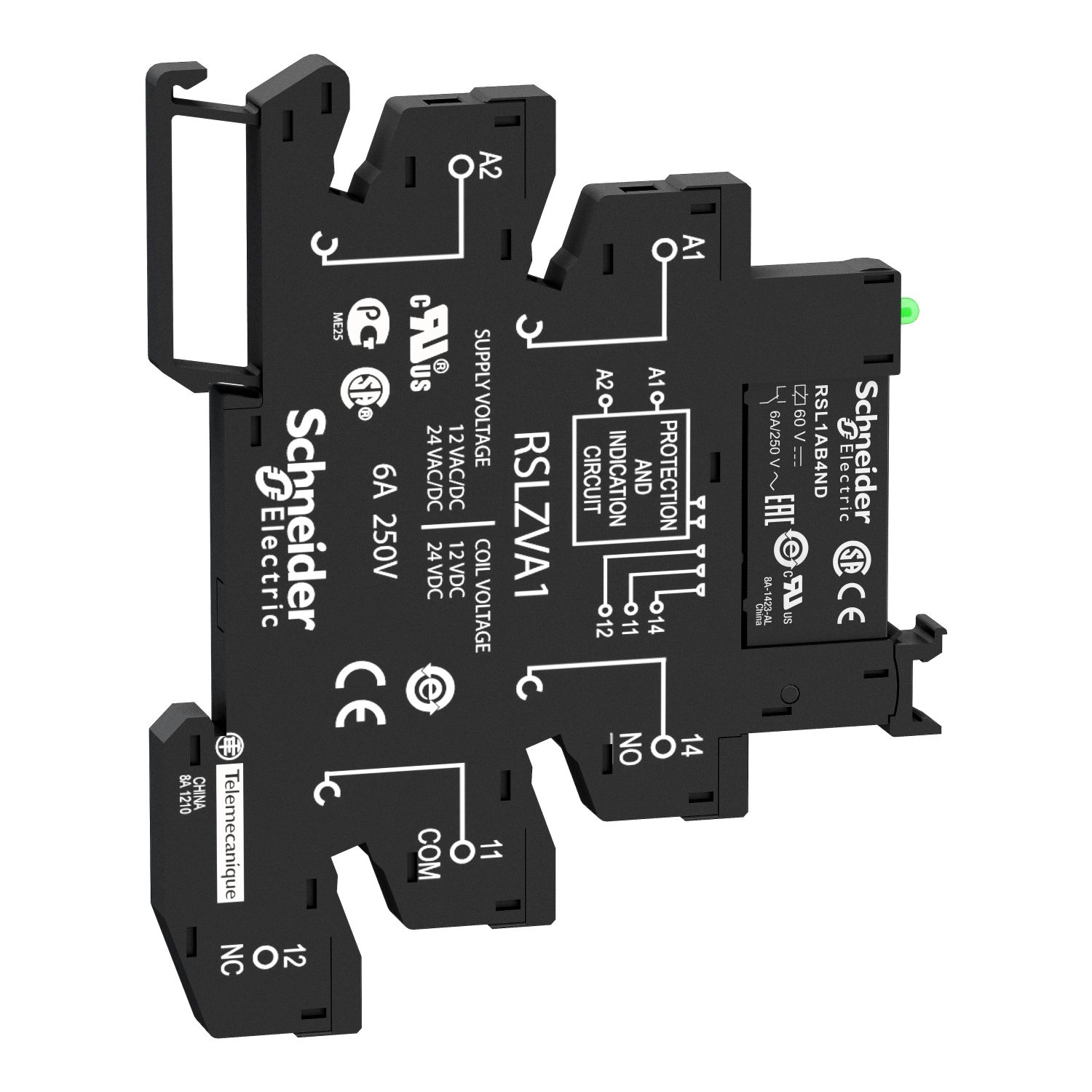

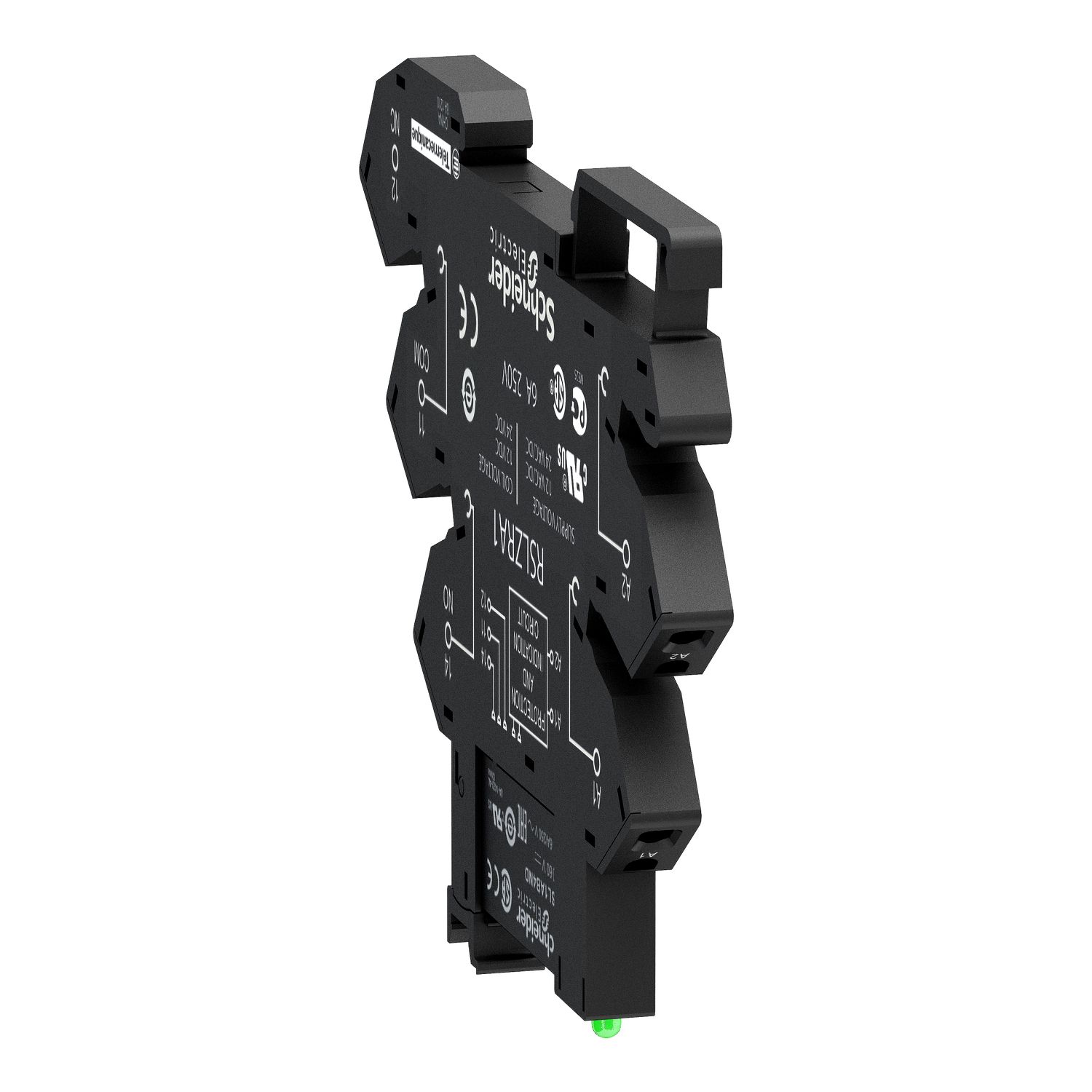

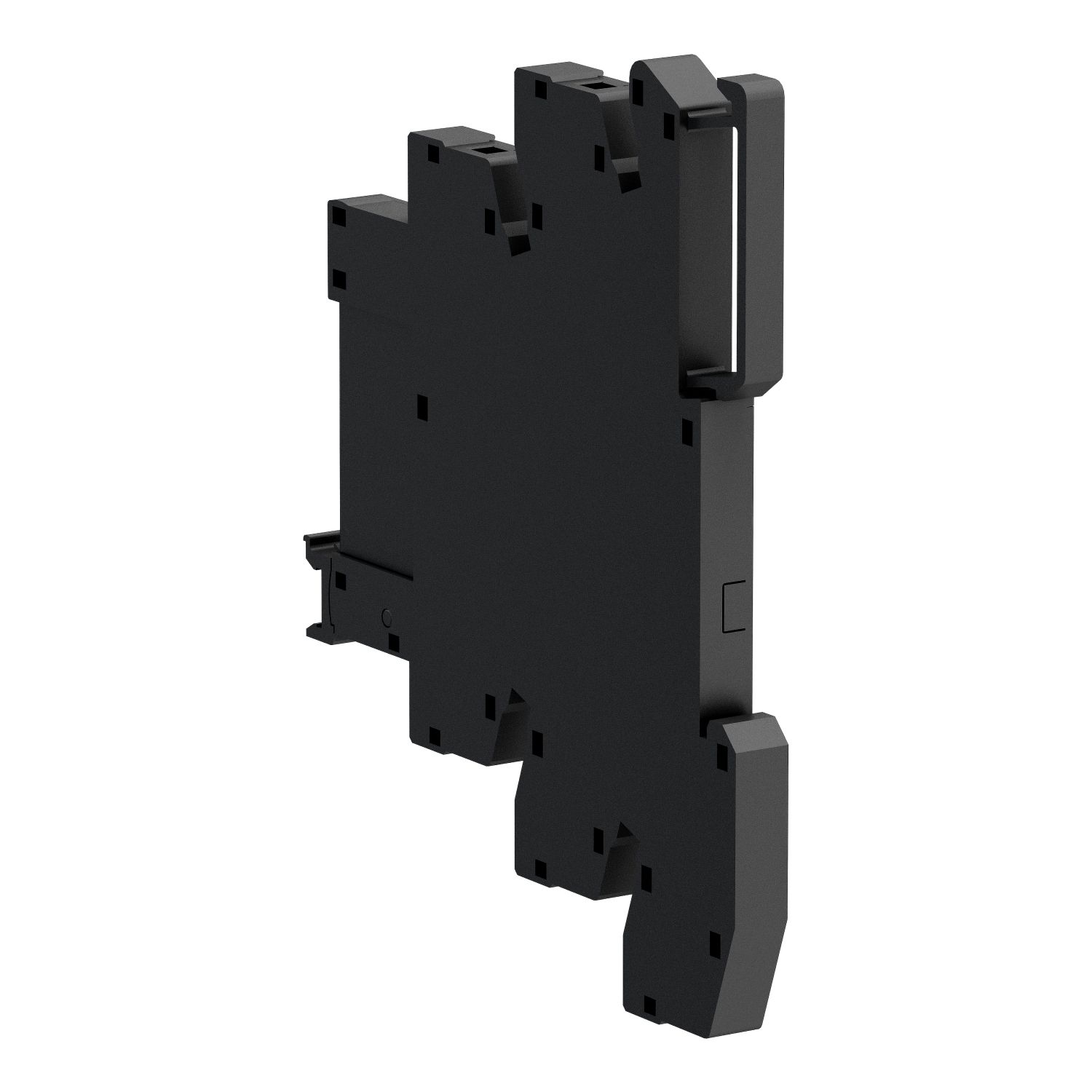

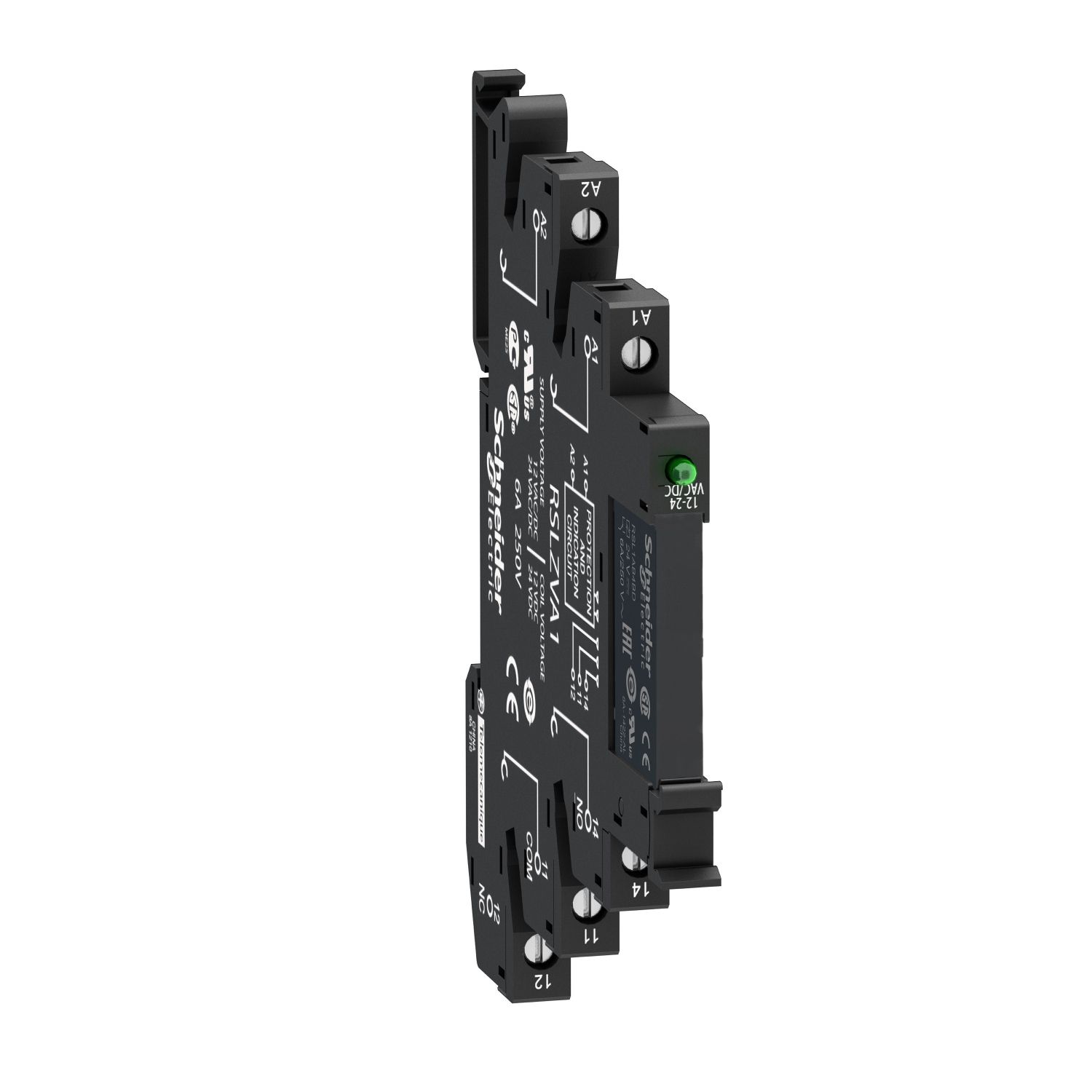

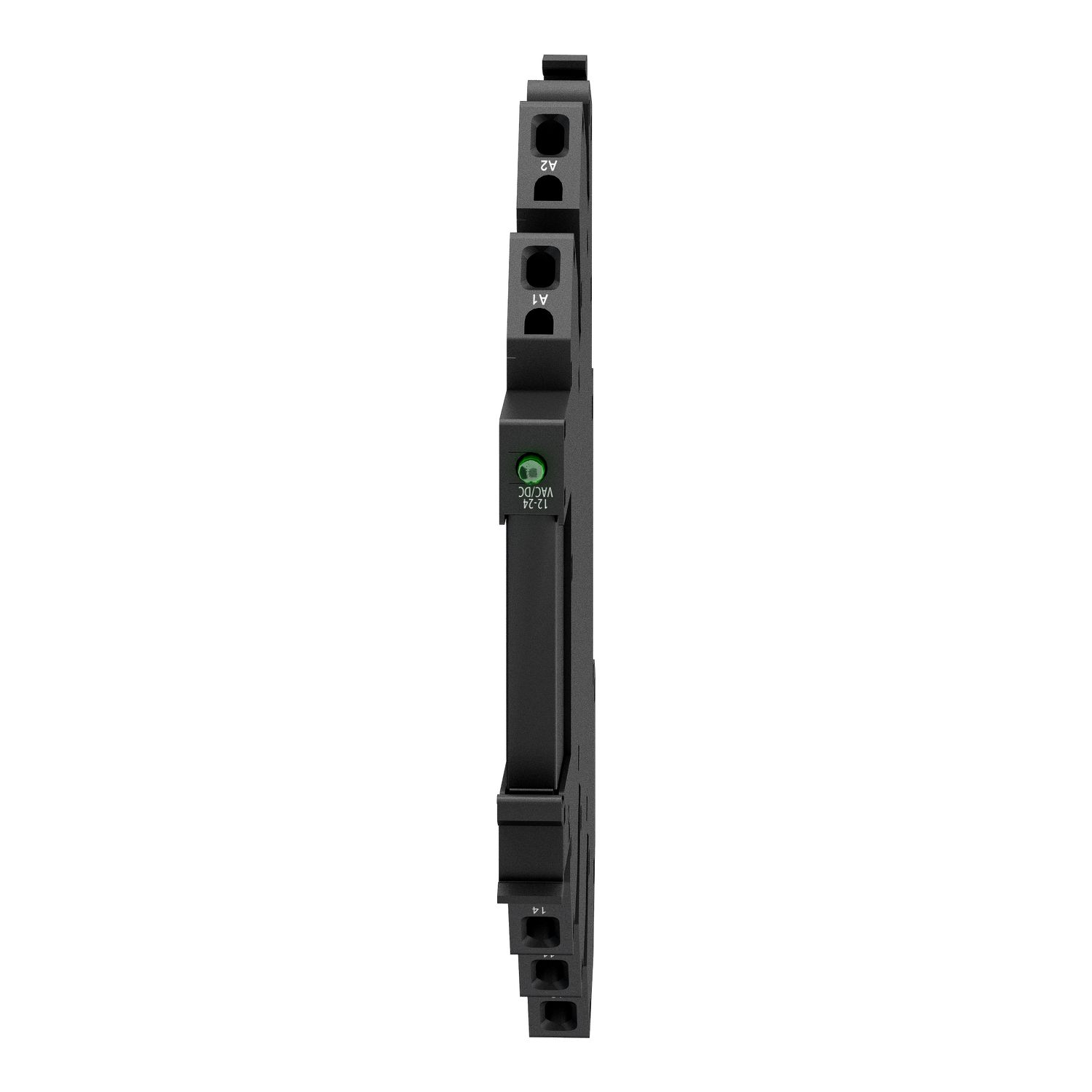

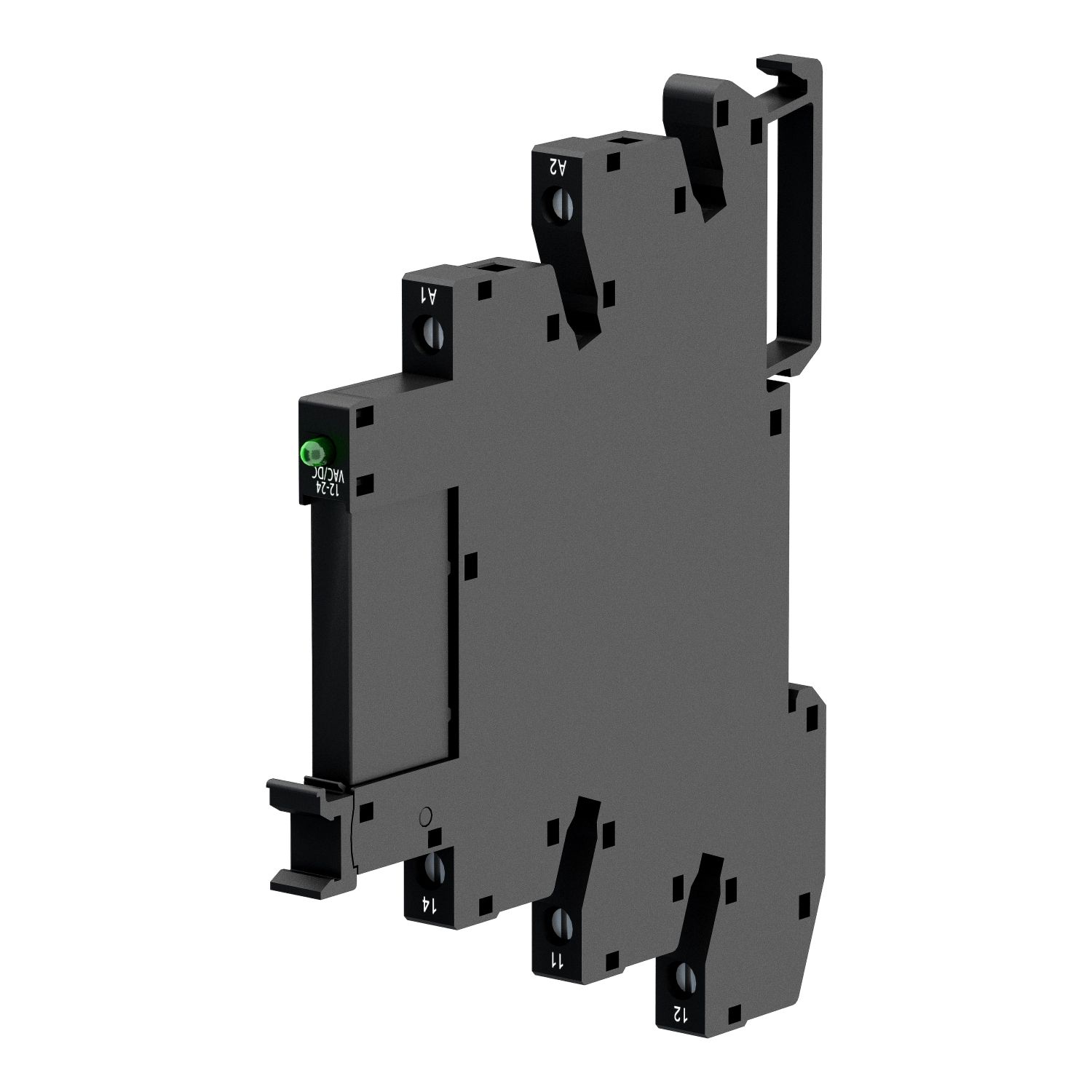

Harmony Electromechanical Relays, Slim interface relay pre assembled, 6A, 1CO, with LED, screw connectors, 12V AC DC

Old price: $39.49 INC GST
$37.52 INC GST
Available for Shipping : 08-Jan-2026
Product Selector
Harmony Electromechanical Relays, Slim interface relay pre assembled, 6A, 1CO, with LED, screw connectors, 12V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Circularity Profile

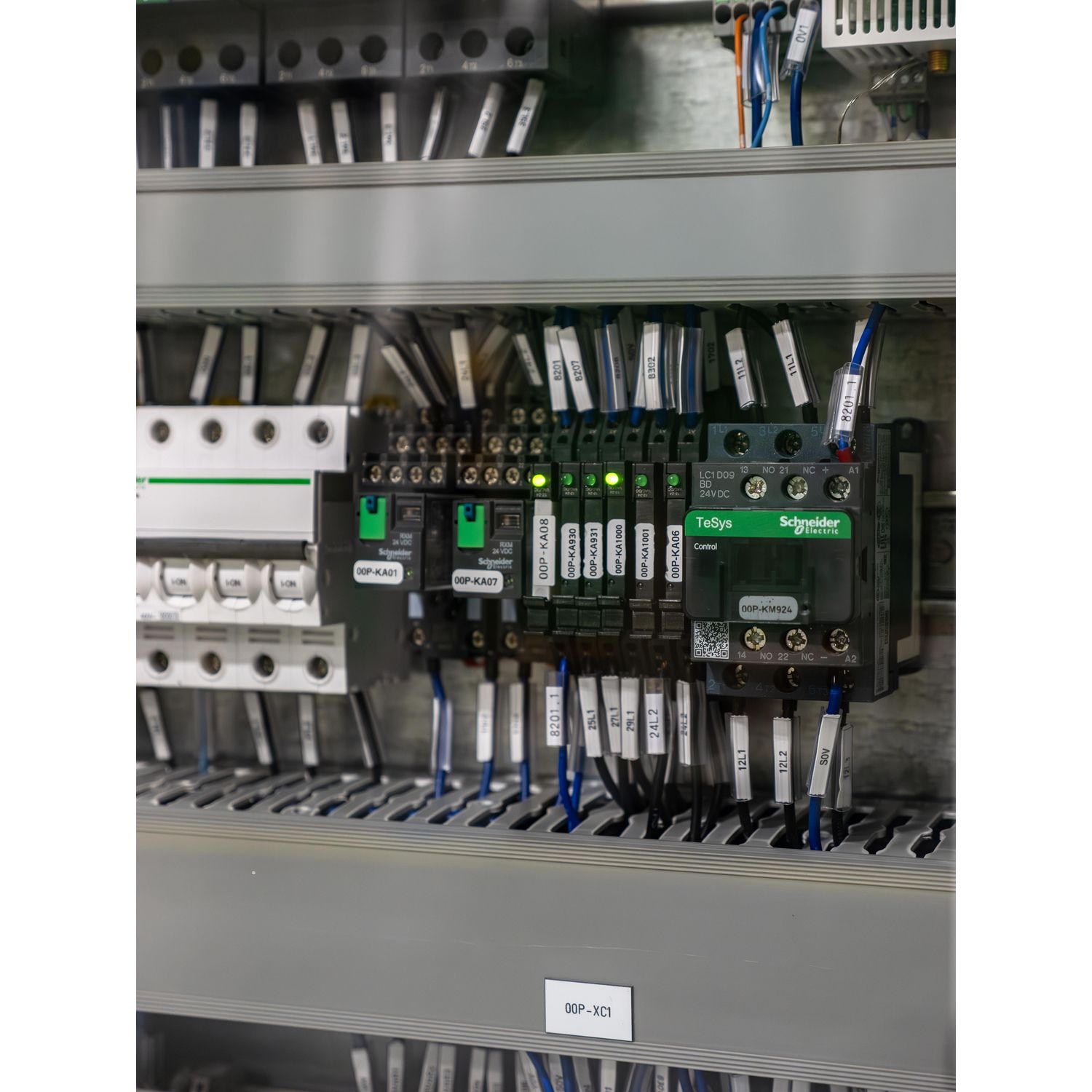

Image of product in real life situation

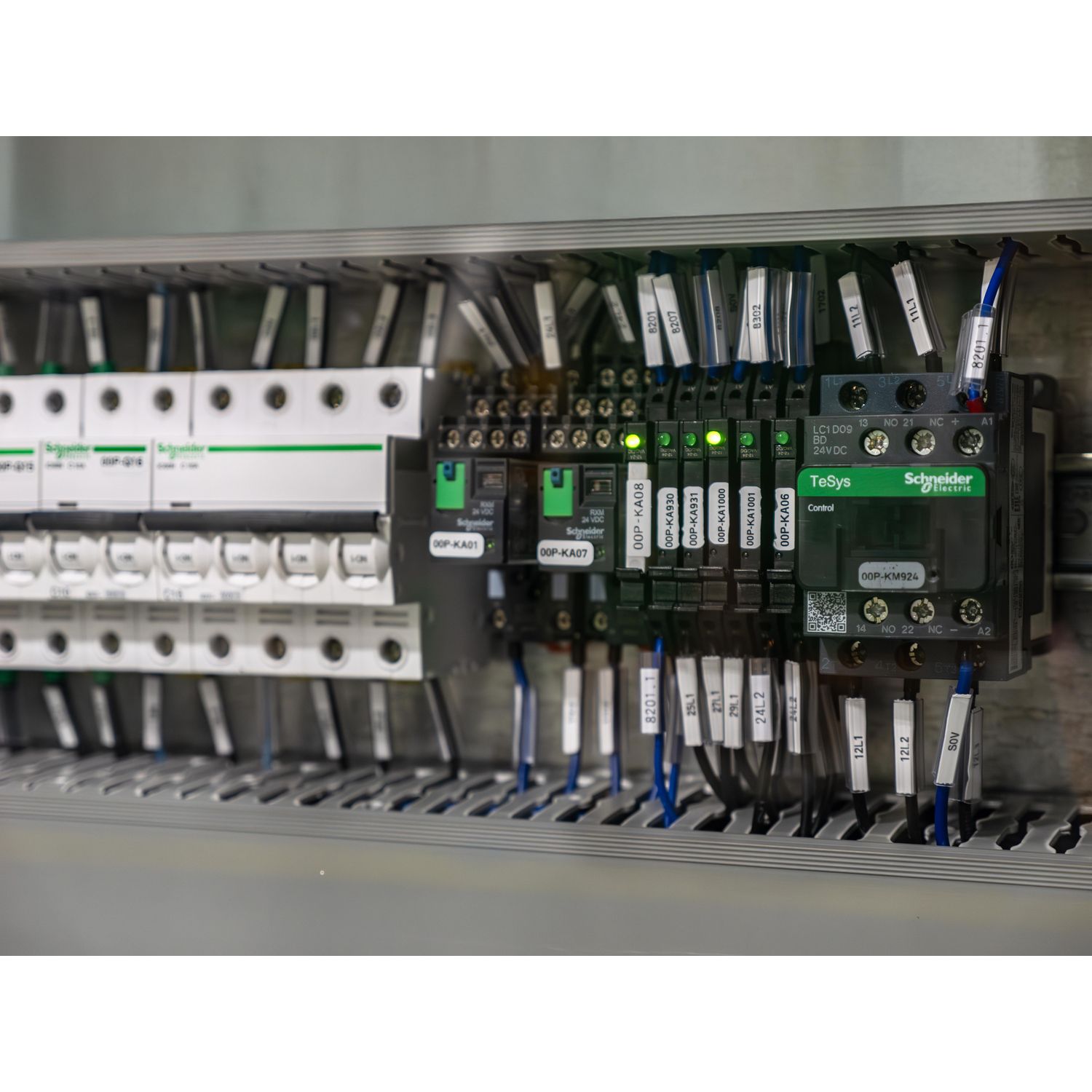

Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSL
[Uc] control circuit voltage 12 V, 12 V AC/DC
Contact operation standard
Shape of pin flat (PCB type)
Range of product Harmony Electromechanical Relays
[Ithe] conventional enclosed thermal current 6 A at -40-55 °C
[In] rated current 6 A
Contacts type and composition 1 C/O
Series name interface relay
Status LED with
Product or component type pre-assembled plug-in relay with socket
Connections - terminals screw connectors
Complementary
Drop-out voltage threshold >= 0.05 Uc
Load current 6 A at 250 V AC 0.5 mm mounting distance
Operating position any position
Compatibility code RSL
Mechanical durability 10000000 cycles
Sale per indivisible quantity 10
Average coil consumption 0.17 W, DC
Device presentation complete product
Average resistance 848 Ohm network: DC at 23 °C +/- 10 %
Control type without push-button
Contact terminal arrangement separate
Marking CE
Contacts material silver alloy (AgSnO2)
Height 78.6 mm
Safety reliability data B10d = 60000
Maximum switching capacity 150 W, 1500 VA
Minimum switching voltage 12 V
Depth 95 mm
Width 6.2 mm
Operating time 12 ms, 5 ms reset
Minimum switching current 100 mA
[Ui] rated insulation voltage 277 V conforming to cUL, 250 V conforming to IEC
[Ie] rated operational current 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL
Connections - terminals screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Minimum switching capacity 120 mW
Maximum switching voltage 277 V
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC
Net weight 0.029 kg
Electrical durability 60000 cycles for resistive load, 6 A at 250 V, AC-1
Fixing mode plastic compression spring
Mounting support 35 mm symmetrical DIN rail
Test levels level A group mounting
Protection category RT III
Operating rate <= 360 cycles/hour under load, <= 72000 cycles/hour no-load
Tightening torque < 0.5 N.m for M2.5 screw(s)
Terminals description ISO n°1 (A1-A2)CO, (11-12-14)OC
Environment
Input voltage 12 V AC/DC (input voltage limit: 11.4...14.4 V)
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Dielectric strength 4000 V AC between coil and contact, 1000 V AC between contacts
Shock resistance 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles in operation conforming to IEC 60068-2-6, 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles not operating conforming to IEC 60068-2-6
Standards IEC 61810-1, UL 508, CSA C22.2 No 14
Product certifications CSA, GOST, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.700 cm
Package 1 Width 8.000 cm
Package 1 Length 9.700 cm
Package 1 Weight 29.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 10.300 cm
Package 2 Length 8.500 cm
Package 2 Weight 312.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.905 kg
