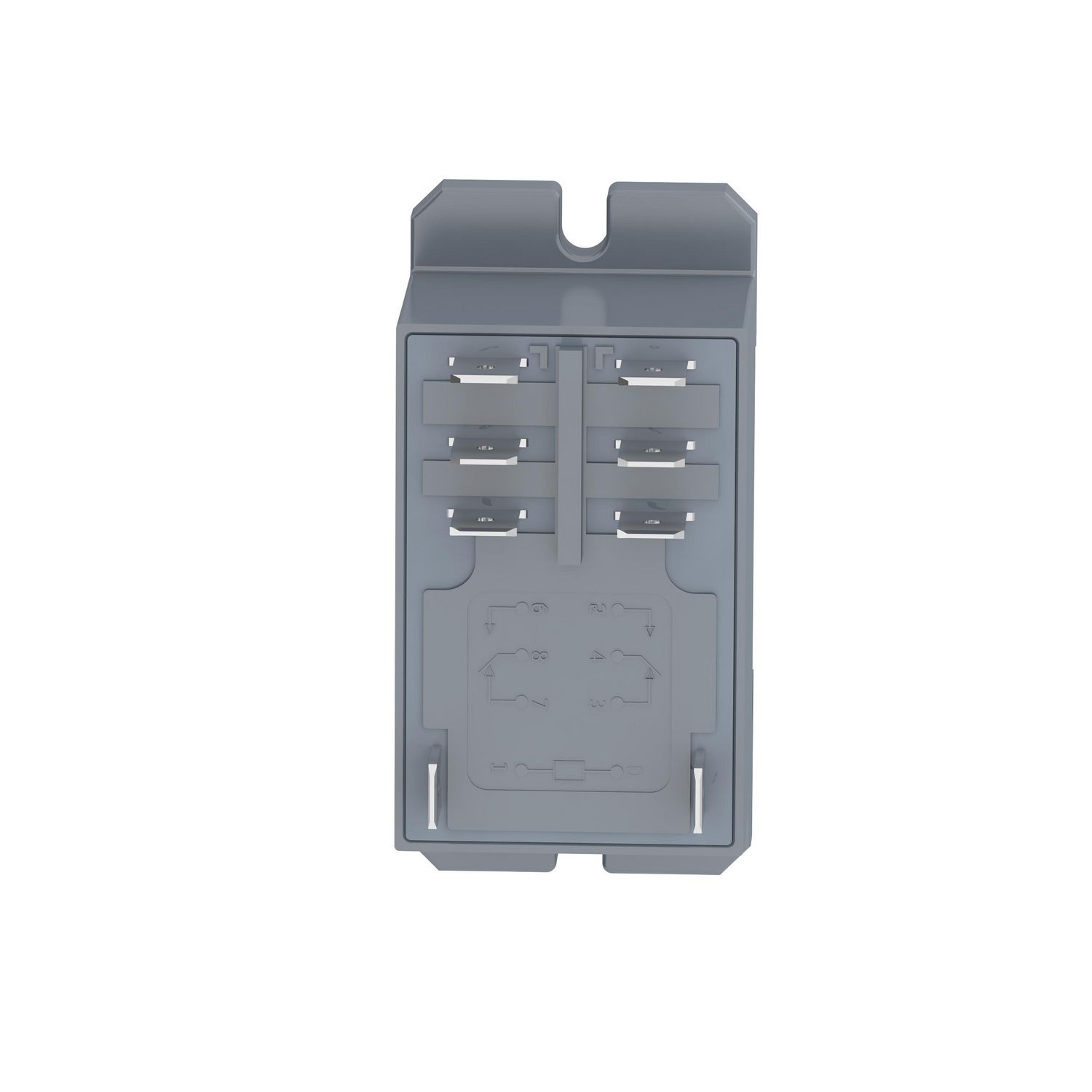

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

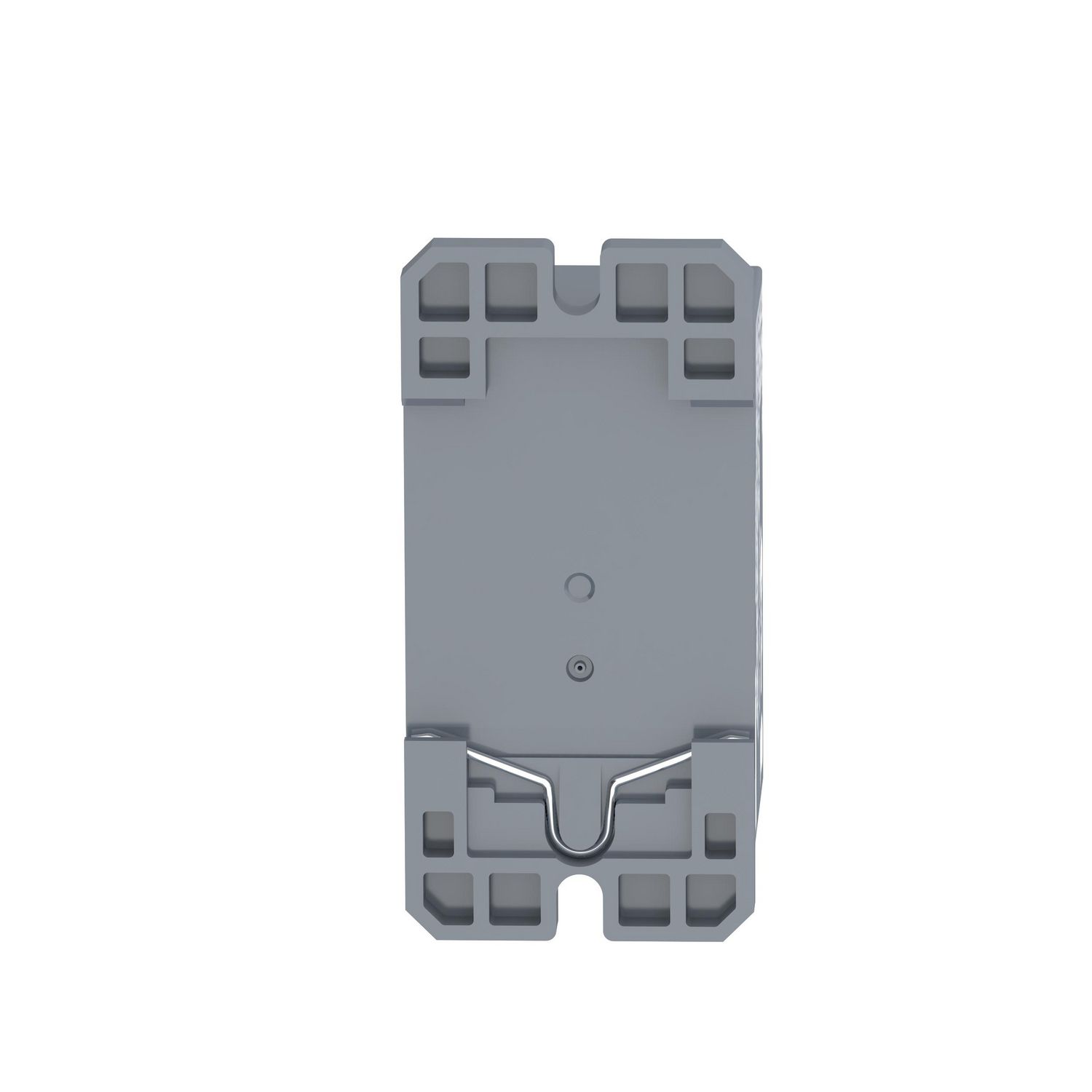

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

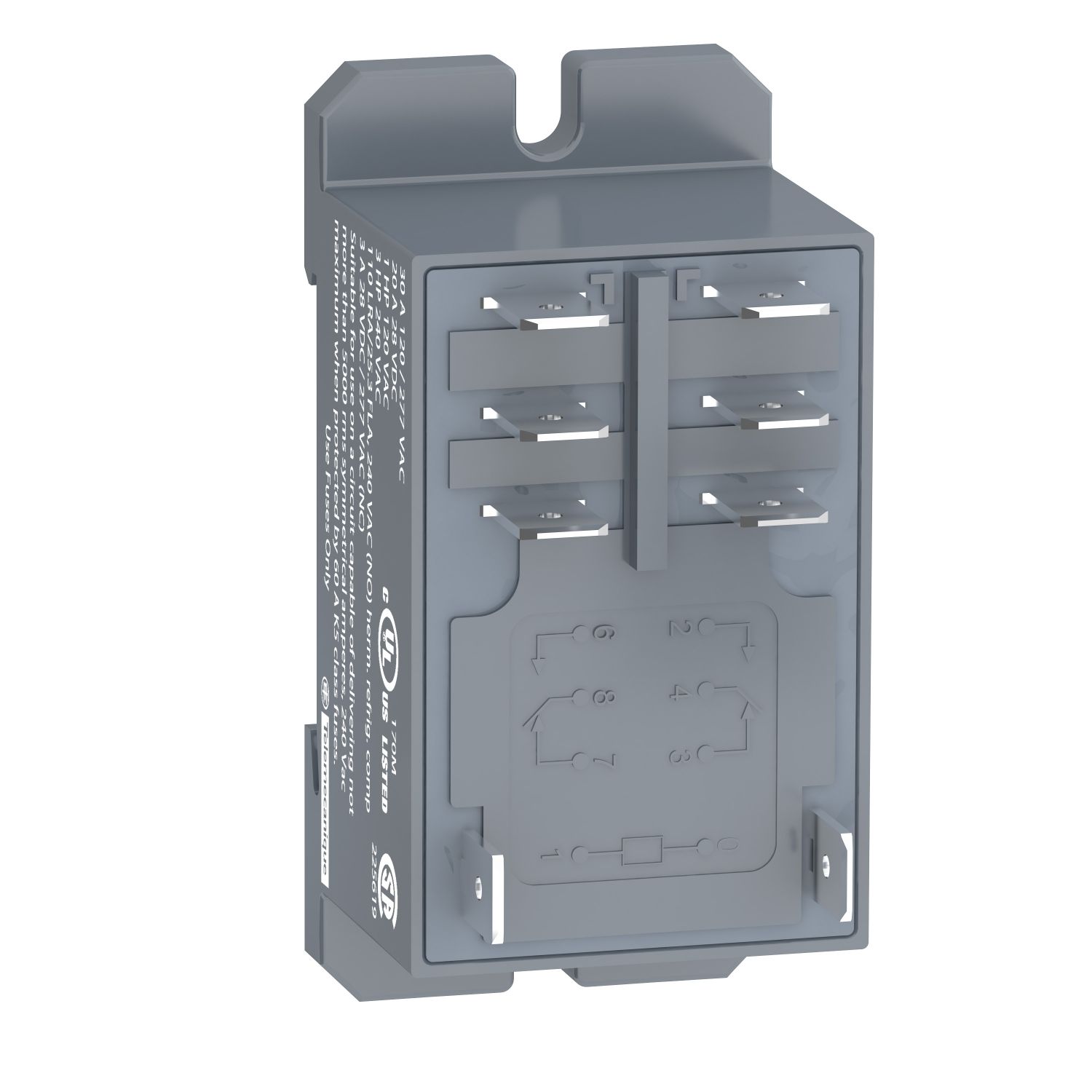

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

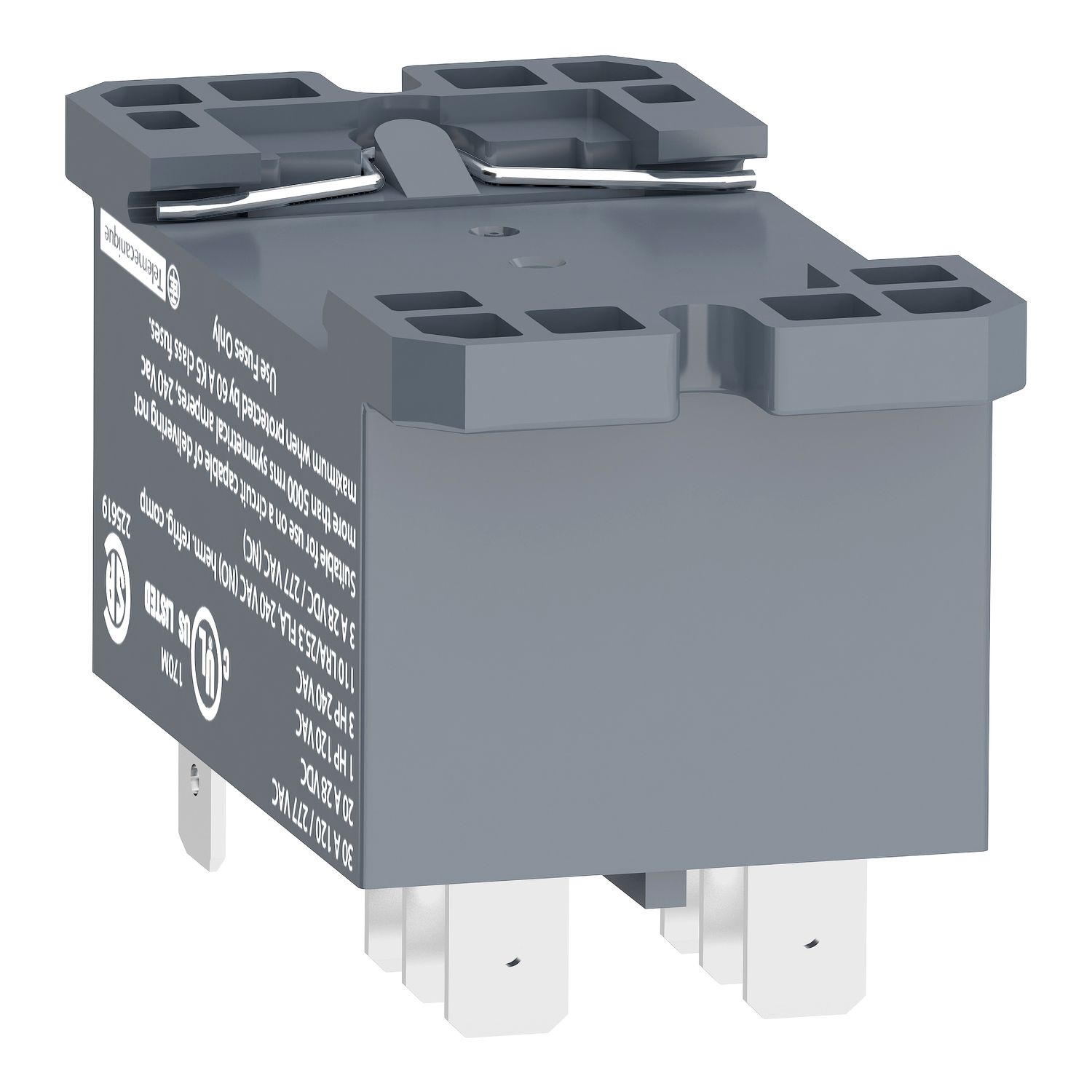

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

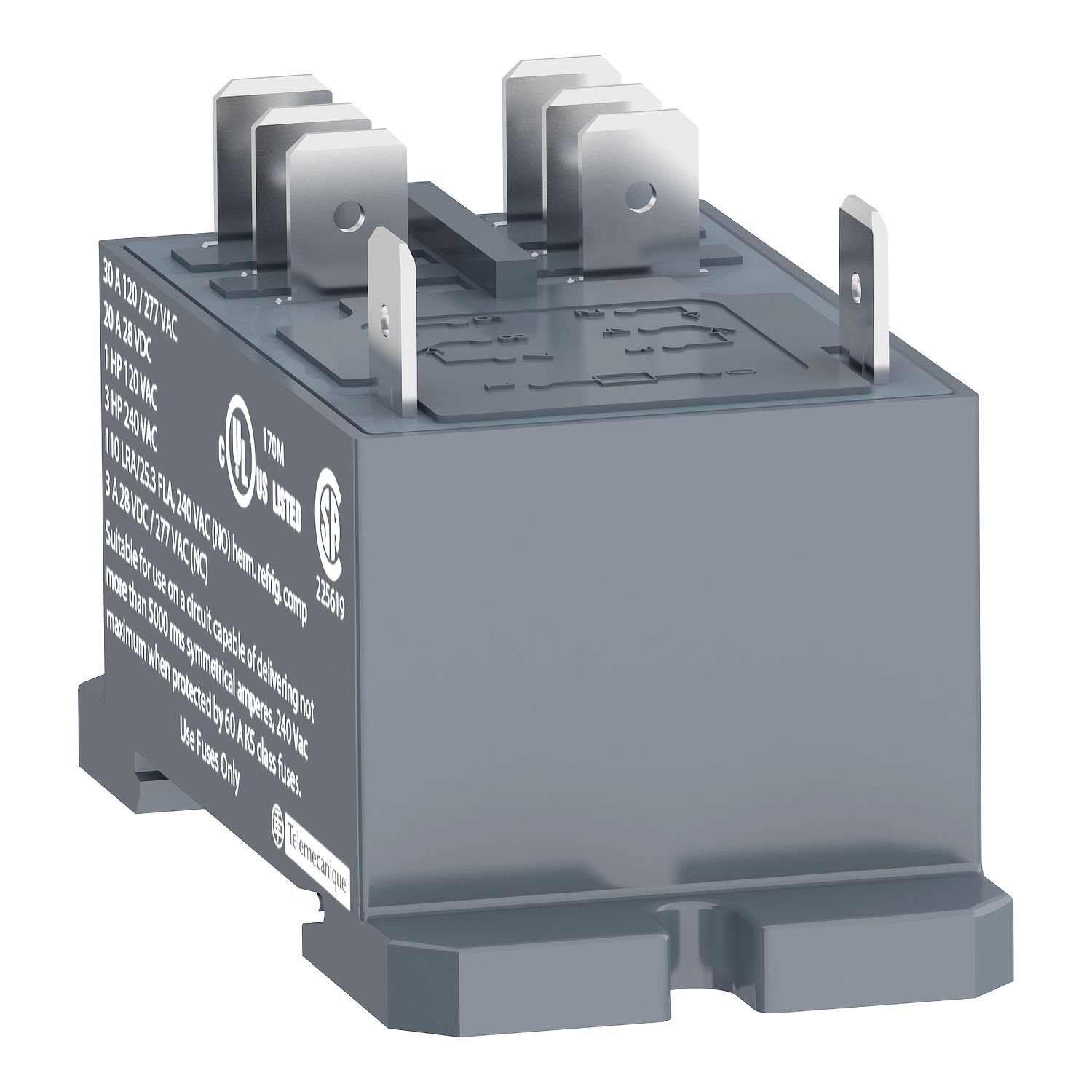

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

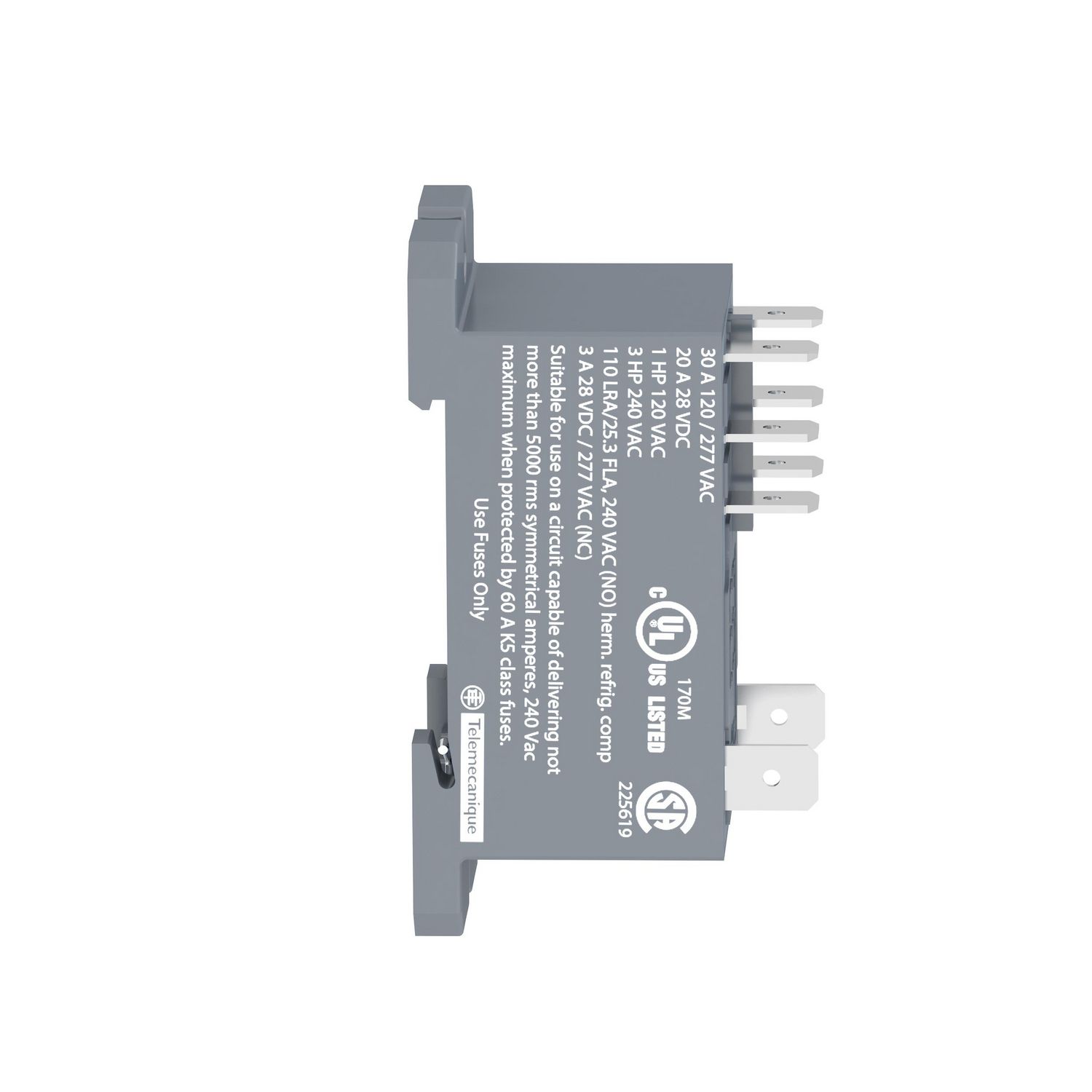

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

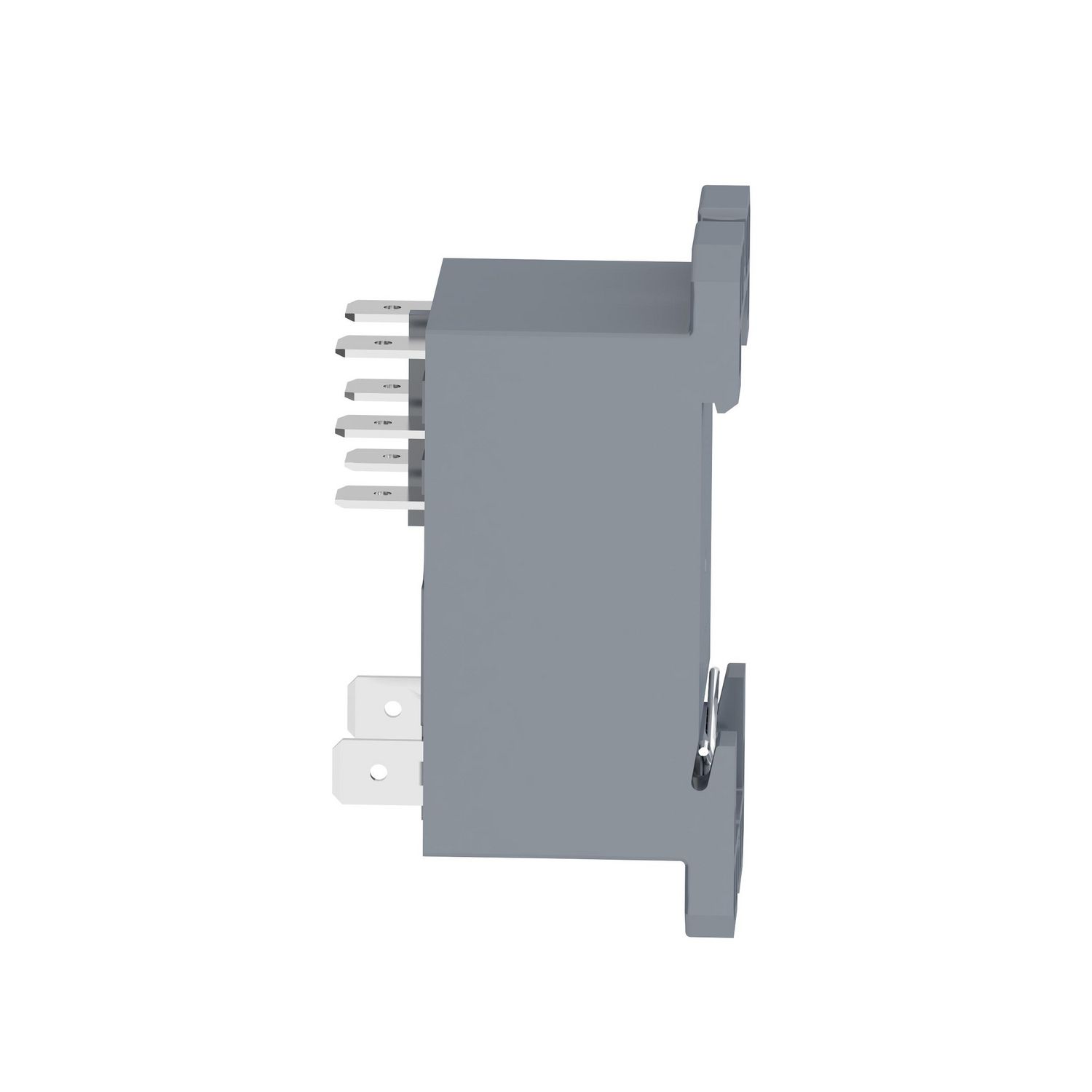

Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC
Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC
Picture of power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC
SKU:

RPF2BJD

power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC

Old price: $35.31 INC GST
$33.54 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 12V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Declaration of conformity
Catalog
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 12V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPF
[Uc] control circuit voltage 12 V, 12 V DC
Load current 30 A at 250 V AC, 25 A at 28 V DC
Control type without lockable test button
Shape of pin flat
Contacts material silver tin oxide
Range of product Harmony Electromechanical Relays
Utilisation coefficient 10 %
[Ithe] conventional enclosed thermal current 30 A at -40-55 °C 13 mm gap between two relays, 25 A at -40-55 °C relays side by side without a gap
[In] rated current 30 A
Contacts type and composition 2 C/O
Series name Power
Product or component type DIN rail/panel mount relay
Connections - terminals quick-connect terminal
Complementary
Drop-out voltage threshold >= 0.1 Uc
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Control circuit voltage limits 9.6...13.2 V
Operating position any position
Compatibility code RPF
Mechanical durability 5000000 cycles
Device presentation complete product
Average resistance 86 Ohm at 20 °C +/- 10 %
CAD overall height 68.5 mm
Electrical durability 100000 cycles for resistive load
Safety reliability data B10d = 100000
Maximum switching capacity 7500 VA/700 W
Minimum switching capacity 170 mW 10 mA / 6 V for NC, 6000 mW 500 mA / 12 V for NO
CAD overall depth 39.2 mm
CAD overall width 33.7 mm
Operating time 25 ms
Minimum switching current 500 mA
[Ui] rated insulation voltage 300 V conforming to UL, 250 V conforming to IEC
[Ie] rated operational current 3 A at 28 V (DC) NC conforming to IEC, 3 A at 250 V (AC) NC conforming to IEC, 3 A at 28 V (DC) NC conforming to UL, 3 A at 277 V (AC) NC conforming to UL, 25 A at 28 V (DC) NO conforming to IEC, 30 A at 250 V (AC) NO conforming to IEC, 20 A at 28 V (DC) NO conforming to UL, 30 A at 277 V (AC) NO conforming to UL
Maximum switching voltage 250 V conforming to IEC
Net weight 0.082 kg
Reset time 25 ms
Mounting support panel, DIN rail
Test levels level A group mounting
Protection category RT II
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Average consumption 1.7 W
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Pollution degree 3
Shock resistance 30 gn for not operating, 10 gn for in operation
Vibration resistance 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 1500 V AC between contacts with micro disconnection, 4000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Standards IEC 61810-1, CSA C22.2 No 14, UL 508
Product certifications UL, GOST, CSA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.200 cm
Package 1 Width 3.500 cm
Package 1 Length 6.900 cm
Package 1 Weight 83.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 5.000 cm
Package 2 Length 20.000 cm
Package 2 Weight 907.000 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.925 kg
