SKU:

RM35UB3N30

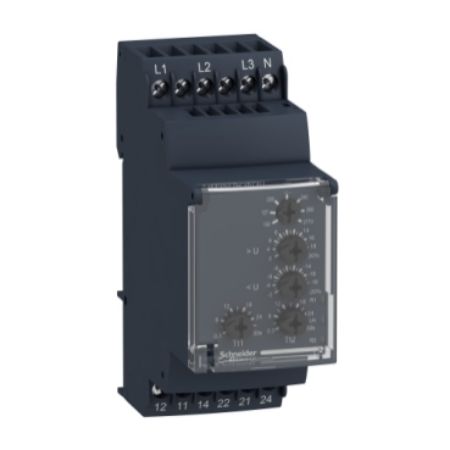

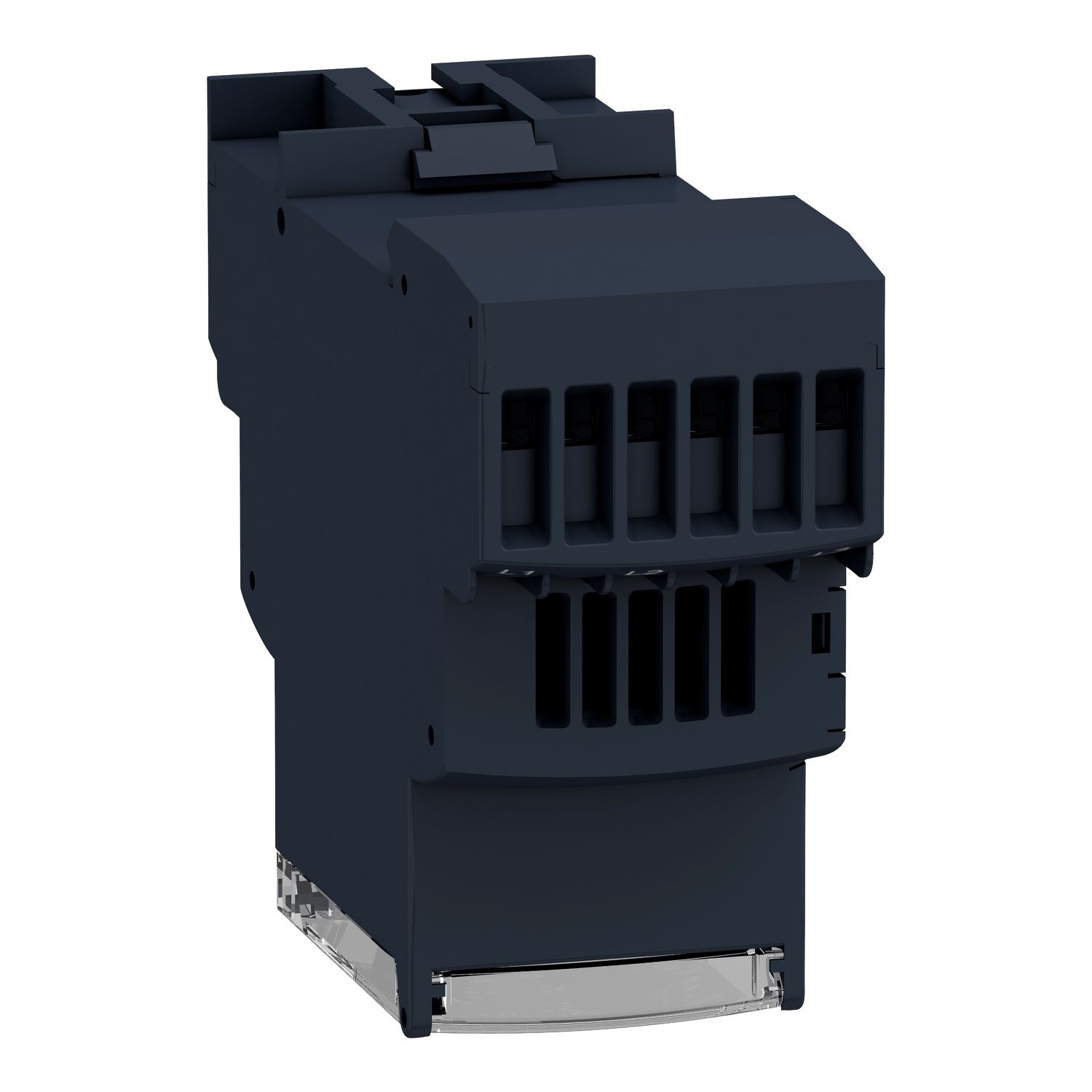

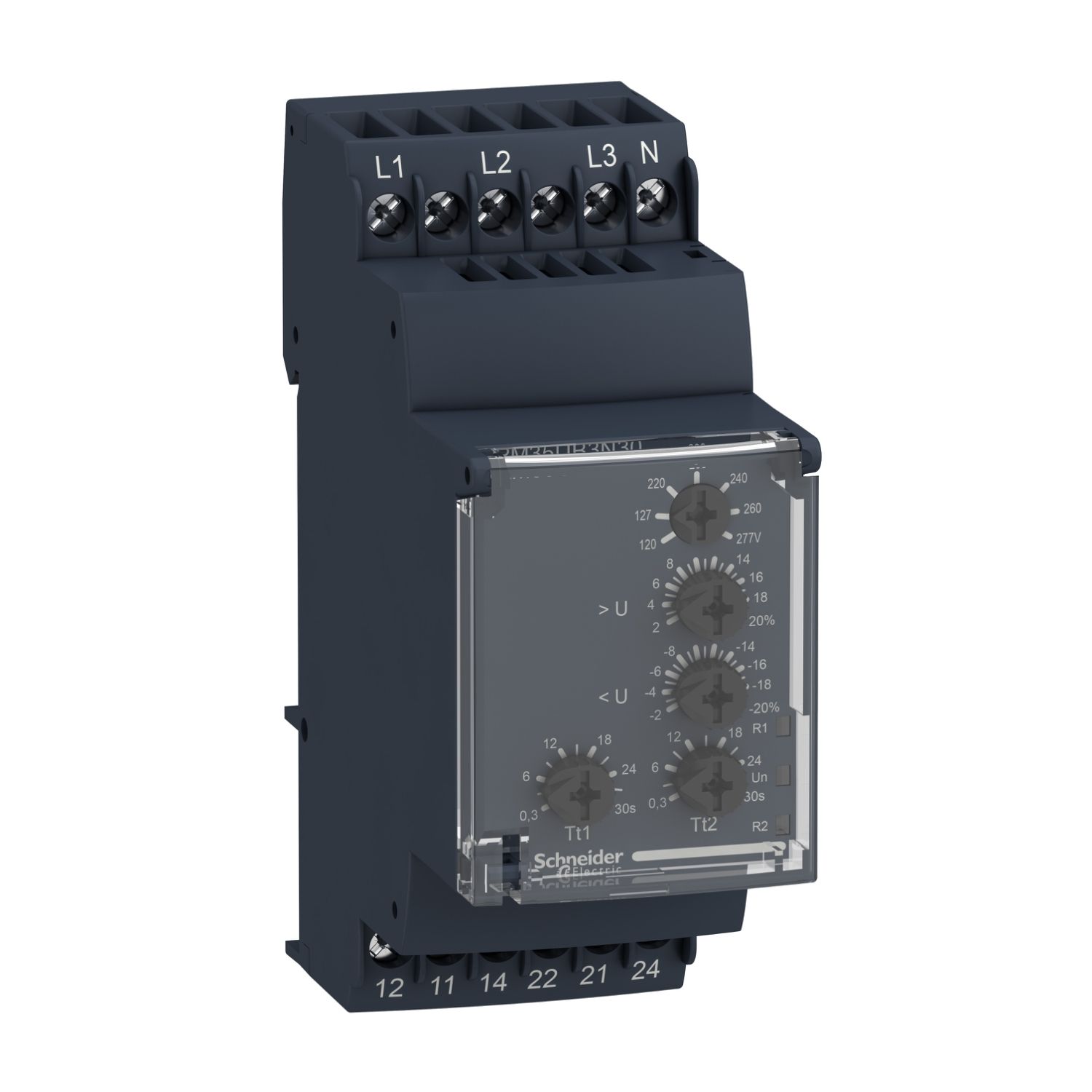

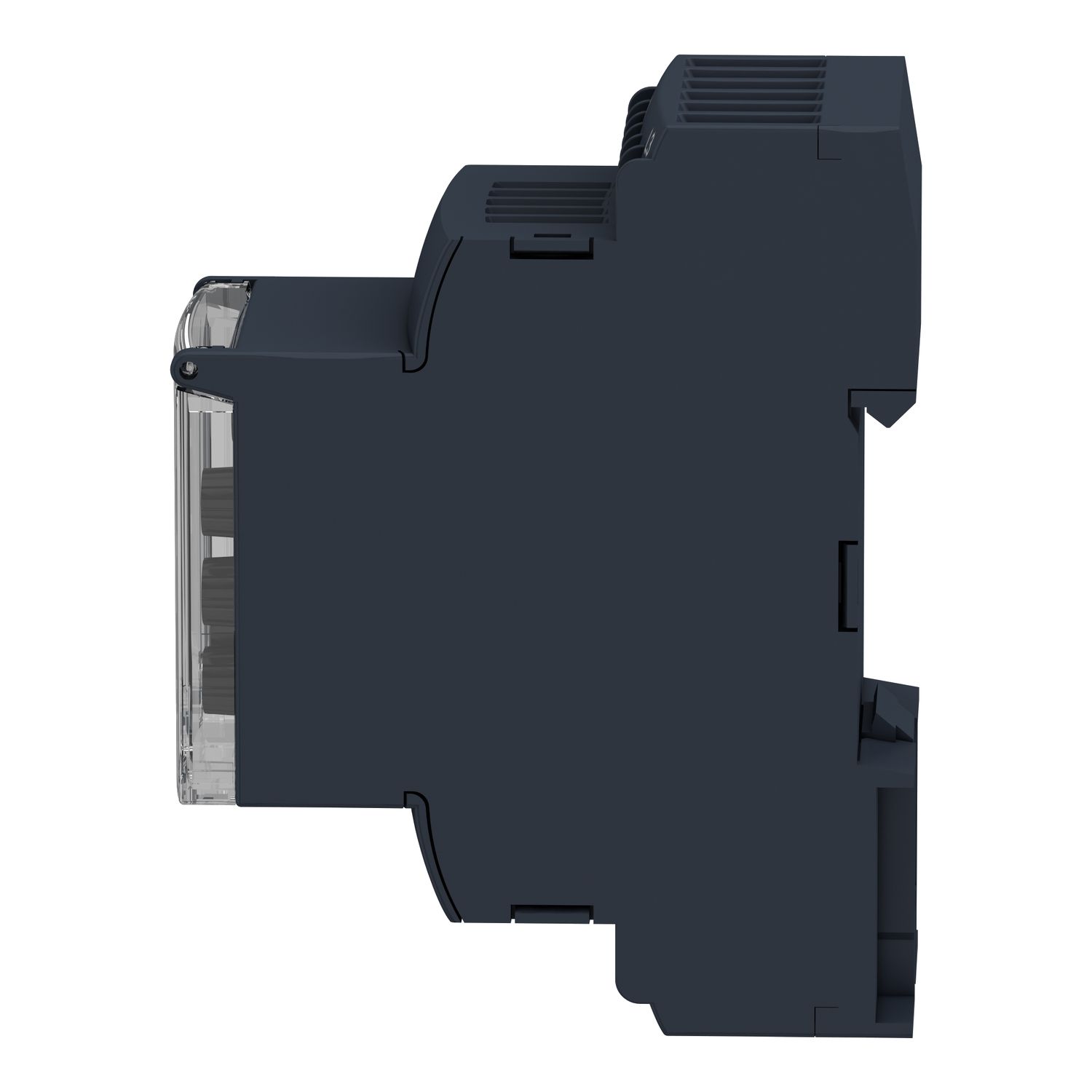

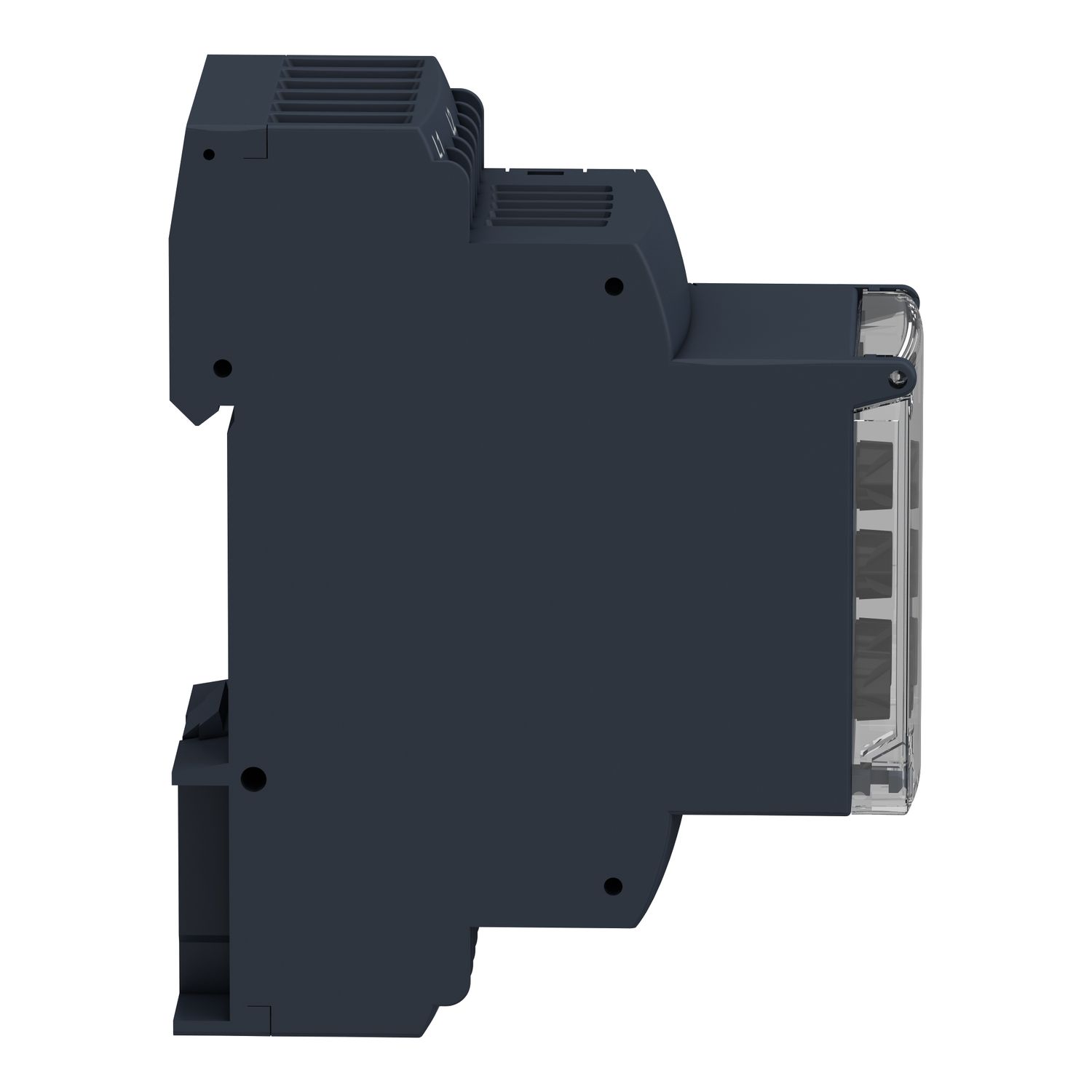

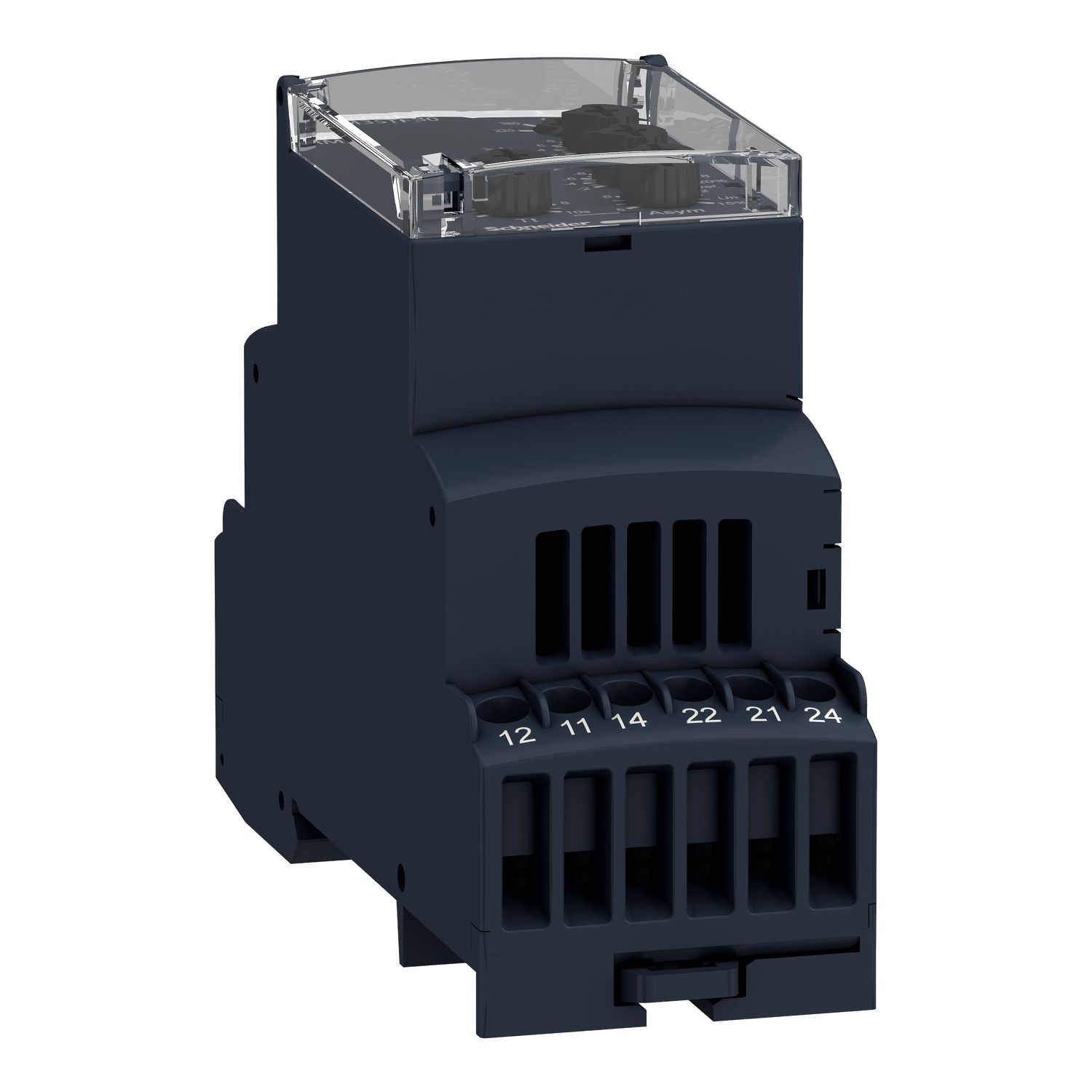

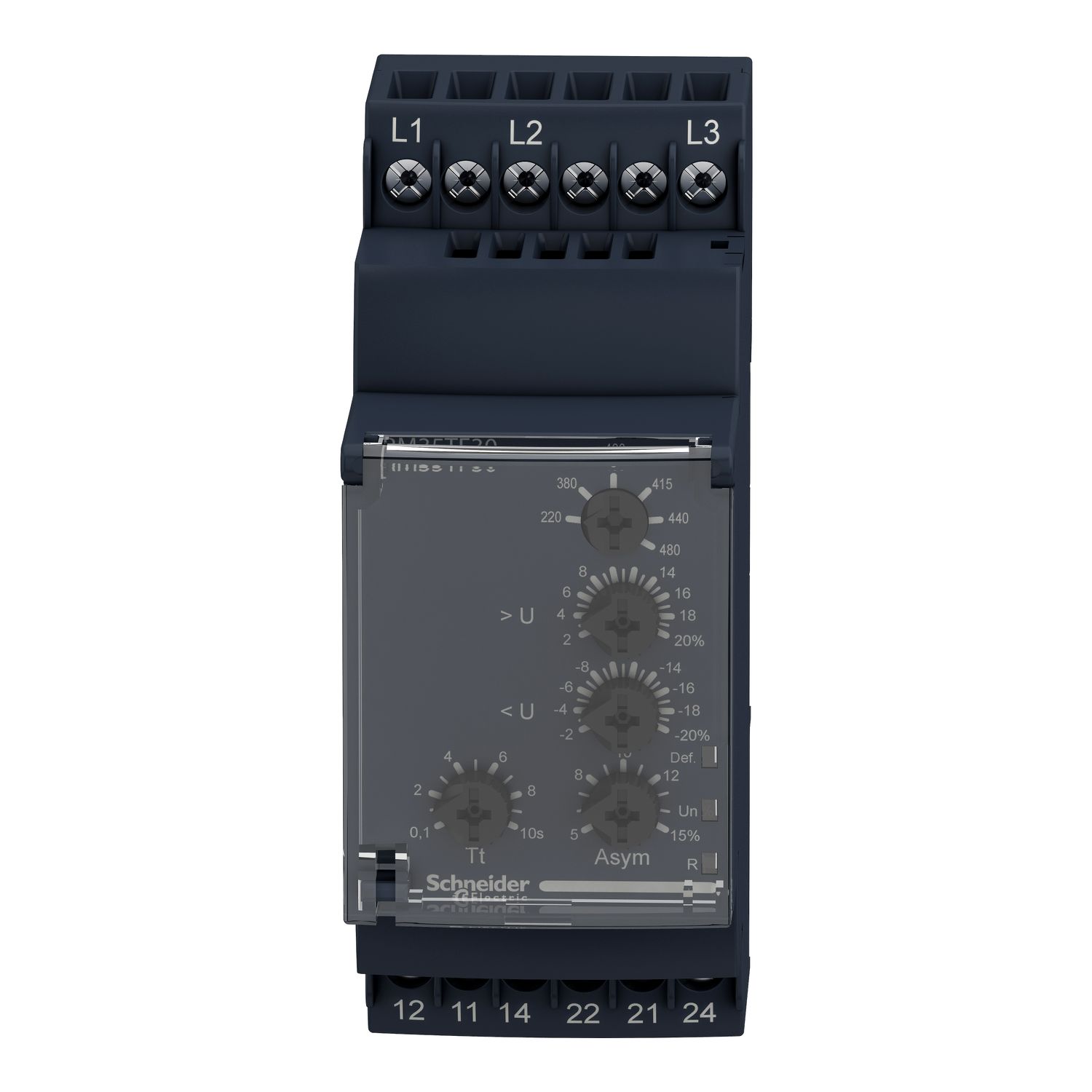

Harmony Control Relays, Modular 3 phaseVoltage control relay, 5A, 2CO, 120…277V AC

Old price: $541.75 INC GST
$514.66 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Harmony Control Relays, Modular 3 phaseVoltage control relay, 5A, 2CO, 120…277V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog

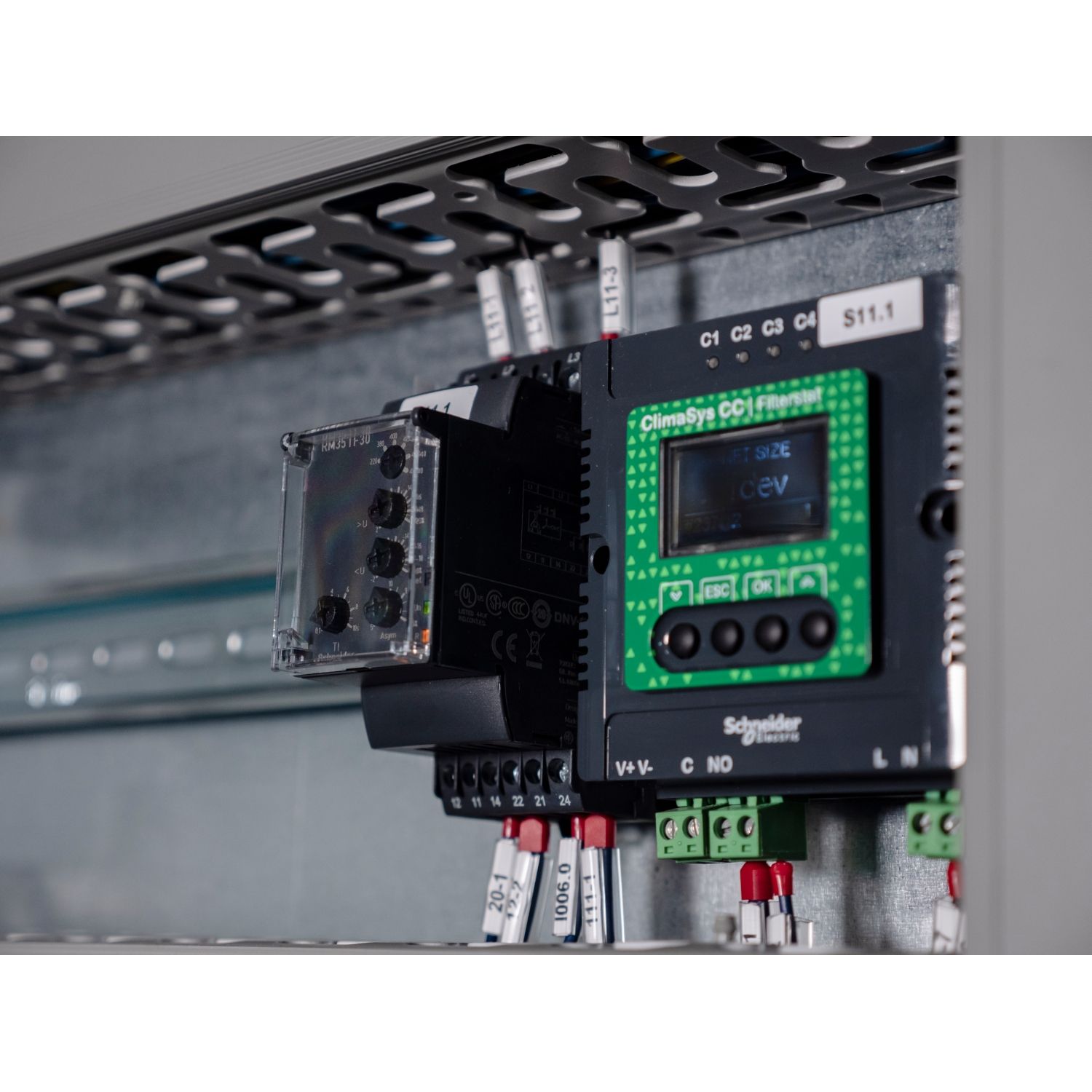

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony RM35-UB allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 120...277 V
Relay type voltage control relay
Relay name RM35UB3
Power consumption in VA 0-3.9 VA AC
Measurement range 120...277 V voltage AC 50/60 Hz
Range of product Harmony Control Relays
Maximum switching current 5 A AC/DC
[In] rated current 5 A
Relay monitored parameters overvoltage and undervoltage between neutral, overvoltage and undervoltage between phases, absence of neutral
Time delay type adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Product specific application for 3-phase supply
Contacts type and composition 2 C/O
Utilisation category DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component type voltage control relay
Switching capacity in VA 1250 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency 50...60 Hz +/- 15 %
Compatibility code RM3
Voltage detection threshold 114 V
Mechanical durability 30000000 cycles
Supply voltage limits 114-329 V AC
Functionality overvoltage and undervoltage detection
Control type without test button
Measurement error 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Insulation resistance > 500 MOhm at 500 V DC conforming to IEC 60664-1, > 500 MOhm at 500 V DC conforming to IEC 60255-5
Safety reliability data MTTFd = 502.2 years, B10d = 470000
Repeat accuracy +/- 1 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability 10000 cycles
Width 35 mm
Measurement accuracy +/- 10 % of the full scale value
Housing material self-extinguishing plastic
Local signalling LED (yellow) for relay ON, LED (green) for power ON
Nominal output current 5 A

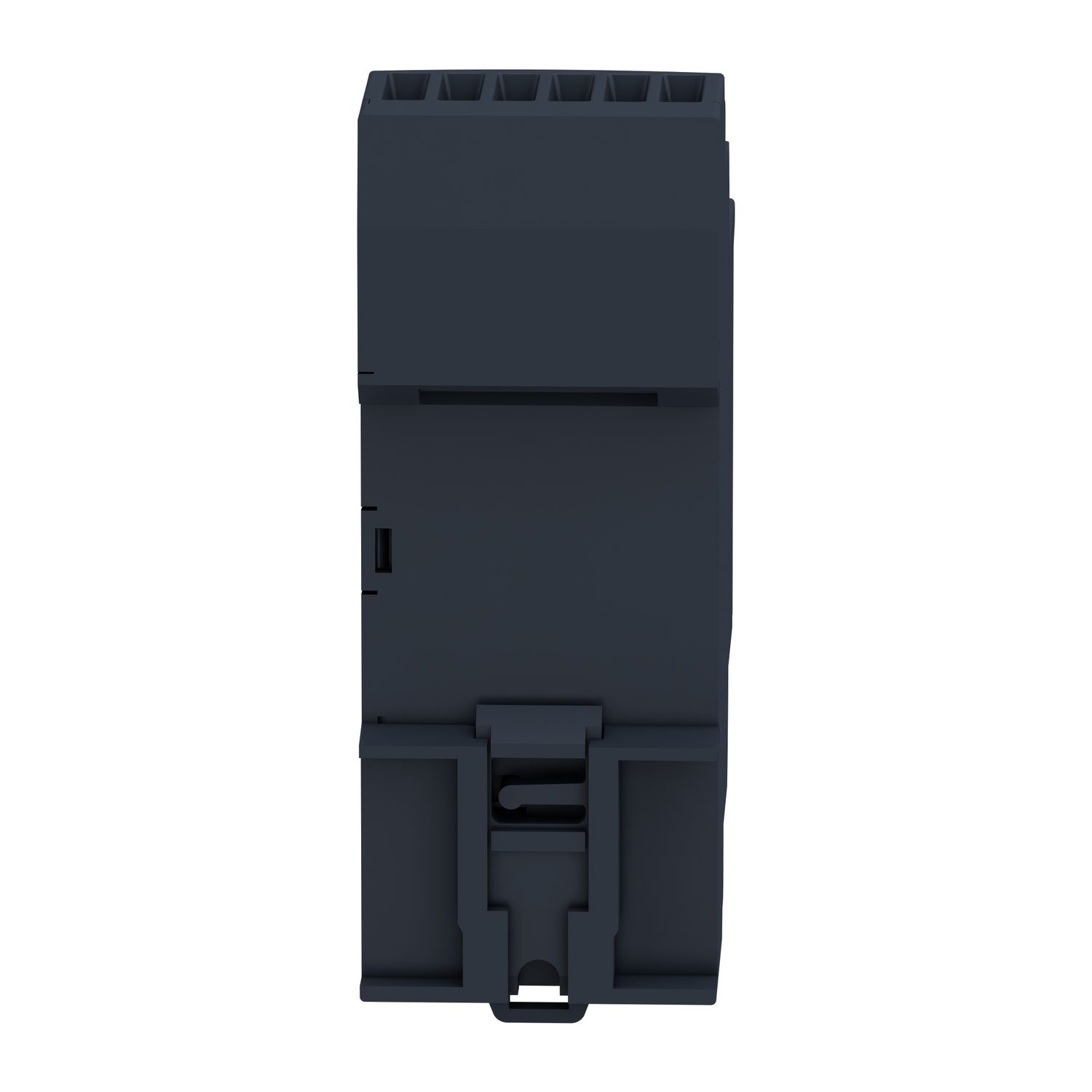

Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Quality labels CE
Overvoltage category III conforming to IEC 60664-1
[Ui] rated insulation voltage 400 V conforming to IEC 60664-1
Run-up delay at power-up 650 ms
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time 1500 ms time delay
Maximum switching voltage 250 V AC/DC
Net weight 0.08 kg
Operating position any position without derating
Response time < 200 ms (in the event of a fault)
Output contacts 1 C/O + 1 C/O, 1 per threshold
Operating rate <= 360 operations/hour full load
[Us] rated supply voltage self-powered
Hysteresis 2-2 %
Maximum measuring cycle 150 ms measurement cycle as true rms value
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Directives 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Electromagnetic compatibility immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Non-dissipating shock wave 4 kV
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 5 gn conforming to IEC 60068-2-27
Dielectric test voltage 2 kV, 1 min AC 50 Hz
Standards IEC 60255-1
Product certifications GOST, CSA, GL, C-Tick, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.700 cm
Package 1 Width 7.800 cm
Package 1 Length 9.700 cm
Package 1 Weight 123.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.690 kg
