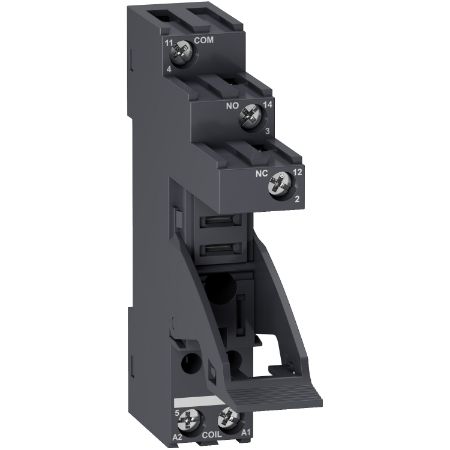

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

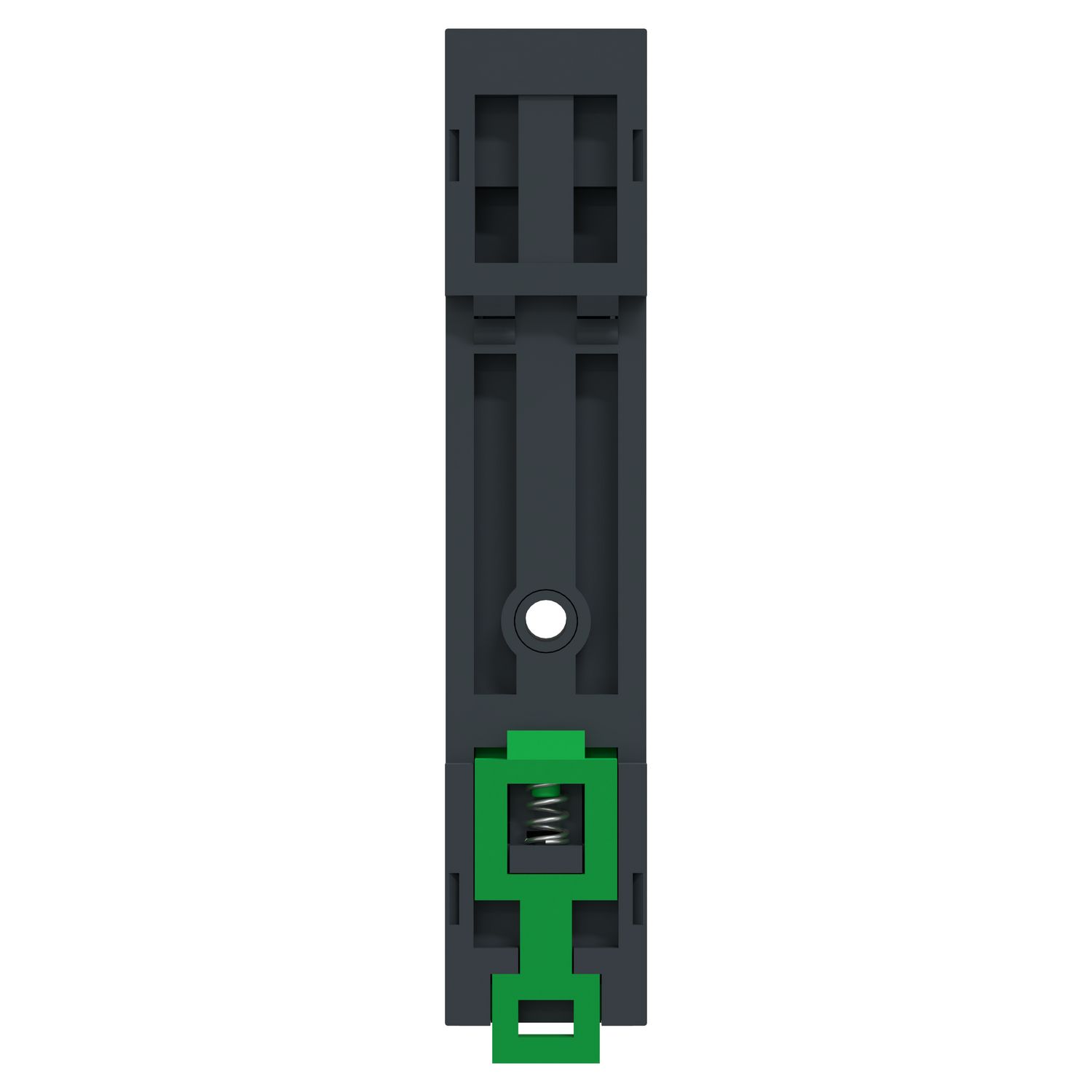

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

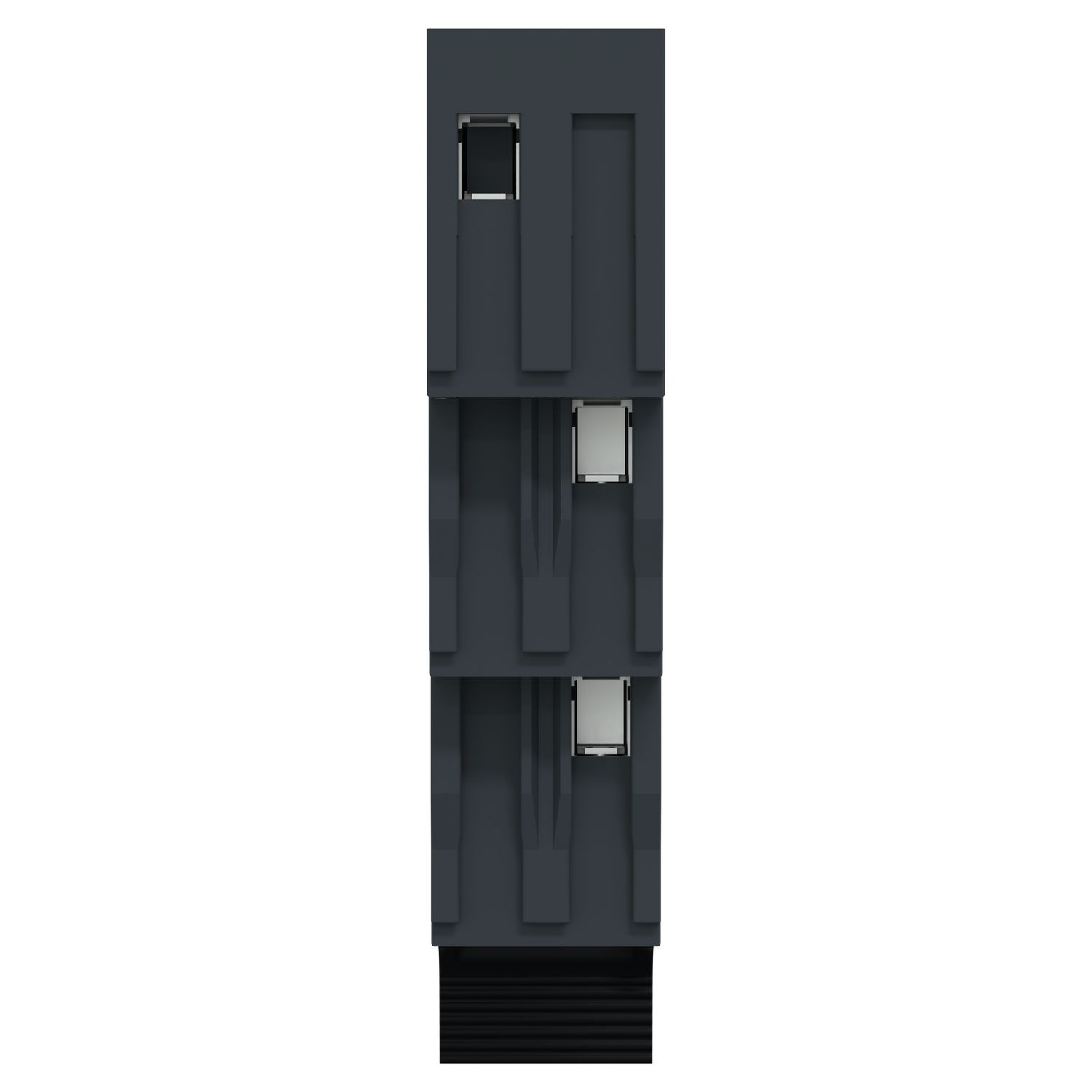

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

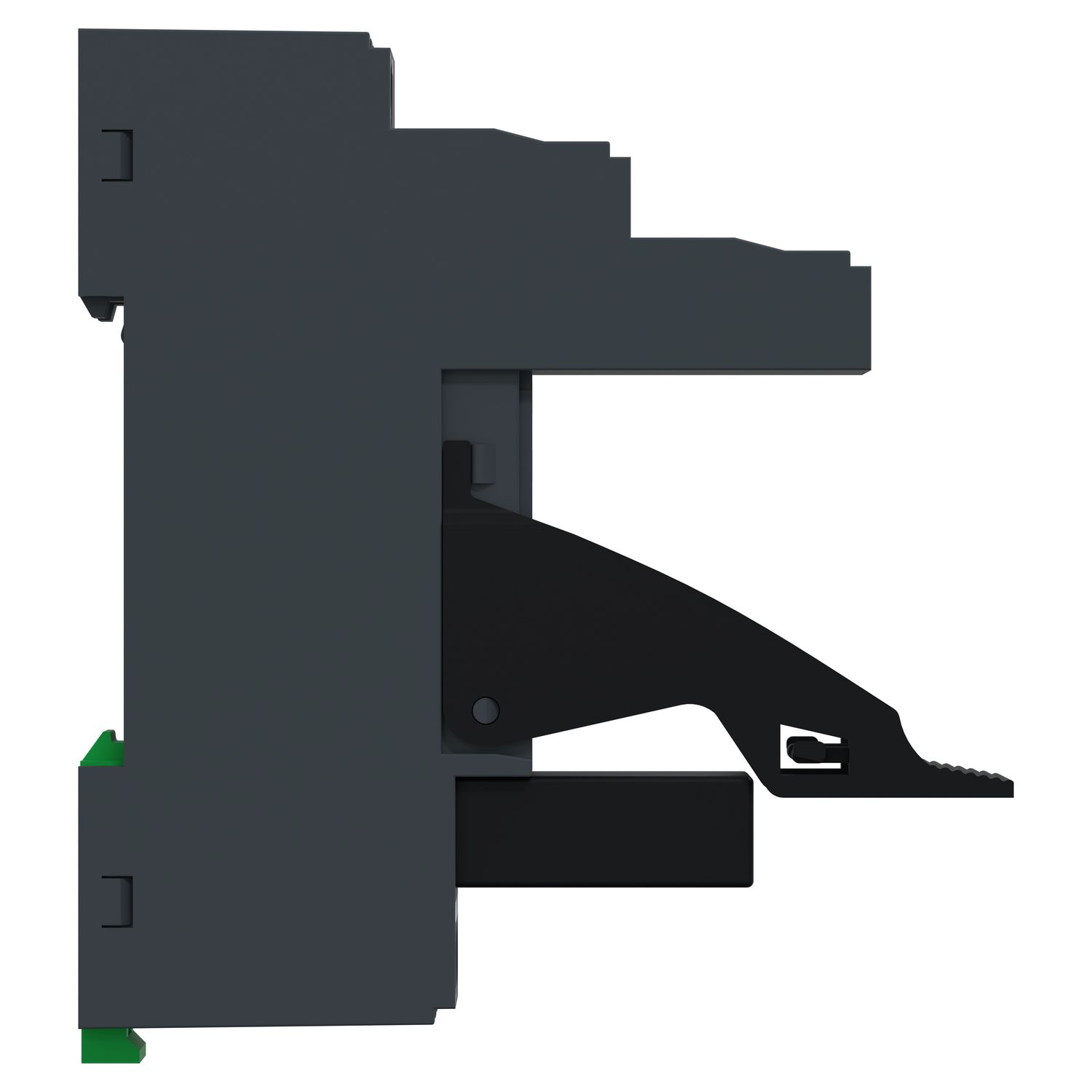

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

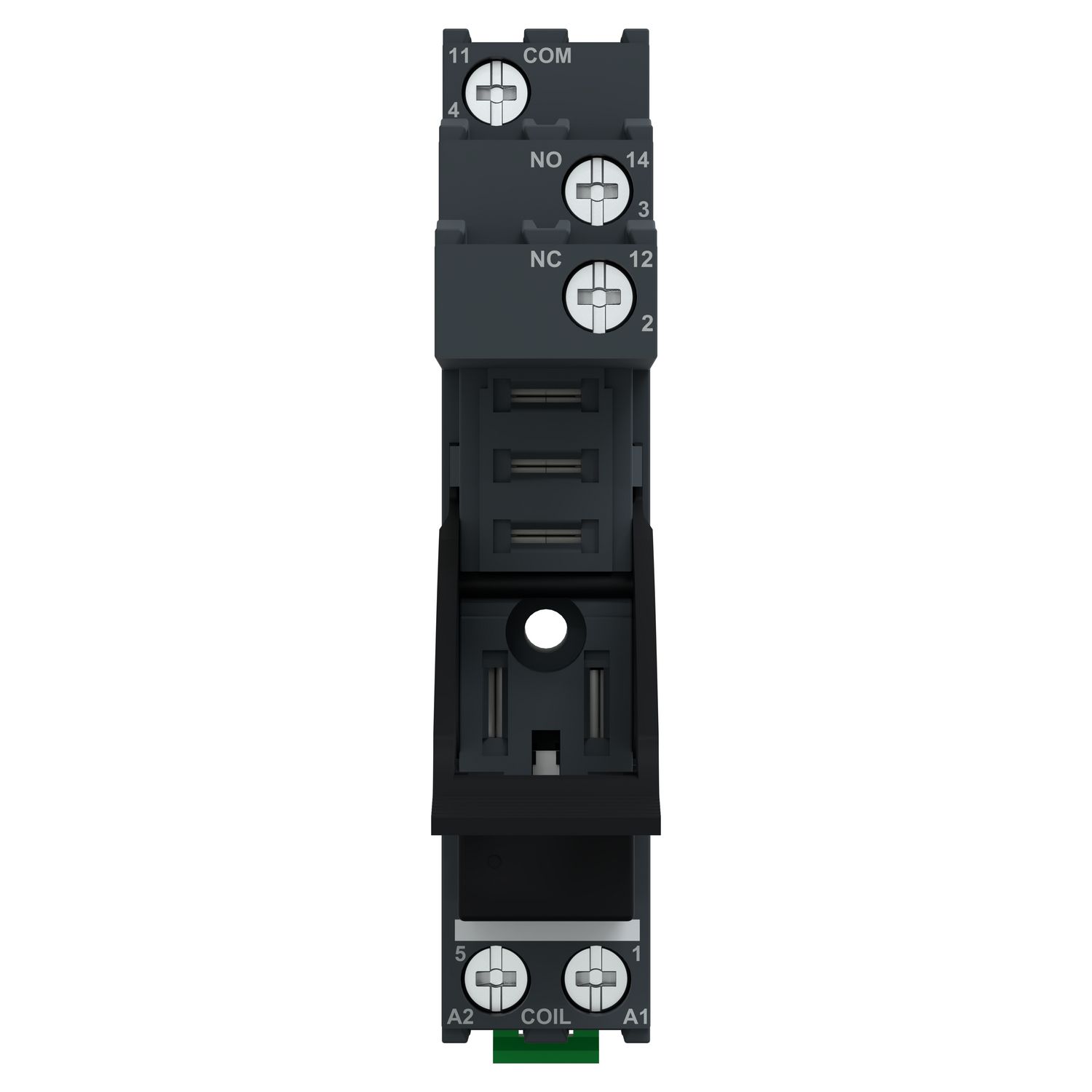

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

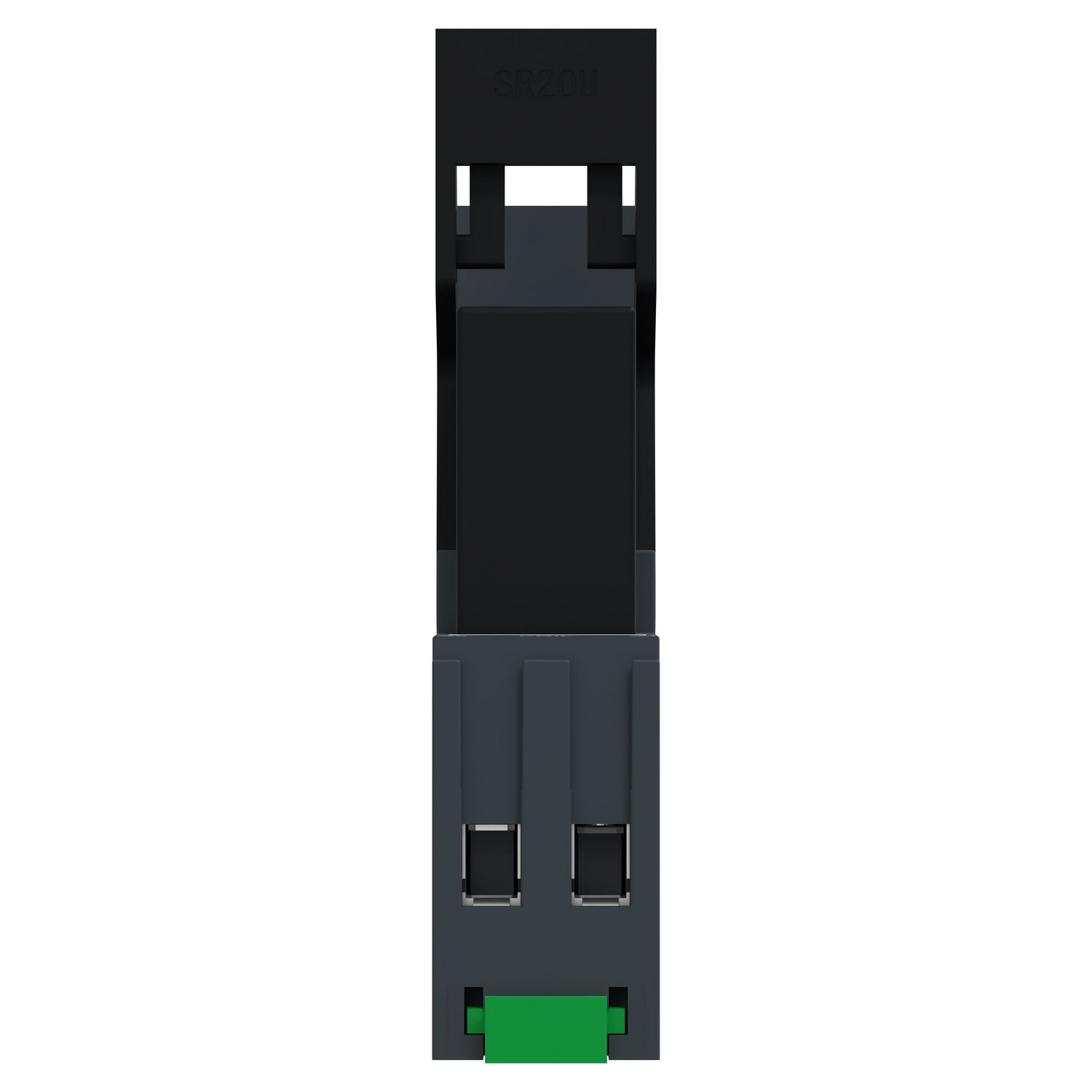

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

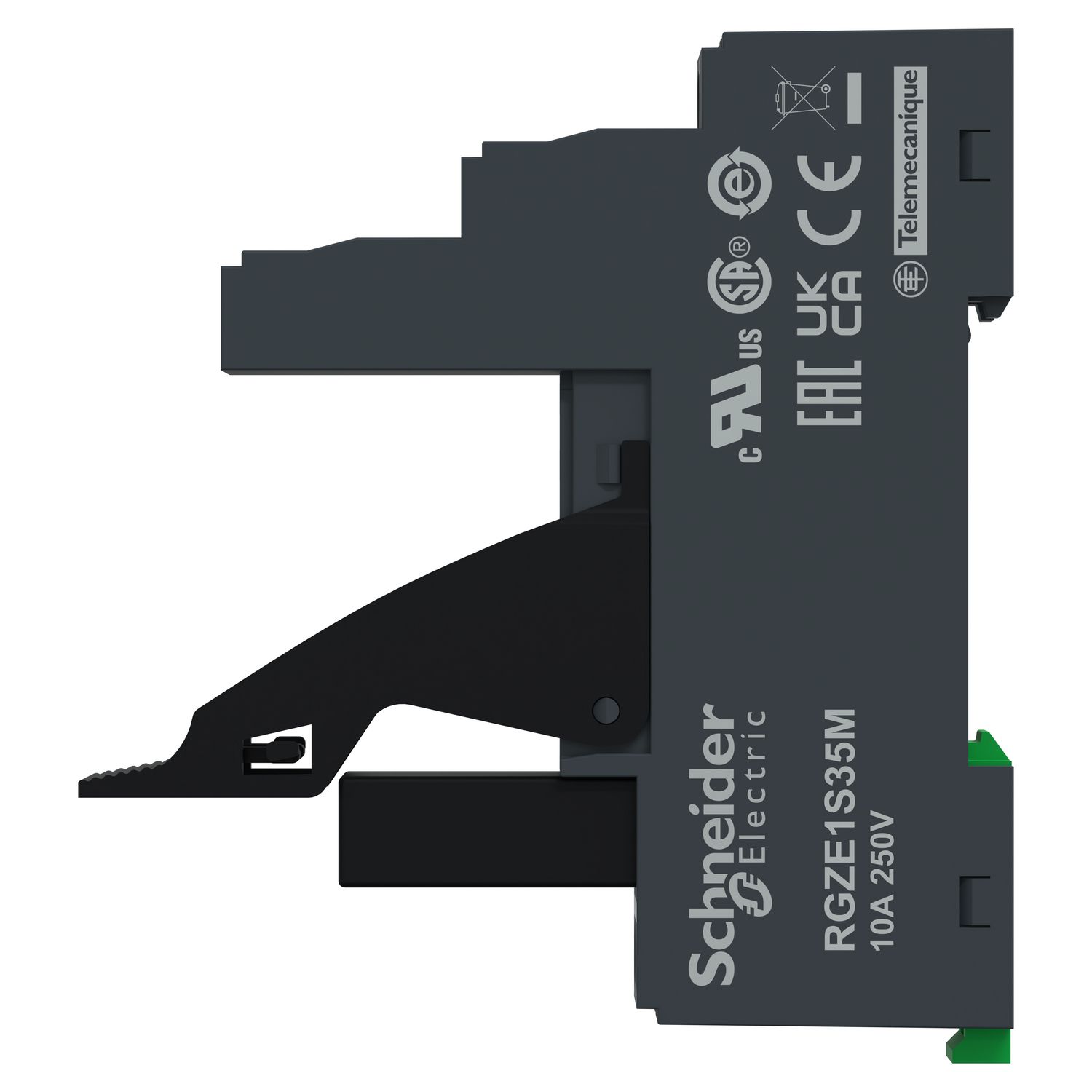

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

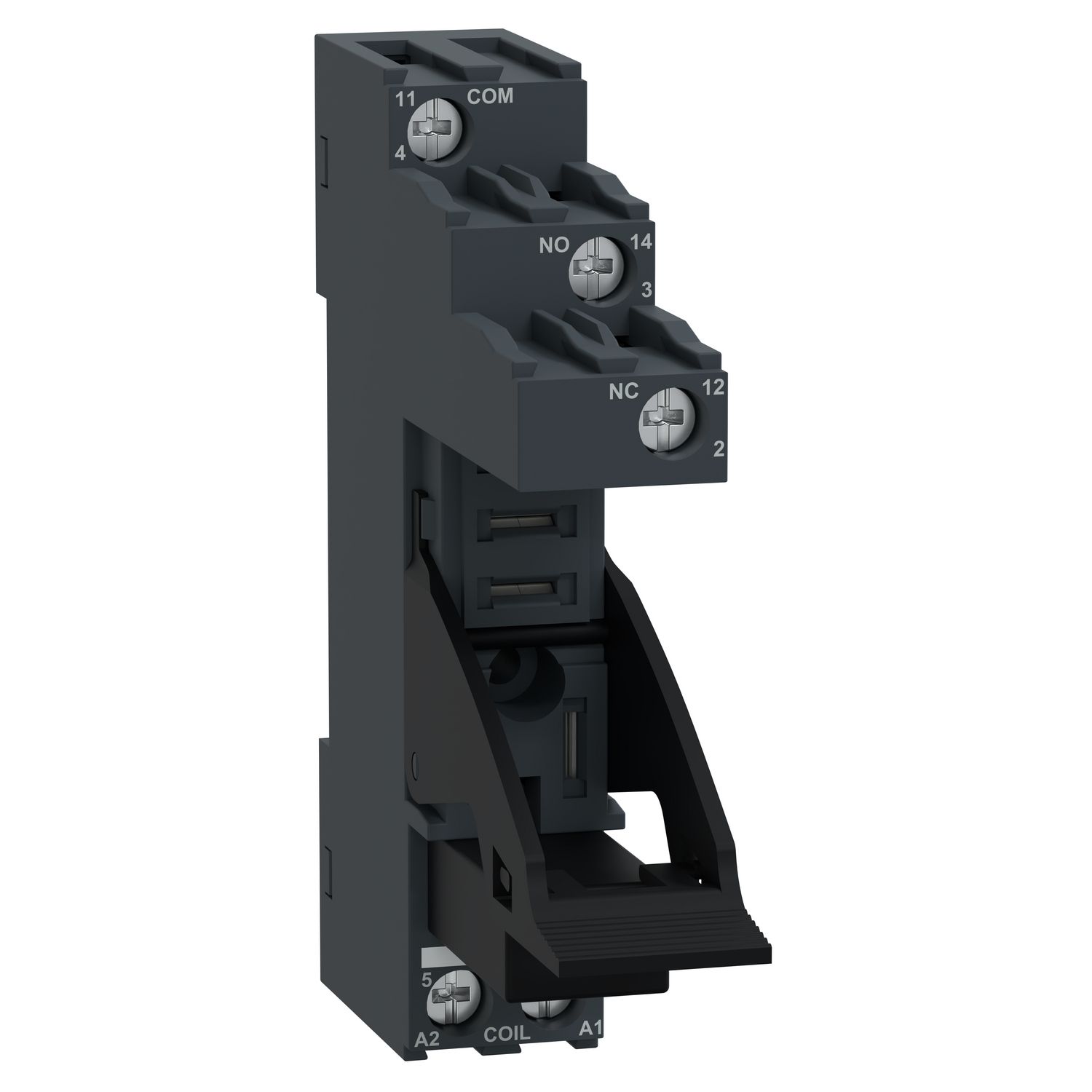

Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact
Picture of Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact
SKU:

RGZE1S35M

Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact

Old price: $9.89 INC GST
$9.40 INC GST
Available for Shipping : 16-Dec-2025
Product Selector
Harmony Electromechanical Relays, Socket with clamp, for RXG1 relays, 10A, screw connectors, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Declaration of conformity
Image of product in real life situation
Environmental Disclosure
Product Page Link
Product Data Sheet
"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Product compatibility plug-in relay RXG with 1 C/O contact
Range of product Harmony Electromechanical Relays
[In] rated current 10 A
Contacts type and composition 1 C/O
Product or component type socket
[Ui] rated insulation voltage 250 V
Complementary
[Uimp] rated impulse withstand voltage 4 kV between terminals and DIN rail with basic insulation, 6 kV between coil and contact with reinforced insulation
Dielectric strength 3 kV between terminals and DIN rail with basic insulation, 5 kV between coil and contact with reinforced insulation
Contact terminal arrangement separate
Pollution degree 3
Overvoltage category III
Connections - terminals screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
[Ue] rated operational voltage 300 V conforming to UL, 250 V conforming to IEC
Screw type M3
Environment
IP degree of protection IP20
Ambient air temperature for storage -40-85 °C
Relative humidity 10-85 %
Ambient air temperature for operation -40-70 °C
Standards IEC 61984, CSA C22.2 No 14, UL 508
Product certifications DNV-GL, CSA, UL, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.600 cm
Package 1 Width 7.000 cm
Package 1 Length 7.900 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 8.600 cm
Package 2 Width 8.900 cm
Package 2 Length 16.600 cm
Package 2 Weight 382.000 g
Unit Type of Package 3 3
Number of Units in Package 3 180
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.350 kg

Related products

Harmony Electromechanical Relays, Legends, for RSZE/RGZE sockets, plastic

RSZL300
$2.02 INC GST $2.13 INC GST
View Detail
