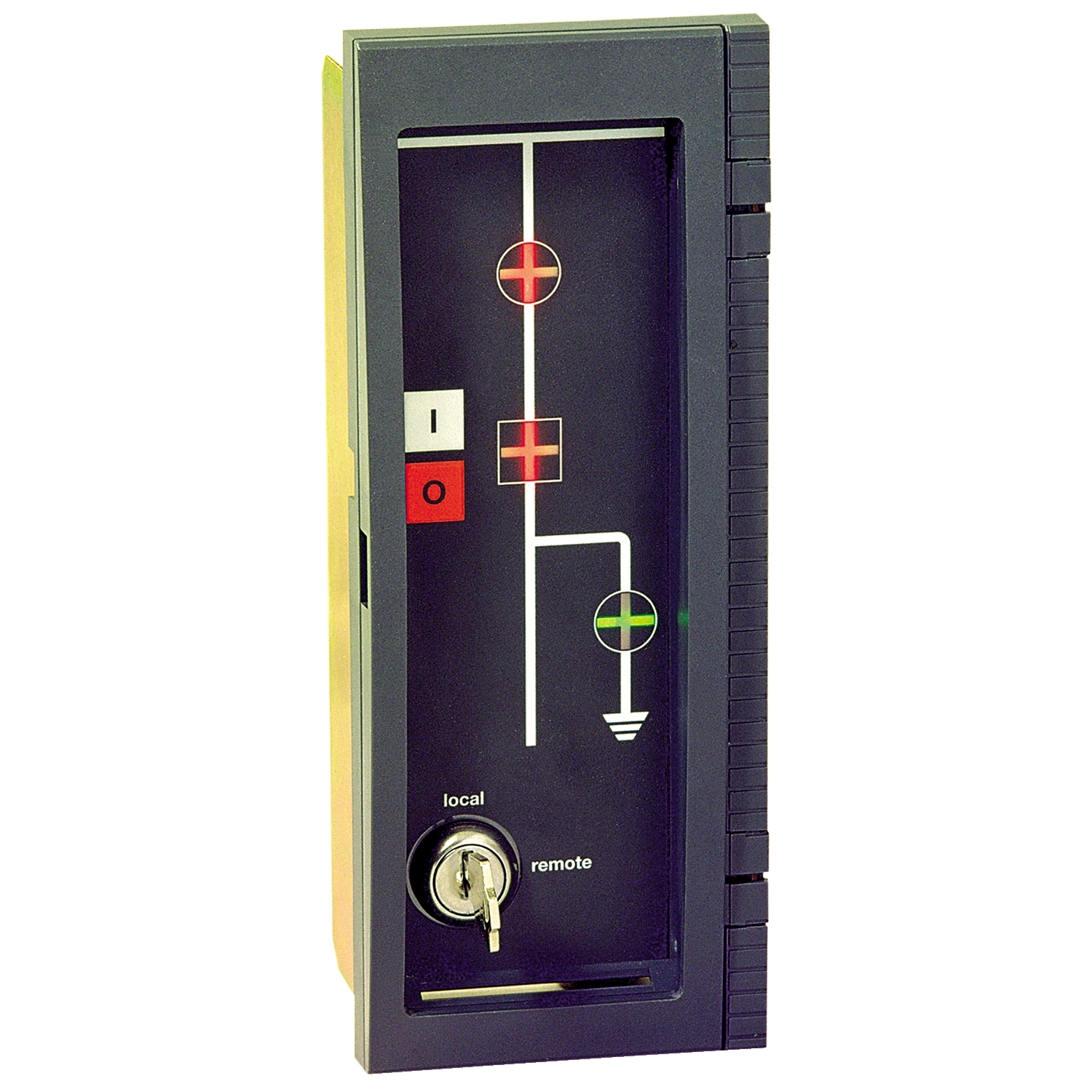

Sepam 100MI - X00 for mimic diagram and local control

$4,860.24 INC GST
Available for Shipping : 20-Jan-2026
Sepam 100MI - X00 for mimic diagram and local control
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 48...127 V DC tolerance: - 20...10 %, 48...127 V AC 50/60 Hz tolerance: - 20...10 %, 24...30 V DC tolerance: - 20...10 %, 24...30 V AC 50/60 Hz tolerance: - 20...10 %
Device short name X00
Power consumption in VA 18 VA at 110 V, 4 VA at 48 V, 7.7 VA 24...30 V (maximum at 33 V)
Relay application mimic for incomer with earthing disconnector, mimic for outgoer with earthing disconnector
Local signalling signal lamp for earthing disconnector closed (front face), signal lamp for earthing disconnector open (front face), signal lamp for isolating disconnector closed (front face), signal lamp for isolating disconnector open (front face)
Range of product Sepam 100MI
Mounting mode flush-mounted
Input output max capacity 4 inputs
Logic input number 4 48...127 V AC/DC 34 mA, 4 24...30 V AC/DC 35 mA
Complementary
Net weight 0.85 kg
Depth 75 mm
Width 88 mm
Electrical durability 10000 cycles at on load
Height 222 mm
Environment
[Uimp] rated impulse withstand voltage 5 kV (1.2/50 µs) conforming to IEC 60255-4
Fire resistance 650 °C conforming to NF C 20-455
IP degree of protection front face: IP51 conforming to IEC 60529
Electromagnetic compatibility fast transient bursts: (immunity tests-conducted disturbances), class IV, 5 ns, conforming to IEC 60255-22-4, damped oscillatory wave: (immunity tests-conducted disturbances), class III, 1 MHz, conforming to IEC 60255-22-1, electrostatic discharge: (immunity tests-radiated disturbances), class III, conforming to IEC 60255-22-2, radiated RF fields: (immunity tests-radiated disturbances), class X, 30 V/m, conforming to IEC 60255-22-3
Climatic withstand exposure to dry heat (in storage) : - 25...70 °C conforming to IEC 60068-2, exposure to dry heat (in operation) : - 10...70 °C conforming to IEC 60068-2, exposure to damp heat (in operation) : 95 % RH at 40 °C conforming to IEC 60068-2
Power frequency dielectric withstand 2 kV during 60 s conforming to IEC 60255-4
Mechanical robustness fire resistance glow wire: 650 °C conforming to NF C 20-455, seismic tests (level: class I) conforming to IEC 60255-21-3, shocks (level: class I) conforming to IEC 60255-21-2, vibrations (level: class I) conforming to IEC 60255-21-1
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.3 cm
Package 1 Width 12.9 cm
Package 1 Length 24.6 cm
Package 1 Weight 905.0 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.753 kg
