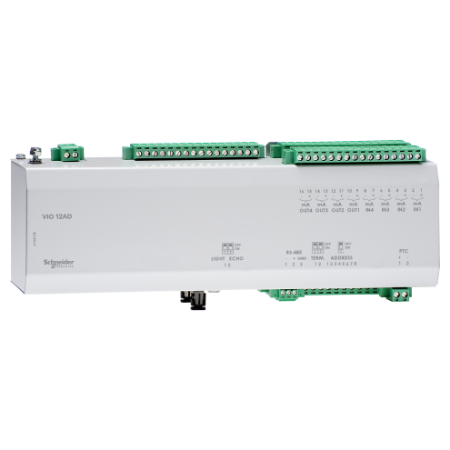

Picture of Easergy P3 accessory VIO12ACSE 24VDC RTD module 12 RTD inputs 4/4 mA in/out
SKU:

REL52813

Easergy P3 accessory VIO12ACSE 24VDC RTD module 12 RTD inputs 4/4 mA in/out

$2,952.72 INC GST
Availability: Please contact our sales team on 1300 724 622.
Easergy P3 accessory VIO12ACSE 24VDC RTD module 12 RTD inputs 4/4 mA in/out
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
User guide
Product environmental
Product Page Link
Product Data Sheet
This analog temperature module for easergy P3 is used to connect temperature sensors from the field to the Easergy P3 devices using a communication port RS485 by twist-pair or fiber optic. The modules have 4 analog input and 4 output to use in the special controls functions. The module accepts supply voltage 24 VDC. The degree of protection is IP20. The module can be mounted using DIN-rail.

Products specifications

Attribute name Attribute value
Main
Product or component type analog temperature module
Mounting support wall mounted, 35 mm symmetrical DIN rail
Range of product Easergy P3
[Us] rated supply voltage 24 V DC
Complementary
Number of inputs 1 PTC (temperature sensor) , 12 RTD (temperature sensor)
Analogue output number 4
Temperature probe type Pt 100, Ni 100, Ni 120, Cu 10
Analogue input number 4
Communication port support fiber optic, serial link
Environment
Ambient air temperature for operation 0-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 9.8 cm
Package 1 Length 26.2 cm
Package 1 Weight 1.1 kg
