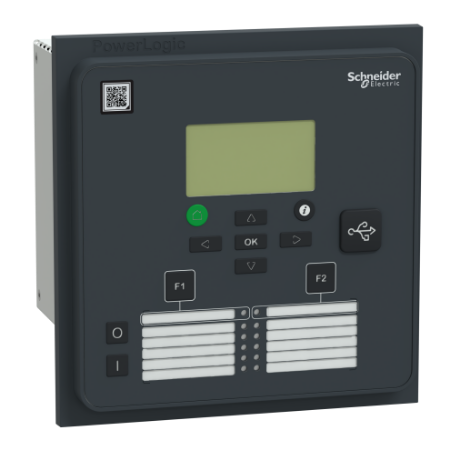

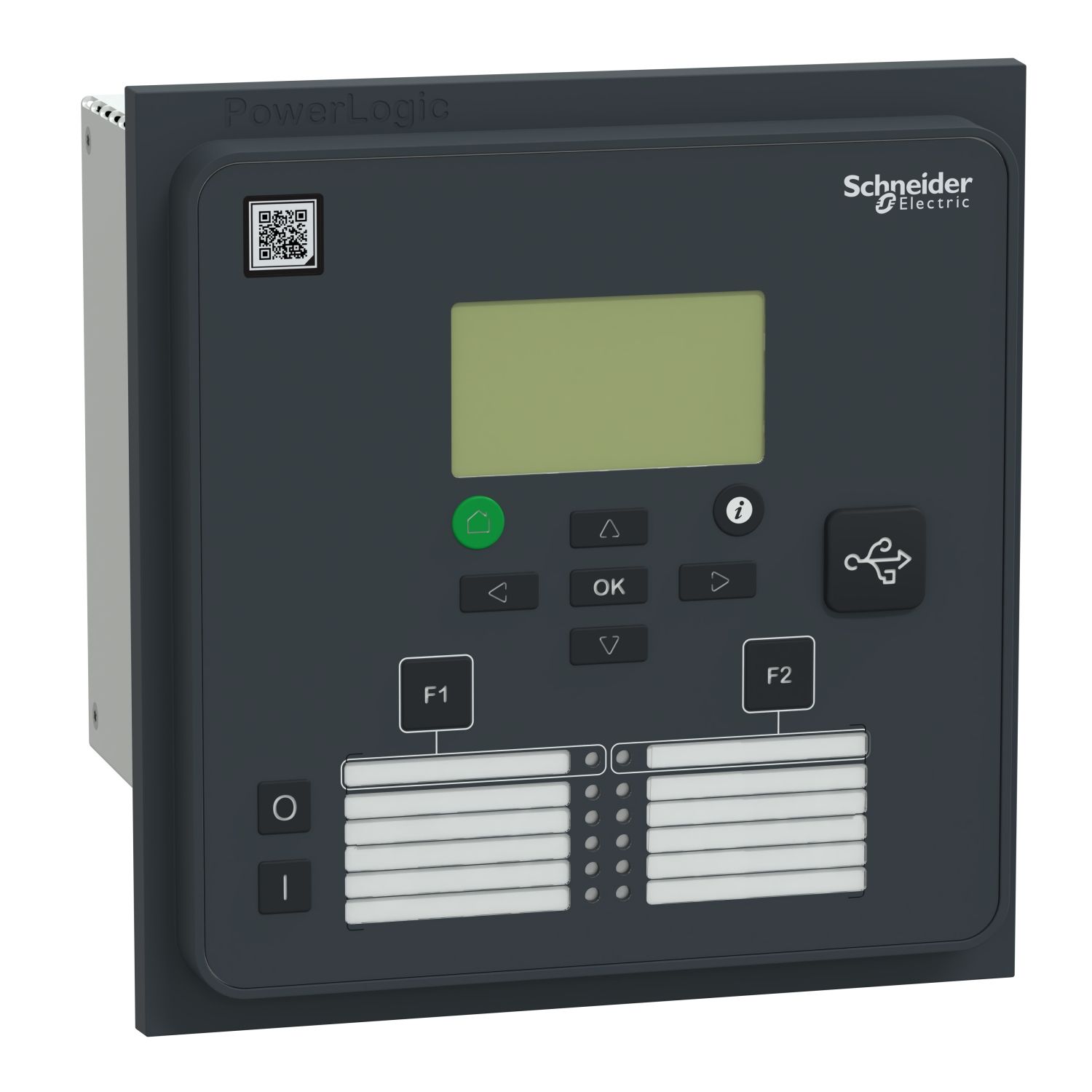

Picture of universal protection relay, PowerLogic P3U 3CT 1Io 4VT 16DI 8DO 48-230V DI220 RS485
SKU:

REL52002

universal protection relay, PowerLogic P3U 3CT 1Io 4VT 16DI 8DO 48-230V DI220 RS485

Old price: $5,775.00 INC GST
$5,197.50 INC GST
Availability: Please contact our sales team on 1300 724 622.
universal protection relay, PowerLogic P3U 3CT 1Io 4VT 16DI 8DO 48-230V DI220 RS485
  • Perfectly suited for buildings and industry, utilities, and large industrial processes.
  • Simple, reliable, safe and easy-to-use, thanks to the User Interface display
  • The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network
  • It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Circularity Profile
Brochure
Catalog
User guide
Product Page Link
Product Data Sheet
Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, 1 RS485 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 48...230 V AC/DC
Device short name P3U30-5AAA3BBAA
Type of measurement condition monitoring CB wear, voltage interruption, voltage 2nd, 15th harmonics with THD, current 2nd, 15th harmonics with THD, current phasor diagram view, voltage phasor diagram view, power factor, power angle, tan φ, cos φ, reactive energy, active energy, RMS apparent power, apparent power, RMS reactive power, reactive power, RMS active power, active power, frequency, earth fault reactance, fault location current, short circuit fault reactance, voltage ratio of negative and positive, voltage negative sequence, voltage positive sequence, voltage zero sequence, voltage phase to phase, voltage phase to earth, current ratio of negative and positive, current negative sequence, current positive sequence, current zero sequence, current 3-phase
Arc flash protection no
Switchgear diagnosis type trip circuit supervision ANSI code: TCS, CT supervision, CT/VT supervision ANSI code: 60
Number of sensors 0 arc sensor(s) , 0 temperature sensor(s)
Cybersecurity password protection, port hardening
Integrated connection type RS485 1 rear, USB port 1 front
Setting 4
Digital input number 16
Control type programmable logic, web-server, mobile application with Easergy SmartApp, 2 function keys, local/remote control, local control with I/O keys, local control on single-line diagram, programmable switchgear interlocking, switchgear control and monitoring
Analogue input number 0
Monitoring function relay self-monitoring, circuit breaker monitoring, trip circuit supervision 74
Mounting case size 30TE
Single line diagram 4 controlled + 8 displayed
Product or component type protection relay
Communication port protocol SPAbus, DeviceNet, Modbus RTU, DNP3, IEC 60870-5-103, IEC 60870-5-101
Relay application universal
Protection type programmable curve, programmable stages 99, H5 detection 68H5, H2 detection 68H2, VT supervision 60, CT supervision 60, lockout relay 86, synchro-check 25, rate of change of frequency 81R, underfrequency 81/81N, earth fault overvoltage 59N, positive sequence undervoltage 27P, undervoltage 27, overvoltage 59, negative sequence overcurrent 46, capacitor overvoltage 59C, motor restart inhibition 66, excessive starting time, locked rotor 48/51LR, phase undercurrent 37, recloser 79, fault locator 21FL, directional active underpower 37P, breaker failure 50BF, switch ON to fault (SOTF), cold load pick-up, broken conductor 46 I2/I1, capacitor bank unbalance 51C, transient earth fault 67NI, directional earth fault 67N, earth fault overcurrent 50N/51N, directional phase overcurrent 67, phase overcurrent 50/51
Number of outputs 8, 1 watchdog
Transmission support medium fiber optic cable external module, copper cable external module
Network and machine diagnosis type tripping context, disturbance recording, event recording
Connections - terminals pin removable (voltage transformer), pin removable (current transformer), screw removable (digital input/output)
Range of product PowerLogic P3
Input type : 100 V/110 V VT voltage 4 ,  : 1/5 A CT residual current 1 ,  : 1/5 A CT phase current 3
Analogue output number 0
Complementary
Web server embedded HTTP server
Software name eSetup Easergy Pro, EcoStruxure Power Device
Net weight 2.5 kg maximum
Display type LCD 128 x 64 pixels with single line diagram
Height 169.5 mm
Width 170 mm
Time synchronisation protocol SNTP
Operating threshold 220...230 V AC/DC
Depth 205 mm
Local signalling 8 LEDs programmable, 4 LEDs
Standards IEC
Number of key 2 customizable
Environment
Operating altitude 2000 m
Protective treatment conformal coating
Relative humidity 0-95 %, without condensation
Ambient air temperature for storage -40-70 °C
Electromagnetic compatibility EMC immunity conforming to EN/IEC 61000-4-17, EMC immunity conforming to EN/IEC 61000-4-11, EMC immunity conforming to EN/IEC 61000-4-29, EMC immunity level 5 conforming to EN/IEC 61000-4-9, EMC immunity conforming to EN/IEC 61000-4-8, EMC immunity level 3 conforming to EN/IEC 61000-4-6, EMC immunity level 3 conforming to EN/IEC 61000-4-5, EMC immunity level 4 conforming to EN/IEC 61000-4-4, EMC immunity level 3 conforming to EN/IEC 61000-4-3, EMC immunity level 4 conforming to EN/IEC 61000-4-2, EMC immunity conforming to EN/IEC 61000-4-18, EMC immunity conforming to IEC/EN 60255-26 ed. 3, emission tests class A conforming to CISPR 22, emission tests class A conforming to CISPR 11, emission tests conforming to IEC/EN 60255-26 ed. 3
IP degree of protection IP54 conforming to IEC 60529
Environmental characteristic exposure to damp heat in service Cab tests conforming to EN/IEC 60068-2-78, exposure to damp heat in service Db tests conforming to EN/IEC 60068-2-30, exposure to cold Ad tests conforming to EN/IEC 60068-2-1, exposure to dry heat Bb tests conforming to EN/IEC 60068-2-2
Ambient air temperature for operation -40-65 °C
Mechanical robustness bumps: Ea conforming to IEC 60068-2-27, bumps (level: class II) conforming to IEC 60255-21-2, seismic tests method A (level: class II) conforming to IEC 60255-21-3, shocks: Ea conforming to IEC 60068-2-27, shocks (level: class II) conforming to IEC 60255-21-2, vibrations: Fc conforming to IEC 60068-2-6, vibrations (level: class II) conforming to IEC 60255-21-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.500 cm
Package 1 Width 26.000 cm
Package 1 Length 31.500 cm
Package 1 Weight 3.184 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 40.824 kg
