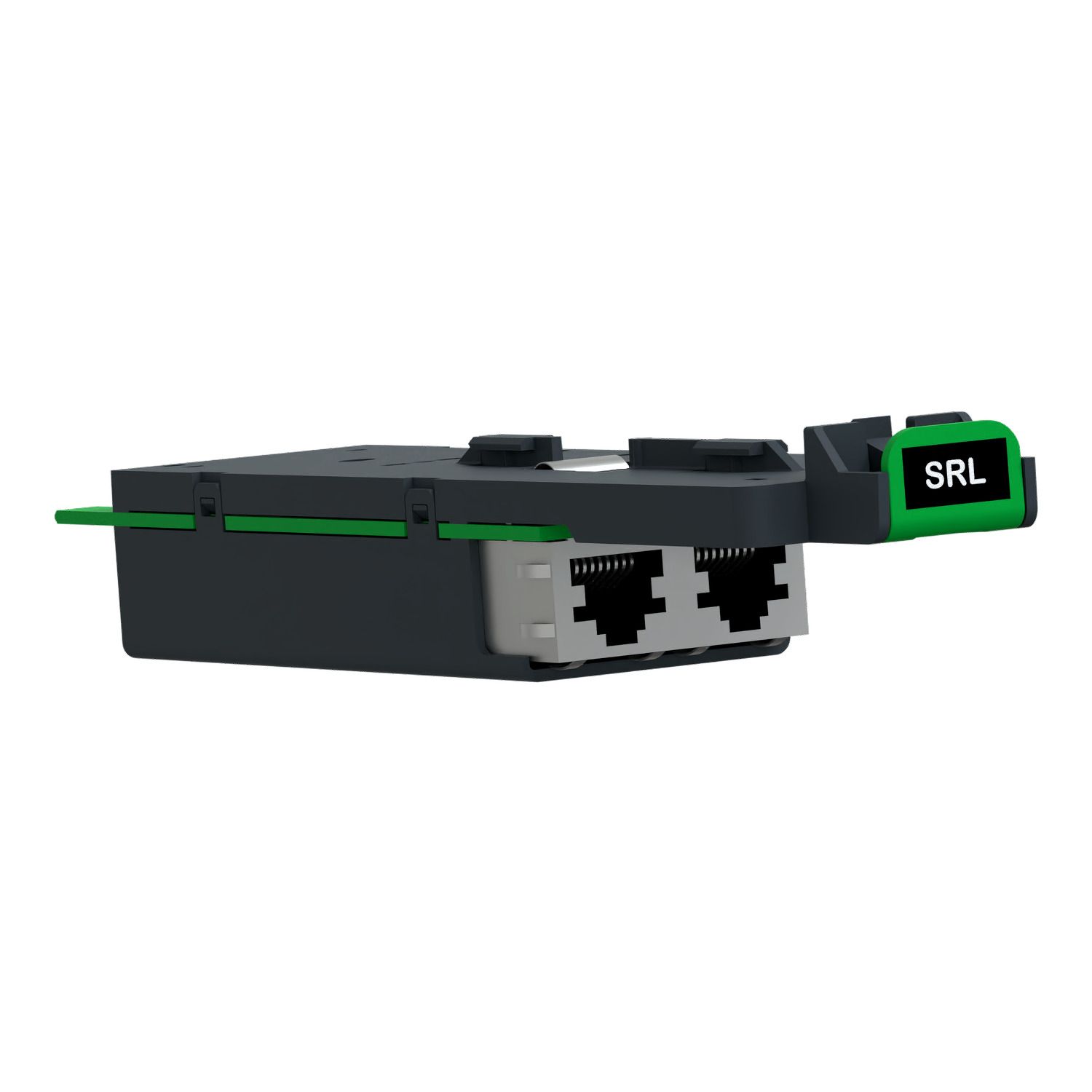

Picture of RS485 2*RJ45 serial line module for slot N - accessory for PowerLogic P5
SKU:

REL51036

RS485 2*RJ45 serial line module for slot N - accessory for PowerLogic P5

Old price: $403.34 INC GST
$363.01 INC GST
Available for Shipping : 14-Jan-2026
RS485 2*RJ45 serial line module for slot N - accessory for PowerLogic P5
  • Enables serial RS485 communications for PowerLogic P5
  • Easy to install in the shopfloor or on-site
  • Auto-recognition by PowerLogic P5
  • Available from centralised stock
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Declaration of conformity
Instruction sheet
User guide
Catalog
Product Page Link
Product Data Sheet
Plug & play communication module for Schneider Electric's Easergy P5 withdrawable protective relay. This serial line communication module offers RS485 connection to Easergy P5. It can be installed to Easergy P5 any time: during installation, commissioning or even during maintenance. This plug and play communication module offers 2 ports RJ45, EIA 2 to wire RS485 or EIA 4 to wire RS485 standard. It enables the use of serial protocols in Easergy P5: Modbus, DNP 3.0, IEC 60870-5-103, IEC 60870-5-101. The product dimensions are 176 mm in height (6.93 in) 35 mm in width (1.38 in) and 26 mm in depth (1.02 in) for a net weight of 56 g (0.123 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be installed in slot N of the Easergy P5 protection relay.

Products specifications

Attribute name Attribute value
Main
Product or component type communication module
Accessory / separate part category modules and interfaces
Range of product PowerLogic P5
Environment
Depth 26 mm
Width 35 mm
Net weight 0.056 kg
Ambient air temperature for operation -40-70 °C
Height 176 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 7.5 cm
Package 1 Length 22.0 cm
Package 1 Weight 102.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.8 kg
