SKU:

REL50306

PowerLogic P5V20 24-250V 4VT 10DI-8DO

$7,800.00
Available for Shipping : 07-Jan-2025

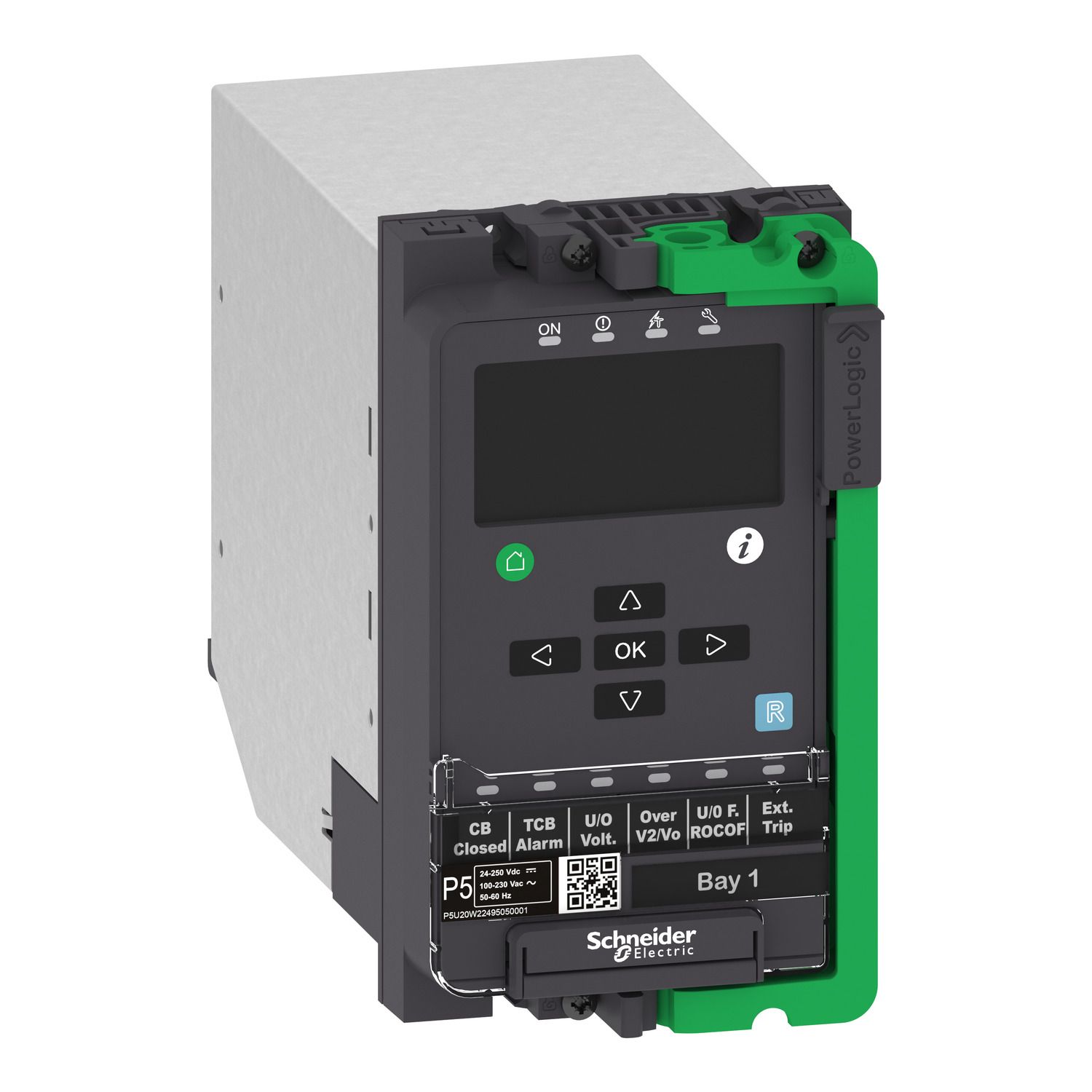

PowerLogic P5V20 24-250V 4VT 10DI-8DO
  • Withdrawable design for quicker maintenance
  • Expandable with plug & play communication modules
  • Easy to configure with intuitive, free-of-charge software
  • Easy to test with virtual injection functionality
  • Easy to use for panel builders, system integrators and end users
Manufacturer: Schneider Electric
The Easergy P5 is Schneider Electric's withdrawable protective relay for demanding medium voltage distribution applications. This voltage relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. Easergy P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The Easergy P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 24 to 250 VDC and 100 to 230 VAC. It works with conventional VTs. 3 phase voltage inputs, 1 neutral voltage input. It offers 10 digital inputs and 8 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 102 mm in width (4.01 in) and 224 mm in depth 8.82 in) for a net weight of 2.5 kg (5.5 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug & play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51032), IRIG-B module (REL51045). Connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 100...230 V AC, 24...240 V DC
Device short name P5V20-AABB-DAAAA-AAEA
Type of measurement phasor diagram of currents or voltages, frequency, voltage negative sequence, voltage positive sequence, voltage zero sequence, voltage residual, voltage 3-phase
Switchgear diagnosis type trip circuit supervision ANSI code: 74, VT supervision ANSI code: 60
Number of sensors 0 arc sensor(s) , 0 temperature sensor(s)
Cybersecurity IEC 62442-4-2 SL1, RADIUS based user authentication, LDAP, security log, role-based access control, security policy management, secured communication with assciated tools, client IP address filter, firmware signature, port hardening
Integrated connection type USB port 2 front
Setting 4
Digital input number 10
Control type local/remote control, programmable switchgear interlocking, switchgear control and monitoring
Mounting mode withdrawable
Analogue input number 0
Monitoring function relay self-monitoring, circuit breaker monitoring, trip circuit supervision 74
Mounting case size 20TE
Single line diagram 6 controlled + 2 monitored objects
Product or component type protection and control relay
Communication port protocol -
Relay application voltage
Protection type programmable curve, programmable stages, VT supervision, lockout relay, breaker failure 50BF, synchro-check, rate of change of frequency 81R, underfrequency 81/81N, earth fault overvoltage 59N, positive sequence undervoltage 27P, undervoltage, overvoltage
Number of outputs 1 watchdog, 7 DO
Device mounting flush
Network and machine diagnosis type relay maintenance, tripping context, disturbance recording, event recording
Connections - terminals ring lugs (analog inputs and outputs), screw (digital input/output)
Range of product PowerLogic P5
Input type : VT voltage 4
Analogue output number 0
Complementary
Software name eSetup Easergy Pro: virtual simulation test
Net weight 2.5 kg
Display type LCD 192 x 96 pixels
Height 176 mm
Width 102 mm
Depth 219 mm
Local signalling 6 x LED tri-colour programmable, 4 x LED
Number of key 1 customizable
Environment
Operating altitude 2000 m
Protective treatment conformal coating conforming to IEC 60721-3-3:3C2, conformal coating conforming to IEC 60068-2-60:Ke, conformal coating conforming to IEC 60068-2-52:Kb/1
Relative humidity 93-95 % at 25-55 °C, 6 cycles, 12 + 12 hours, 0-93 % at 40-40 °C, without condensation, 56 days
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility EMC immunity level 4 conforming to IEC 61000-4-5, EMC immunity level 4 conforming to IEC 61000-4-4, EMC immunity level 4 conforming to IEC 61000-4-16, EMC immunity conforming to GOST 30804.4.12, EMC immunity conforming to IEC 61000-4-12, EMC immunity conforming to ANSI C37.90.1, EMC immunity level 3 conforming to IEC 61000-4-18, EMC immunity level 3 conforming to IEC 61000-4-6, EMC immunity level 5 conforming to IEC 61000-4-10, EMC immunity level 5 conforming to IEC 61000-4-9, EMC immunity level 5 conforming to IEC 61000-4-8, EMC immunity conforming to IACS E10, EMC immunity conforming to GOST 30804.4.3, EMC immunity conforming to GOST 32137, EMC immunity conforming to ANSI C37.90.2, EMC immunity level 3 conforming to IEC 61000-4-3, EMC immunity class 4 conforming to ANSI C37.90.3, EMC immunity class 4 conforming to IEC 61000-4-2, emission tests conforming to IACS E10, emission tests class A conforming to CISPR 32, emission tests class A conforming to CISPR 11
IP degree of protection IP54 conforming to IEC 60529
Environmental characteristic influence of corrosion/gas test 4 conforming to IEC 60721-3-3, influence of corrosion/gas test 2 conforming to IEC 60721-3-3, influence of corrosion/gas test 4 conforming to IEC 60068-2-60, influence of corrosion/gas test 2 conforming to IEC 60068-2-60, salt mist conforming to IEC 60068-2-52, temperature variation conforming to IEC 60068-2-14, exposure to damp heat in service conforming to IEC 60068-2-30, exposure to damp heat in service conforming to IEC 60068-2-78, exposure to dry heat conforming to IEC 60068-2-2, exposure to cold conforming to IEC 60068-2-1
Ambient air temperature for operation -40-70 °C ( 96 h ) , -40-85 °C ( 16 h )
Mechanical robustness earthquakes (level: class 2) conforming to IEC 60255-21-3, shocks (level: class 2) conforming to IEC 60255-21-2, vibrations conforming to IACS E10, vibrations conforming to GOST 17516.1, vibrations (level: class 2) conforming to IEC 60255-21-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 30.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 3.0 kg
