SKU:

RE22R2MXMU

multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, bistable, 24V DC or 24...240V AC DC

Old price: $267.85 INC GST
$254.46 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, bistable, 24V DC or 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric

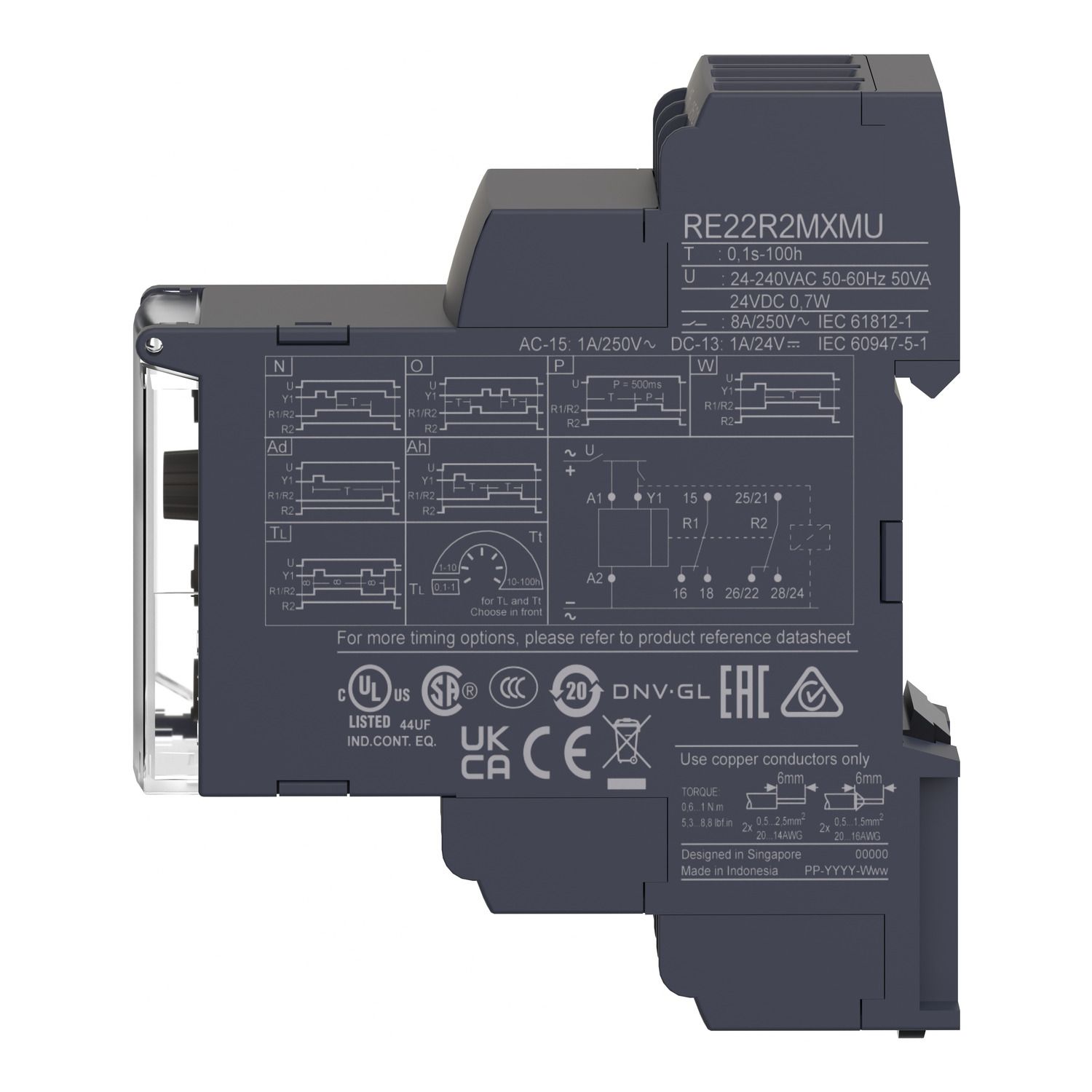

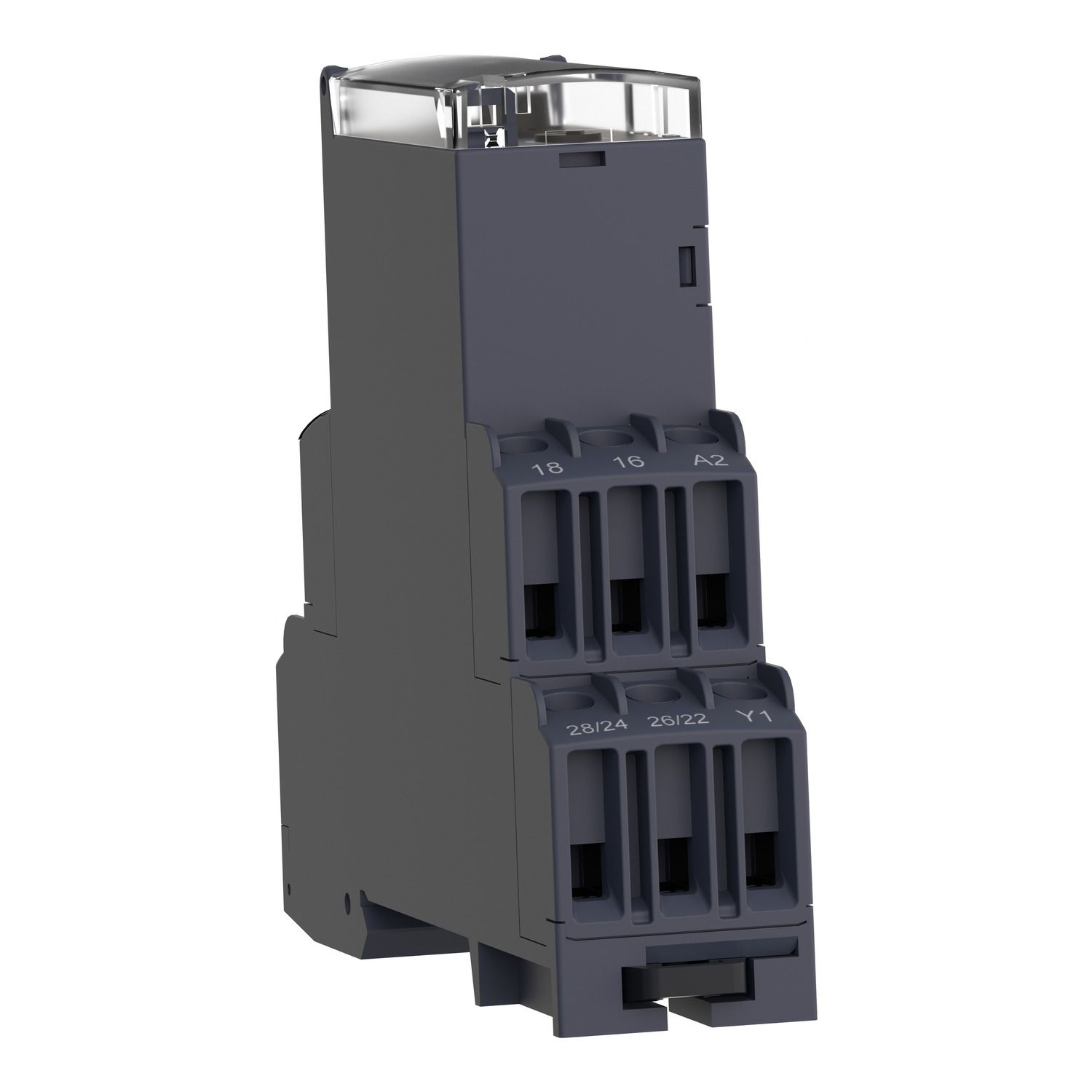

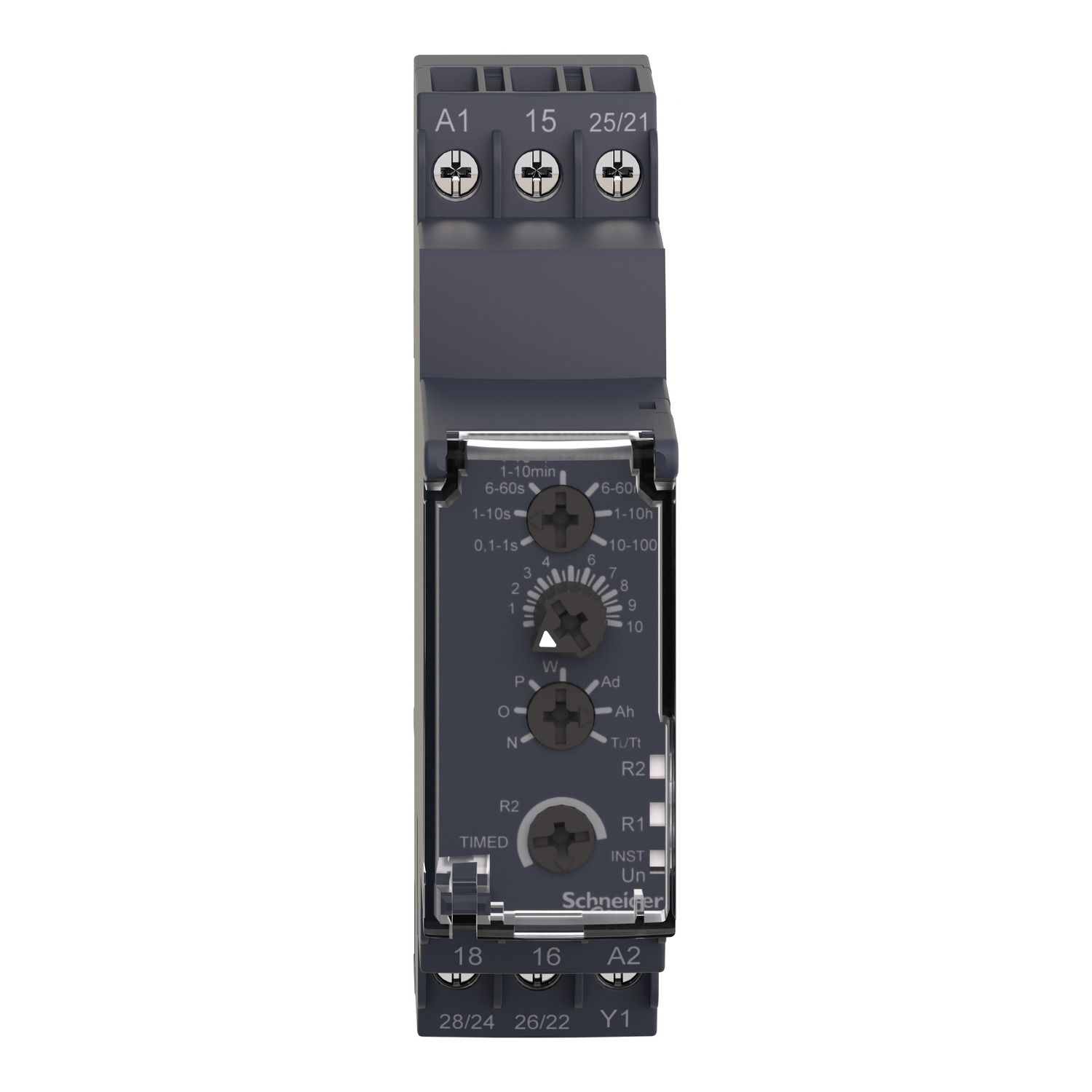

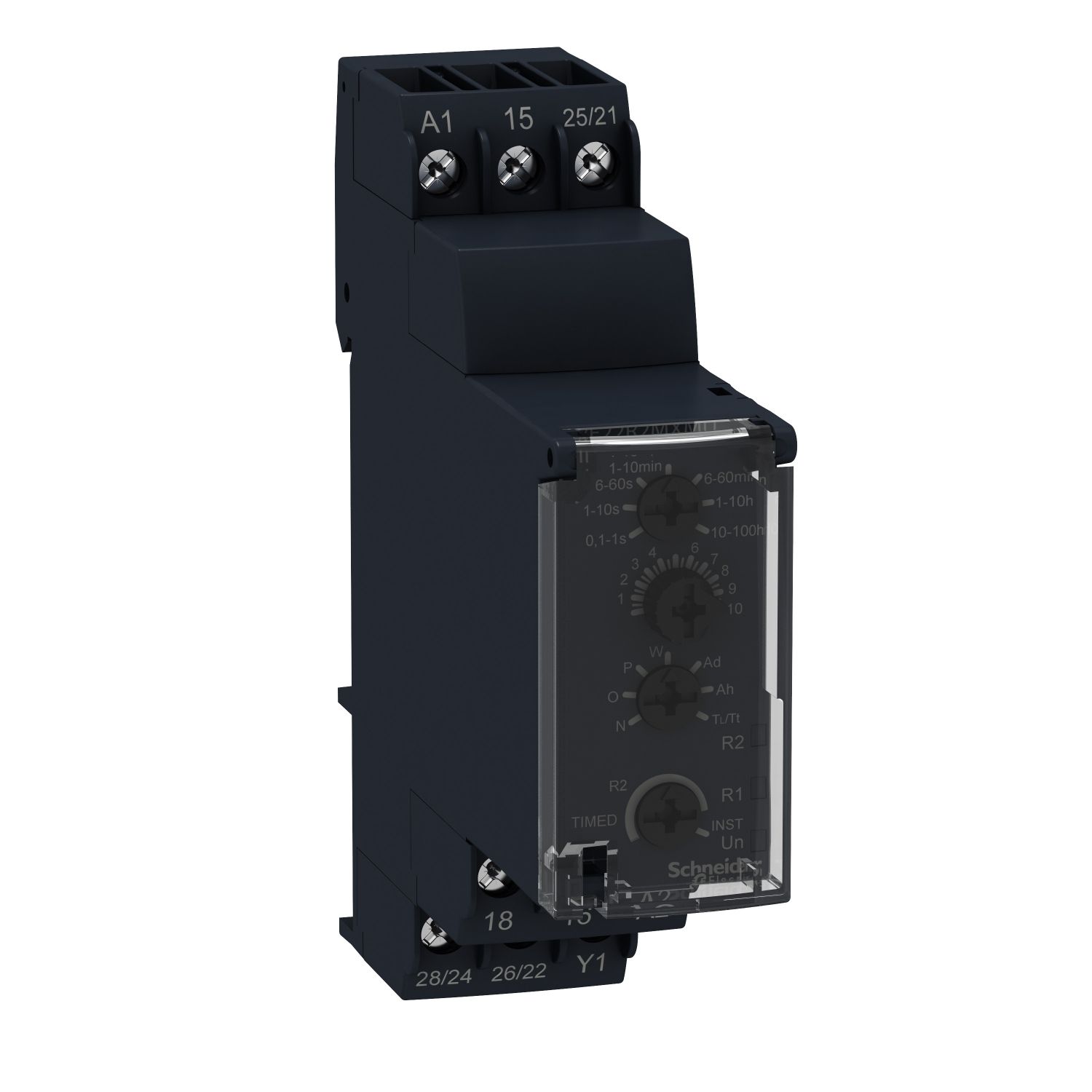

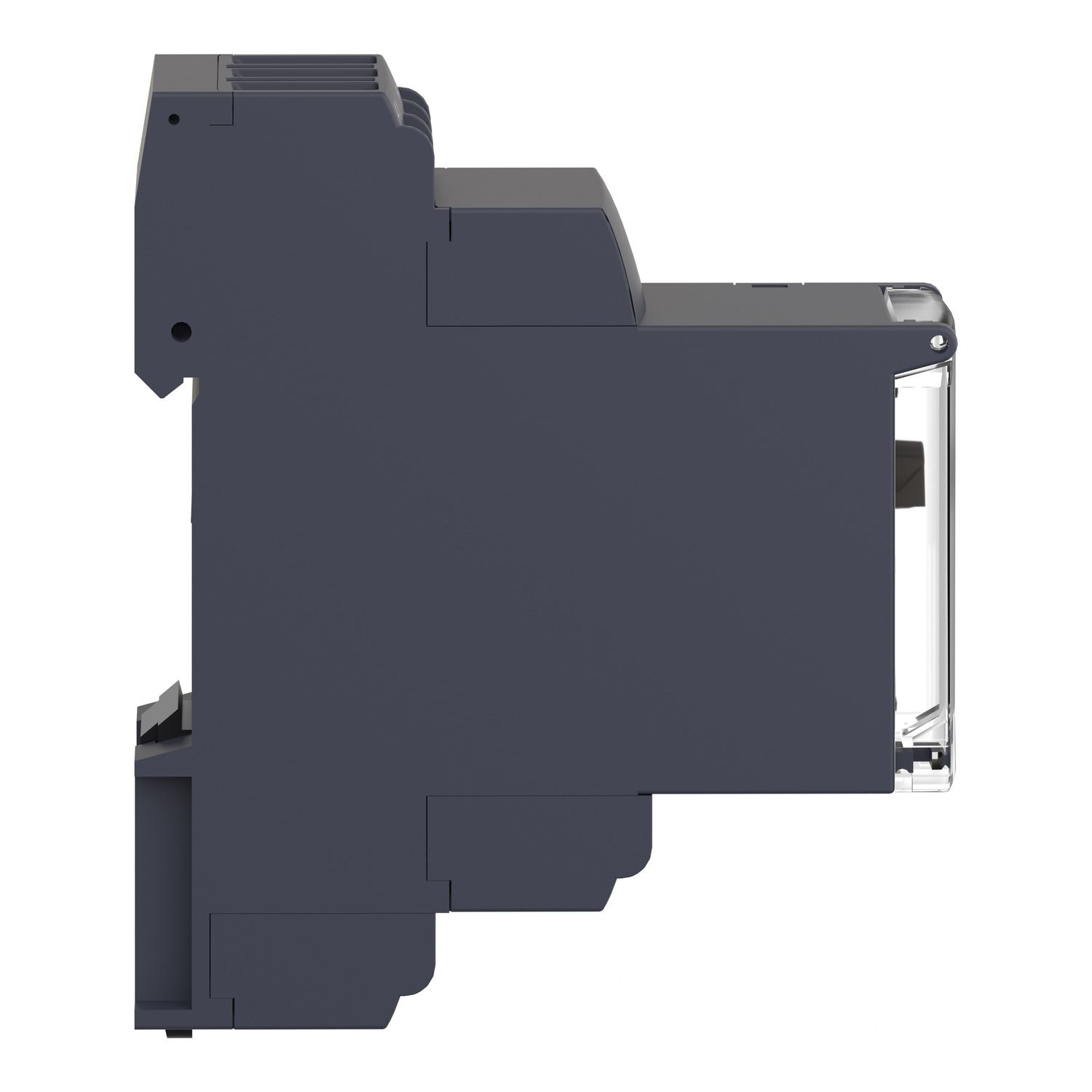

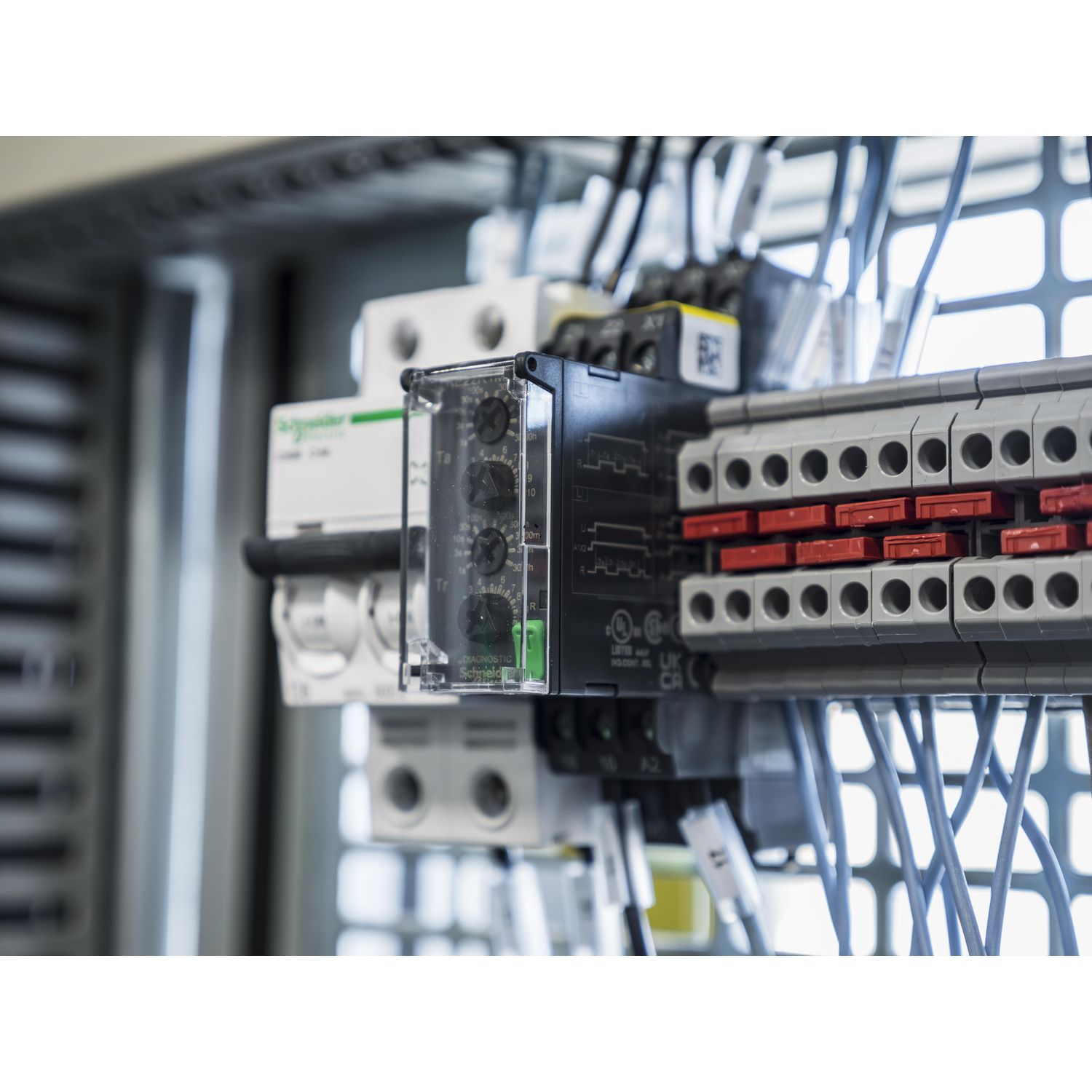

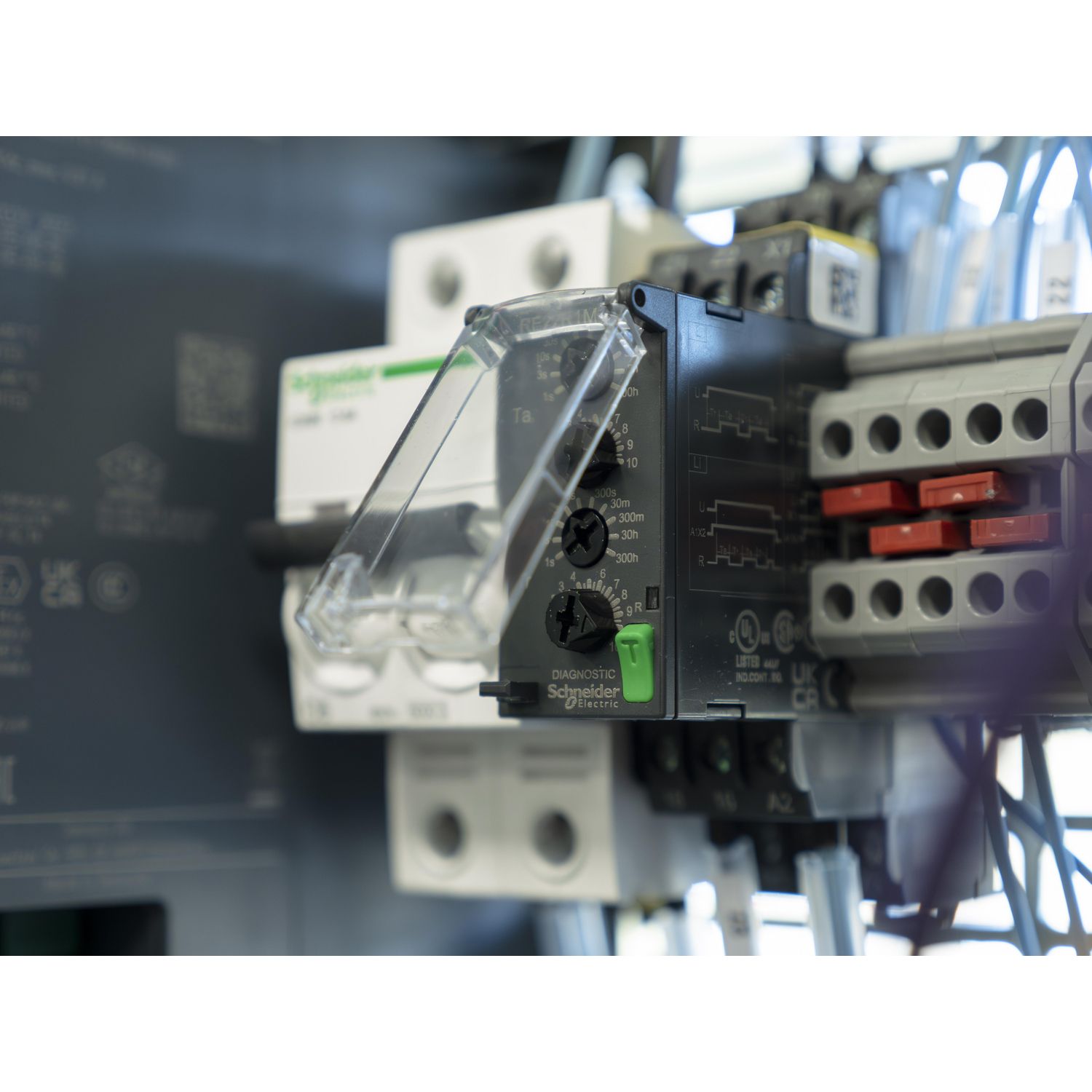

Image of product in real life situation
Environmental Disclosure
Circularity Profile

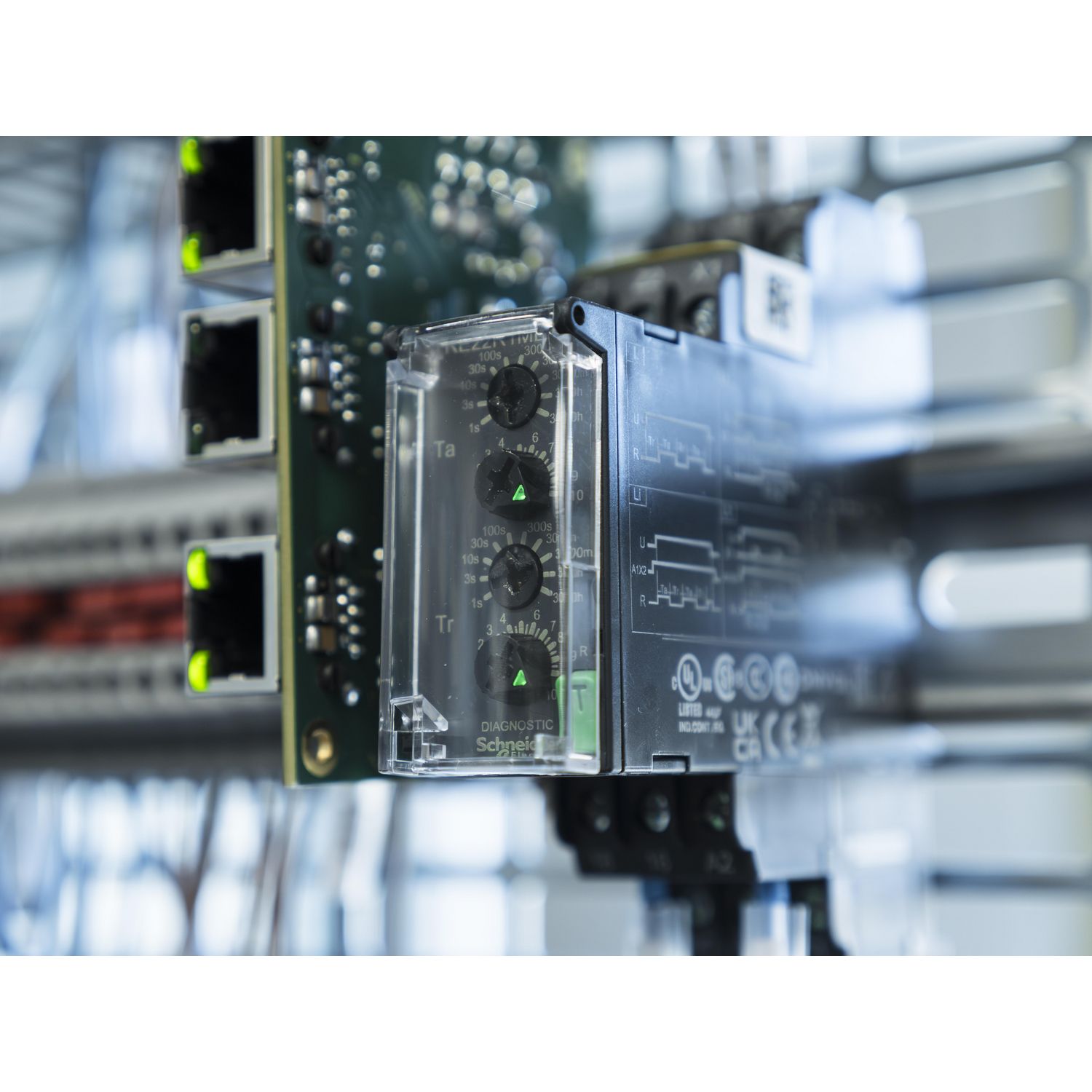

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Catalog
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
"This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours." "It provides multi functions and it is mountable on DIN rail." "This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RE22
[Uc] control circuit voltage 24...240 V, 24 V
Range of product Harmony Timer Relays
Discrete output type relay
Output type relay
[In] rated current 5 A
Nominal output current 8 A
Contacts type and composition 2 C/O
Product or component type multifunction relay
Connections - terminals screw connectors
Complementary
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Time delay type interval, bistable, safe-guard, pulse delay, Ad, Ah, N, O, P, Pt, TI, Tt, W
[Uimp] rated impulse withstand voltage 5 kV conforming to IEC 61812-1, 5 kV for 1.2-50 µs conforming to IEC 60664-1
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for resistive load, 8 A at 250 V, AC
Minimum switching current 10 mA at 5 V
[Us] rated supply voltage 24 V DC, 24...240 V AC
Temperature drift +/- 0.05 %/°C
Functionality multifunction
Contacts type and composition 2 C/O, 1 C/O timed or instantaneous contact, 1 C/O timed contact
Maximum switching voltage 250 V
Voltage range 0.85...1.1 Us
Maximum switching current 8 mA
Minimum pulse duration 100 ms under load, 30 ms
Power consumption in VA 50-50 VA at 240 V AC
Immunity to microbreaks 10 ms
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Control type rotary knob front panel
Maximum delay response 100 ms
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Safety reliability data MTTFd = 182.6 years, B10d = 170000
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Supply frequency 50...60 Hz +/- 5 %
Width 22.5 mm
Status LED LED yellow for relay energised, LED green (steady) for power ON, LED green (flashing) for timing in progress
Housing material self-extinguishing
Breaking capacity 2000 VA
Mounting support 35 mm DIN rail conforming to IEC 60715
Time delay range 1...10 min, 6...60 s, 10...100 h, 6...60 min, 1...10 s, 1...10 h, 0.1...1 s
Connections - terminals screw terminals, 2 x 2.5 mm² without cable end, screw terminals, 2 x 1.5 mm² with cable end
Reset time 120 ms on de-energisation
Voltage drift +/- 0.2 %/V
Mounting position any position in relation to normal vertical mounting plane
Net weight 0.09 kg
Power consumption in W 0.7 W at 24 V DC
Environment
IP degree of protection IP20 terminal block: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP40 housing: conforming to IEC 60529
Relative humidity 93-93 %, without condensation conforming to IEC 60068-2-30
Ambient air temperature for storage -30-60 °C
Directives 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Ambient air temperature for operation -20-60 °C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Dielectric strength 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
Standards IEC 61000-6-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-1, IEC 61812-1
Product certifications RCM, CE, EAC, cULus, GL, CCC, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 8.900 cm
Package 1 Length 10.000 cm
Package 1 Weight 106.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.622 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 70.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 90.709 kg
