SKU:

PRX-ENC-DT

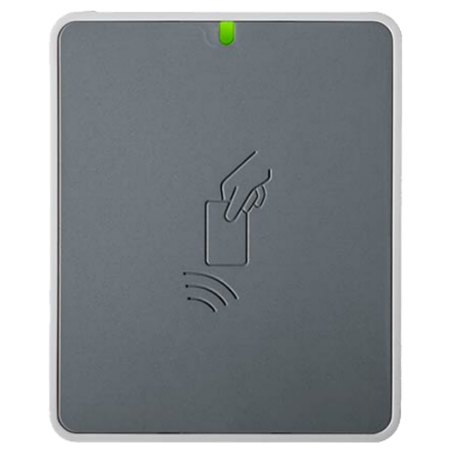

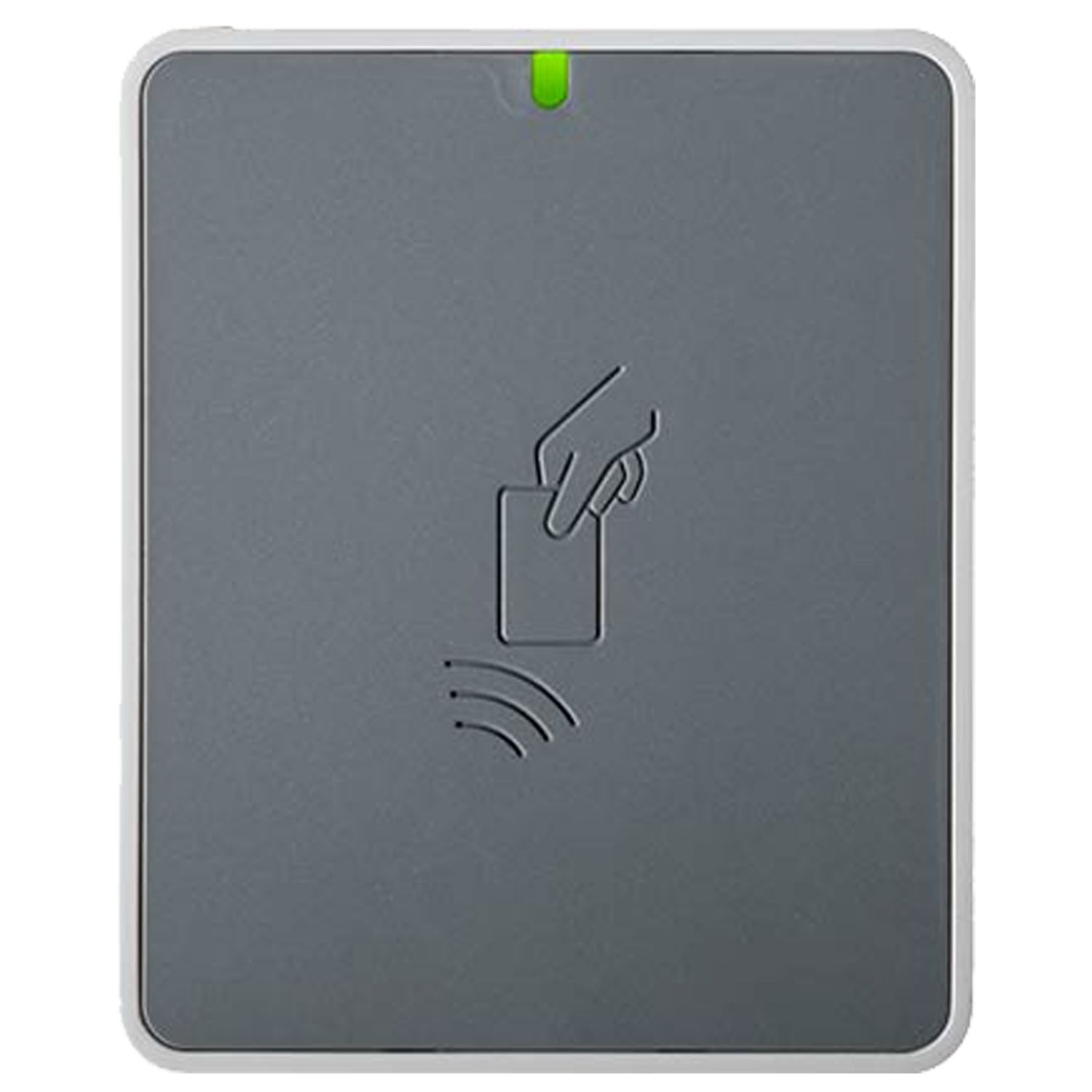

Security Expert proximity card encoder desktop USB connection

$4,342.80 INC GST

Qty:

Available for Shipping : 28-Jan-2026

Security Expert proximity card encoder desktop USB connection

Manufacturer: Schneider Electric

Delivery date: 28-Jan-2026

Product Page Link

Product Data Sheet

Security Expert proximity card encoder desktop USB connection

Attribute name	Attribute value
Main
Range	EcoStruxure Security Expert
Operating system	linux, Android, Mac OS X 10.12.x, Mac OS X 10.11.x, Mac OS X 10.10.x, Windows Server 2012, Windows Server 2008, Windows Server 2003, Windows 10, Windows 8.1 32/64 bit, Windows 8 32/64 bit, Windows 7 32/64 bit
Product or component type	card encoder
Colour tint	grey
Product brand	Schneider Electric
Antenna type	integrated
Complementary
Product compatibility	RFID microchip NFC Forum type (1/2/3/4), RFID microchip Calypso (CD21), RFID microchip NXP (MIFAIRE DESFire, DESFire EV1 2K/4K/8K), RFID microchip NXP (MIFAIRE Plus), RFID microchip NXP (MIFAIRE Ultralight, Ultralight C), RFID microchip NXP (Mifare classic 1K/4K)
Depth	12 mm
Width	75 mm
Function available	firmware update
Connector type	USB 2.0 type A
Current consumption	50 mA
Net weight	44 g
Nominal read/write distance	40 mm
Communication port protocol	NFC ,106 kbps, 212 kbps, 424 kbps or 848 kbps at 13.56-13.56 MHz
Cable length	1.5 m
Height	91 mm
Ambient air temperature for operation	0-50 °C
MTBF reliability	10000000 H
Environment
Ambient air temperature for storage	-25-85 °C
Relative humidity	0-95 %
Product certifications	CE, FCC, UL 60950, UL 94, RFJL, VCCI
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.5 cm
Package 1 Width	4.0 cm
Package 1 Length	16.0 cm
Package 1 Weight	135.0 g
