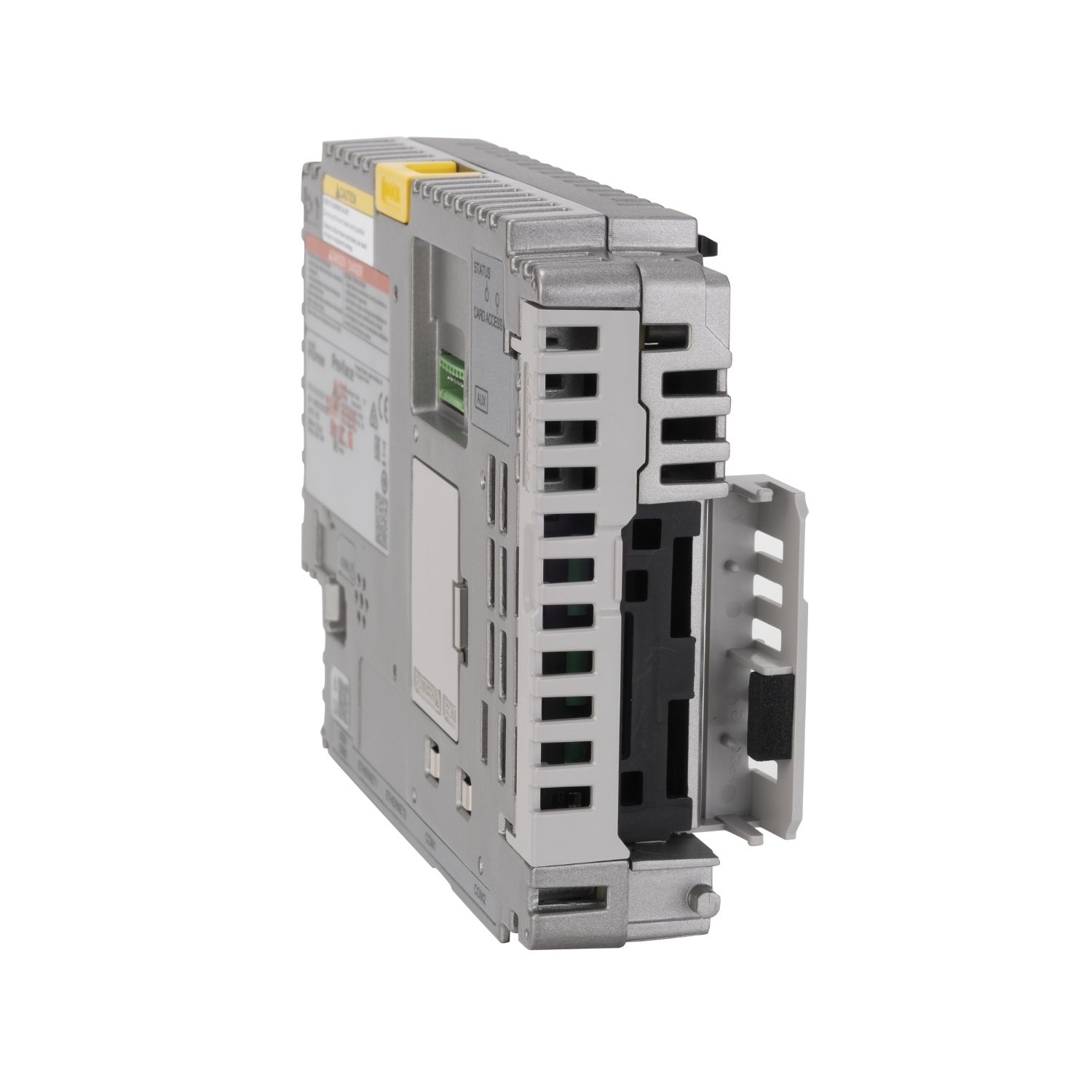

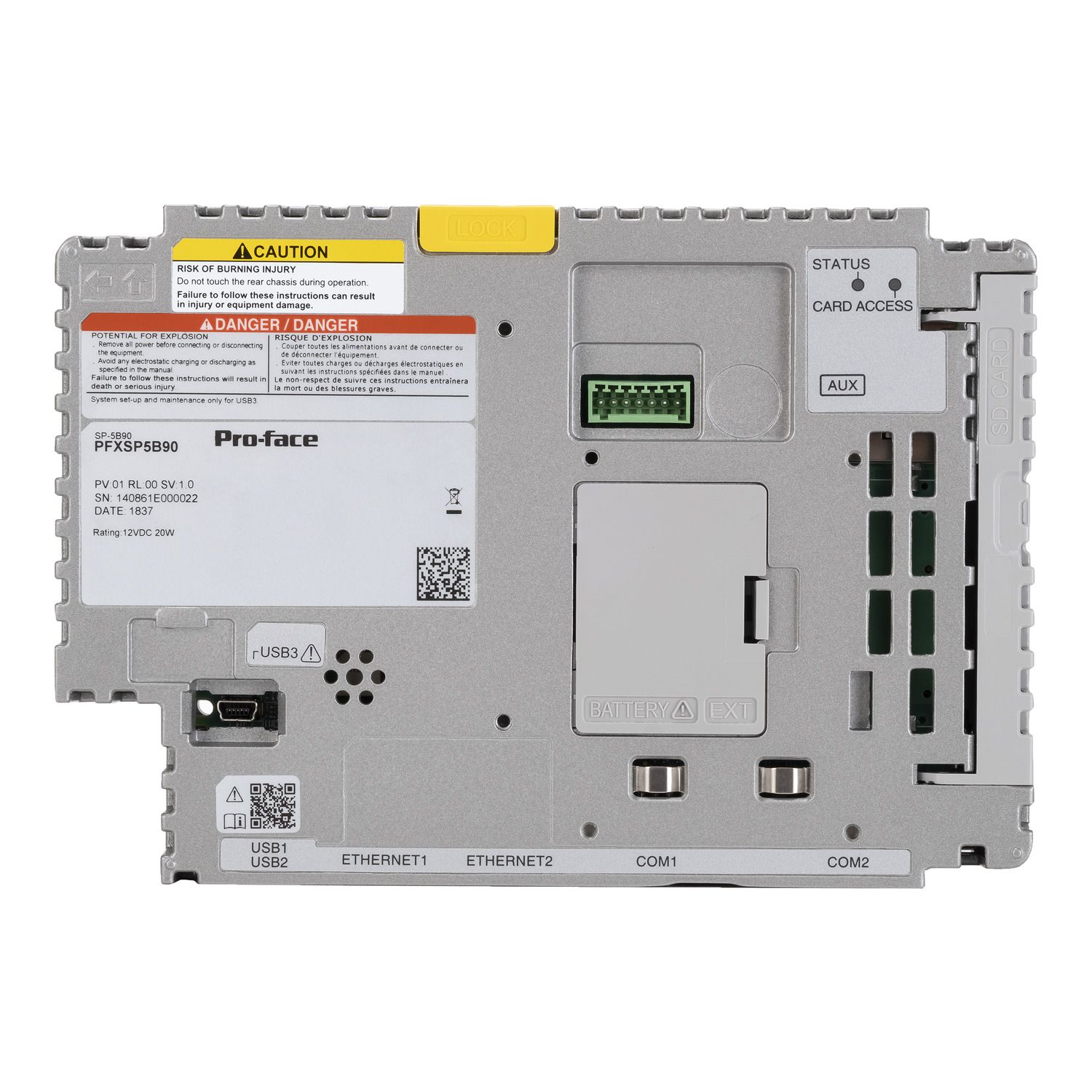

Picture of ExtremeBox, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC, Outdoor use
SKU:

PFXSP5B90

ExtremeBox, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC, Outdoor use

Old price: $2,160.40 INC GST
$2,052.38 INC GST
Available for Shipping : 29-Jan-2026
ExtremeBox, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC, Outdoor use
Be the first to review this product
Manufacturer: ProFace
Delivery date: 29-Jan-2026
Circularity Profile
User guide
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to the Pro-face SP5000X Series, an offer of eXtreme Box modules. These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments. It has 2 RS-232C/422/485 ports, 2 host + 1 mini-B USB ports, 2 Ethernet ports (1Gbps), 2 SD card slots, 1 Expansion unit interface, 1 sound output and 1 AUX output interface. It offers atmospheric resistance with conformal coating. It can operate between temperature range of -30 to 70 °C. This product works at a power consumption of 20W and a rated voltage of 12V DC. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg. This product is suitable for multiple applications under harsh environmental conditions. It can be used in special-purpose vehicles such as fire trucks and construction equipment, parking lots and gas stations, and the oil and gas industry. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control equipment. It is also certified with UL 121201 and CSA C22.2 No 213 for use in Class I, Division 2 hazardous (Classified) locations, and IECEx/ATEX for use in zones 2/22. It is compatible with PFXSP5490WAD, PFXSP5690WAD and PFXSP5790WAD displays.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type base unit
Complementary
Memory description device memory 1 GB
Type of cooling AN (air natural)
Height 131 mm
Maximum power consumption in W 20 W
Depth 35 mm
Width 188 mm
Integrated connection type COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
Net weight 0.9 kg
[Us] rated supply voltage 12 V DC
Power consumption in W 20 W
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 21.500 cm
Package 1 Length 26.000 cm
Package 1 Weight 1.199 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.438 kg
