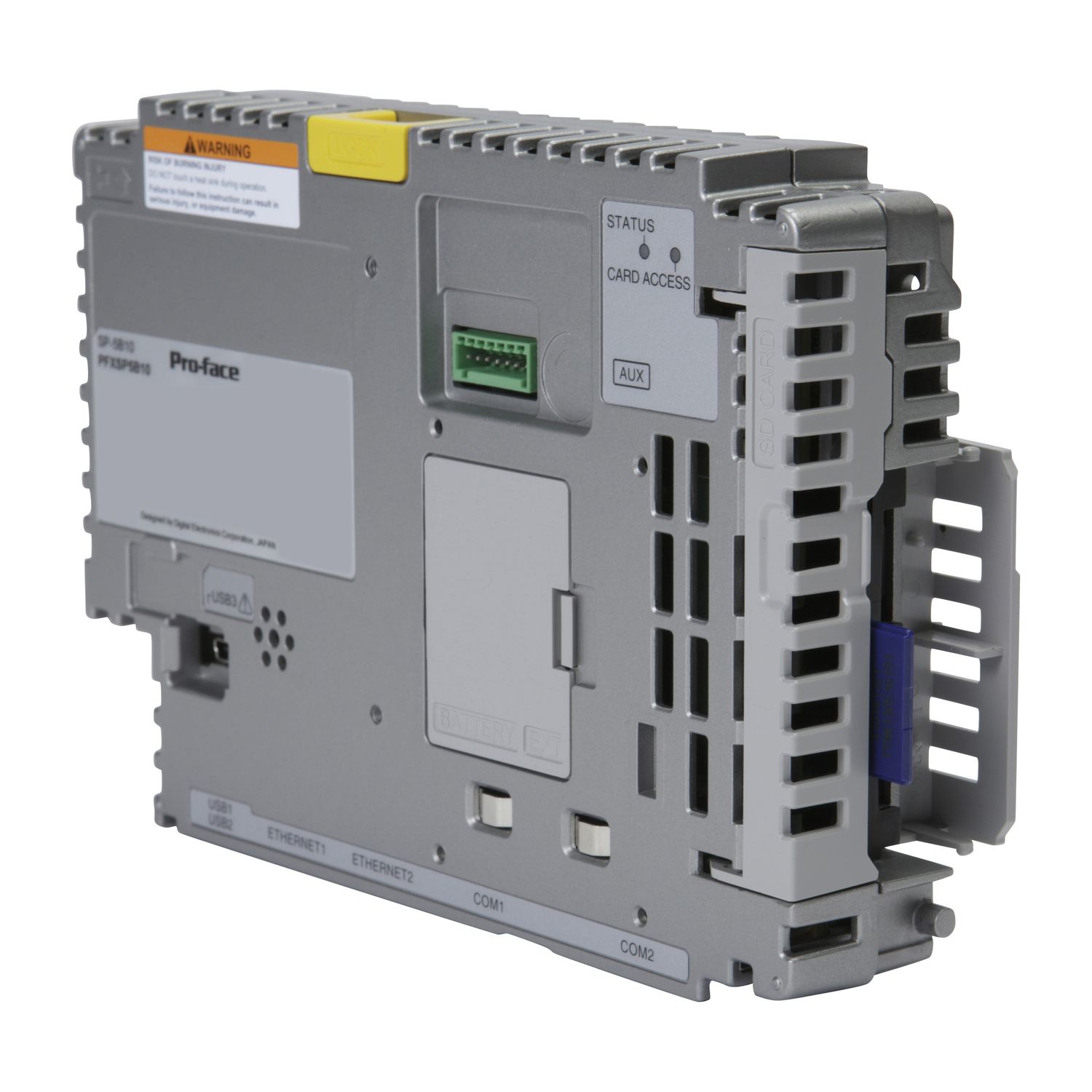

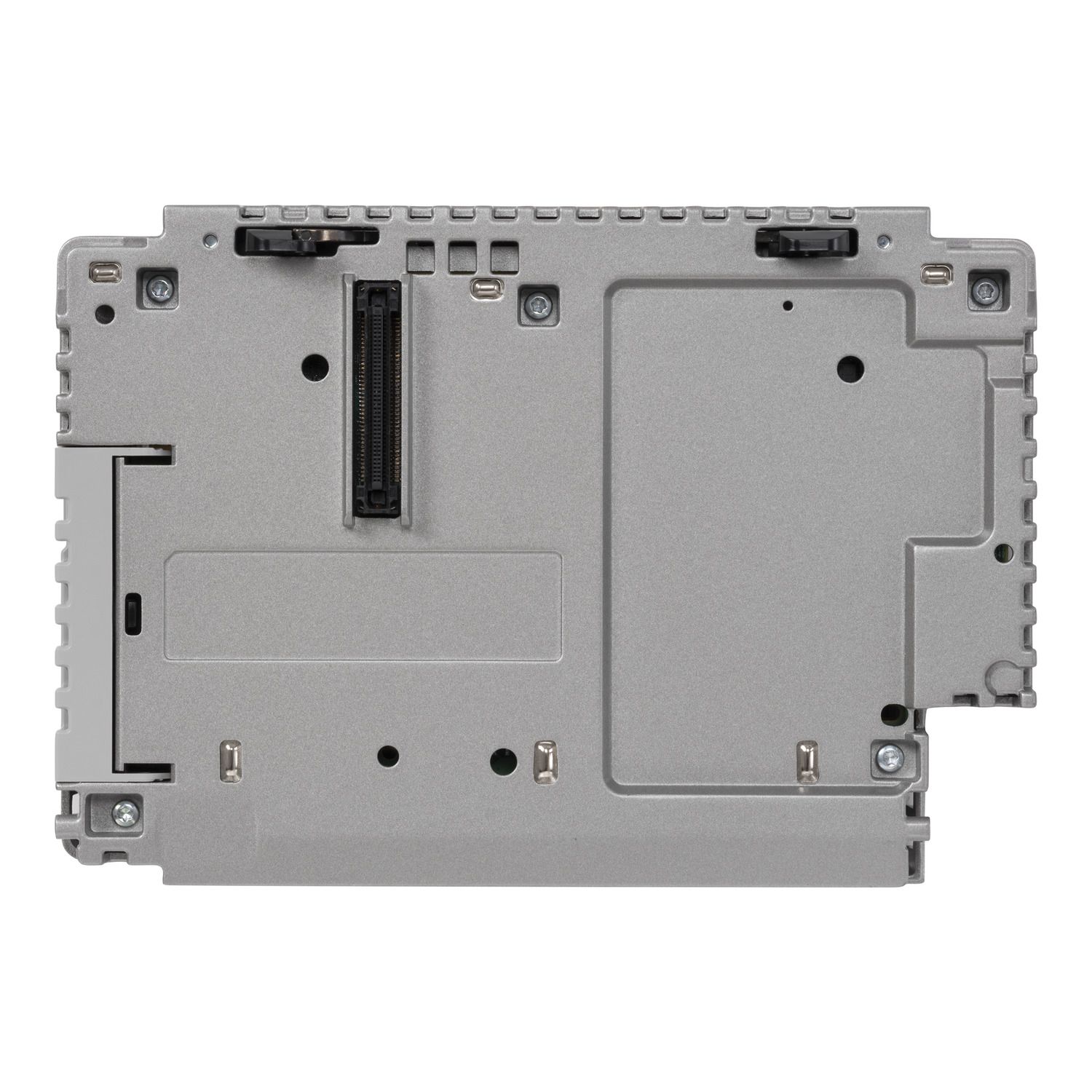

Picture of Power Box, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC
Picture of Power Box, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC
Picture of Power Box, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC
SKU:

PFXSP5B10

Power Box, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC

Old price: $1,953.60 INC GST
$1,855.92 INC GST
Available for Shipping : 06-Jan-2026
Power Box, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 06-Jan-2026
Circularity Profile
Environmental Disclosure
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has 2x RS-232C/422/485 ports, 2x host + 1x mini-B USB ports, 2x Ethernet ports (1Gbps), 2x SD card slots, 1x expansion unit interface, 1x sound output and 1x AUX output interface. It has various communication interfaces, ideal for supervising and controlling complex systems and machines. It supports 1GB SD Card (operating system, project data, and other data) and backup memory of NVRAM 512KB. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9kg. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control Equipment, and Marine standards such as ABS, BV, CCS, DNV-GL, LR, RINA and NK. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type base unit
Complementary
Memory description device memory 1 GB
Type of cooling AN (air natural)
Height 131 mm
Maximum power consumption in W 25 W
Depth 35 mm
Width 188 mm
Integrated connection type COM1 serial link 1 SUB-D 9-pin male, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps
Net weight 0.9 kg
[Us] rated supply voltage 12 V DC
Power consumption in W 12.5 W, 25 W
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications NK, RINA, LR, DNV, CCS, BV, ABS, IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.300 cm
Package 1 Width 21.500 cm
Package 1 Length 26.000 cm
Package 1 Weight 1.085 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.380 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 81.500 kg
