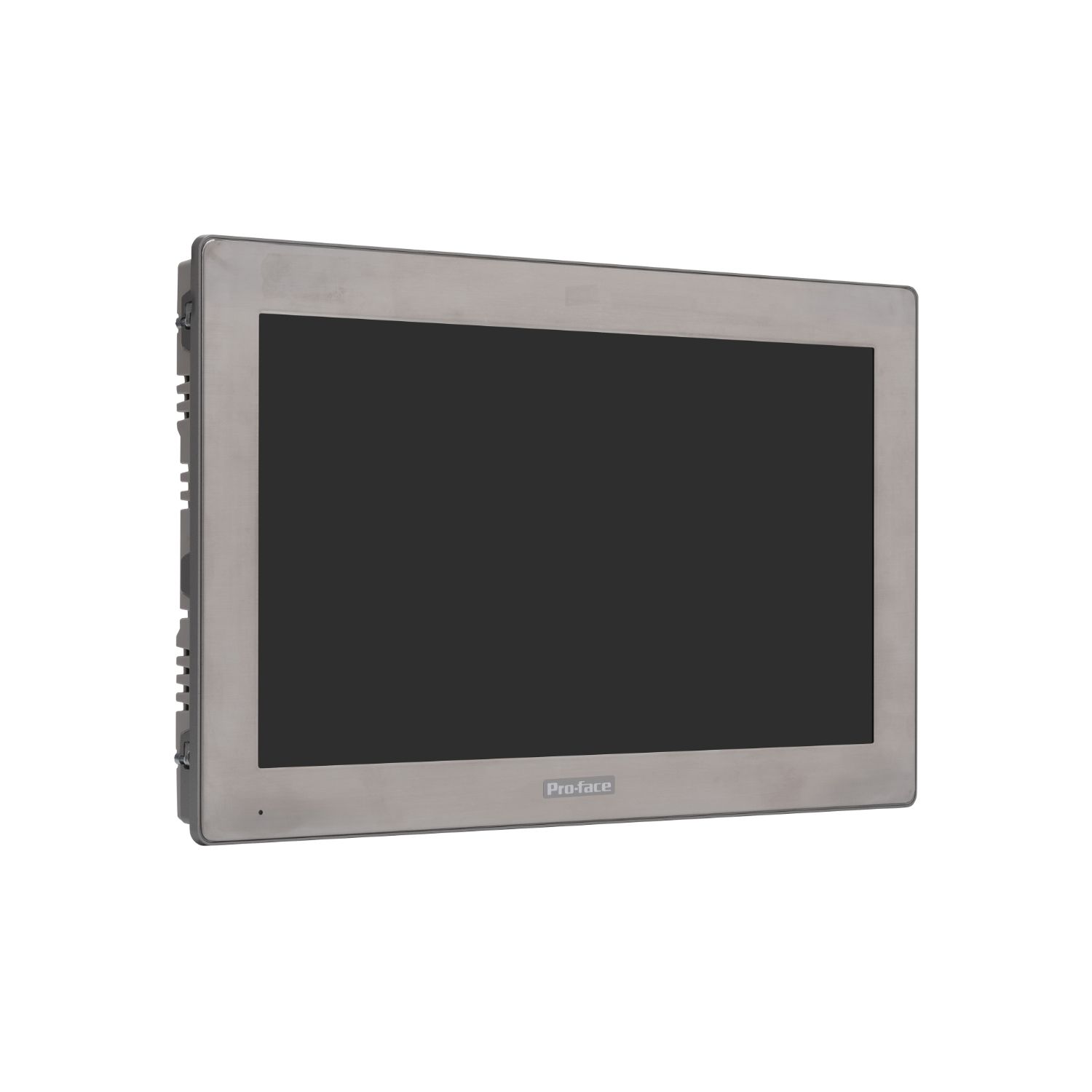

Picture of 15W Extreme touch panel display, FWXGA, Analog-Single, Modular, 12-24VDC, Outdoor use
SKU:

PFXSP5790WAD

15W Extreme touch panel display, FWXGA, Analog-Single, Modular, 12-24VDC, Outdoor use

Old price: $5,449.40 INC GST
$5,176.93 INC GST
Available for Shipping : 15-Dec-2025
15W Extreme touch panel display, FWXGA, Analog-Single, Modular, 12-24VDC, Outdoor use
Be the first to review this product
Manufacturer: ProFace
Delivery date: 15-Dec-2025
User guide
Circularity Profile
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to the Pro-face SP5000X Series, an offer of eXtreme outdoor HMI panels. These eXtreme outdoor HMI panels are a high-performance range of HMIs that are ideal for harsh outdoor environments. It features a 15.6" TFT color LCD (high brightness) with 1,366 x 768 pixels resolution (FWXGA) and 262K colors. It offers atmospheric resistance with conformal coating. It can operate between temperature range of -20 to 60 °C. This product works at a power consumption of 48W and a rated voltage from 12V to 24V DC. Its dimensions are 408mm (width) x 264mm (height) x 68mm (depth) and weighs 4.8 kg. This product is suitable for multiple applications under harsh environmental conditions. It can be used in special-purpose vehicles such as fire trucks and construction equipment, parking lots and gas stations, and the oil and gas industry. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control equipment. It is also certified with UL 121201 and CSA C22.2 No 213 for use in Class I, Division 2 hazardous (Classified) locations, and IECEx/ATEX for use in zones 2/22. It is compatible with PFXSP5B90 box module.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 262144 colours
Display size 15.6 inch
Type of cooling AN (air natural)
Input voltage limits 10.8…28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 8 screw clamps, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 264 mm
Depth 68 mm
Width 408 mm
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 4.8 kg
Display resolution 1366 x 768 pixels FWXGA
Cut-out dimensions 394 x 250 mm panel cut dimension
Inrush current 30 A
Brightness 1000 cd/m2
[Us] rated supply voltage 12...24 V DC
Power consumption in W 19 W (backlight dimmed (brightness: 20%)), 12.5 W (backlight off (standby mode)), 34 W, 48 W
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP66f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation -20-60 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to IEC 60068-2-27
Vibration resistance 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-6
Insulation resistance >= 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 45.000 cm
Package 1 Width 18.500 cm
Package 1 Length 53.500 cm
Package 1 Weight 6.623 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 39.492 kg
