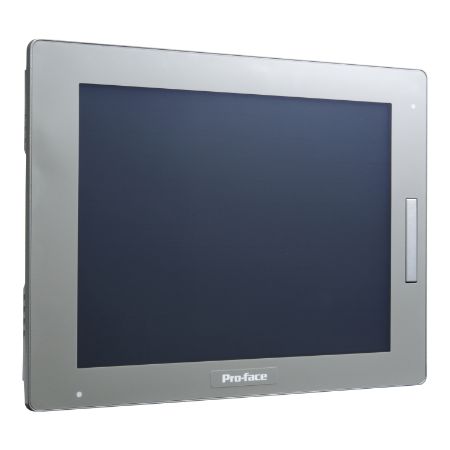

Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC, WLAN

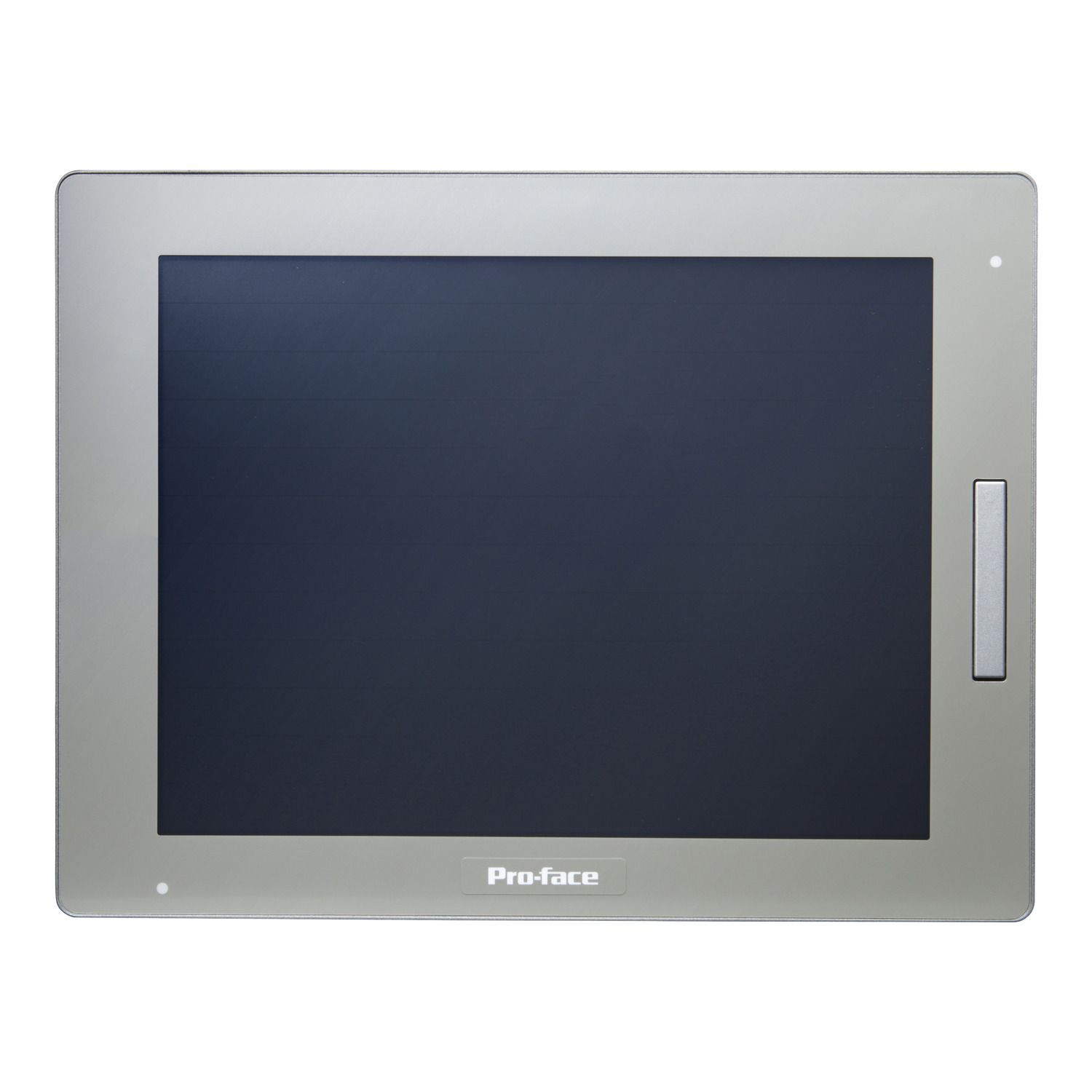

Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC, WLAN

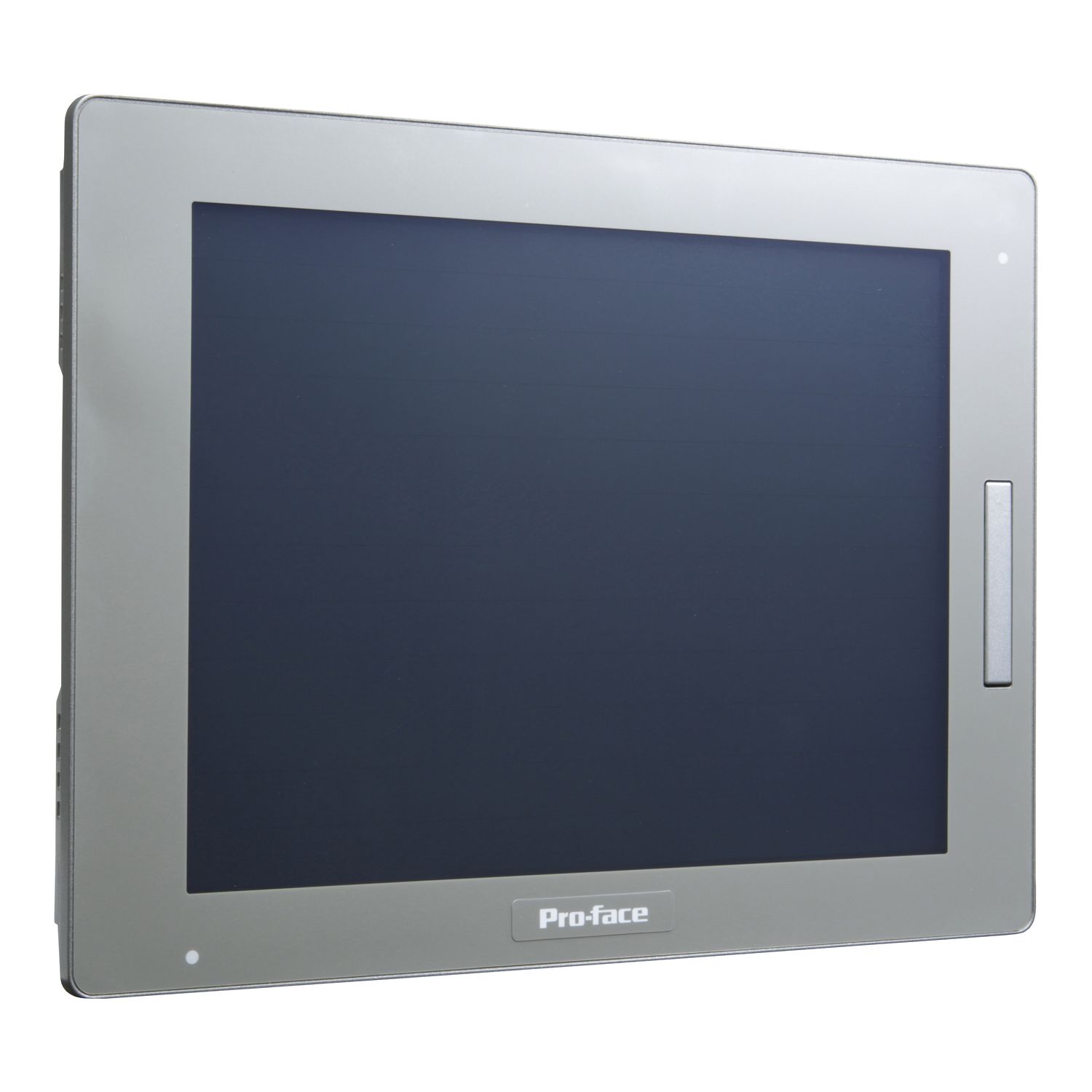

Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC, WLAN
SKU:

PFXSP5660TPD

12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC, WLAN

Old price: $4,818.00 INC GST
$4,577.10 INC GST
Available for Shipping : 09-Feb-2026
12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC, WLAN
Be the first to review this product
Manufacturer: ProFace
Delivery date: 09-Feb-2026
Circularity Profile
Instruction sheet
Environmental Disclosure
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has a 12" TFT color LCD with 1024 x 768 pixels (XGA) resolution and 16 million colors. The touch panel type is a 2-point multi-touch analog resistive film. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. This product works at a power consumption of 23W and a rated voltage from 12V to 24V DC. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 315mm (width) x 241mm (height) x 67mm (depth) and weighs 3.2kg. This wireless LAN model enables easy modification of production lines, allowing you to add devices without any changes to the existing system. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control Equipment, and Marine standards such as ABS, BV, CCS, DNV-GL, LR, RINA and NK. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 16 million colours
Type of cooling AN (air natural)
Input voltage limits 10.8…28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 241 mm
Depth 67 mm
Width 315 mm
Integrated connection type USB 2.0 type A
Touch panel multi touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 3.2 kg
Display resolution 1024 x 768 pixels XGA
Cut-out dimensions 301.5 x 227.5 mm panel cut dimension
Inrush current 30 A
[Us] rated supply voltage 12...24 V DC
Power consumption in W 13 W, 8 W (stand by), 20 W, 23 W (max (display module only)), 58 W (max (including box module))
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications NK, RINA, LR, DNV, CCS, BV, ABS, IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 5.413 kg
