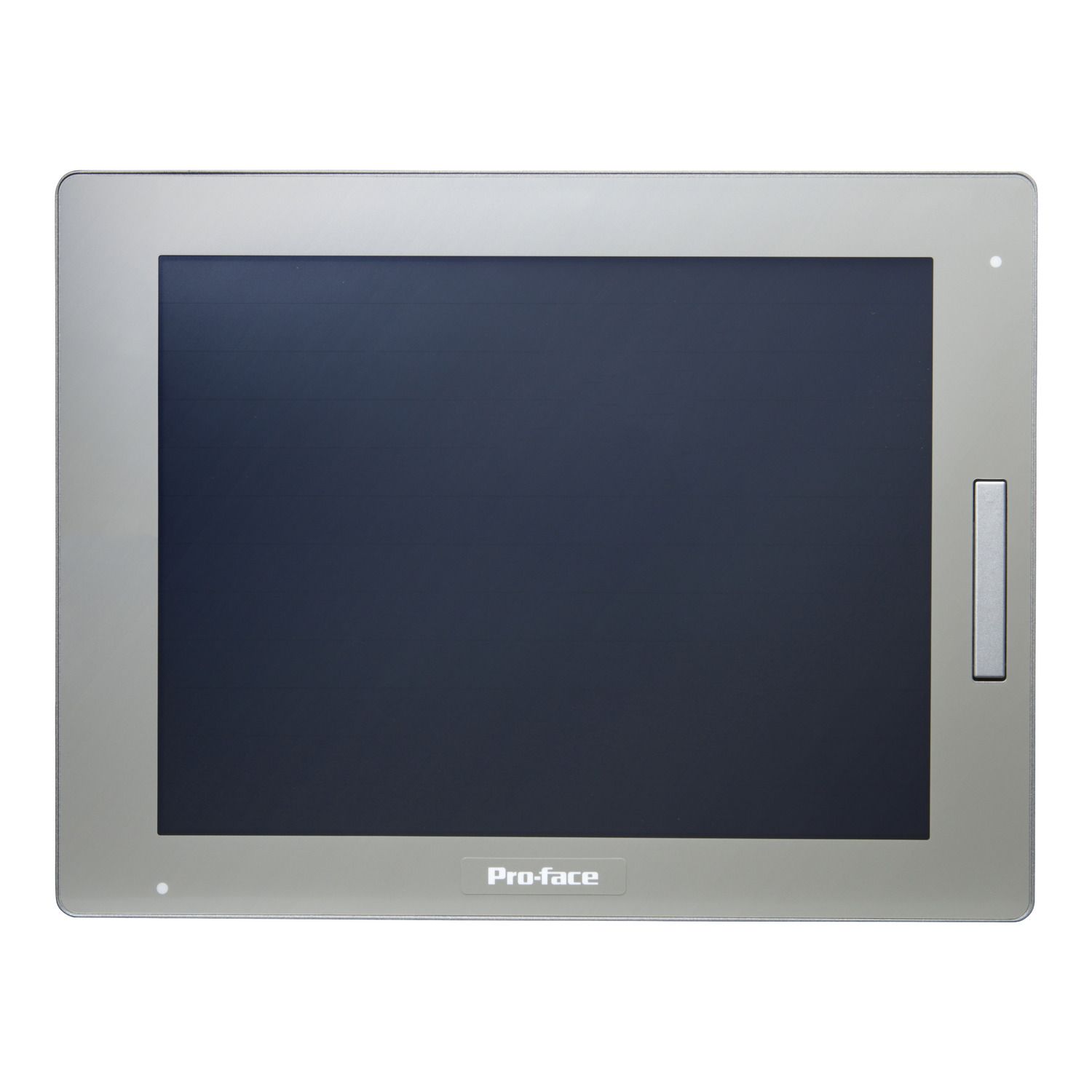

Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC

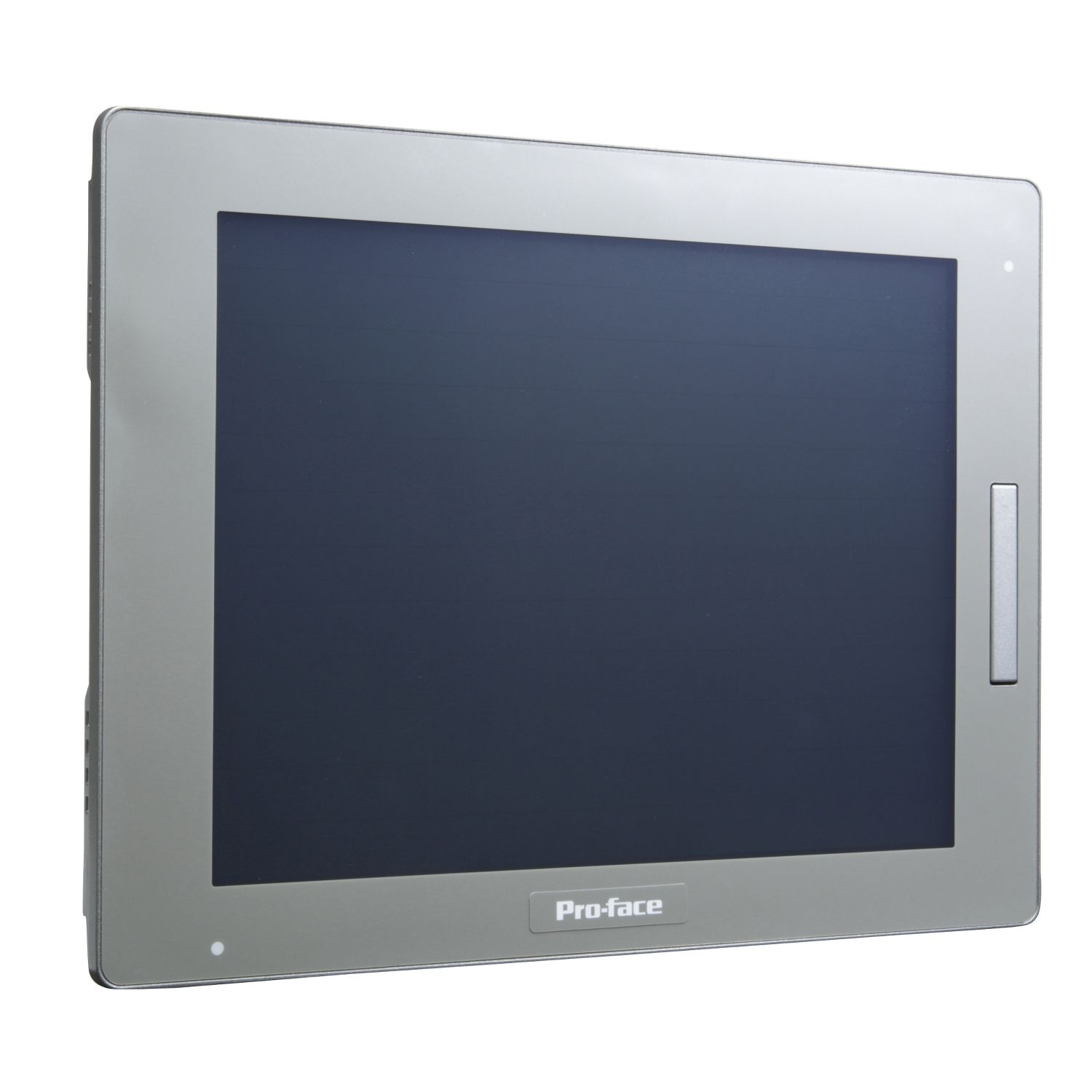

Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC
Picture of 12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC
SKU:

PFXSP5600TPD

12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC

Old price: $4,514.40 INC GST
$4,288.68 INC GST
Available for Shipping : 14-Jan-2026
12 touch panel display, XGA, Analog-Multi, Modular, 12-24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 14-Jan-2026
Circularity Profile
Environmental Disclosure
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has a 12" TFT color LCD with 1024 x 768 pixels (XGA) resolution and 16 million colors. The touch panel type is a 2-point multi-touch analog resistive film. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. This product works at a power consumption of 21W and a rated voltage from 12V to 24V DC. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 315mm (width) x 241mm (height) x 67mm (depth) and weighs 3.2kg. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control Equipment and Marine standards such as ABS, BV, CCS, DNV-GL, LR, RINA and NK. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face SP5000
Product or component type touch panel screen
Complementary
Display type colour TFT LCD
Display colour 16 million colours
Type of cooling AN (air natural)
Input voltage limits 10.8…28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 241 mm
Depth 67 mm
Width 315 mm
Integrated connection type USB 2.0 type A
Touch panel multi touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 3.2 kg
Display resolution 1024 x 768 pixels XGA
Cut-out dimensions 301.5 x 227.5 mm panel cut dimension
Inrush current 30 A
[Us] rated supply voltage 12...24 V DC
Power consumption in W 11 W, 6 W (stand by), 18 W, 21 W (max (display module only)), 56 W (max (including box module))
Environment
Relative humidity 10-90 % non-condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Insulation resistance >= 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non-condensing
Product certifications NK, RINA, LR, DNV, CCS, BV, ABS, IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.400 cm
Package 1 Width 33.500 cm
Package 1 Length 37.800 cm
Package 1 Weight 4.514 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 43.000 cm
Package 2 Width 35.500 cm
Package 2 Length 45.800 cm
Package 2 Weight 9.874 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 99.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 90.560 kg
