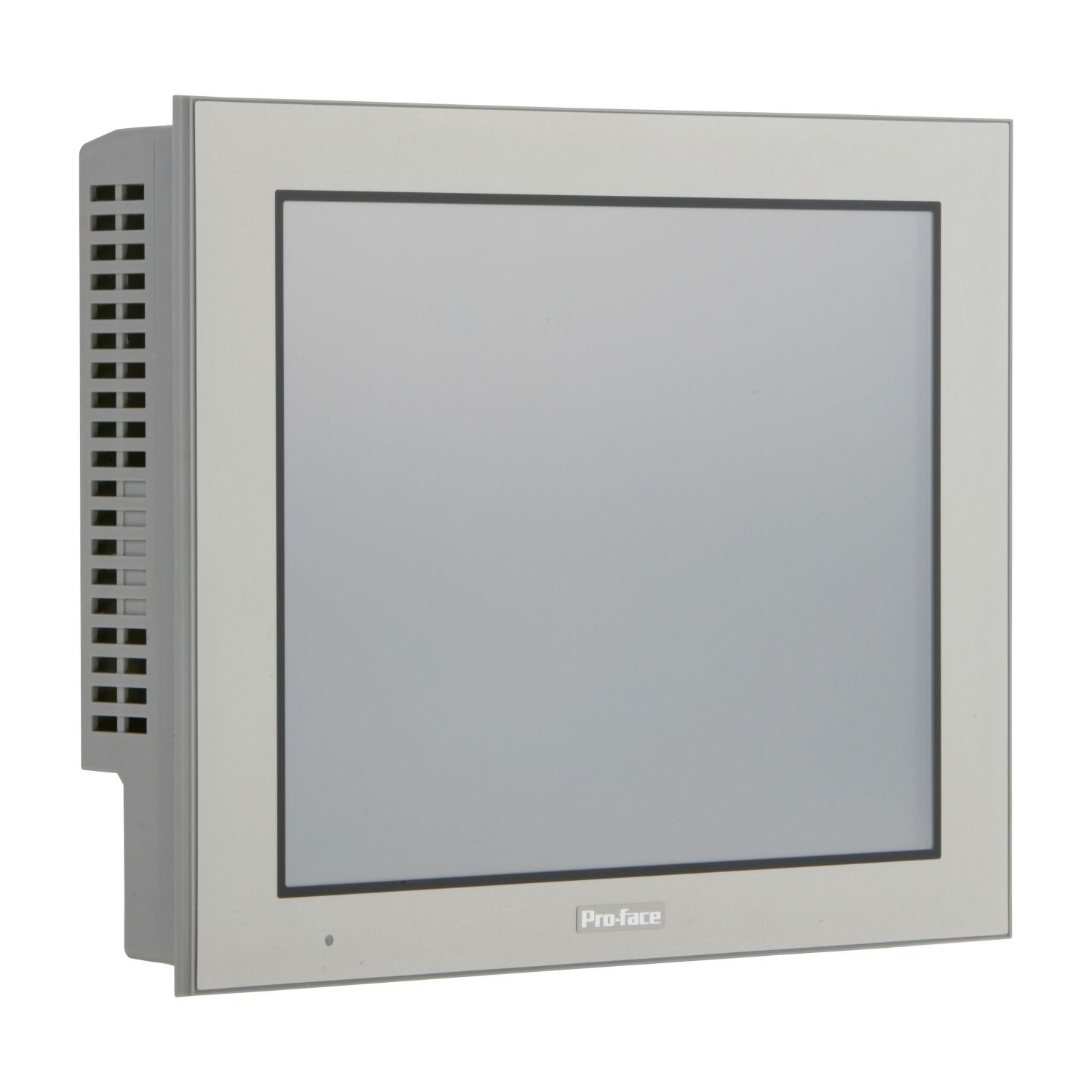

Picture of 12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Isolated

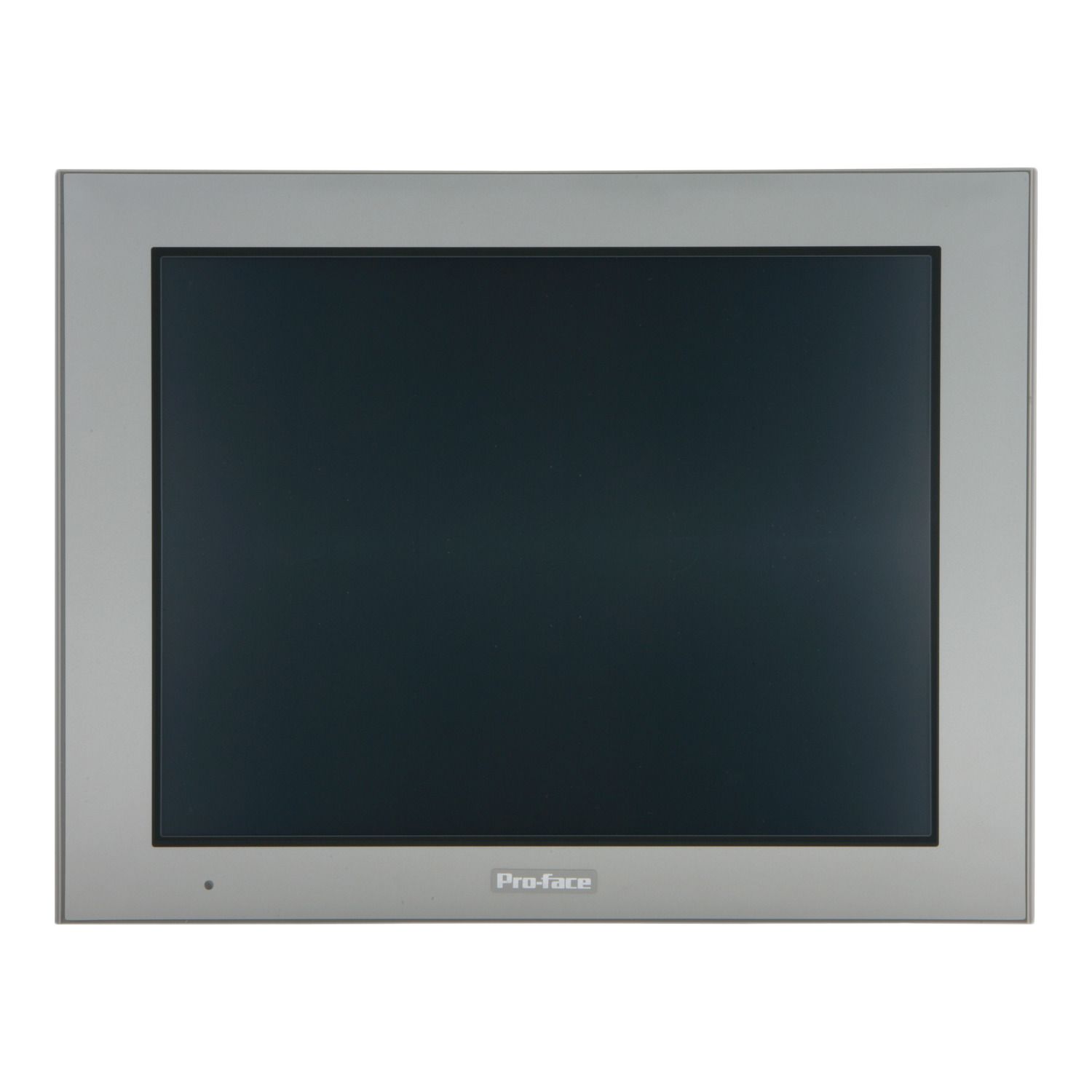

Picture of 12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Isolated
Picture of 12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Isolated
SKU:

PFXGP4603TAD

12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Isolated

$6,545.00 INC GST
Available for Shipping : 05-Feb-2026
12.1 touch panel display, SVGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Isolated
Be the first to review this product
Manufacturer: ProFace
Delivery date: 05-Feb-2026
Declaration of conformity
Circularity Profile
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This product belongs to Pro-face Standard HMI, GP4000 Series. The GP4000 series has high connectivity with a wide range of industrial controllers and provides a variety of lineups in different sizes. It has a 12.1" color TFT LCD with 800 x 600 pixels (SVGA) resolution and 65,536 colors. The touch panel type is a resistive film (analog). It is equipped with 32MB application memory and 320KB backup memory. This can be easily programmed with GP-Pro EX software, with almost no coding. It also has 1x RS-232C port, 1x RS-485 (isolation) port, 1x host, 1x mini-B USB port, 1x Ethernet port, and 1x SD card slot. Its dimensions are 315mm (width) x 241mm (height) x 56mm (depth) and weighs 2.5kg. This product works at a power consumption of 17W and a rated voltage of 24V DC. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. It is ideal for industry and infrastructure such as compact machines, handling systems, food & beverage machines, and the pharmaceutical industry. It conforms to standards like CE, UKCA, UL, cUL, KC, RCM, EAC, IECEx, ATEX, UK Ex, CCC Ex, KCs. It also conforms to Marine standards like ABS, BV, CCS, DNV, LR, RINA, KRS and Class NK.

Products specifications

Attribute name Attribute value
Main
Software designation GP-Pro EX
Range of product Pro-face GP4000
Product or component type touch panel screen
Complementary
Memory description backup memory 320 kB, user data memory 32 MB
Character font Thai, Cyrillic, Korean, Chinese (traditional Chinese), Chinese (simplified Chinese), ASCII, Japanese
Display type colour TFT LCD
Display colour 65536 colours
Display size 12.1 inch
Type of cooling AN (air natural)
Height 241 mm
Integrated connection type SD card slot, Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX, USB 2.0 type mini B, USB 2.0 type A, COM2 serial link 1 SUB-D 9-pin female, interface: RS-485 (isolation), transmission rate: 187.5 kbps compatible with MPI, COM2 serial link 1 SUB-D 9-pin female, interface: RS-485 (isolation), transmission rate: 2400...115200 bps, COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
Net weight 2.5 kg
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Maximum power consumption in W 8 W backlight dimmed (brightness: 20%), 7 W backlight off (standby mode), 12 W when power is not supplied to external devices, 17 W
Depth 56 mm
Width 315 mm
Local signalling status LED red, flashing for ERR (Error), status LED red, steady for power ON, status LED orange, flashing for software starting up, status LED green, flashing for logic stop, status LED green, steady for operating status (RUN), status LED green, steady for offline
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Display resolution 800 x 600 pixels SVGA
Cut-out dimensions 301.5 x 227.5 mm panel cut dimension
Inrush current 30 A
Brightness 16 levels by software, 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Environment
Relative humidity 10-90 % non condensing
Ambient air temperature for storage -20-60 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA 4X front panel (in enclosure)
Insulation resistance > 10 MOhm
Product certifications NK, CCS, RINA, BV, LR, ABS, DNV, EAC, RCM, CCC Ex, KC, UKEX, UKCA, CE, cUL, UL
Environmental characteristic corrosive gas free
Directives 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f (front panel (in enclosure))
Electromagnetic compatibility electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Pollution degree 2
Ambient air temperature for operation 0-55 °C
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2, 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 142, UL 508, IEC 61000-6-2, EN 61000-6-4
Storage Relative Humidity 10-90 % non condensing
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.500 cm
Package 1 Width 32.000 cm
Package 1 Length 39.800 cm
Package 1 Weight 3.395 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 37.160 kg
