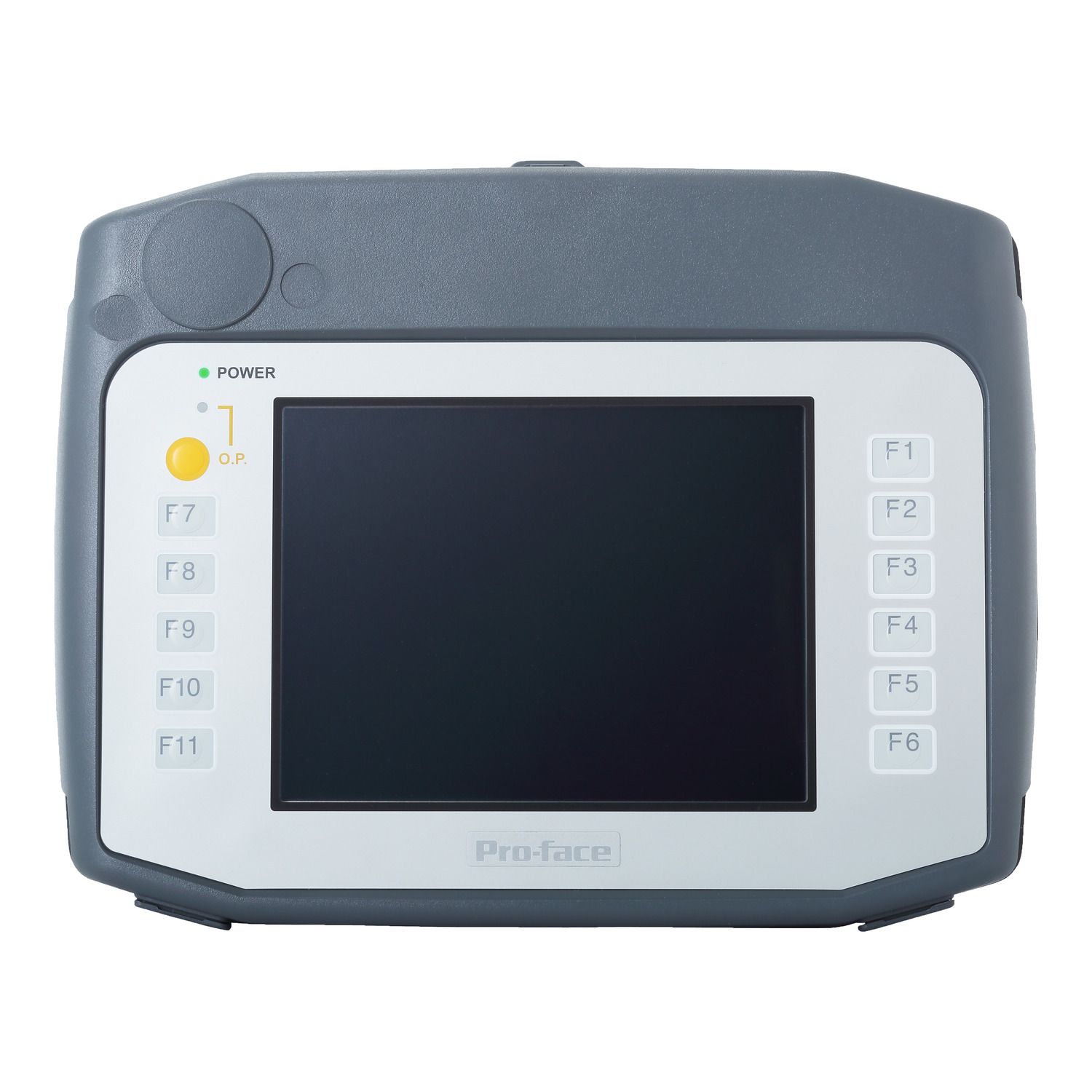

Picture of 5.7 Handheld Touch Panel, VGA, Analog-Single, COM, ETH, USB A & mini-B, SD, 24VDC

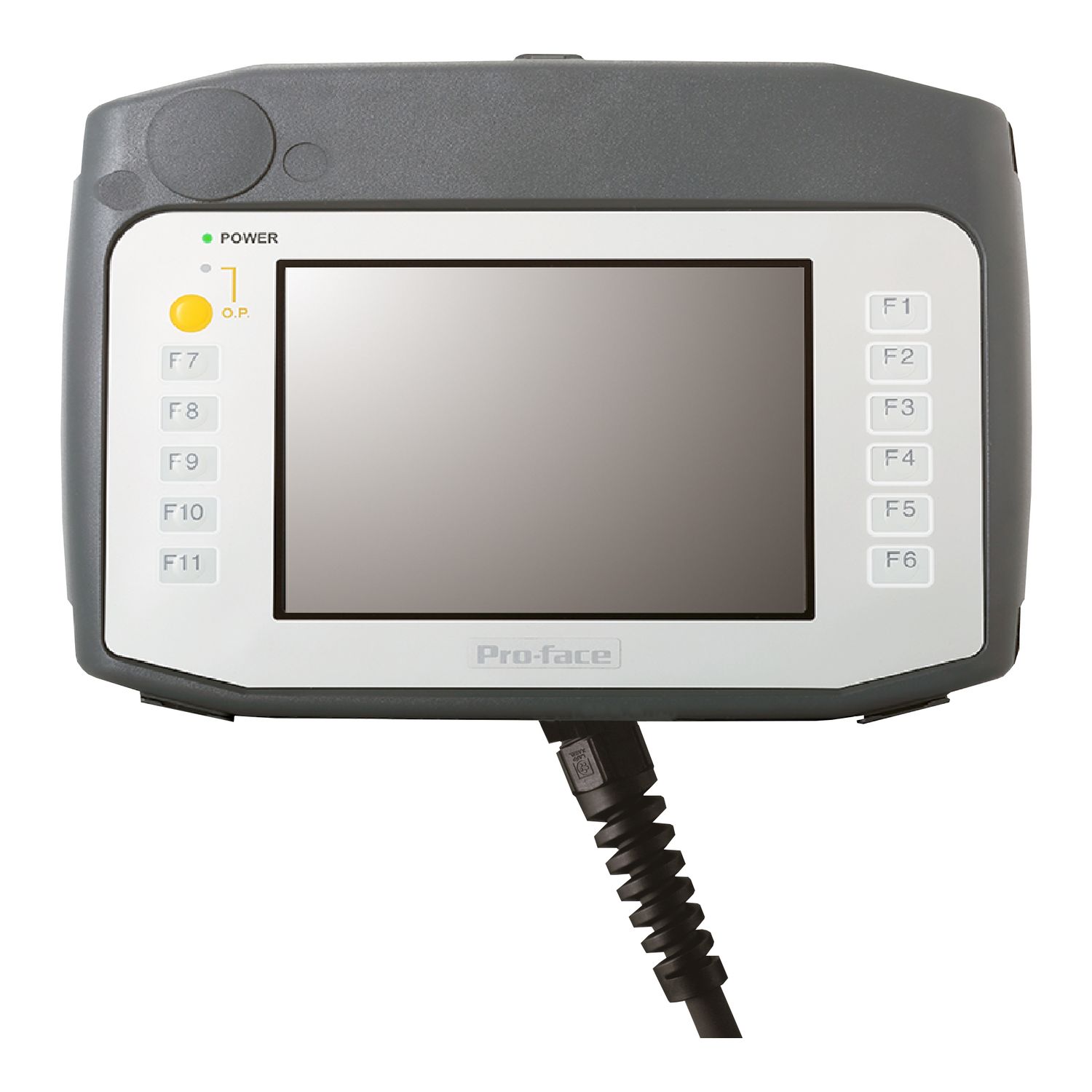

Picture of 5.7 Handheld Touch Panel, VGA, Analog-Single, COM, ETH, USB A & mini-B, SD, 24VDC
Picture of 5.7 Handheld Touch Panel, VGA, Analog-Single, COM, ETH, USB A & mini-B, SD, 24VDC
SKU:

PFXGP4311HTAD

5.7 Handheld Touch Panel, VGA, Analog-Single, COM, ETH, USB A & mini-B, SD, 24VDC

$4,287.80 INC GST
Available for Shipping : 14-Jan-2026
5.7 Handheld Touch Panel, VGA, Analog-Single, COM, ETH, USB A & mini-B, SD, 24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 14-Jan-2026
User guide
Declaration of conformity
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product belongs to Pro-face GP4000H Series, an offer of advanced handheld HMI. The GP4000H Series provides high compatibility and safety, which is essential for handheld devices. It has a 5.7" color TFT LCD display with 640 x 480 pixels (VGA) resolution and 65,536 colors. The touch panel type is a resistive film (analog). It is equipped with 16MB application memory and 320KB backup memory. This can be easily programmed with GP-Pro EX software, with almost no coding. It also has 1x RS-232C/RS-422/RS-485 port, 1x host port, 1x mini-B USB port, 1x Ethernet port, 1x SD card slot. It also comes with External output, function switches, and a 3-position enable switch. Its dimensions are 224mm (width) x 178.3mm (height) x 87.8mm (depth) and weighs 0.91kg. This product works at a power consumption of 19W and a rated voltage of 24V DC. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. It conforms to standards like CE, UKCA, UL, cUL, KC, RCM, EAC.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face GP4000
Software designation GP-Pro EX
Product or component type touch panel screen
Complementary
Memory description backup memory 320 kB, user data memory 32 MB
Character font Thai, Cyrillic, Korean, Chinese (traditional Chinese), Chinese (simplified Chinese), ASCII, Japanese
Display type colour TFT LCD
Display colour 65536 colours
Display size 5.7 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 178.3 mm
Maximum power consumption in W 8 W when power is not supplied to external devices, 12 W
Depth 87.8 mm
Width 224 mm
Integrated connection type external output interface, 3-position enable output interface, SD card slot, Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX, USB 2.0 type mini B, USB 2.0 type A, COM1 serial link, interface: RS232C/RS422/RS485, transmission rate: 187.5 kbps compatible with MPI, COM1 serial link, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps
Local signalling status LED red, flashing for ERR (Error), status LED red, steady for power ON, status LED orange, flashing for software starting up, status LED green, flashing for logic stop, status LED green, steady for operating status (RUN), status LED green, steady for offline
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 0.91 kg
Display resolution 640 x 480 pixels VGA
Inrush current 35 A
Brightness 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Environment
Relative humidity 10-90 % non condensing
Environmental characteristic corrosive gas free
Ambient air temperature for storage -20-60 °C
Directives 1907/2006/EC - REACH directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f
Electromagnetic compatibility electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Pollution degree 2
Ambient air temperature for operation 0-40 °C
Operating altitude 2000 m
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2, 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Insulation resistance > 10 MOhm
Standards KN 61000-6-2, KN 11, EN 61000-6-2, EN 61000-6-4, EN 61131-2, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity 10-90 % non condensing
Product certifications EAC, RCM, KC, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 26.500 cm
Package 1 Length 31.000 cm
Package 1 Weight 1.607 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.520 kg
