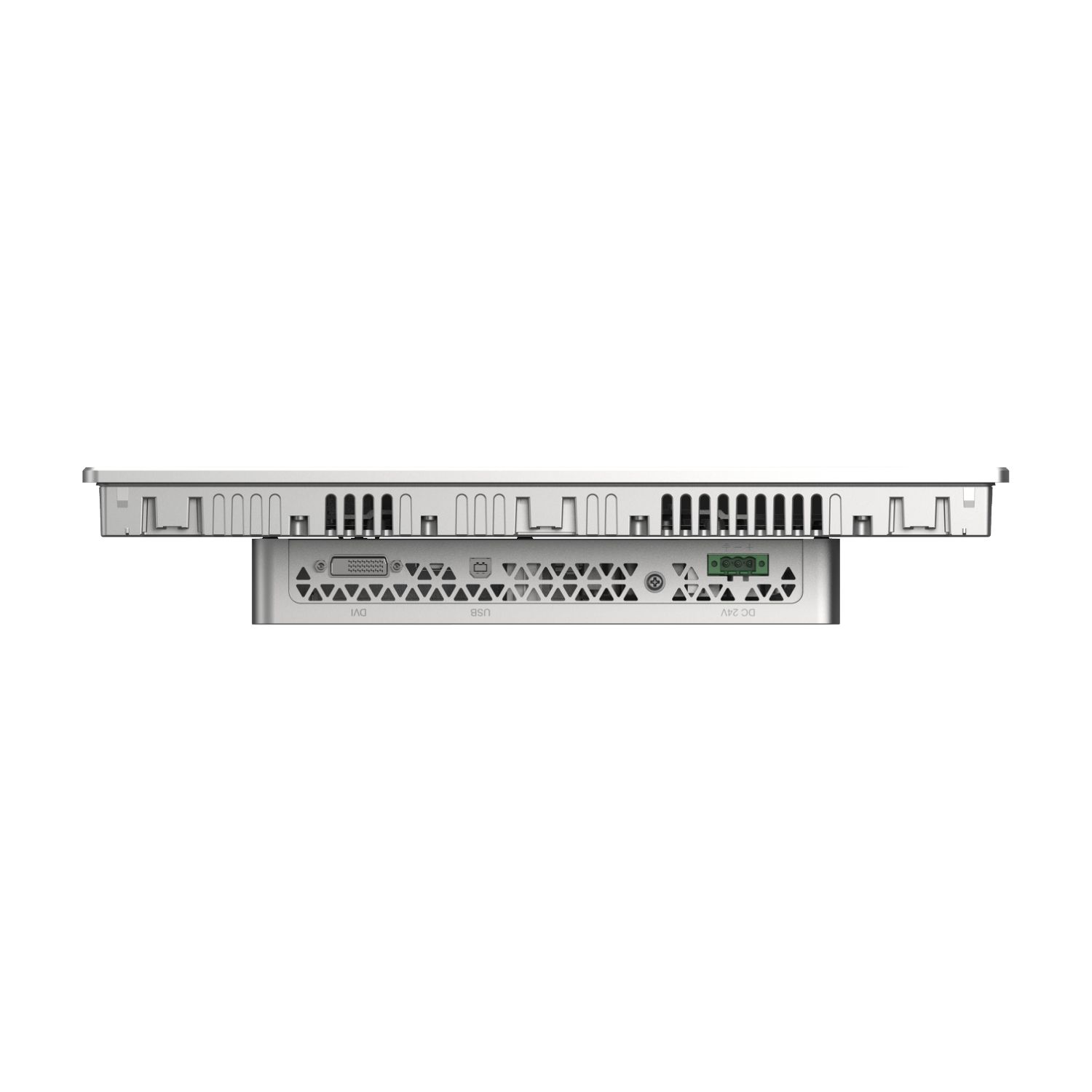

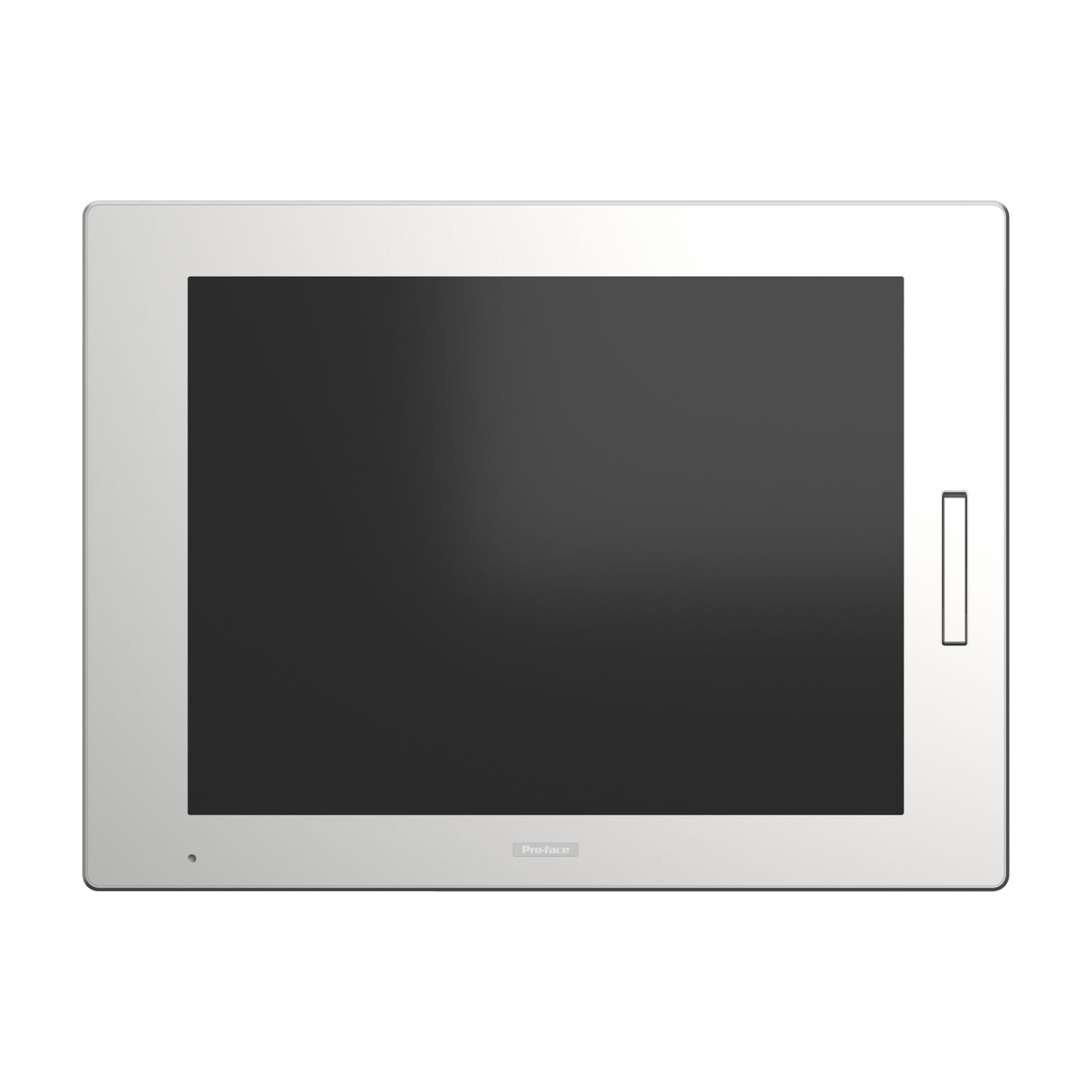

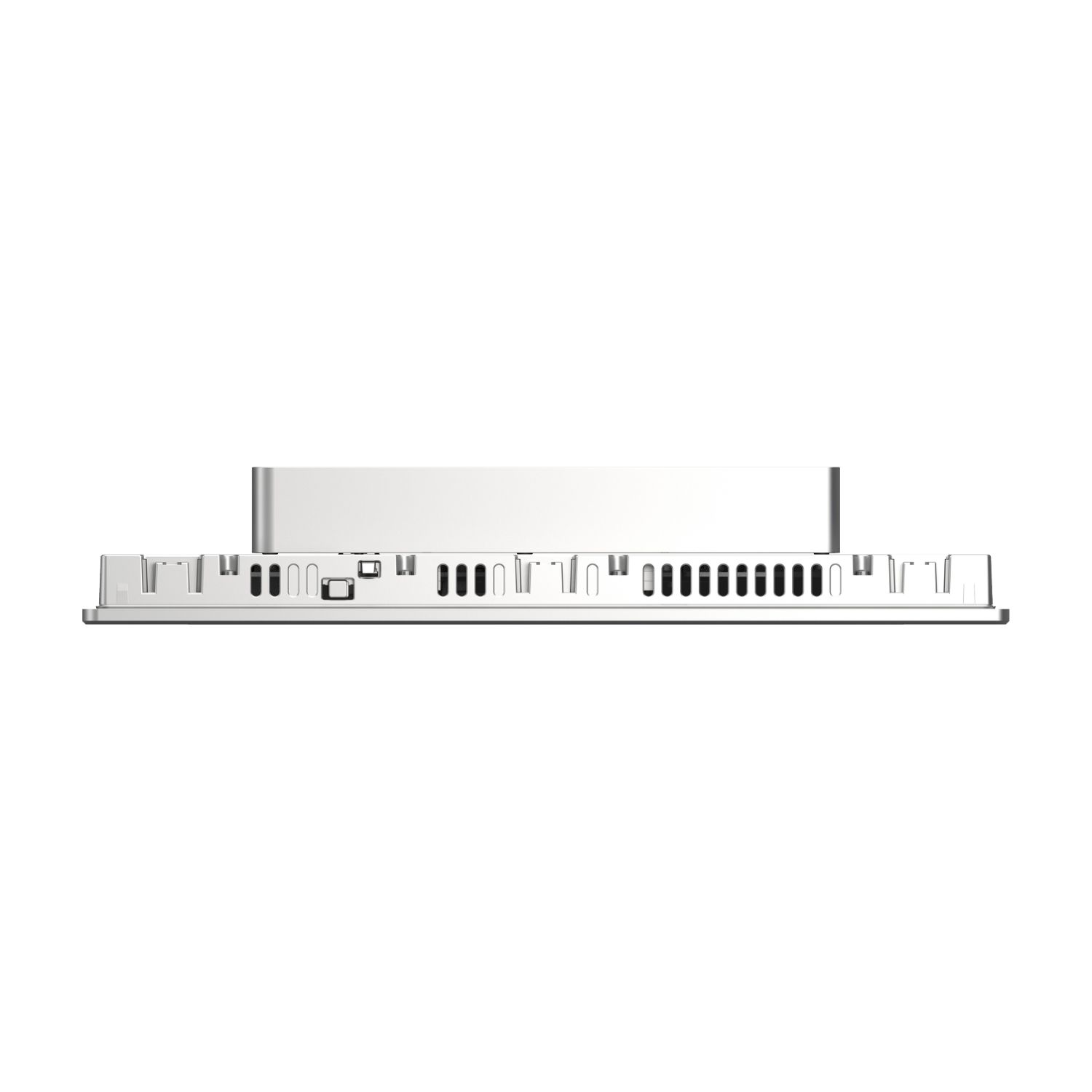

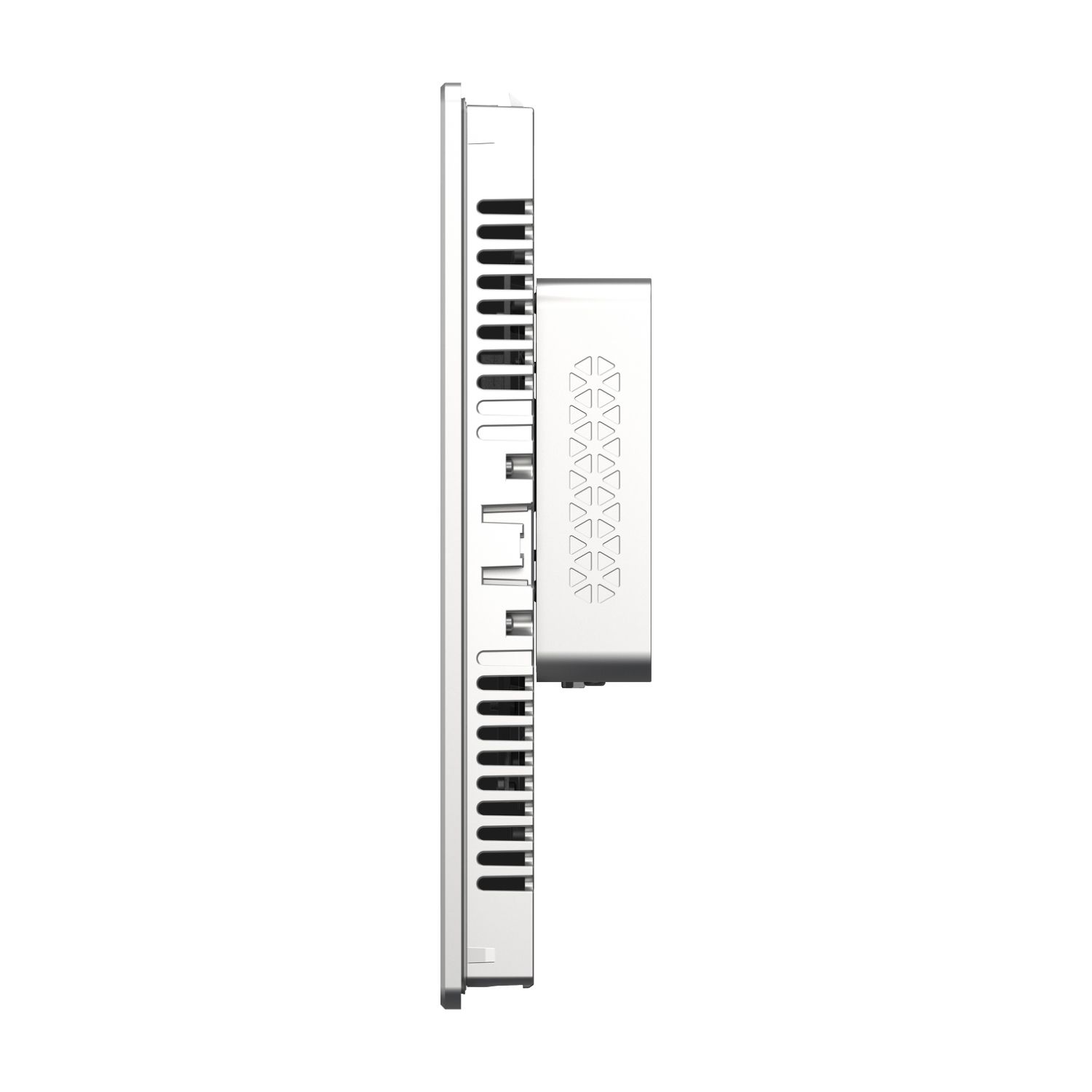

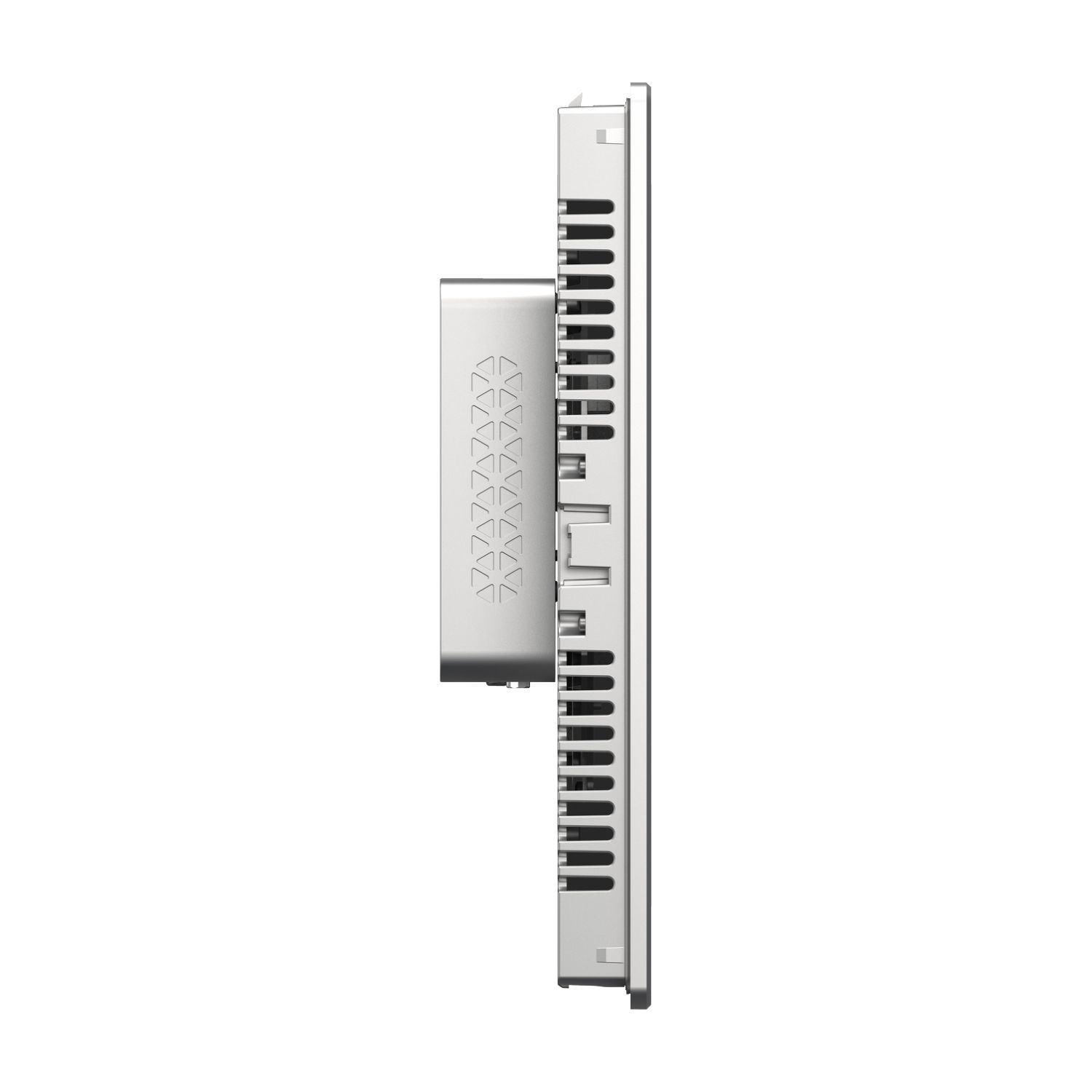

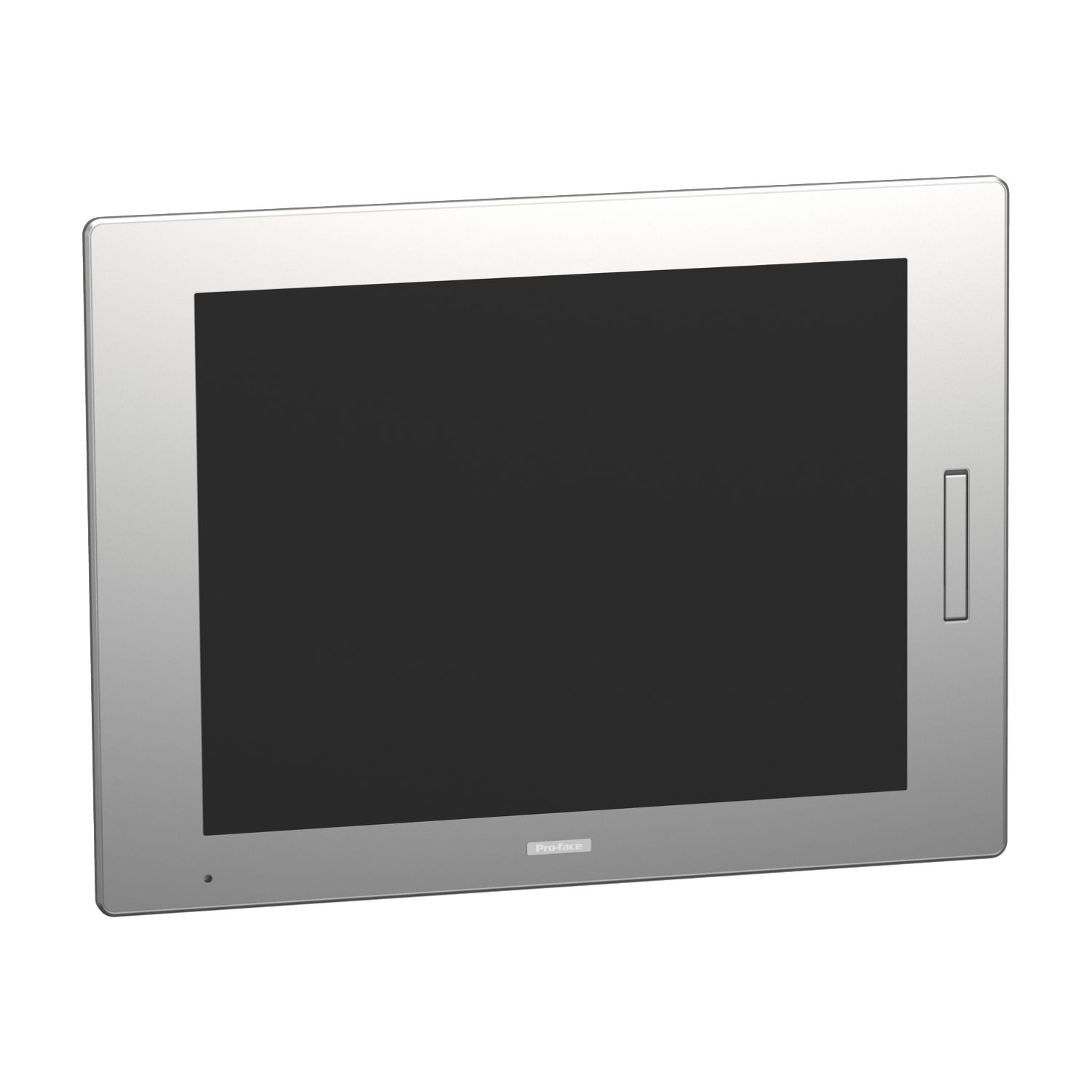

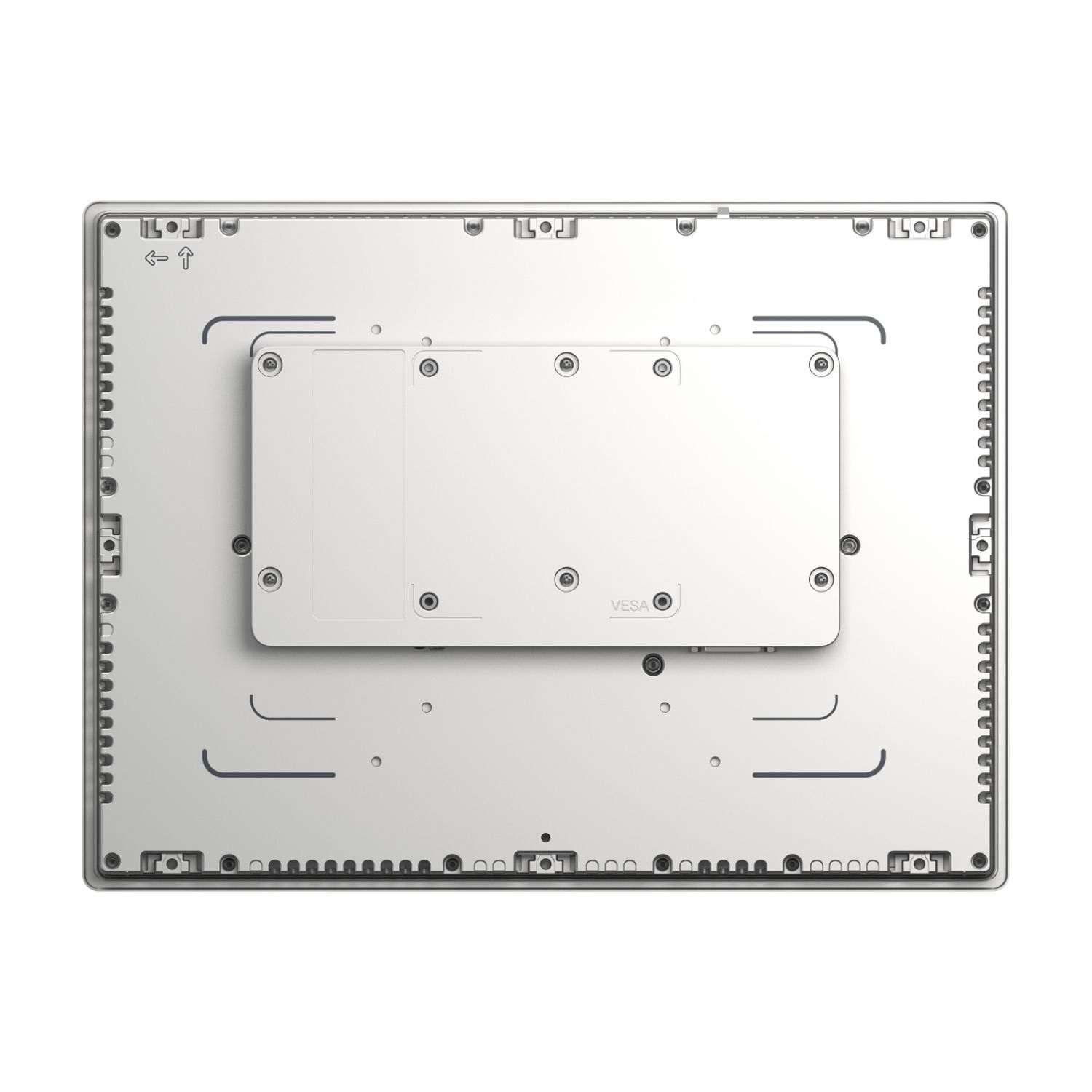

Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Picture of 15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
SKU:

PFXFP6700TMD

15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC

Old price: $1,978.90 INC GST
$1,879.96 INC GST
Available for Shipping : 11-Feb-2026
15.0 Industrial FPM, FP6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 11-Feb-2026
Environmental Disclosure
Declaration of conformity
User guide
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This industrial flat panel monitor belongs to the Pro-face's FP6000 range. This 2 point Analog multi-touch FP6000 display has a glass-top surface design with backlight service life of 50,000 hours. PFXFP6700TMD is a 15.0 inch screen of 16 million colors and 1,024 × 768 pixel resolution (XGA). The modularity of the FP6000 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when FP6000 display is paired with Modular Boxes is 22.4Wmax. Its dimensions are 397mm (width) x 296mm (height) x 67.5mm (depth) and weighs 4.90Kg. FP6000 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Pro-face PS6000, Pro-face iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide FP6000 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.

Products specifications

Attribute name Attribute value
Main
Range of product FP6000
Integrated connection type USB 2.0 connector USB type A at 1.5 Mbit/s, USB 2.0 connector USB type B, DVI-D video port
Terminal type touchscreen display
Product or component type touch panel screen
Complementary
Operating system Windows 10 (version 1809)
Device mounting direct mounting VESA, panel mounting
Display colour 16 million colours
Supply voltage limits 18-31.2 V DC
Display size 15 inch
Touch panel multi touch analogue resistive
Display type colour TFT LCD, LED not replaceable
Type of cooling natural
Cut-out dimensions 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Backlight lifespan 50000 hours at 25 °C
Depth 67.5 mm enclosure:
Height 296 mm
Aspect ratio 4:3
Width 397 mm
Type of installation indoor installation
Net weight 4.9 kg
Environmental characteristic corrosive gas free, dust resistant 0.1 mg/m3 (non-conductive)
Display resolution 1024 x 768 pixels XGA
Inrush current 30 A
Pixel resolution 1024 x 768
[Us] rated supply voltage 24 V DC power supply
Power consumption in W 22.4 W (maximum)
Environment
Ambient air temperature for storage -20-60 °C
Electromagnetic compatibility electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Product certifications IECEx zone 22 (DC model, front USB cover must be locked with screw), IECEx zone 2 (DC model, front USB cover must be locked with screw), cULus Class 1 Division 2, ATEX zone 22 dust, ATEX zone 2, EAC, DNV (except 22" wide display), UKCA, KC, RCM
Pollution degree 2
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201,  FCC part 15, CE
Ambient air temperature for operation 0-55 °C
Operating altitude 2000 m
Vibration resistance 1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 1 gn (f = 9-150 Hz) fixed amplitude conforming to IEC 61131-2, 1 gn (f = 5-9 Hz) single amplitude conforming to IEC 61131-2
Shock resistance 147 m/s² 3 shocks in each direction X, Y and Z, 147 m/s² conforming to IEC 61131-2
Storage Relative Humidity 10-90 % without condensation
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 43.0 cm
Package 1 Width 15.0 cm
Package 1 Length 49.0 cm
Package 1 Weight 5.7 kg
