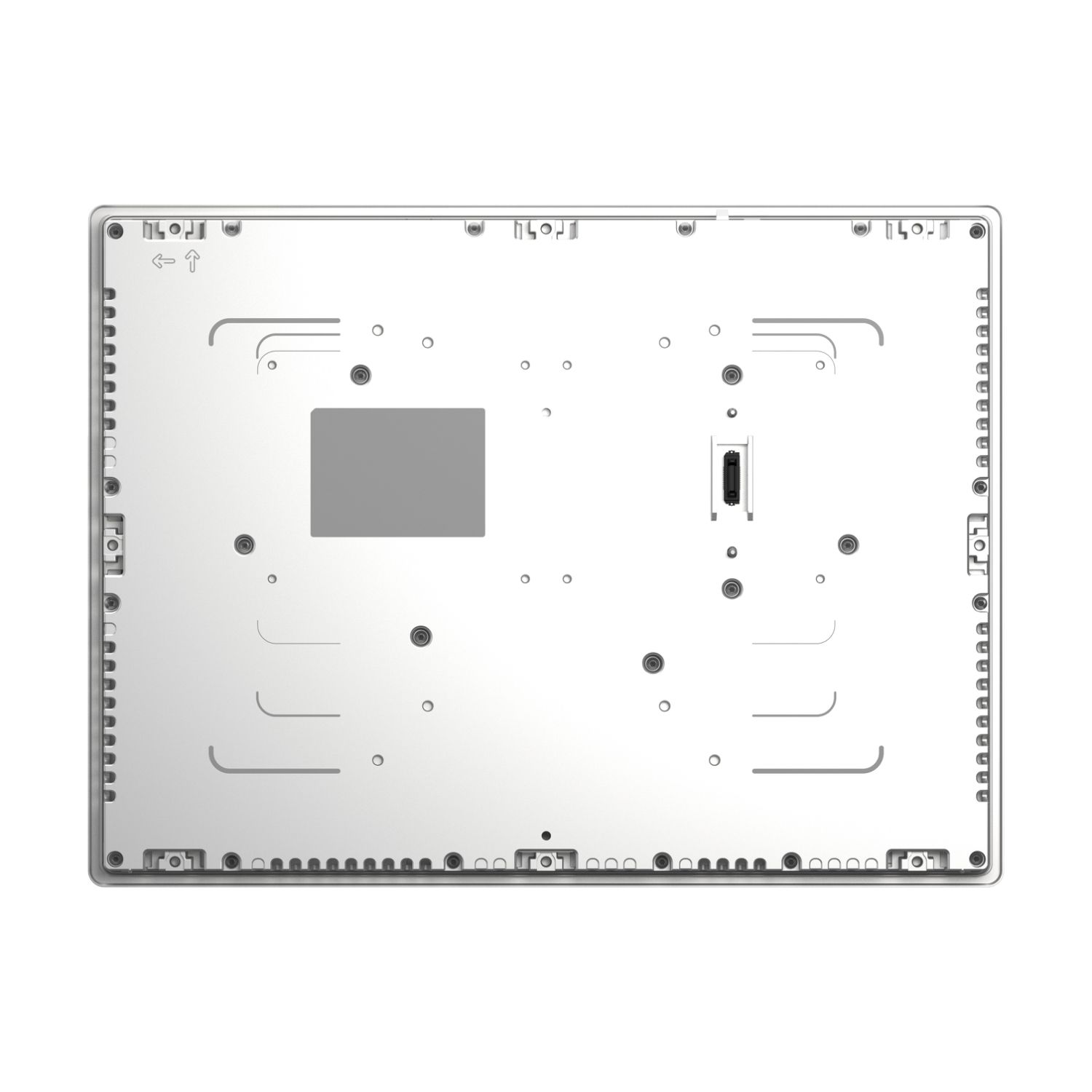

Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

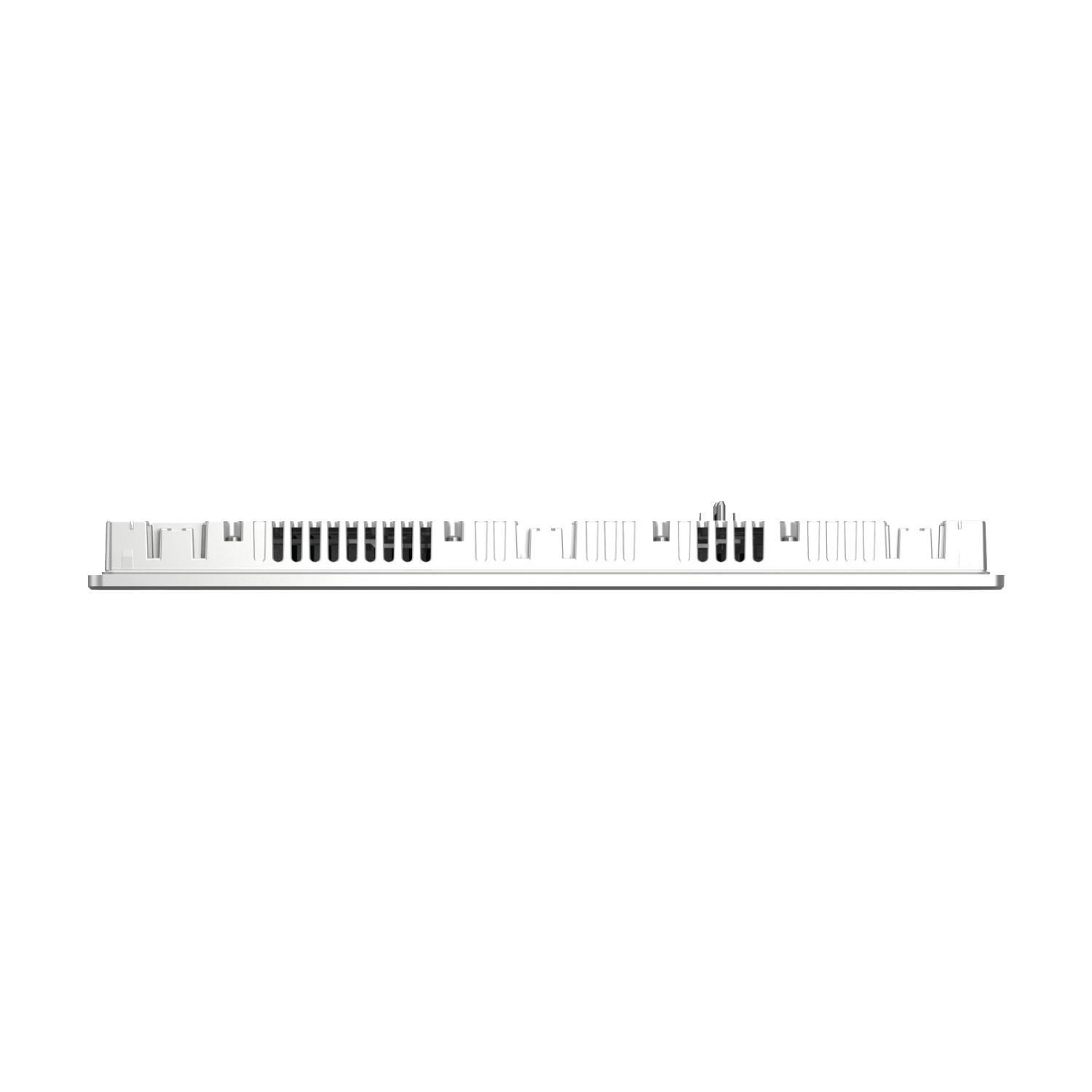

Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

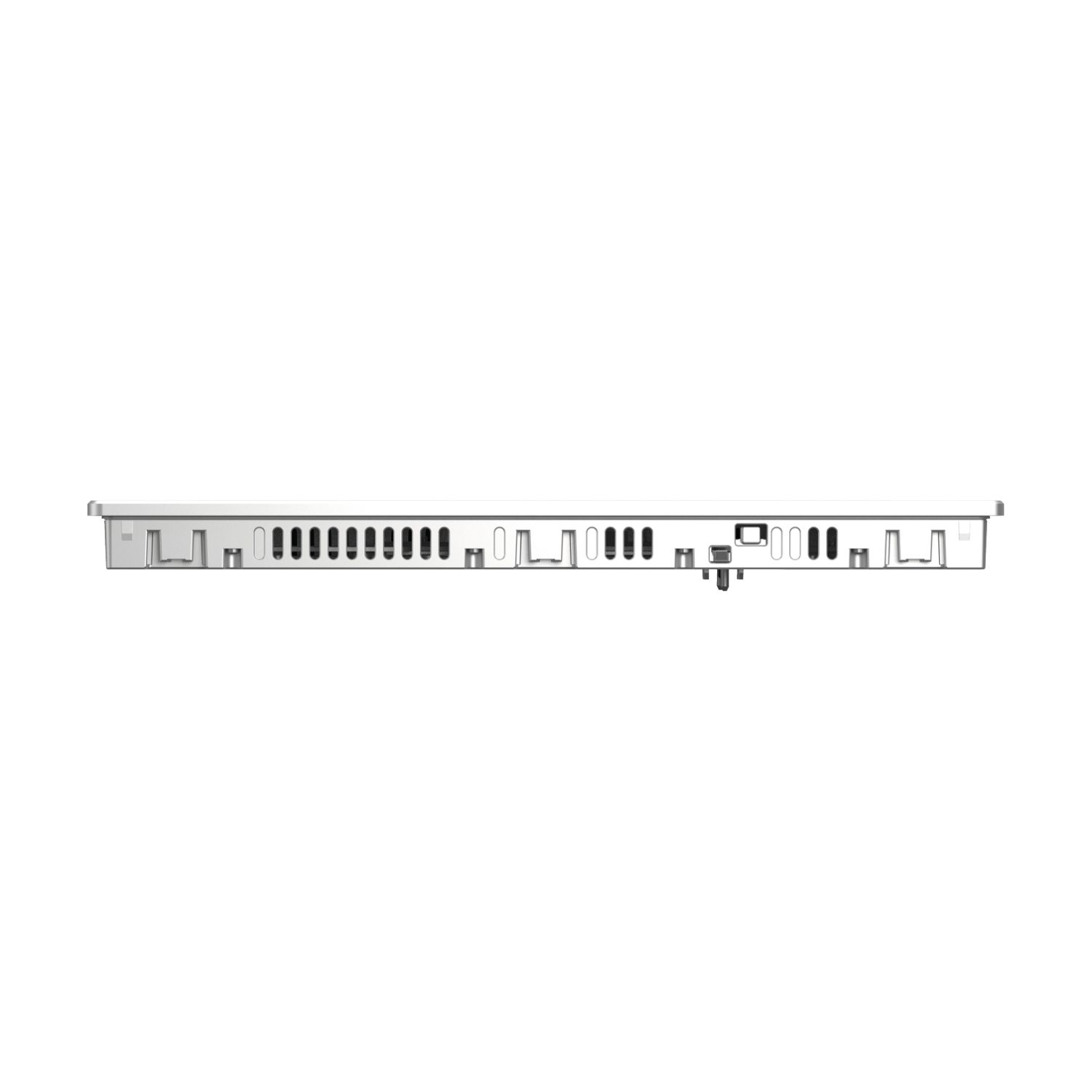

Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

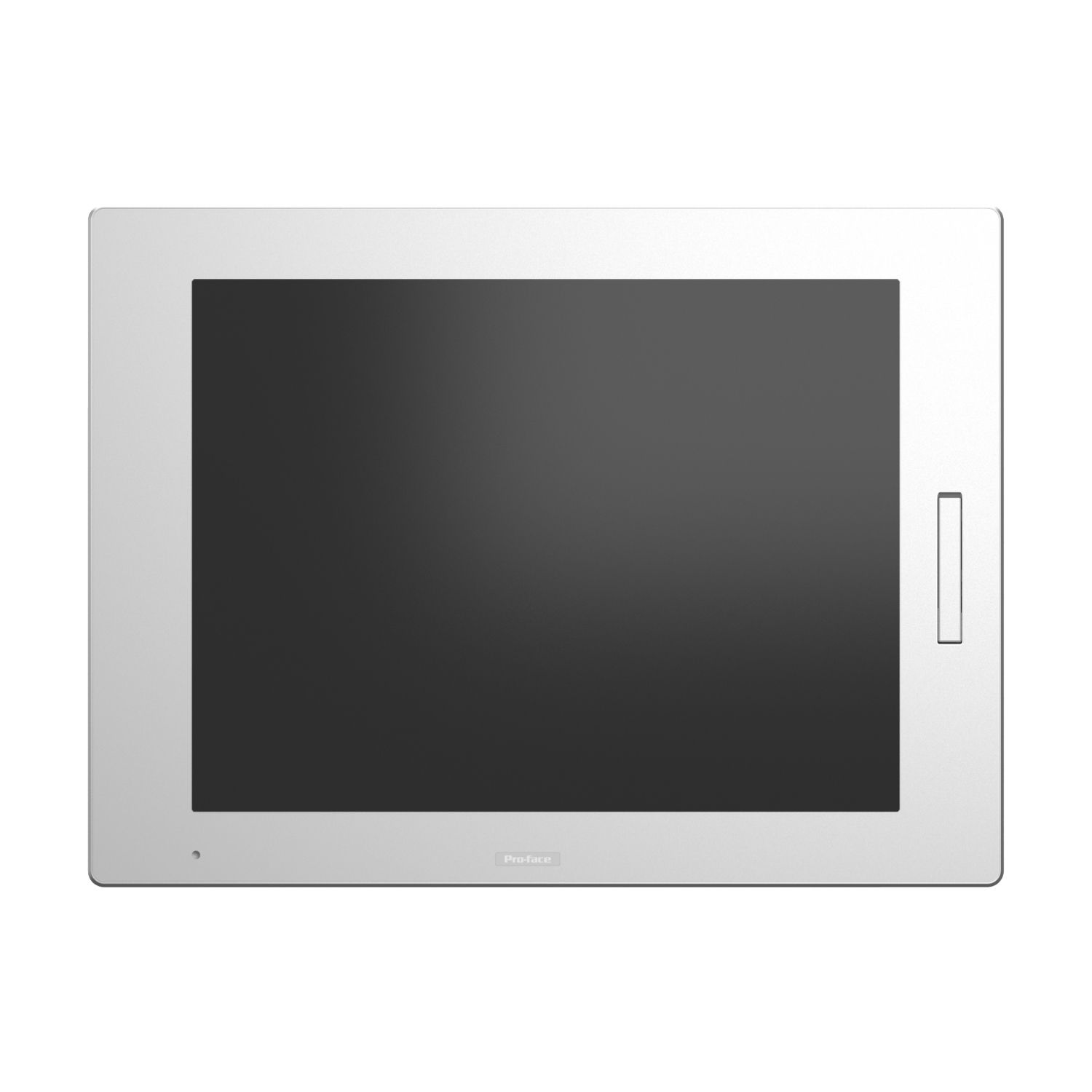

Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

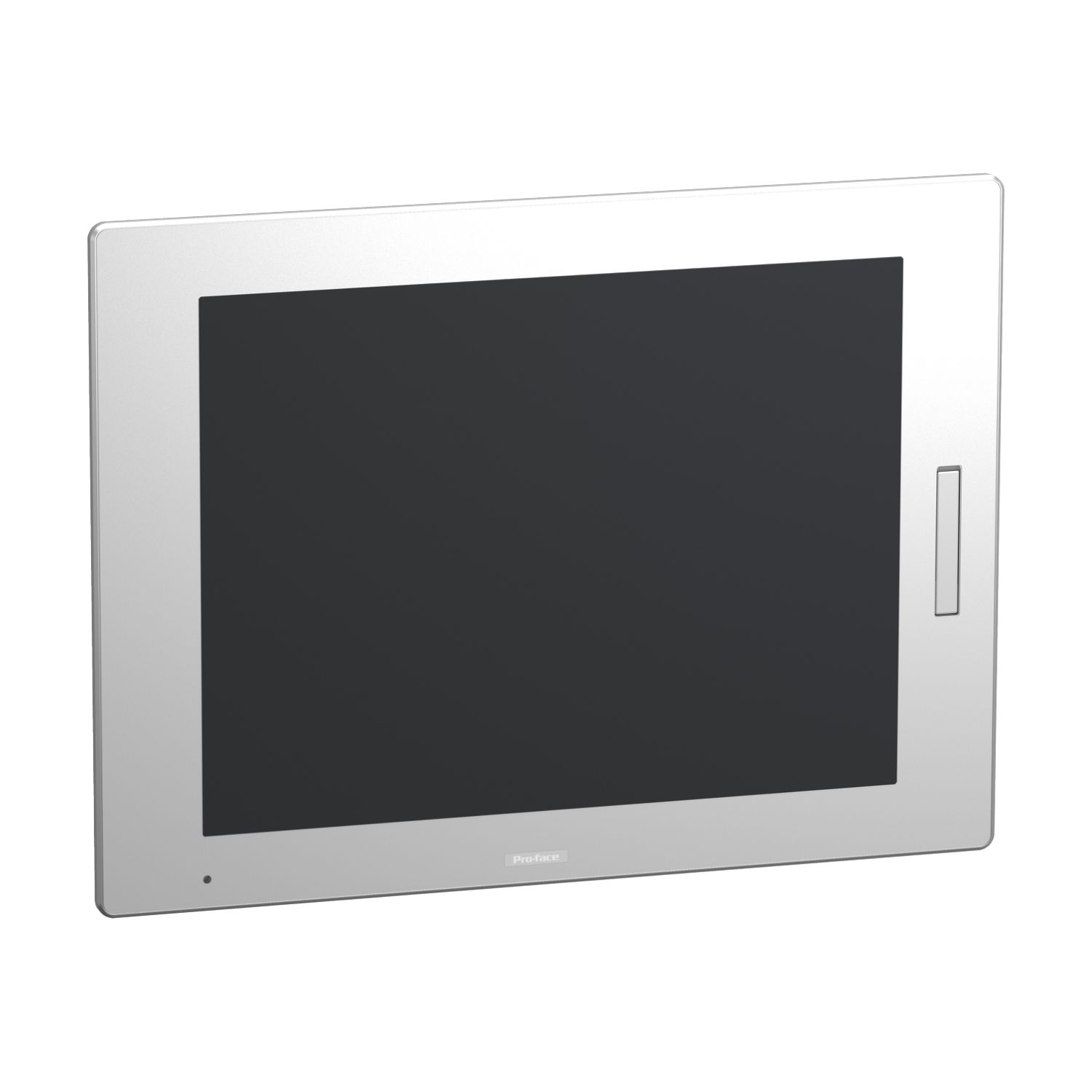

Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
Picture of 15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
SKU:

PFXDM6700TM

15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B

Old price: $3,135.00 INC GST
$2,978.25 INC GST
Available for Shipping : 05-Feb-2026
15.0 Display module, PS6000, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
Be the first to review this product
Manufacturer: ProFace
Delivery date: 05-Feb-2026
User guide
Declaration of conformity
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This industrial display belongs to the Pro-face's HMI PS6000 range. This 2 point multi-touch resistive PFXDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 15 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with PS6000 Advanced Modular Box is 161VAMax. (AC model) and 141WMax. (DC model), with P6 Standard Modular Box is 82VAMax. (AC model) and 72WMax. (DC model). Its dimensions are 397mm (width) x 296mm (height) x 30mm (depth) and weighs 3.70Kg. PS6000 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the PS6000 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide PS6000 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The PS6000 online Configurator with enlarged line-up offers many possibilities. @@@
