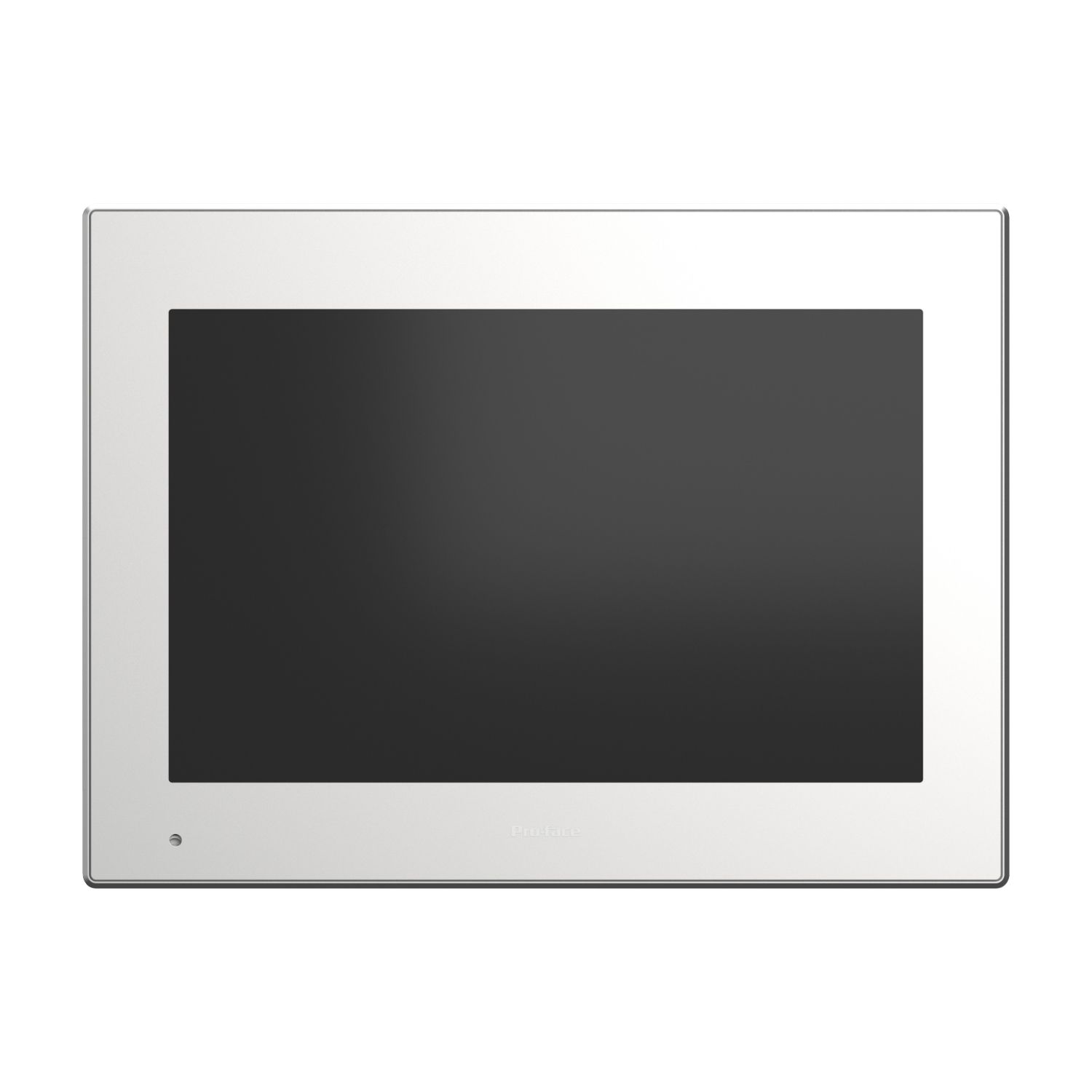

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

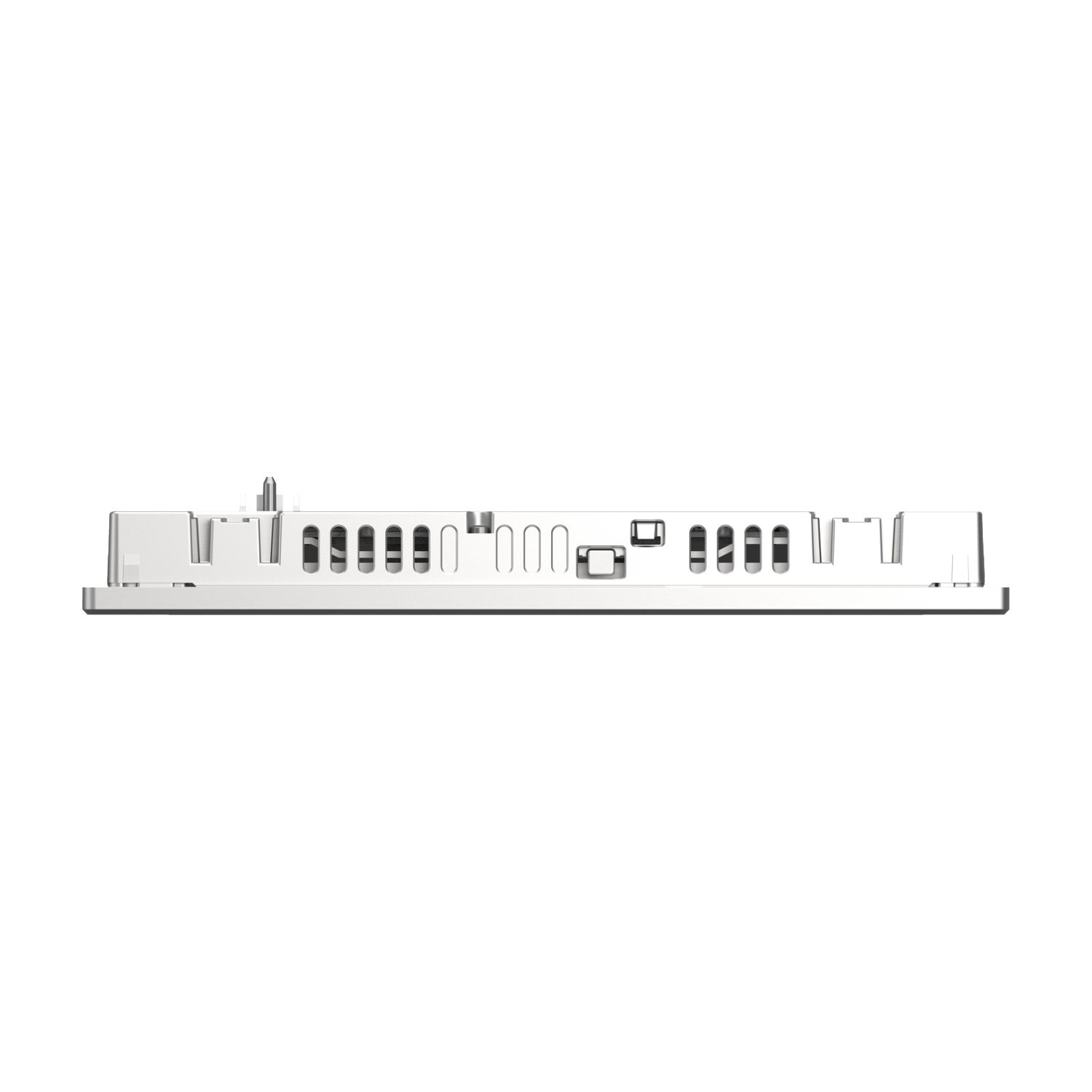

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

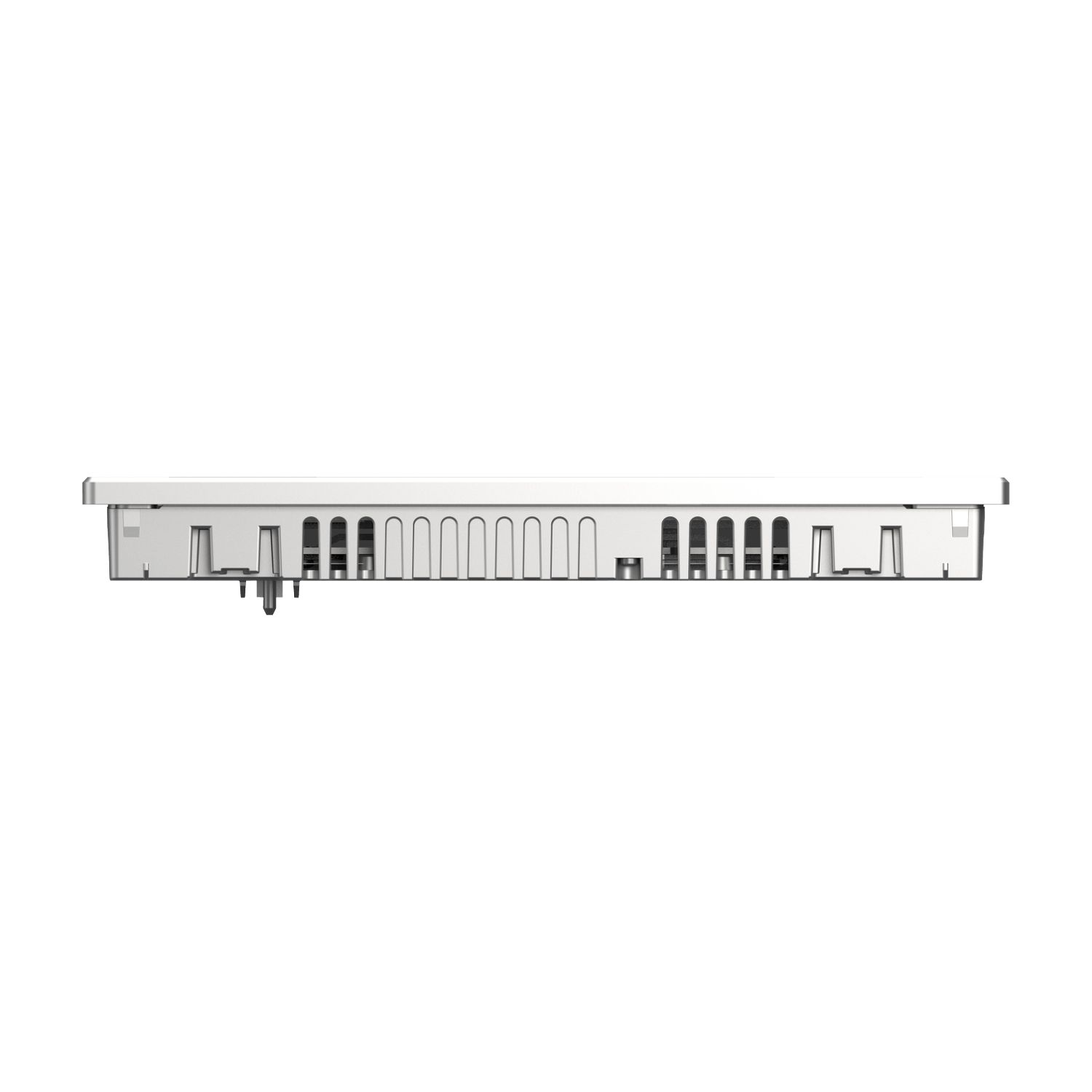

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

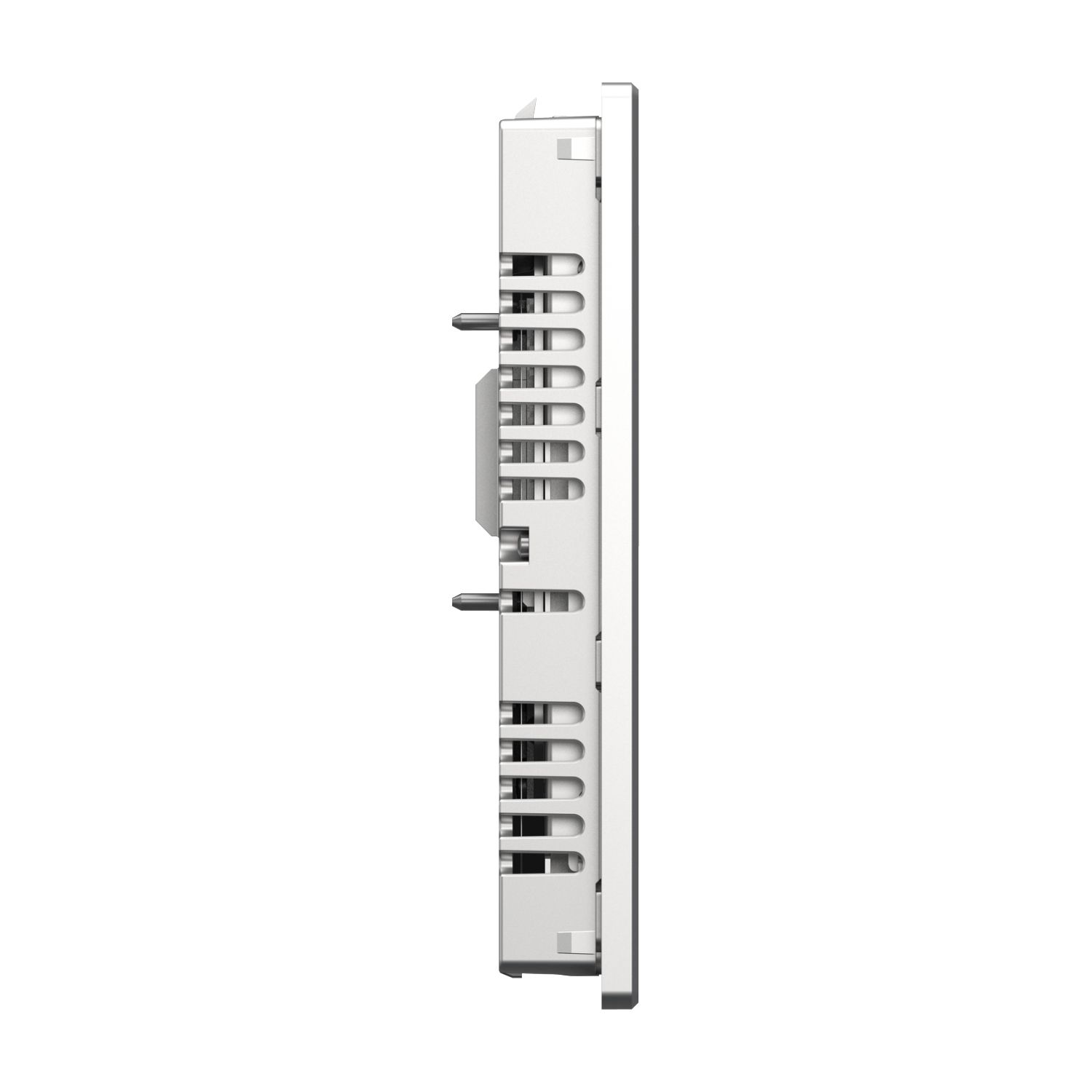

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

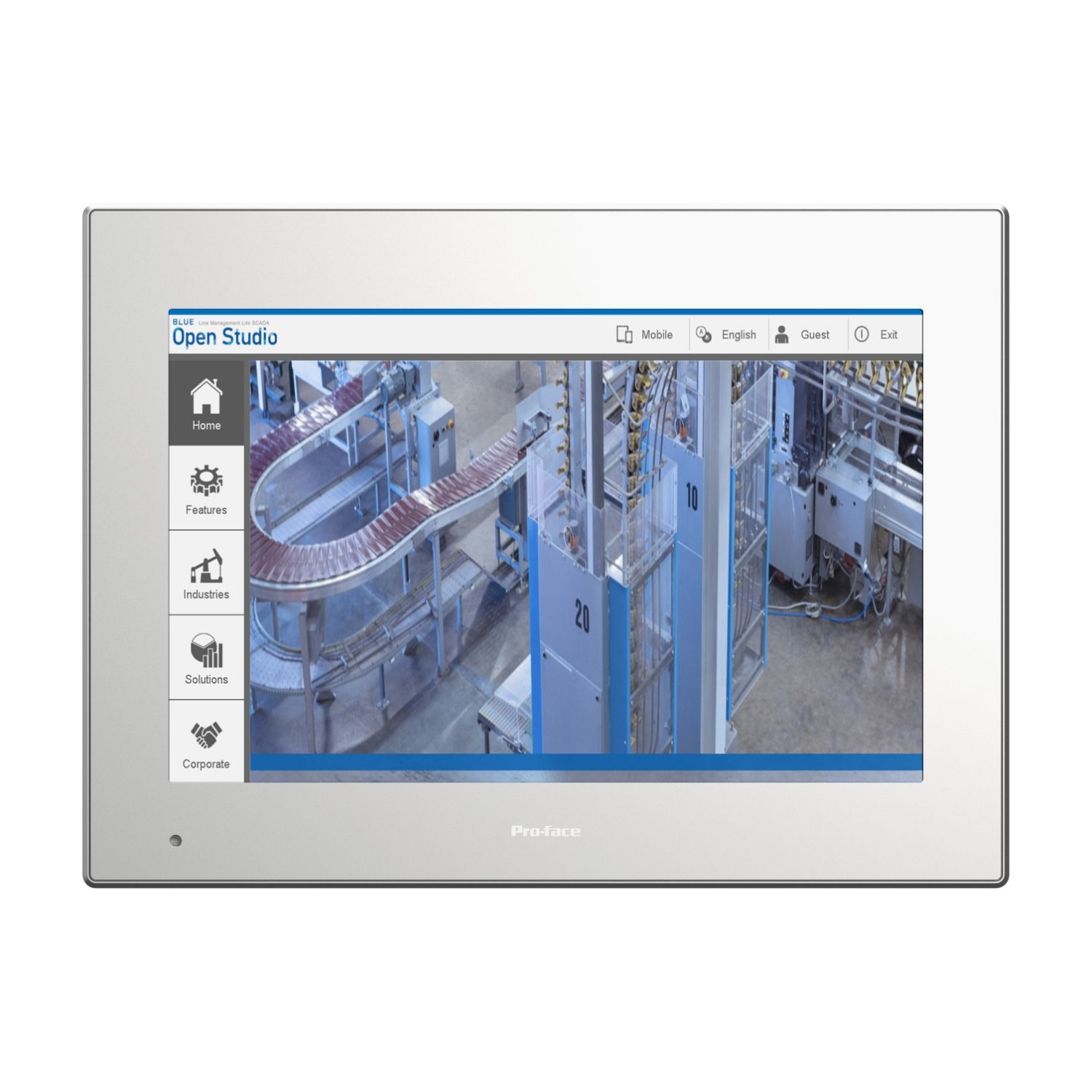

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

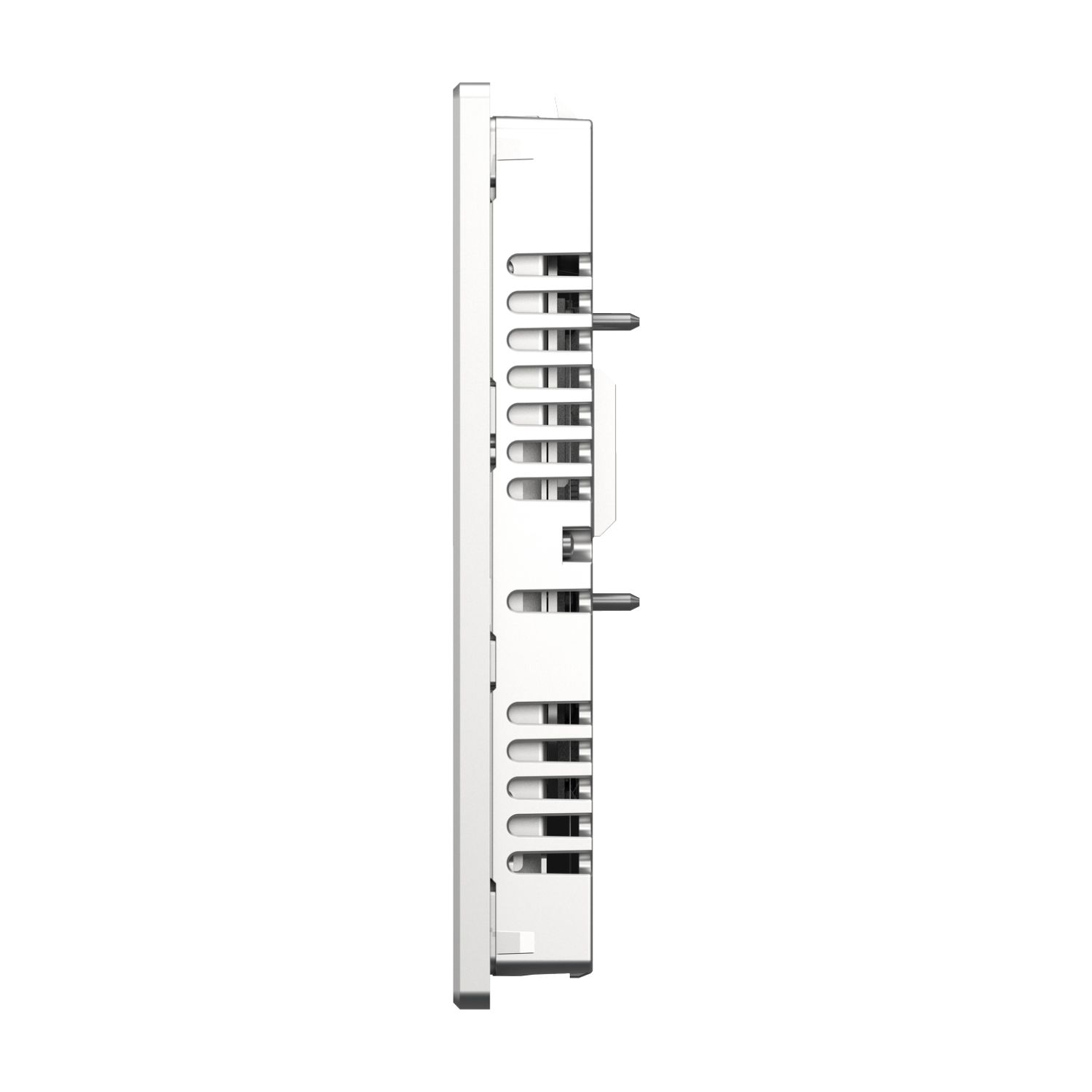

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

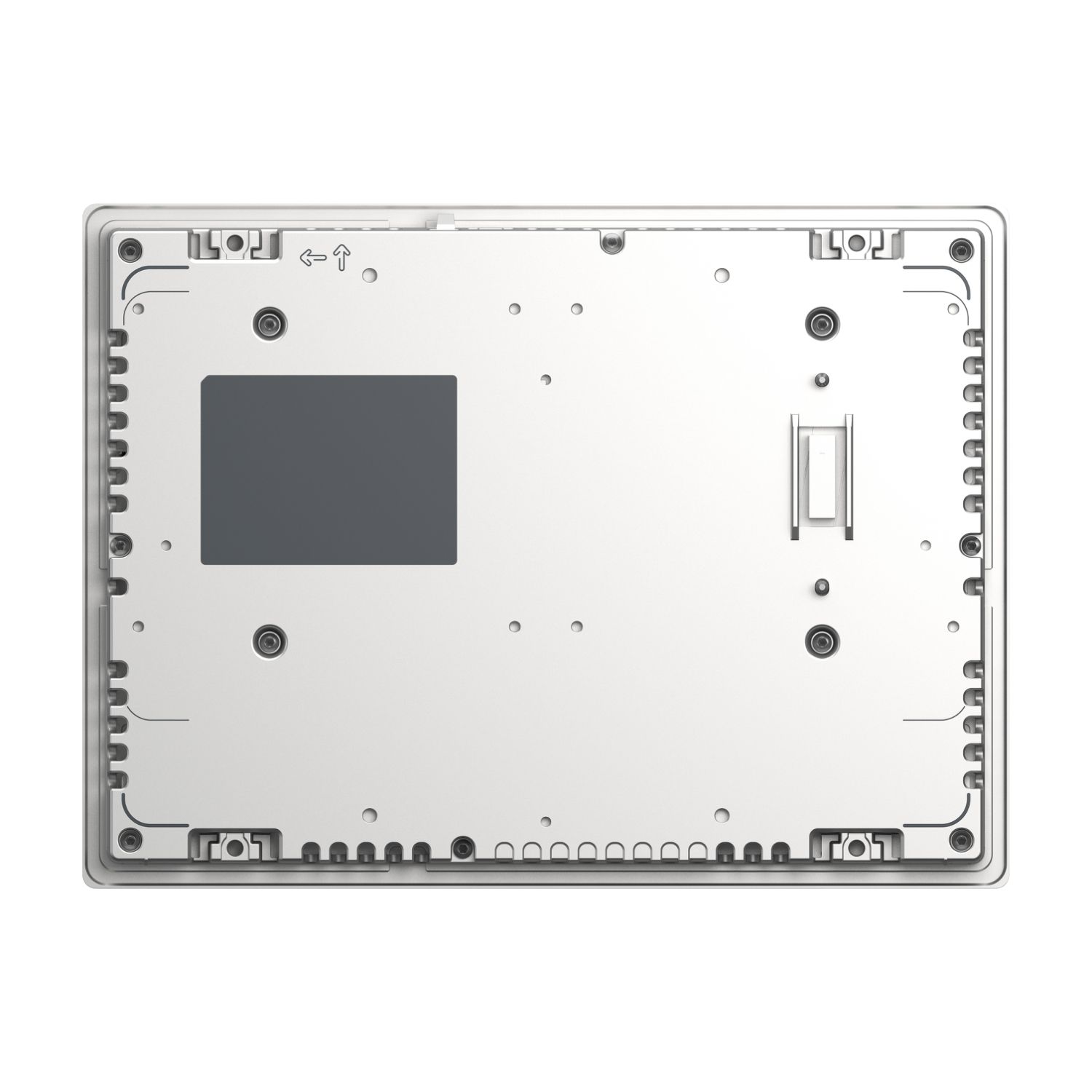

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

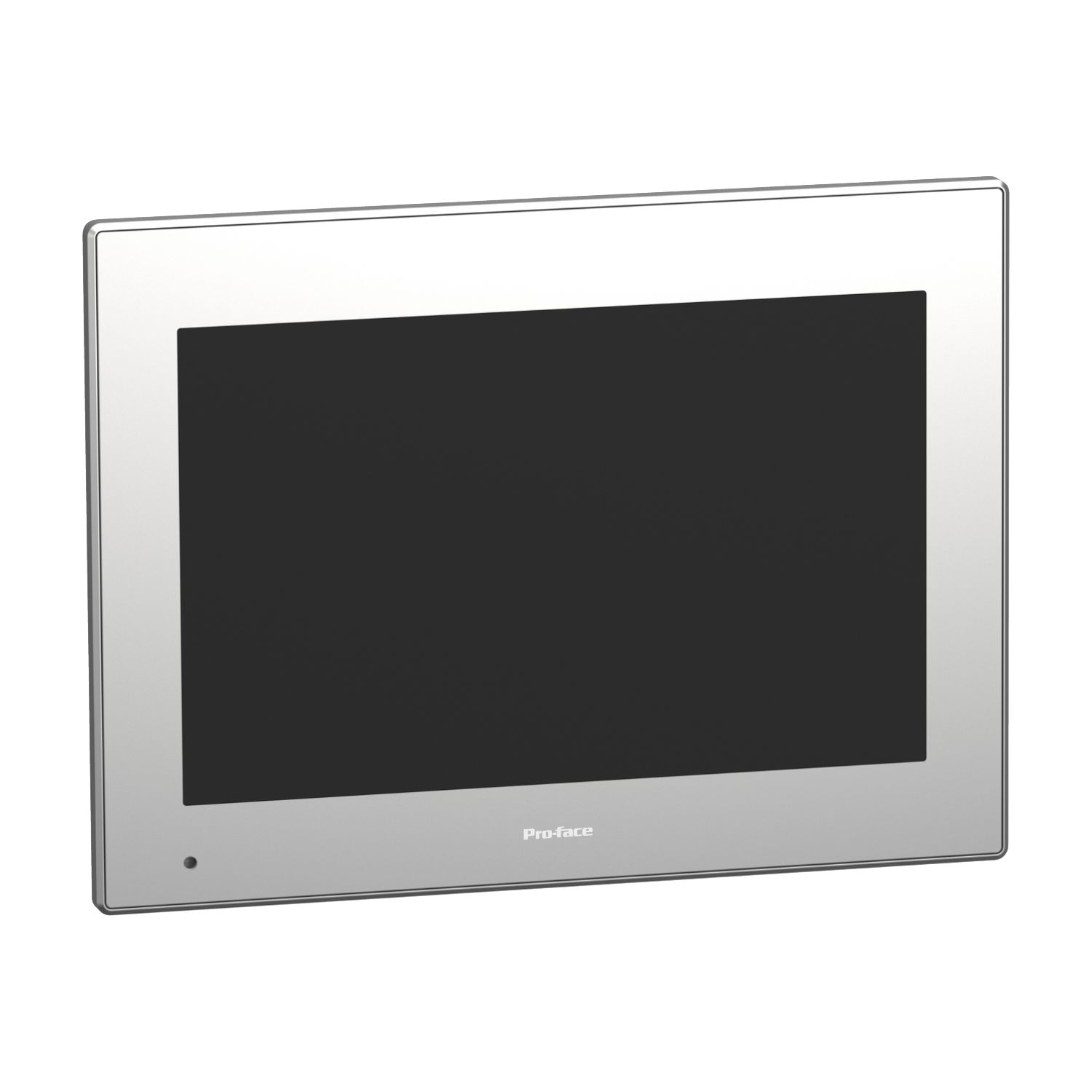

Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Picture of 10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
SKU:

PFXDM6500WC

10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

Old price: $1,676.40 INC GST
$1,592.58 INC GST
Available for Shipping : 05-Feb-2026
10w Display module, PS6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Be the first to review this product
Manufacturer: ProFace
Delivery date: 05-Feb-2026
User guide
Circularity Profile
Declaration of conformity
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This industrial flat panel monitor belongs to the Pro-face's HMI PS6000 range. This 2 point multi-touch projected capacitive HMIDM6 display has a glass-top surface design with backlight service life of 50,000 hours. PFXDM6500WC is a W10.1 inch screen of 16 million colors and 1,280 × 800 pixel resolution (WXGA). Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Standard Modular Box is 74VAmax. (AC model) and 65Wmax. (DC model). Its dimensions are 268.5mm (width) x 198.5mm (height) x 30mm (depth) and weighs 2.00Kg. PS6000 industrial display caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. They are configurable noise-resistive touch drivers. This display when combined with any of the Standard Modular Pro-face PS6000 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Pro-face PS6000 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Pro-face PS6000 online Configurator with enlarged line-up offers many possibilities.
