SKU:

PBXA12YY

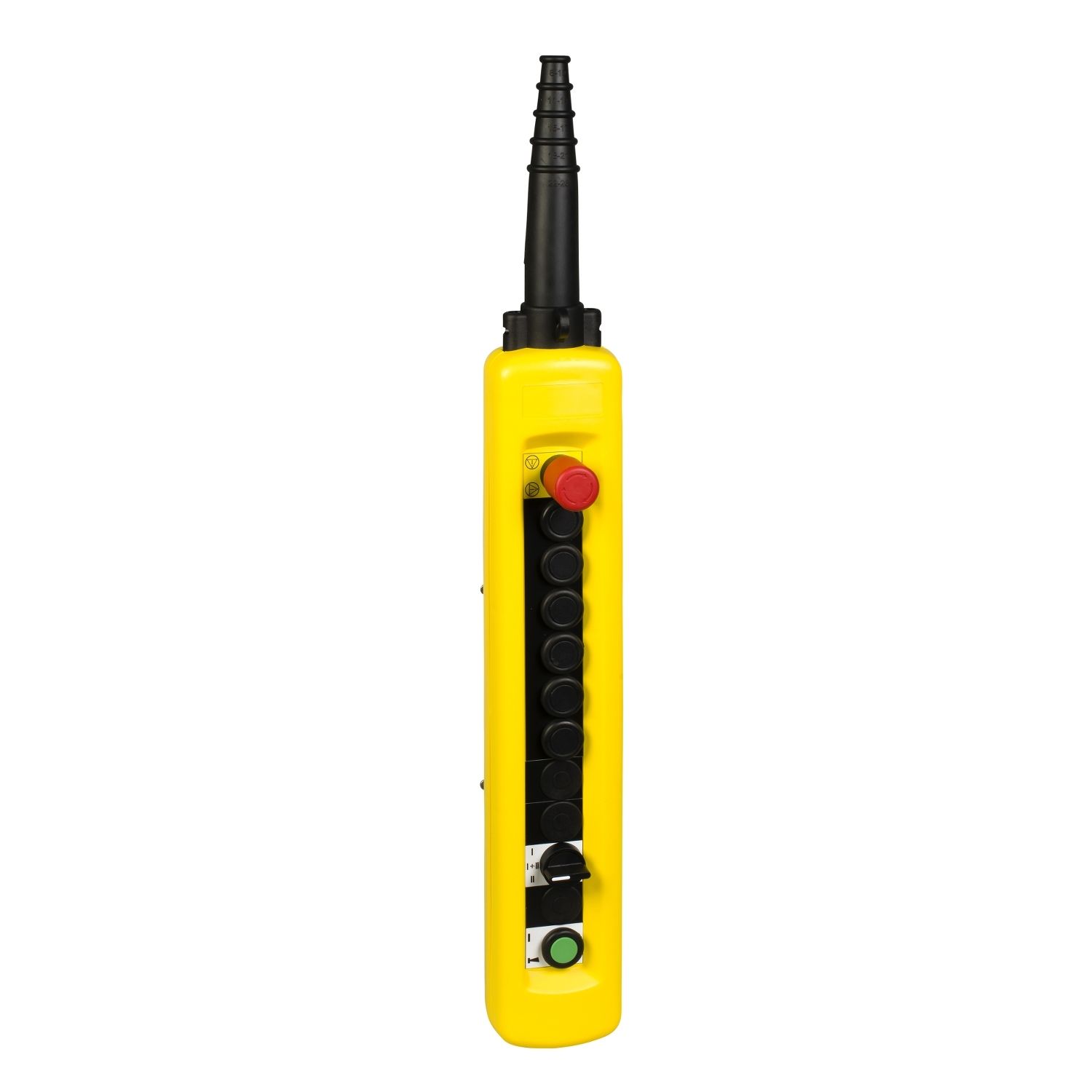

pendant station PBX - 12 holes - color yellow

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

pendant station PBX - 12 holes - color yellow

Manufacturer: Schneider Electric

Declaration of conformity

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	PBXA
Control station type	double insulated
Product or component type	pendant control station
Complementary
Enclosure material	polypropylene
Mechanical durability	3000000 cycles
Control station colour	yellow
Mechanical interlocking	with mechanical interlocking
Contact operation	snap action
Control station composition	12 push-buttons
Ambient air temperature for storage	-40-70 °C
[Ui] rated insulation voltage	2500 V
Control type	intuitive
Net weight	0.42 kg
Enclosure type	complete ready for use
Cable entry	rubber sleeve with stepped entry 7.5-29.5 mm
Environment
Protective treatment	TH
IP degree of protection	IP65 conforming to IEC 60529
Vibration resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards	NEMA 4X
Ambient air temperature for operation	-25-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	11.0 cm
Package 1 Length	68.0 cm
Package 1 Weight	1.534 kg
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	75.0 cm
Package 2 Width	60.0 cm
Package 2 Length	80.0 cm
Package 2 Weight	59.02 kg
