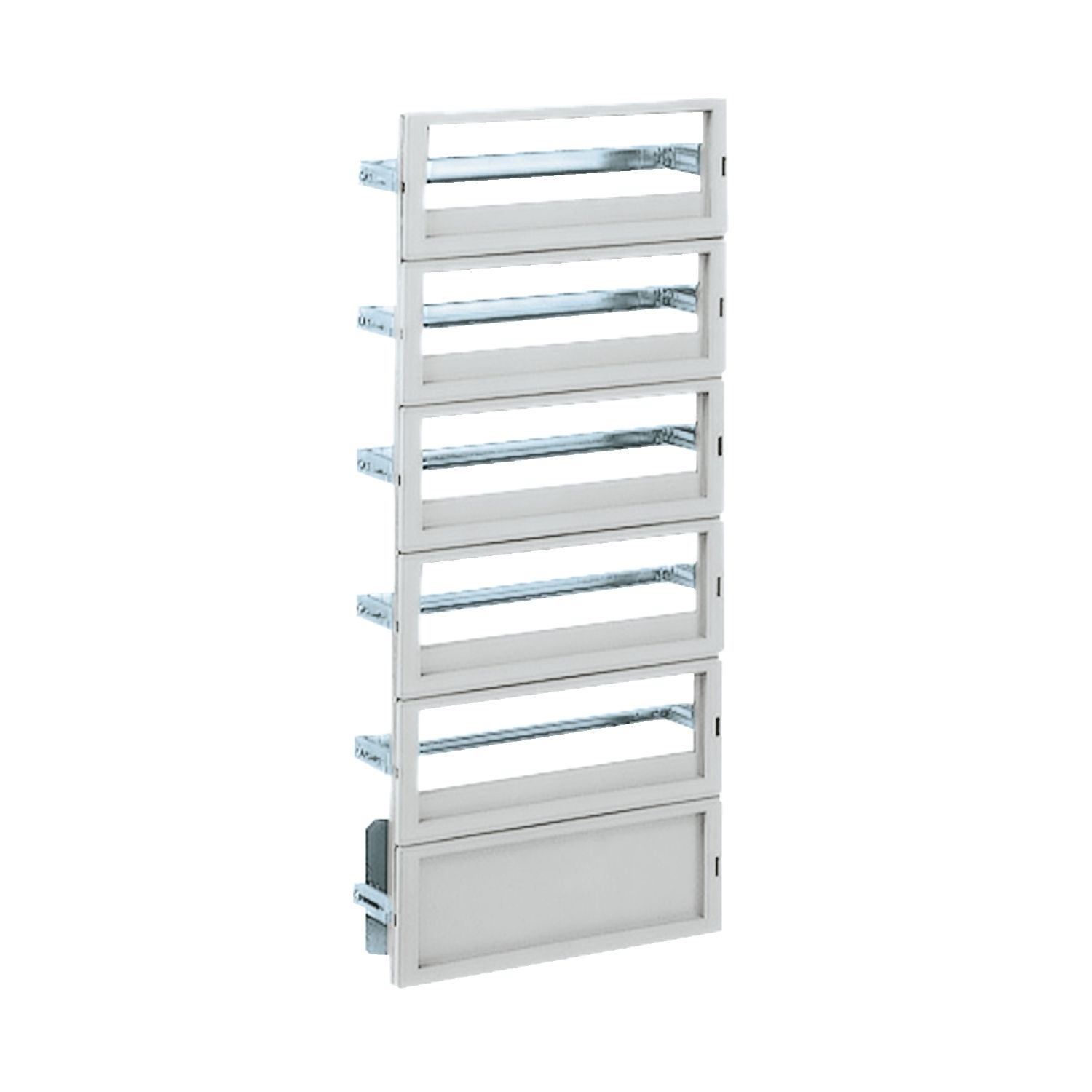

Picture of Thalassa, DLP modular dist chassis 297modules(18mm) insulating material for PLA H1500xW750
SKU:

NSYDLP297G

Thalassa, DLP modular dist chassis 297modules(18mm) insulating material for PLA H1500xW750

Old price: $1,199.00 INC GST
$1,079.10 INC GST
Available for Shipping : 12-Jan-2026
Thalassa, DLP modular dist chassis 297modules(18mm) insulating material for PLA H1500xW750
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Product Page Link
Product Data Sheet
DLP chassis for Thalassa PLA and Thalassa PHD enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 750mm The height is 1500mm Number of 18mm modules is 297 (1 module = 2 steps = 18 mm) Number of horizontal rows is 9 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 9 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 9 front panels with 35mm DIN rails IP2x not respected when chassis is mounted at 67mm This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device short name DLP
Device application modular distribution application, multi-purpose
Range Thalassa
Accessory / separate part category mounting accessory
Enclosure nominal dimensions -
Additional information IP2x not respected when chassis is mounted at 67 mm
Mounting location front of enclosure
Device composition 9 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 chassis structure
Product or component type chassis
Range compatibility Thalassa Thalassa PHD, Thalassa Thalassa PLA
Complementary
Colour front panel: grey (RAL 7035)
Type of front plate cut-out plate
Width 750 mm
Number of cut-out 9 cut-outs
Fixing mode by fixing element - on front with supports location
Adjustment in height from 40 to 85 mm for DIN rail
Material chassis structure and rails: galvanised steel, front panel: self-extinguishing
Height 1500 mm
Total number of 18 mm modules 297
Number of horizontal rows 9
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 68.000 cm
Package 1 Length 144.000 cm
Package 1 Weight 13.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 87.000 cm
Package 2 Width 120.000 cm
Package 2 Length 200.000 cm
Package 2 Weight 104.000 kg
