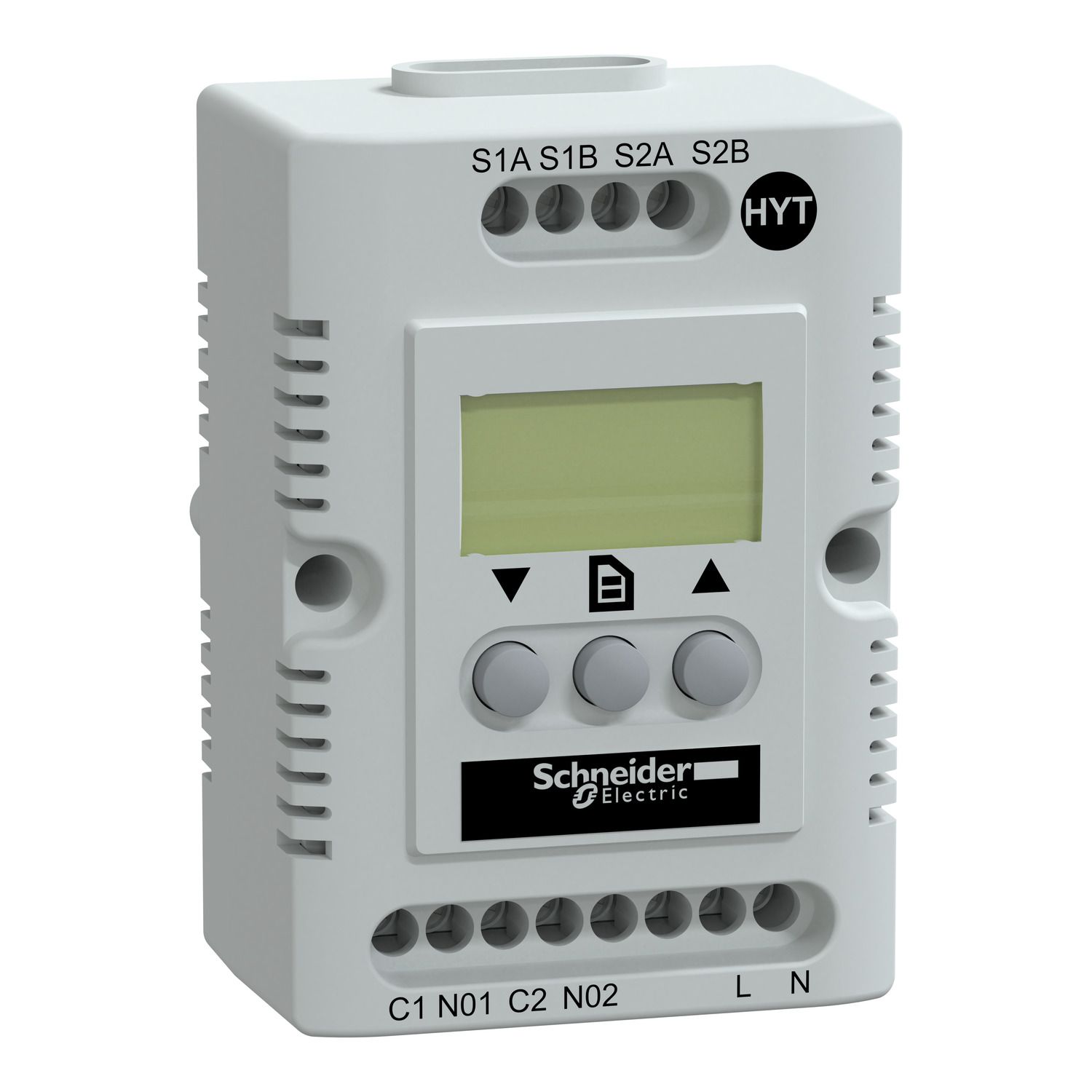

Picture of Climasys CC - electronic hygrotherm - 200…240 V - temp -40…80 C - Hr 20…80%
SKU:

NSYCCOHYT230VID

Climasys CC - electronic hygrotherm - 200…240 V - temp -40…80 C - Hr 20…80%

Old price: $412.83 INC GST
$371.55 INC GST
Available for Shipping : 12-Jan-2026
Climasys CC - electronic hygrotherm - 200…240 V - temp -40…80 C - Hr 20…80%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
User guide
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.

Products specifications

Attribute name Attribute value
Main
Display type OLED screen
Temperature setting range -40-80 °C
Humidity setting range 20-80 %
Range ClimaSys
Product name ClimaSys CC
Product or component type electronic hygrotherm
Information displayed temperature in °C, temperature in °F, relative humidity
Complementary
Sensor type optional NTC external sensor
Height 85 mm external:
Width 56 mm external:
Colour light grey
Mounting mode by screws, clipped
Flame retardance self-extinguishing conforming to UL94 (material V0)
Hysteresis 3 %, 2 K programmed value
Electrical connection 8 connectors, clamping capacity: 2.5 mm²
Input voltage 200...240 V AC
Mounting location on mounting plate, Spacial upright, cross rails, 35 mm DIN rail
Depth 44 mm external:
Material PC
Number of outputs 2 ventilation/heating function
Ambient air temperature for operation -40-80 °C
Maximum switching capacity 4 A 230 V AC
Product certifications UR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 7.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 160.000 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.000 kg
