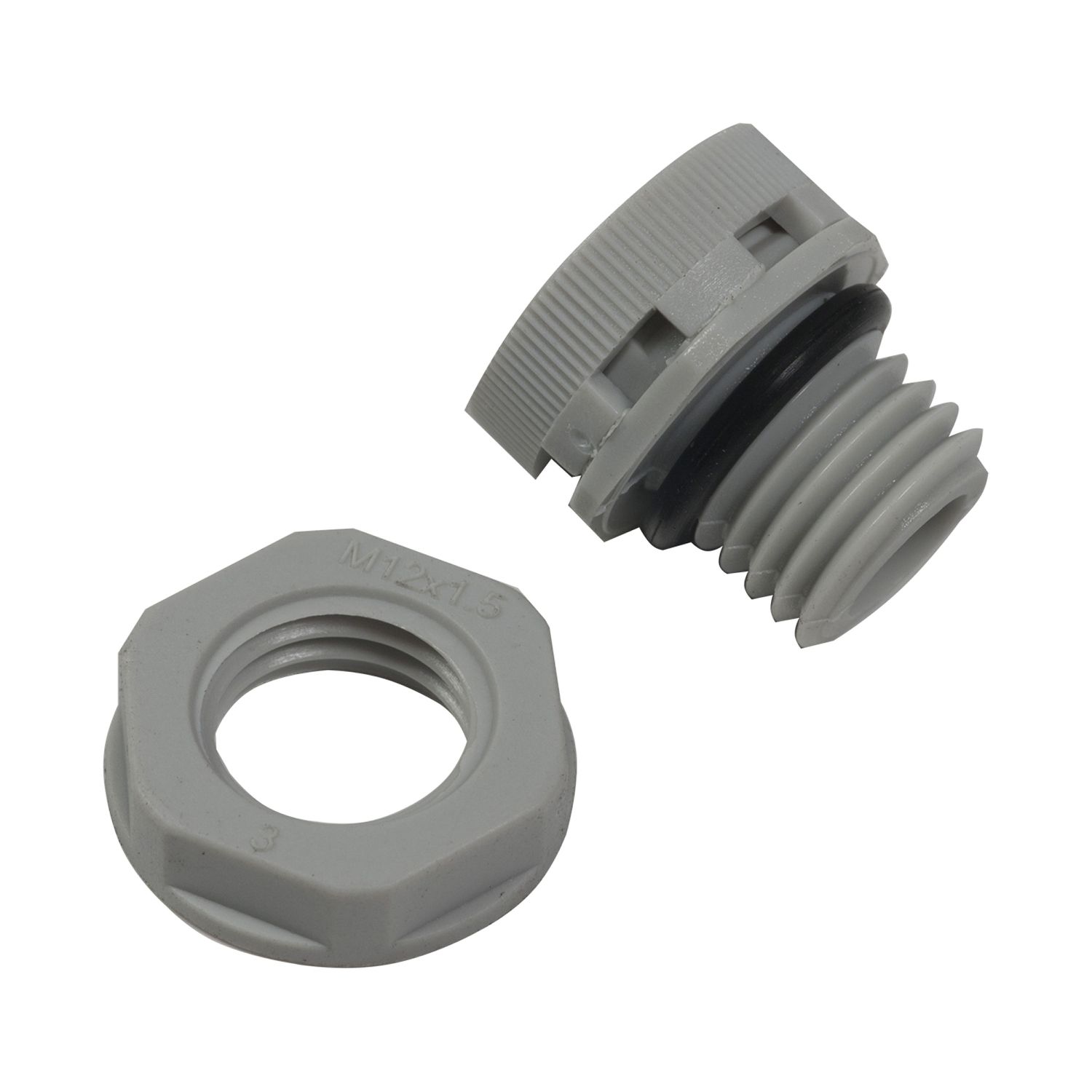

Picture of Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
SKU:

NSYCAG12LPH1

Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar

Old price: $12.21 INC GST
$10.99 INC GST
Available for Shipping : 28-Jan-2026
Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
Set of 10 water resistant pressure release valve 18,3 x 17,1mm for Thalassa PLS, Thalassa PLM, Thalassa TBS and Thalassa TBP enclosures The product is made from PA6-V2 and membrane is made from acrilic co-polymer The kit is made of 1 valve The width is 18,3mm Cut-out diameter is 11,5mm Ingress protection rating (according to IEC 60529) is IP68 Fixing by screws Flame retardance V2 Operating temperature is in the range of -40-150 °C Pressure difference is less than 1 bar Permeability is 16 l/h This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 10
Environmental characteristic water resistant
Range ClimaSys
Device composition 1 valve
Product name ClimaSys CA
Product or component type pressure release valve
Accessory / separate part category thermal management accessory
Fixing mode screwed
Range compatibility Thalassa Thalassa TBP, Thalassa Thalassa TBS, Thalassa Thalassa PLM, Thalassa Thalassa PLS
Complementary
Diameter 11.5 mm
Material PA6, membrane: acrilic co-polymer
Height 17.1 mm
Width 18.3 mm
Flame retardance V2
Permeability 16 l/h
Pressure difference < 1 bar
Ambient air temperature for operation -40-150 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.200 cm
Package 1 Width 3.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 4.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 2.500 cm
Package 2 Width 8.000 cm
Package 2 Length 14.000 cm
Package 2 Weight 40.000 g
