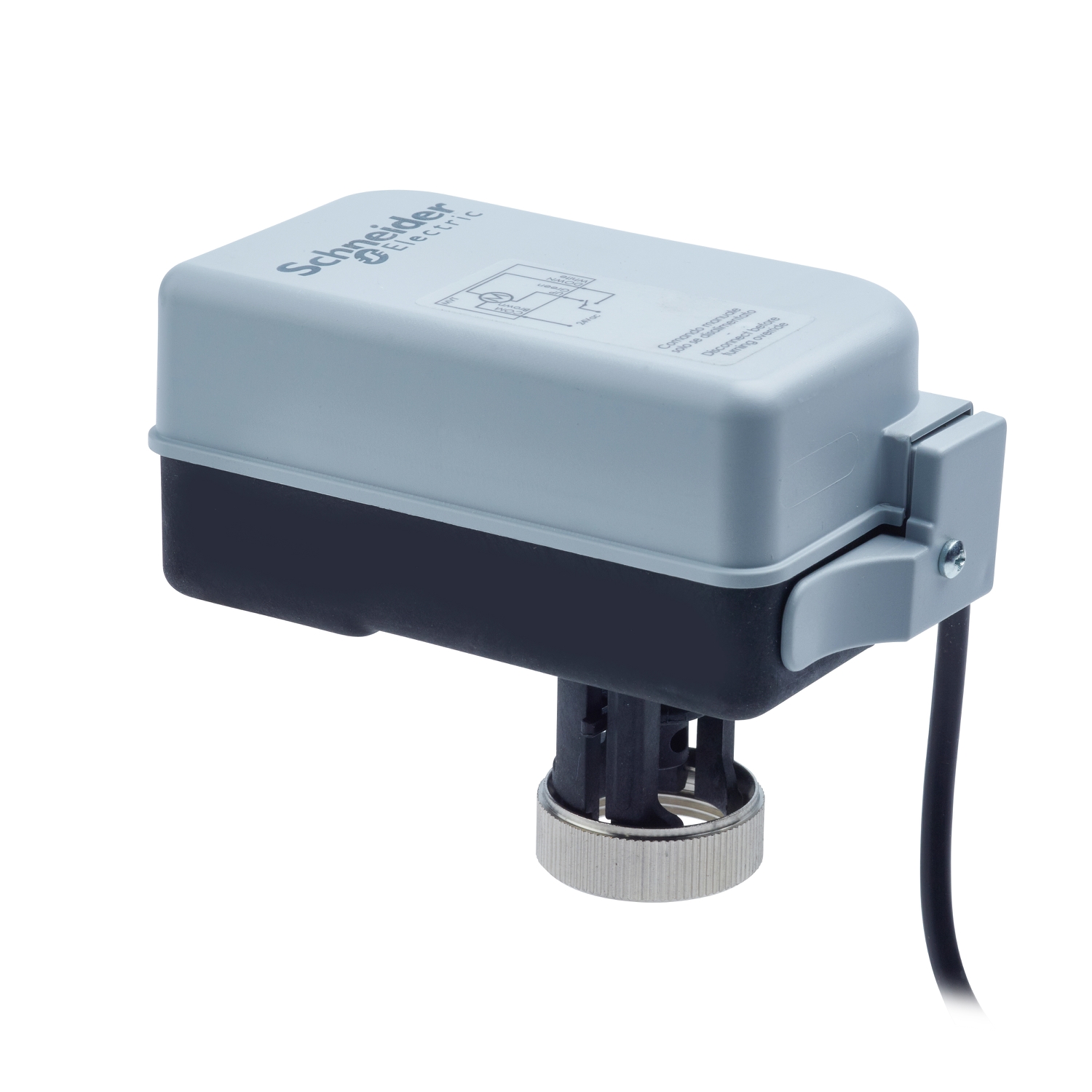

Picture of MZ300S Universal Zone Actuator, 3-Wire Floating, 230 Vac, 300N, inc. Satchwell Linkage kit for small zone/globe valves.
SKU:

MZ300S-230F

MZ300S Universal Zone Actuator, 3-Wire Floating, 230 Vac, 300N, inc. Satchwell Linkage kit for small zone/globe valves.

$874.12 INC GST
Available for Shipping : 29-Jan-2026
MZ300S Universal Zone Actuator, 3-Wire Floating, 230 Vac, 300N, inc. Satchwell Linkage kit for small zone/globe valves.
  • Universal small linear actuator driving many valves with an M30 x 1.5 bonnet.
  • Supplied with linkage kit to drive Satchwell valves: VEU, MEU, FUE, VZX, MZX
  • Linkage Kit fits to legacy PICV valve type VP224R
  • Wide stroke of 16 mm
  • 300 N Force
  • Removeable power / signal cable with pre-formed connector.
  • -5 to + 55 °C operational temp range
  • IP43
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 29-Jan-2026
Catalog
Product Page Link
Product Data Sheet
MZ300 is a universal actuator designed to provide three position on/off control together with VZX and MZX globe valve. The Actuator without power is retracted to ensure the zone valve is in a closed state. With power, the actuator actuator stem is extended to open the valve. The compact construction provides a small footprint. Power Supply: 230 VAC. Stem force 300N. Protection class IP43 for vertical mounting. Max. stroke 16 mm.

Products specifications

Attribute name Attribute value
Main
Force N 300 N
IP degree of protection IP43
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -25-65 °C
[Us] rated supply voltage 230 V AC
Product destination zone valves
Control type manual override with 5/32 allen wrench
Product or component type actuator
Power consumption in VA 16.2 VA
Stroke length 16-16 mm
Power consumption in W 1.1 W
Force lbf 68 lbf
Actuator linear
Ambient air temperature for operation -5-55 °C
Power loss return non-spring return
Feedback signal 2...10 V DC
Control signal 3-position (on/off)
Lead length 1.5 m
Stroke auto calibration False
Leads and connections terminal block
Actuator type electric
Actuator product series MZ3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.6 cm
Package 1 Width 11.6 cm
Package 1 Length 8.4 cm
Package 1 Weight 480 g
