SKU:

MS51-7203

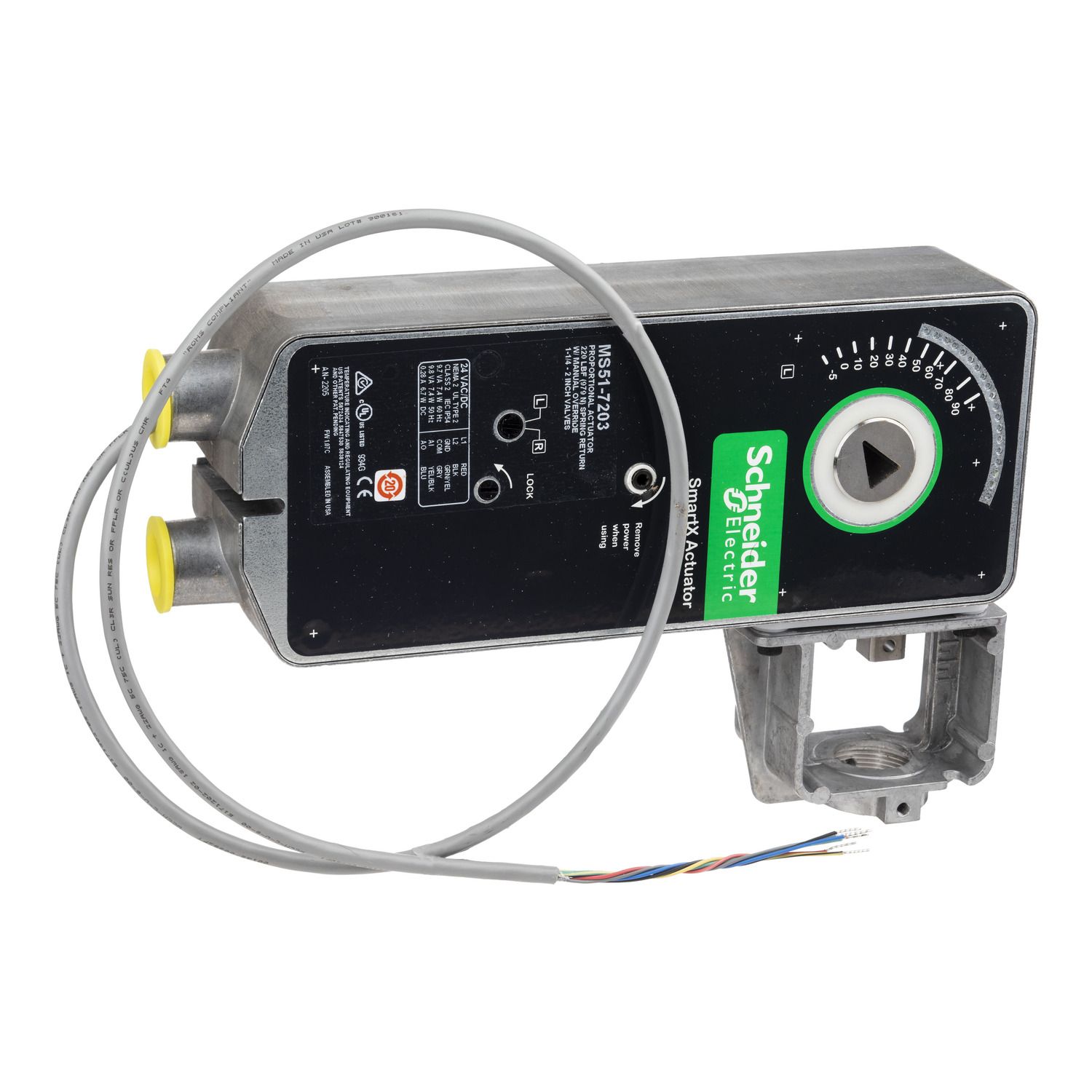

SmartX, Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 220 lbf, 13 mm stroke, NEMA 2

$1,373.79 INC GST

Qty:

Available for Shipping : 18-Dec-2025

SmartX, Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 220 lbf, 13 mm stroke, NEMA 2

Manufacturer: Schneider Electric

Delivery date: 18-Dec-2025

Product Page Link

Product Data Sheet

SmartX, Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 220 lbf, 13 mm stroke, NEMA 2

Attribute name	Attribute value
Main
Force N	979 N
Switch function	No
Hold-in power consumption in W	2.8-2.8 W
Material	die cast aluminium: housing
IP degree of protection	IP11
Relative humidity	15-95 % non-condensing
Motor type	brushless DC motor
Ambient air temperature for storage	-40-71 °C
NEMA degree of protection	NEMA 2
[Us] rated supply voltage	22...30 V DC, 24 V AC/DC
Electrical insulation class	class II
Product destination	globe valve
Control type	automatic reset
Current consumption	290 mA
Product or component type	actuator
Power consumption in VA	9.8 VA AC
Targeted region	North America.
Power consumption in W	7.4 W
Analogue input range	4...20 mA DC, 2...10 V DC
Force lbf	220 lbf
Actuator	linear
Ambient air temperature for operation	-17.7-60 °C

Power loss return	spring return
Feedback signal	2...10 V DC
Control signal	proportional/modulating
Lead length	3 ft
Stroke auto calibration	False
Conduit connection	1/2"
Leads and connections	appliance
Actuator type	electric
Actuator product range	SpaceLogic
Actuator product series	MFx1-7203
Position indicator	-5°: normal or spring-return position, pointer and scale from -5...90°
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	305 cm
Package 1 Width	368 cm
Package 1 Length	101 cm
Package 1 Weight	1.95 kg
