SKU:

MS40-7173

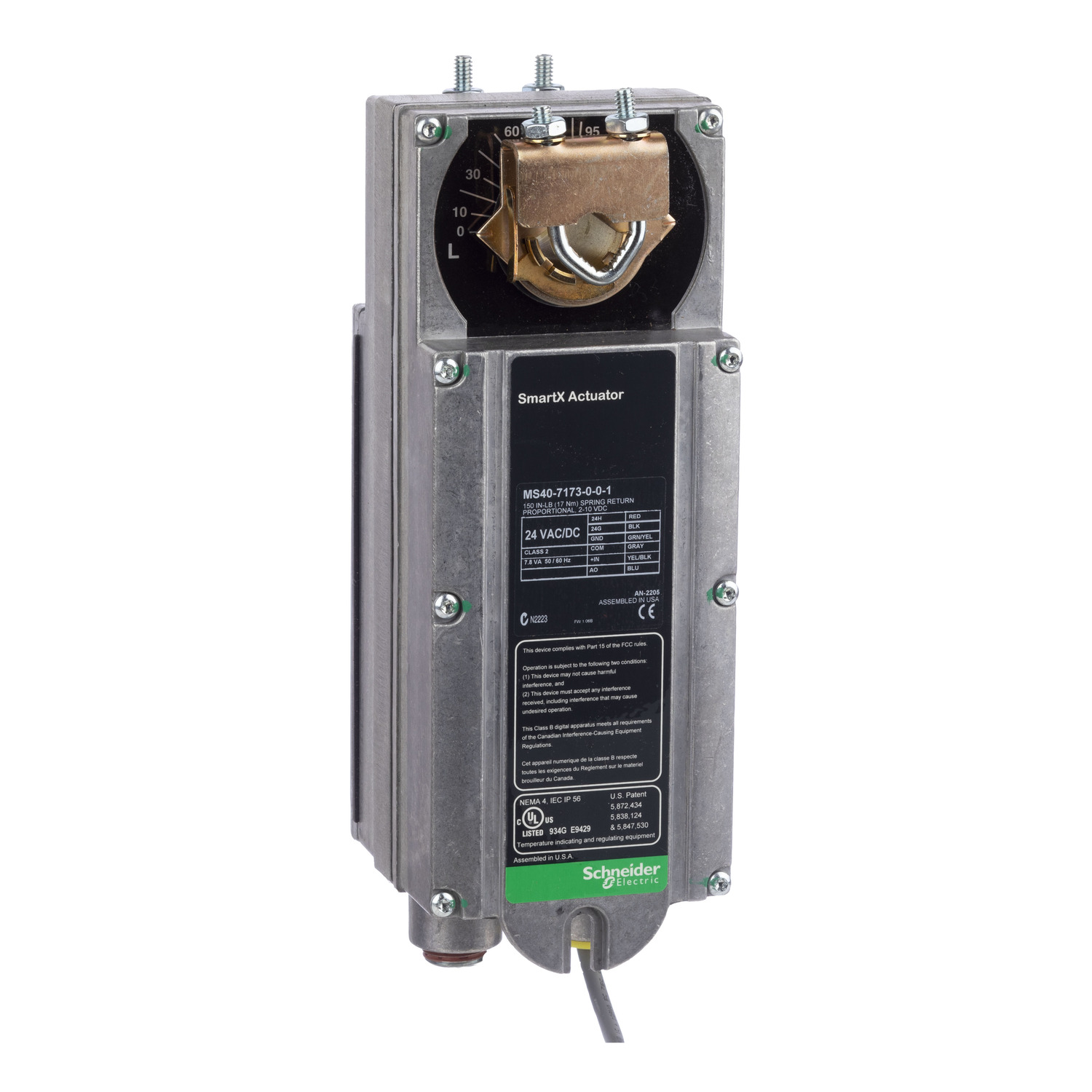

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 150 lb-in, NEMA 1 or 4

$3,385.14 INC GST

Qty:

Available for Shipping : 02-Sep-2026

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 150 lb-in, NEMA 1 or 4

Manufacturer: Schneider Electric

Delivery date: 02-Sep-2026

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 150 lb-in, NEMA 1 or 4

Attribute name	Attribute value
Main
Product destination	globe valve, dampers
Control type	manual override with 5/32 allen wrench
Duty cycle	100 %
Product or component type	actuator
Power consumption in VA	9.4 VA AC
Targeted region	Australia., North America.
Hold-in power consumption in VA	5.4-5.4 VA AC
Switch function	No
Actuator rotation	92 °
Material	die cast aluminium: housing
IP degree of protection	IP56, IP10
Relative humidity	5-95 % non-condensing
Analogue input range	4...20 mA DC, 2...10 V DC
Motor type	brushless DC motor
Ambient air temperature for storage	-40-71 °C
NEMA degree of protection	NEMA 4, NEMA 1
Actuator	rotary
[Us] rated supply voltage	22...30 V DC, 24 V AC/DC
Ambient air temperature for operation	-31.6-60 °C
Electrical insulation class	class II
Tightening torque	17 N.m, 150 lb.in

Conduit connection	1/2"
Power loss return	spring return
Leads and connections	appliance
Actuator type	electric
Actuator product range	SmartX Actuator
Control signal	proportional/modulating
Actuator product series	Mx4x-7xxx
Lead length	3 ft
Position indicator	Stroke indicator on bracket
Rotational range adjustment	0...92°
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.700 cm
Package 1 Width	16.764 cm
Package 1 Length	34.544 cm
Package 1 Weight	4.454 kg
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	33.020 cm
Package 2 Width	33.020 cm
Package 2 Length	41.910 cm
Package 2 Weight	9.367 kg
