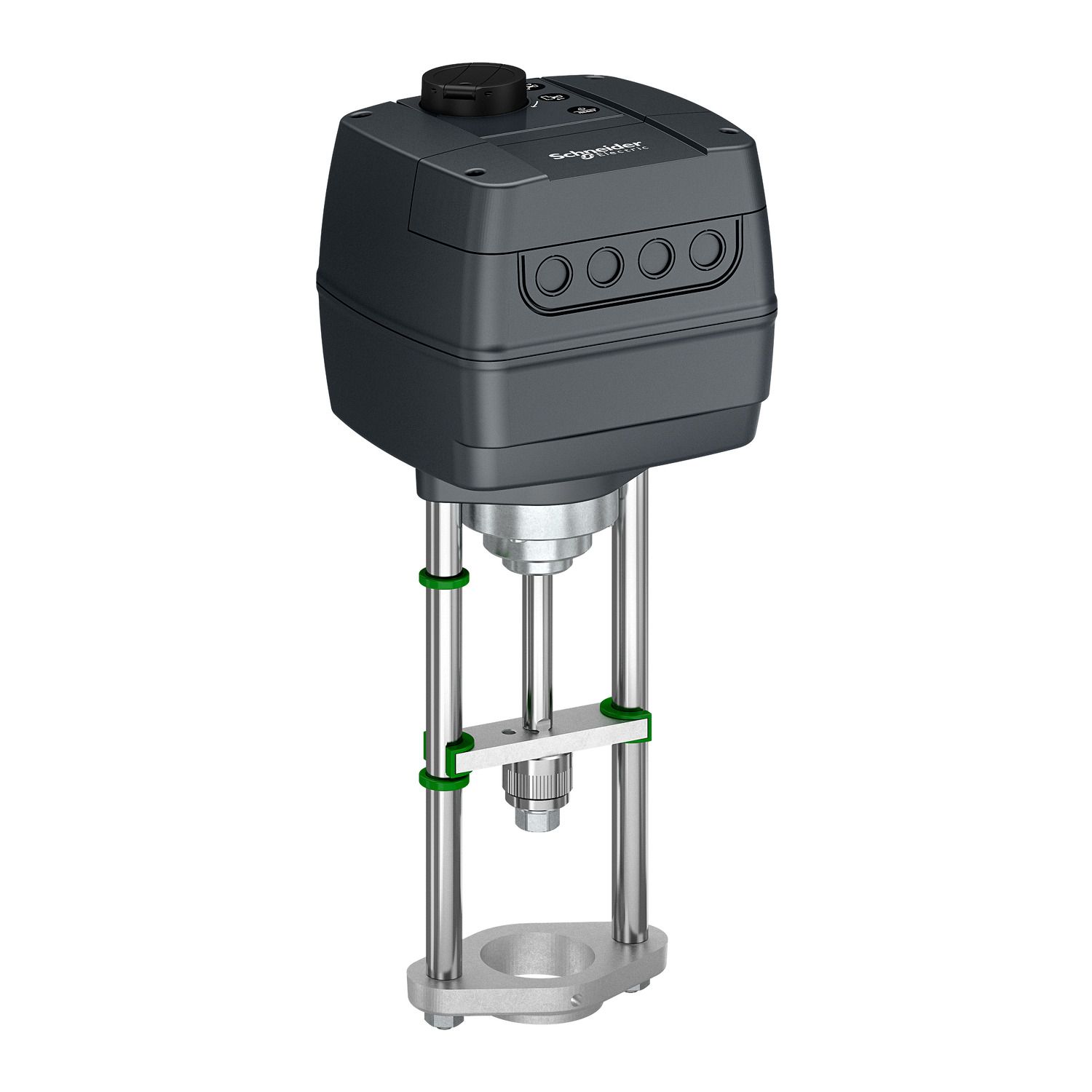

Picture of SpaceLogic MP4000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 4000N, Terminal block connection, 2xSPDT, IP54
SKU:

MP4000

SpaceLogic MP4000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 4000N, Terminal block connection, 2xSPDT, IP54

$5,641.90 INC GST
Available for Shipping : 28-Jan-2026
SpaceLogic MP4000 Actuator, Multi-signal control, Non-Spring Return, 24Vac, 4000N, Terminal block connection, 2xSPDT, IP54
  • These multi-signal actuators can be configured to all common input signals
  • Auto stroke calibration
  • LED status indicators
  • Manual Override
  • Fits to VP222x PIBCV Valves (DN200…250 / 8"…10")
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
The MP4000 Actuator is primarily designed to regulate valves in response to the demand of a controller in HVAC systems. MP4 can be controlled by electronic controllers with modulating or 3-point control output. Manual operation mechanical and/or electrical, Automatic adaptation of stroke to valve’s end positions that reduces commissioning time (self-stroking). Characteristic optimization, Adjustable stroke limitation, Anti-oscillation function, External reset button. Power supply: 24 Vac/Vdc (+1, -15%). Close off force: 4 N Grade of enclosure IP 54, Type 2. Max. stroke 8 mm. LVD 26/95/EC, EMC 24/18/EEC.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 15 VA AC
Targeted region Australia., North America., Asia Pacific., Europe
Complementary
Force N 4000 N
Switch function 1 SPDT
Material polycarbonate: housing
Stroke running time 6 s
[Us] rated supply voltage 24 V AC
Electrical insulation class class III
Control type automatic reset
Stroke length 80-80 mm
Force lbf 900 lbf
Actuator linear
Environment
IP degree of protection IP54
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 0-55 °C
Power loss return non-spring return
Feedback signal 4...20 mA DC, 0...20 mA DC, 2...10 V DC, 0...10 V DC
Control signal proportional/modulating, floating
Stroke auto calibration True
Conduit connection conduit connector holes
Leads and connections terminal block
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP4000
Position indicator Stroke indicator on bracket
Additional features LED status indicator
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.8 cm
Package 1 Width 41.8 cm
Package 1 Length 20.1 cm
Package 1 Weight 8.6 kg
