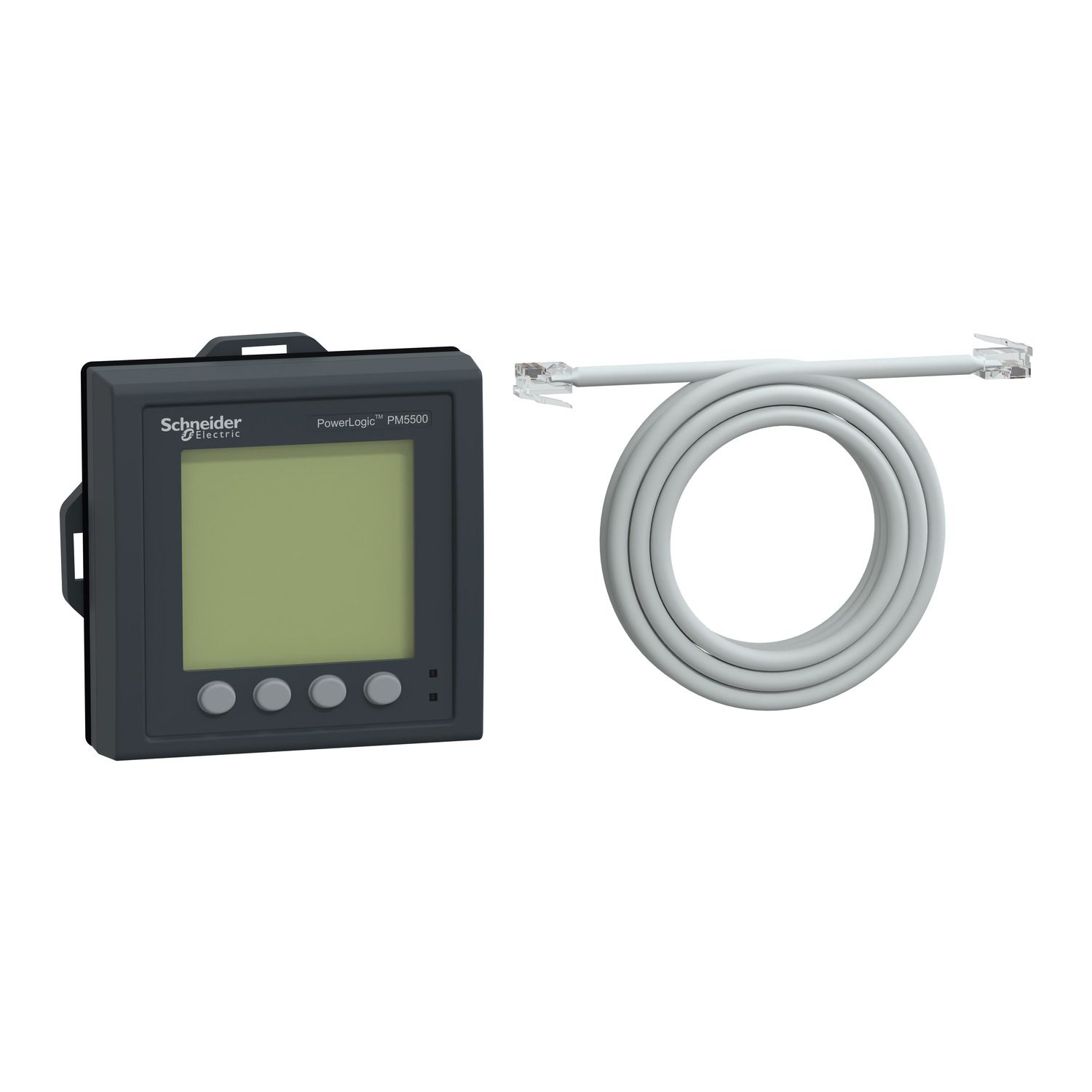

Picture of Power Logic PM5000 - 5RD Remote display 96 x 96 mm monochrome
SKU:

METSEPM5RD

Power Logic PM5000 - 5RD Remote display 96 x 96 mm monochrome

Old price: $691.90 INC GST
$588.12 INC GST
Available for Shipping : 19-Feb-2026
Power Logic PM5000 - 5RD Remote display 96 x 96 mm monochrome
  • Monochrome display with simple navigation options
  • Easy installation
  • Simple setup
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Feb-2026
Instruction sheet
Circularity Profile
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
Optional remote display kit for the PowerLogic PM5000 DIN mount variant. 96mm by 96mm monochrome graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage and current. Viewable area: backlight LCD, 128 pixels by 128 pixels. This display is installed flush mounted, an enclosure door for example. Ingress Protection IP52 rating.

Products specifications

Attribute name Attribute value
Main
Device application human-machine dialogue application
Display type backlit LCD
Range PowerLogic
Product or component type remote display
Range compatibility PowerLogic PowerLogic PM5000
Complementary
Projecting depth 27 mm
Width 96 mm
Display colour monochrome
Display size 67 x 62.5 mm
Mounting support framework remote display
Local signalling programming indication: LED (amber), communication: LED (green)
Mounting mode flush-mounted
Control type 4 x push-button
Connector type RJ45
Messages display capacity graphic objects (bargraph, button, light...), 6 lines
Display resolution 128 x 128 pixels
Embedding depth 21 mm
Height 96 mm
Information displayed current, voltage, frequency, harmonic distortion, energy consumption, power
Environment
Operating altitude 0...3000 m
IP degree of protection IP52 conforming to IEC 60529
Relative humidity 5-95 % at 37-37 °C
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 12.000 cm
Package 1 Length 12.600 cm
Package 1 Weight 380.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.200 kg
