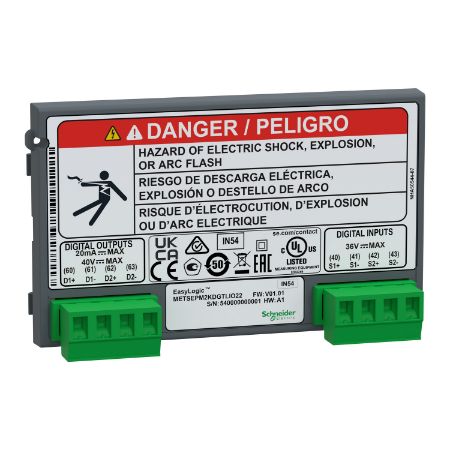

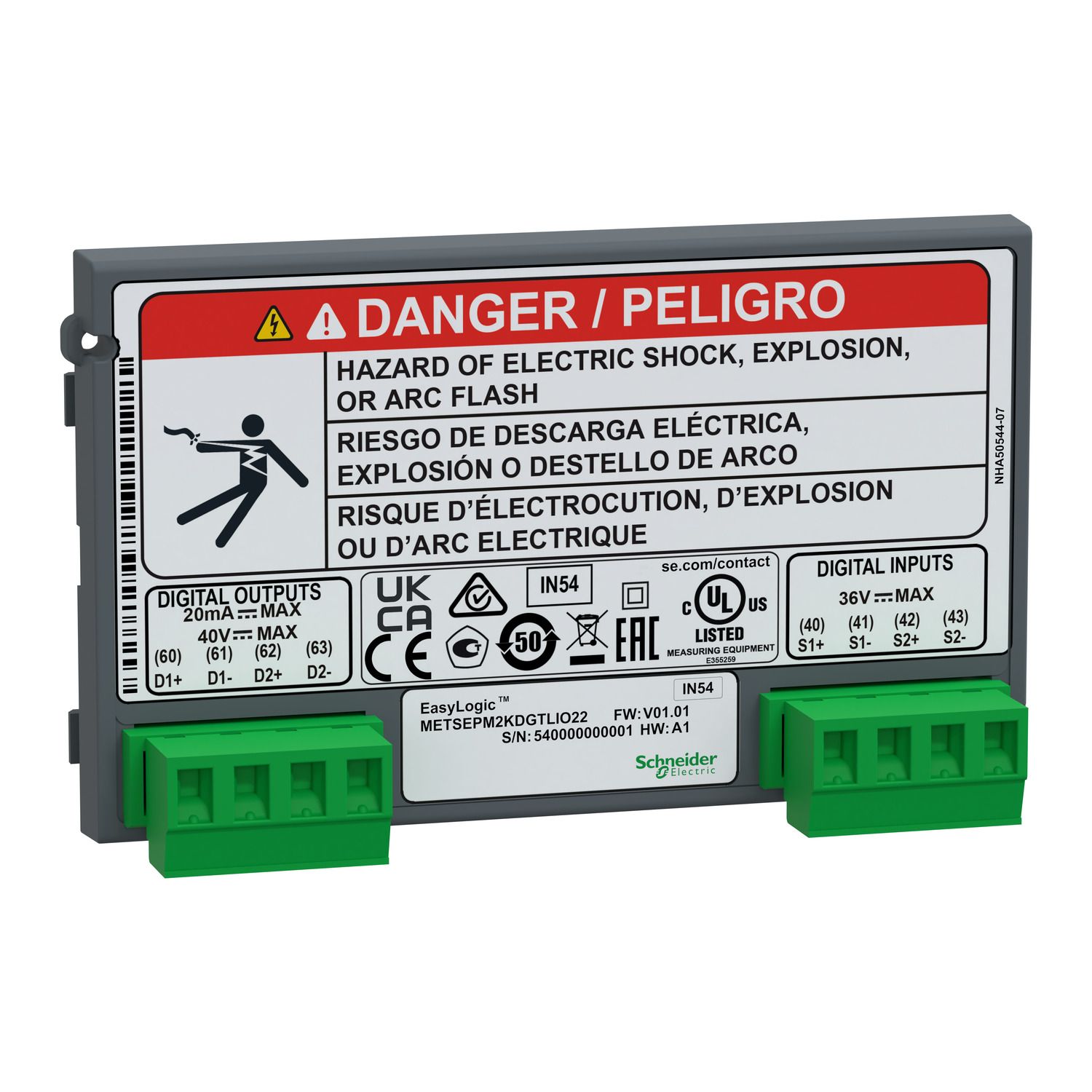

Picture of EasyLogic, PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs
SKU:

METSEPM2KDGTLIO22

EasyLogic, PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs

Old price: $239.25 INC GST
$203.36 INC GST
Available for Shipping : 09-Mar-2026
Product Selector
EasyLogic, PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs
  • Bill checking to verify that you are only charged for the energy you use
  • Aggregation of energy consumption and cost allocation within the same facility
  • Energy cost and usage analysis to optimise energy usage
  • Metering of electrical parameters to understand your electrical distribution system
  • Include digital input and output
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Mar-2026
User guide
Circularity Profile
Declaration of conformity
Instruction sheet
CAD
Brochure
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable outputs. This digital module provides 2 digital status inputs that support 30VDC. Plus 2 configurable pulse outputs to provide energy or parameters values. The pulse support loads up to 20mA at 40VDC. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.

Products specifications

Attribute name Attribute value
Main
Device short name PM2K2DIDO
Device application optional expansion module
Range EasyLogic
Product or component type I/O module
Range compatibility EasyLogic EasyLogic PM2200 PM2230, EasyLogic EasyLogic PM2100 PM2130
Complementary
Depth 14.6 mm
Output impedance 50 Ohm
Width 90.5 mm
Input impedance 110 kOhm
Switching frequency 2 Hz digital input
Voltage state 1 guaranteed 18.5...36 V DC
Number of inputs 2
Net weight 50 g
Voltage state 0 guaranteed 0...4 V DC
[Ui] rated insulation voltage 2500 V
Output voltage 40 V DC
Number of outputs 2 configurable, <= 20 mA
Height 53 mm
Environment
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation -10-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 104 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.98 kg
