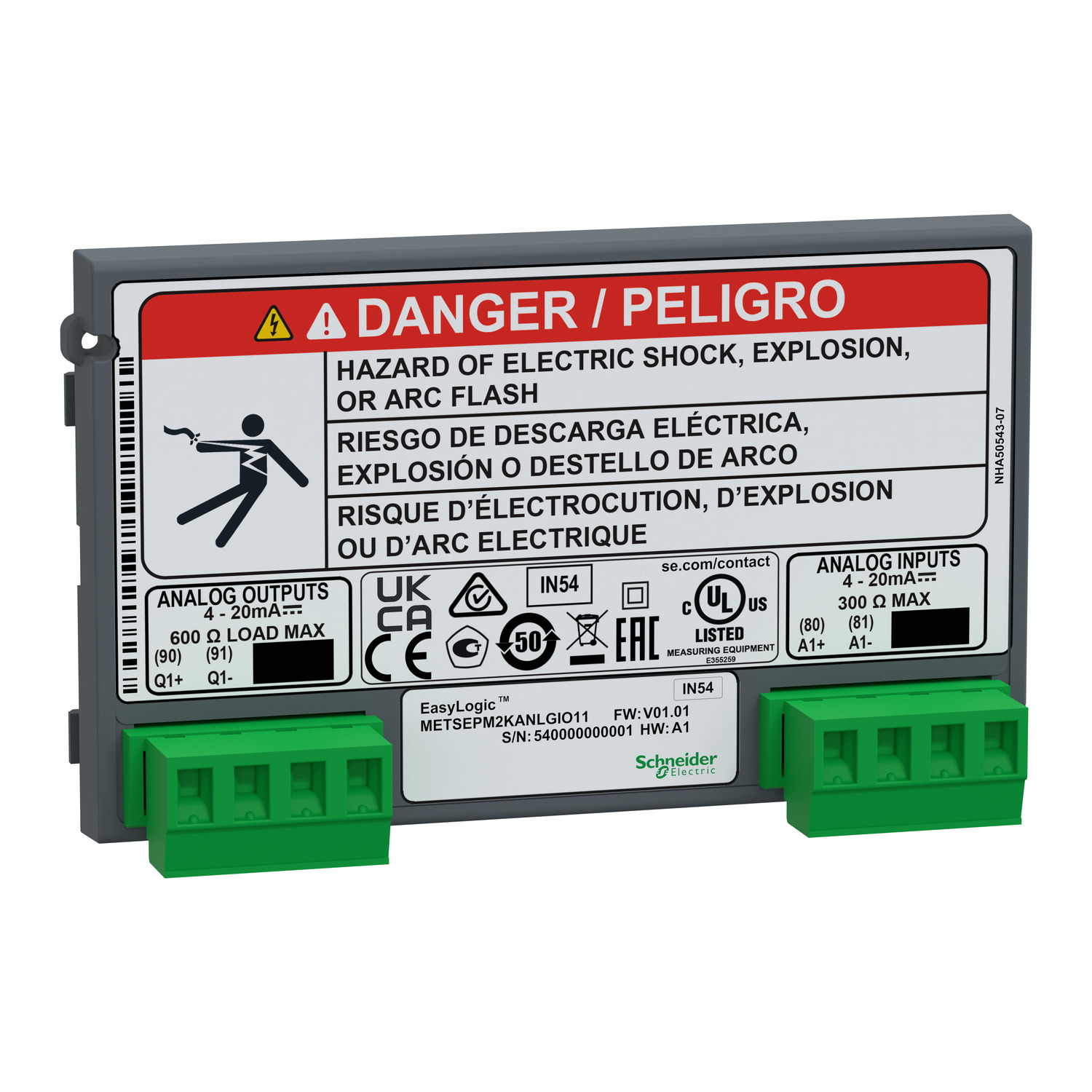

Picture of EasyLogic, PM2X30 - I/O Module - Analogue - 1 input + 1 output
SKU:

METSEPM2KANLGIO11

EasyLogic, PM2X30 - I/O Module - Analogue - 1 input + 1 output

Old price: $223.30 INC GST
$189.80 INC GST
Available for Shipping : 16-Dec-2025
Product Selector
EasyLogic, PM2X30 - I/O Module - Analogue - 1 input + 1 output
  • Bill checking to verify that you are only charged for the energy you use
  • Aggregation of energy consumption and cost allocation within the same facility
  • Energy cost and usage analysis to optimise energy usage
  • Metering of electrical parameters to understand your electrical distribution system
  • Include analog input and output
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Instruction sheet
User guide
Circularity Profile
Declaration of conformity
CAD
Brochure
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional analog inputs outputs. This analog module provides 1 analog input that support 4 to 20mA. Plus 1 analog output that can be assiciated to one out of 40 instantaneous parameters. The analog outputs support 4 to 20mA. Analog inputs and outputs are setted-up and configured through ION set-up software utility tool. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.

Products specifications

Attribute name Attribute value
Main
Device short name PM2K1AIAO
Device application optional expansion module
Range EasyLogic
Product or component type I/O module
Range compatibility EasyLogic EasyLogic PM2200 PM2230, EasyLogic EasyLogic PM2100 PM2130
Complementary
Depth 14.6 mm
Width 90.5 mm
Analogue input type analog input (impedance <= 300 Ohm)
Input voltage 12...30 V AC
Number of inputs 1 analog 4...20 mA
Net weight 50 g
[Ui] rated insulation voltage 2500 V
Analogue output type analog output, impedance <600 Ohm
Output voltage 12 V AC
Number of outputs 1 analog, 4...20 mA
Height 53 mm
Environment
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation -10-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 3.05 cm
Package 1 Length 9.05 cm
Package 1 Weight 47.3 g
