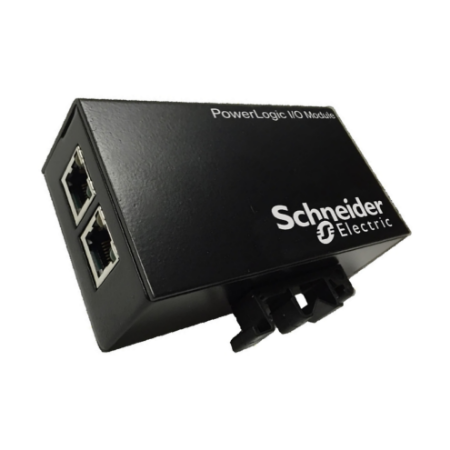

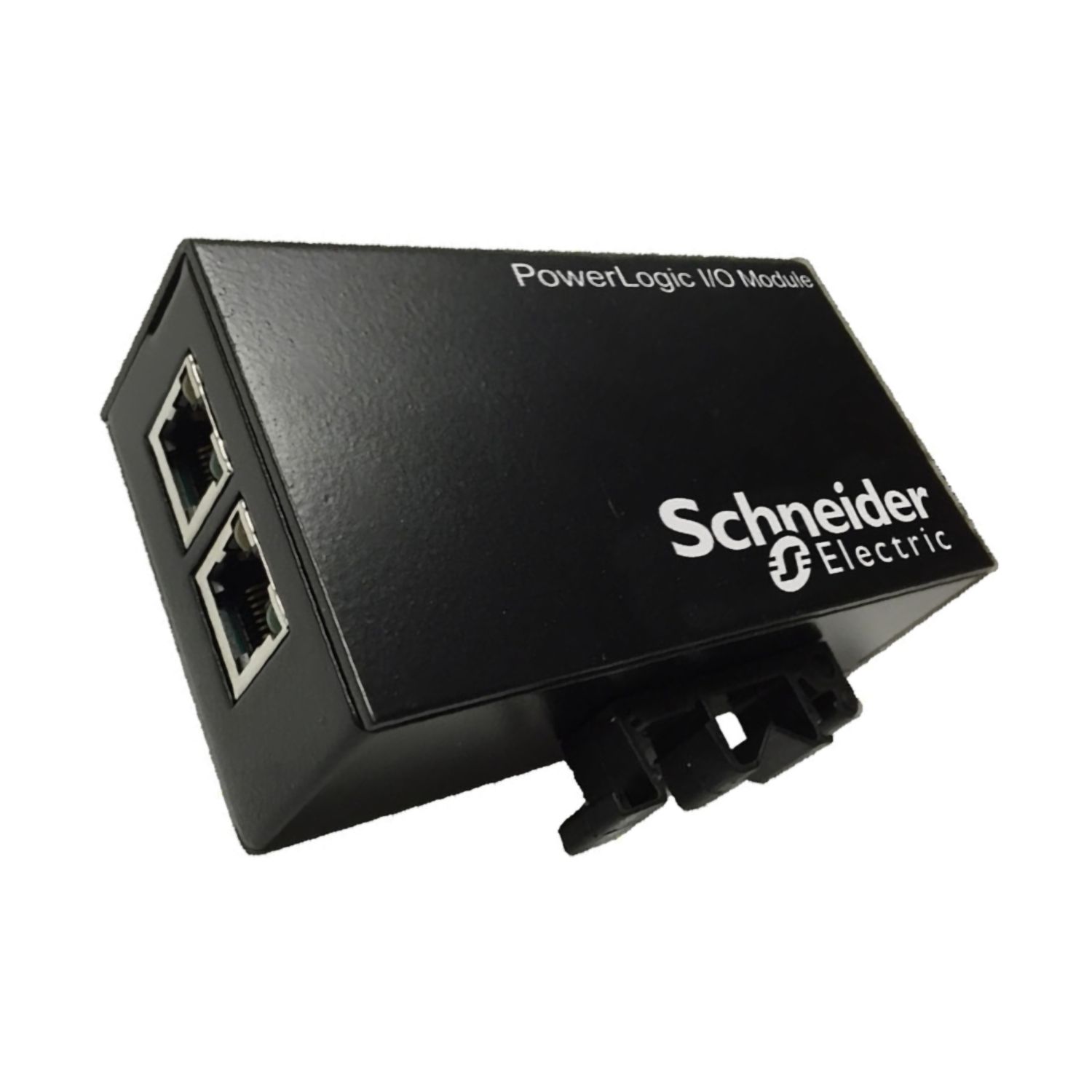

Picture of PowerLogic HDPM6000 additional input output module
SKU:

METSEHDPM6IO

PowerLogic HDPM6000 additional input output module

Old price: $1,570.80 INC GST
$1,335.18 INC GST
Available for Shipping : 03-Feb-2026
PowerLogic HDPM6000 additional input output module
  • Add controlling and monitoring ability to HDPM6000
  • Can be used to monitor accessories equipment
  • Input and output module powered by the head unit
  • include an additional CT input
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
Optional Input Output module compatible with PowerLogic HDPM6000 devices that provides additional feature to the multi-circuit meter. This IO module provide 2 dry contact inputs, 1 analog input, 1 relay output and an additional current transformer input. Maximum input voltage is 5VDC. The relay output can be connected to a 30VDC or 48VAC network. The analog input is a 0 to 10VDC voltage type. The IO module dimensions are 112mm in width, 87mm in height and 29mm in depth. The elements can be mounted on a DIN rail thanks to the clips on the side. To be connected to the PowerLogic HDPM6000 head unit with Ethernet cable in daisy-chain.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Product or component type I/O module
Range compatibility PowerLogic PowerLogic HDPM6000 current transformer, PowerLogic PowerLogic HDPM6000 base unit
Complementary
Number of inputs 1 current transformer, 2 dry contact
Depth 28.70 mm
Width 111.76 mm
Analogue input type analog input 0...10 V1 x
Input impedance 50 Ohm
Output voltage 48 V AC, 30 V DC
Input voltage 5 V DC
Mounting support enclosure, 35 mm DIN rail
Number of outputs 1 relay
Height 86.87 mm
Environment
Ambient air temperature for storage -20-70 °C
Ambient air temperature for operation -20-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.32 cm
Package 1 Width 20.32 cm
Package 1 Length 20.32 cm
Package 1 Weight 680 g
